Removal And Installation: Column: Removal

    All Vehicles

    NOTE: Make sure the front wheels are in the straight-ahead position.
  1. Disconnect the battery ground cable (14301) and wait at least one minute. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. WARNING: To avoid the risk of serious personal injury, read and follow all warnings, notes and instructions in the deactivation procedure.
  3. Deactivate the supplemental restraint system (SRS). For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION .
  4. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, notes and instructions in the clockspring removal and installation procedure.
  5. Remove the clockspring. For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
  6. Remove the reinforcement.
    1. Remove the screws and the data link connector.
    2. Remove the bolts and the reinforcement.

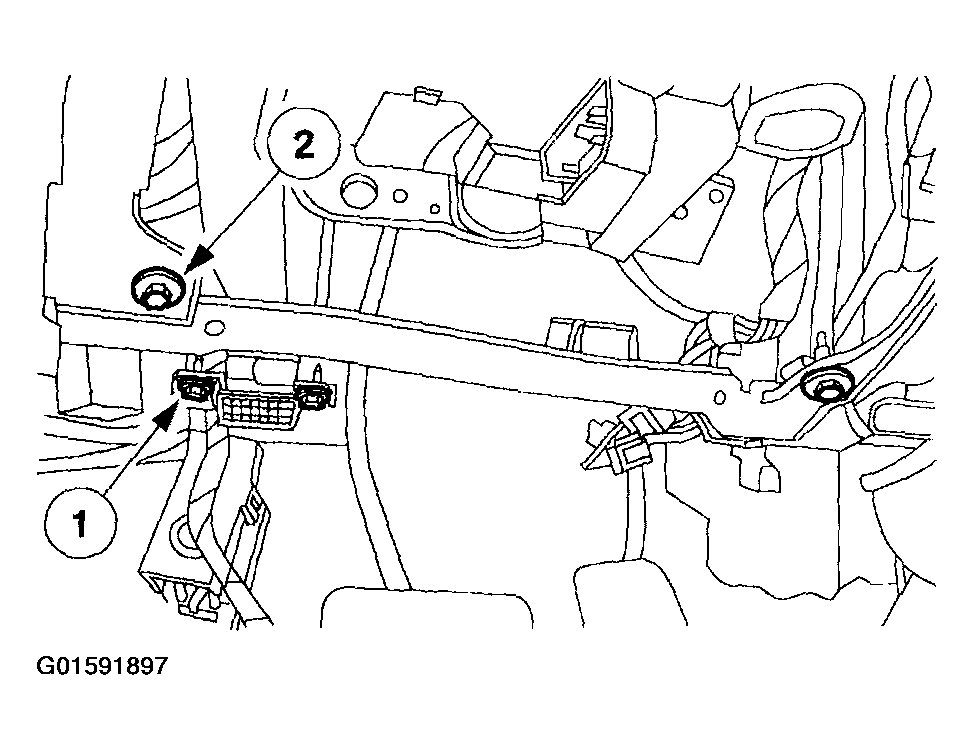

    Fig 1: Removing Reinforcement
    G01591897Courtesy of FORD MOTOR CO.
  7. Remove the screws.

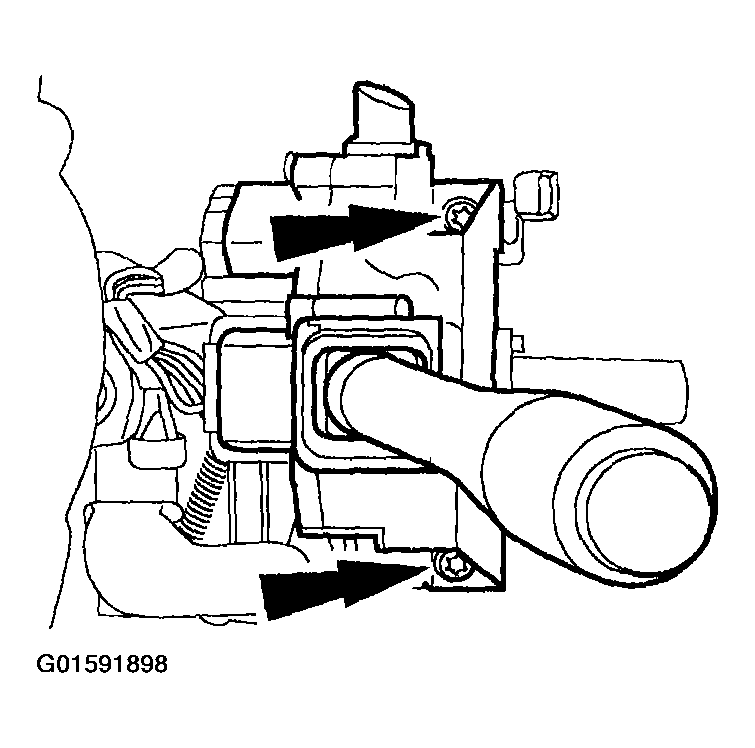

    Fig 2: Removing Multi-Function Switch Screws
    G01591898Courtesy of FORD MOTOR CO.
  8. Disconnect the electrical connectors and remove the multi-function switch.

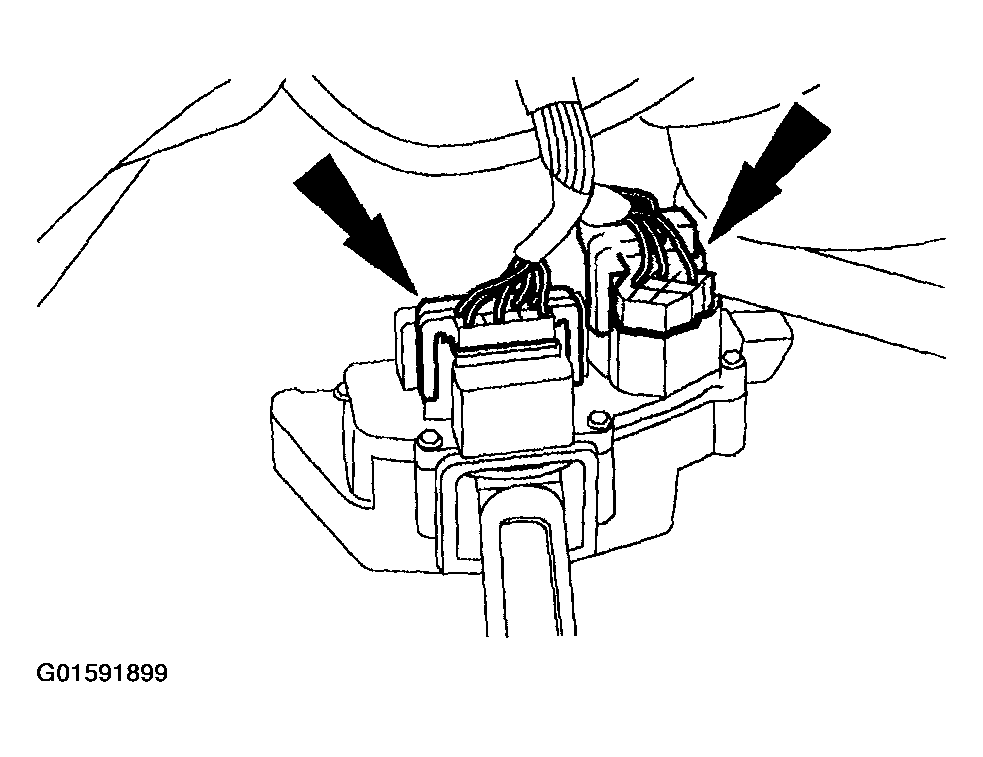

    Fig 3: Disconnecting Electrical Connectors And Removing Multi-Function Switch
    G01591899Courtesy of FORD MOTOR CO.
  9. Position the wiring aside.
    1. Disconnect the electrical connector.
    2. Pull the wiring harness routing pin out of the steering column.

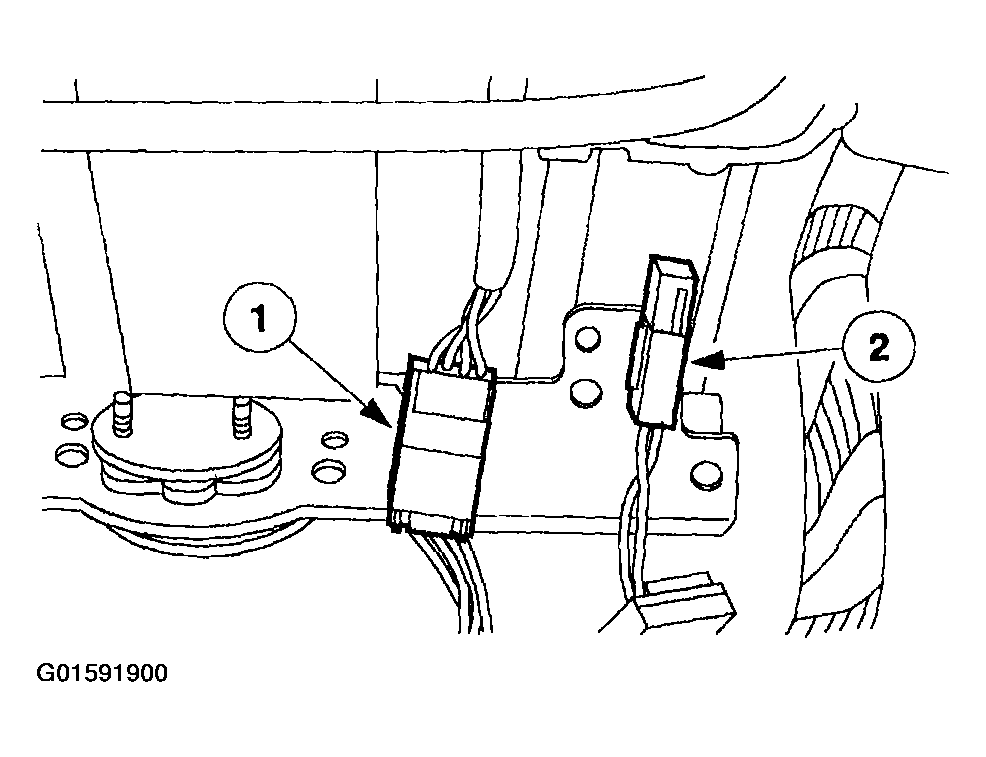

    Fig 4: Disconnecting Electrical Connector
    G01591900Courtesy of FORD MOTOR CO.
  10. Pull the wiring harness routing pin out of the steering column.

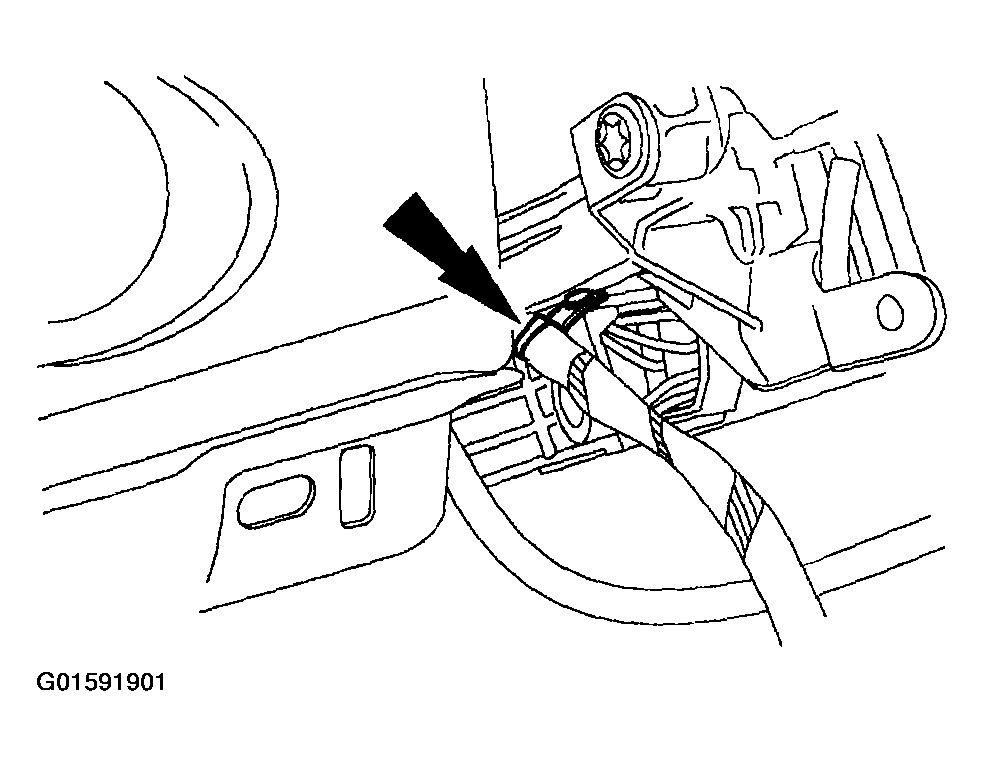

    Fig 5: Pulling Wiring Harness Routing Pin Out Of Steering Column
    G01591901Courtesy of FORD MOTOR CO.
  11. Disconnect the ignition switch electrical connector.

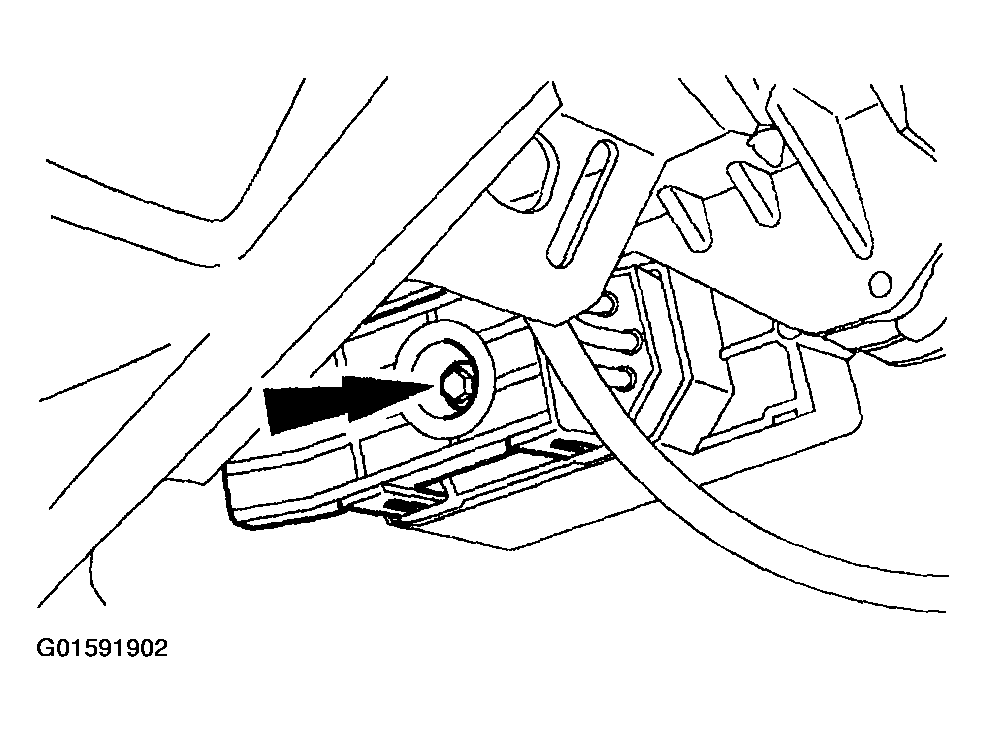

    Fig 6: Disconnecting Ignition Switch Electrical Connector
    G01591902Courtesy of FORD MOTOR CO.
  12. Remove the bolt.

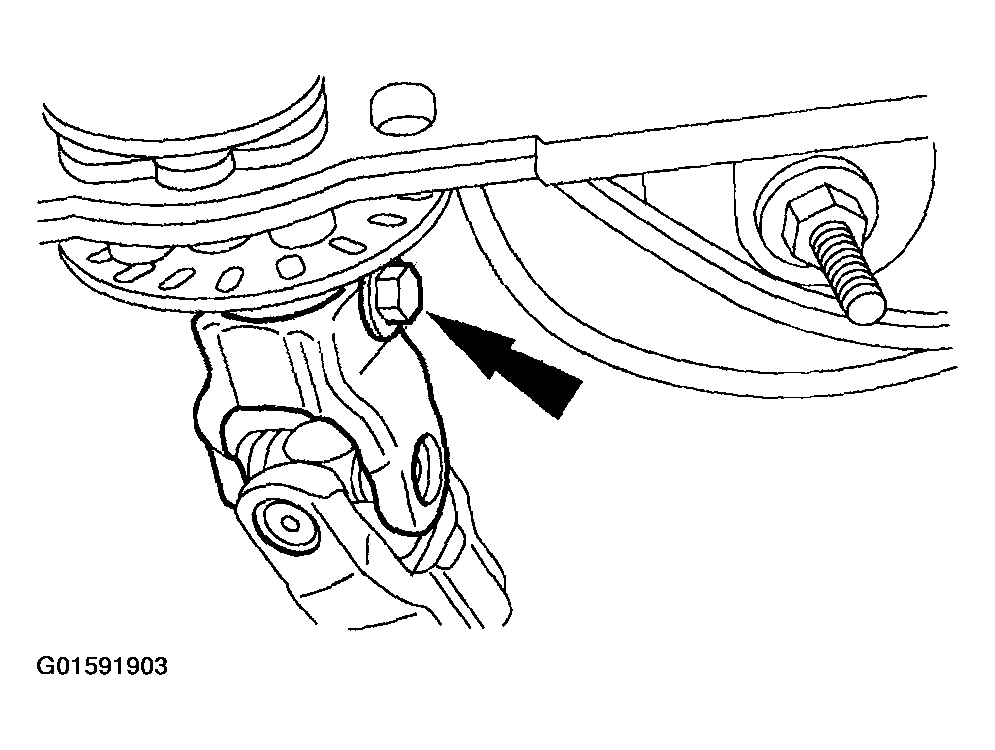

    Fig 7: Removing Steering Column Coupling Bolt
    G01591903Courtesy of FORD MOTOR CO.
  13. Remove the four nuts and lower the steering column.

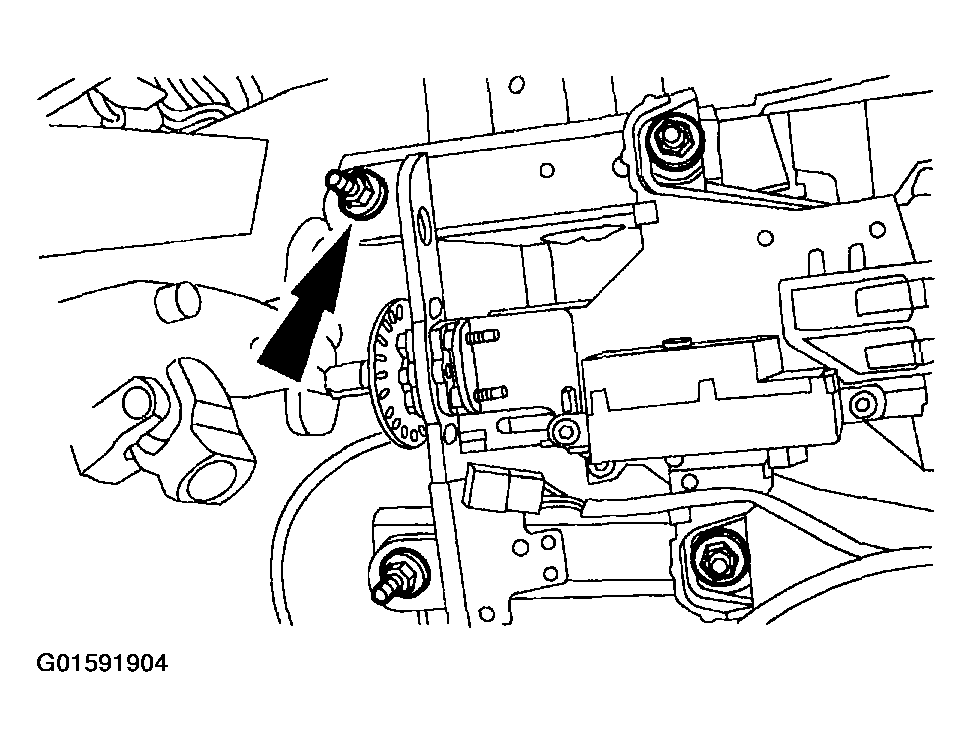

    Fig 8: Removing Four Nuts And Steering Column
    G01591904Courtesy of FORD MOTOR CO.
  14. Vehicles With Column Shift

  15. Disconnect the brake shift interlock electrical connector.

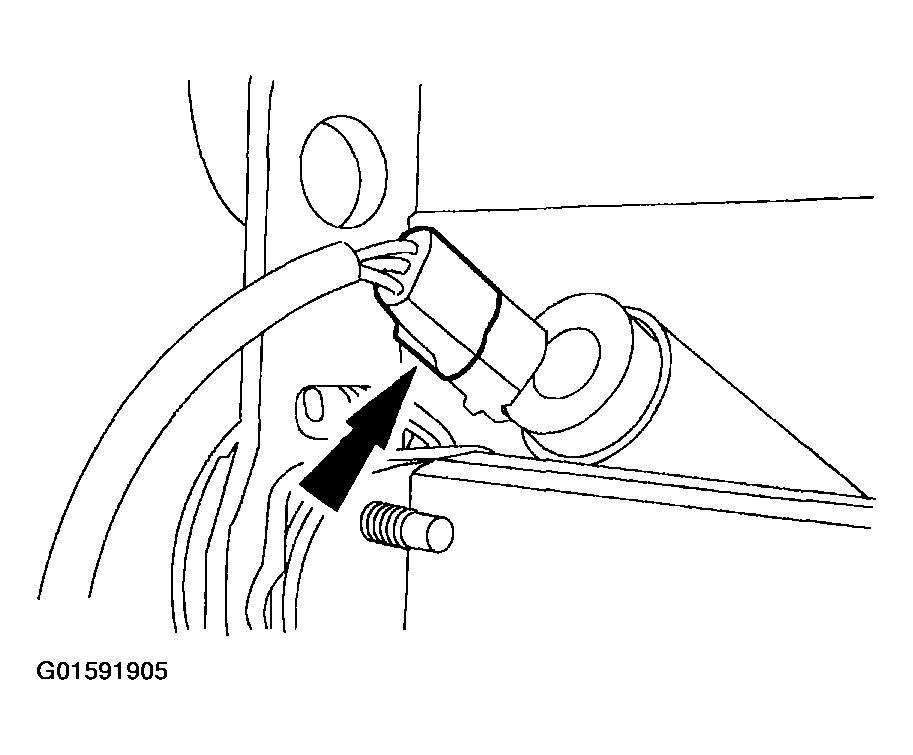

    Fig 9: Disconnecting Brake Shift Interlock Electrical Connector
    G01591905Courtesy of FORD MOTOR CO.
  16. Disconnect the shift cable and remove the steering column.

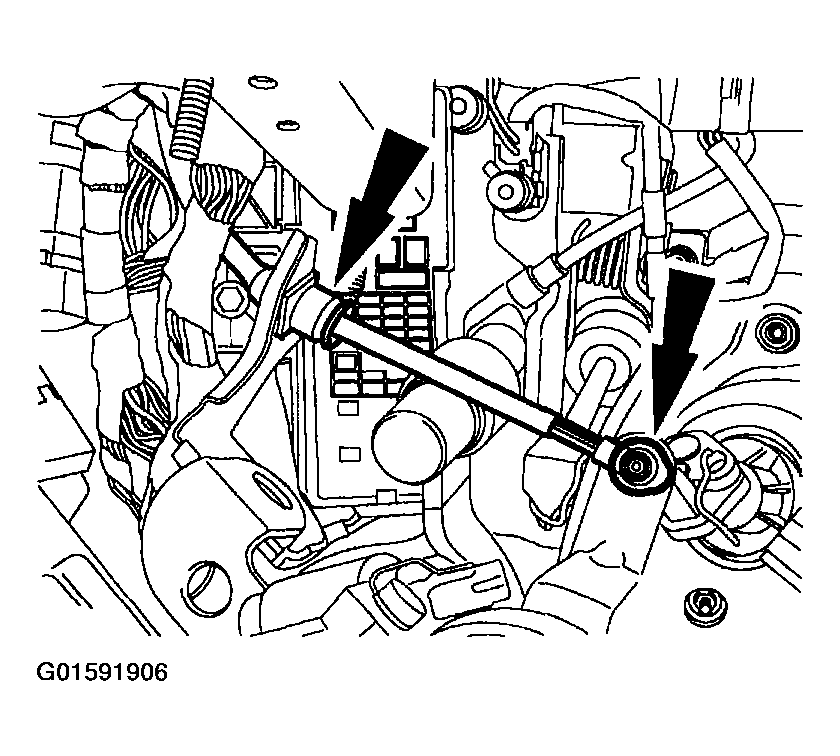

    Fig 10: Disconnecting Shift Cable
    G01591906Courtesy of FORD MOTOR CO.
  17. Vehicles With Console Shift

  18. Disconnect the shift interlock actuator and remove the steering column.

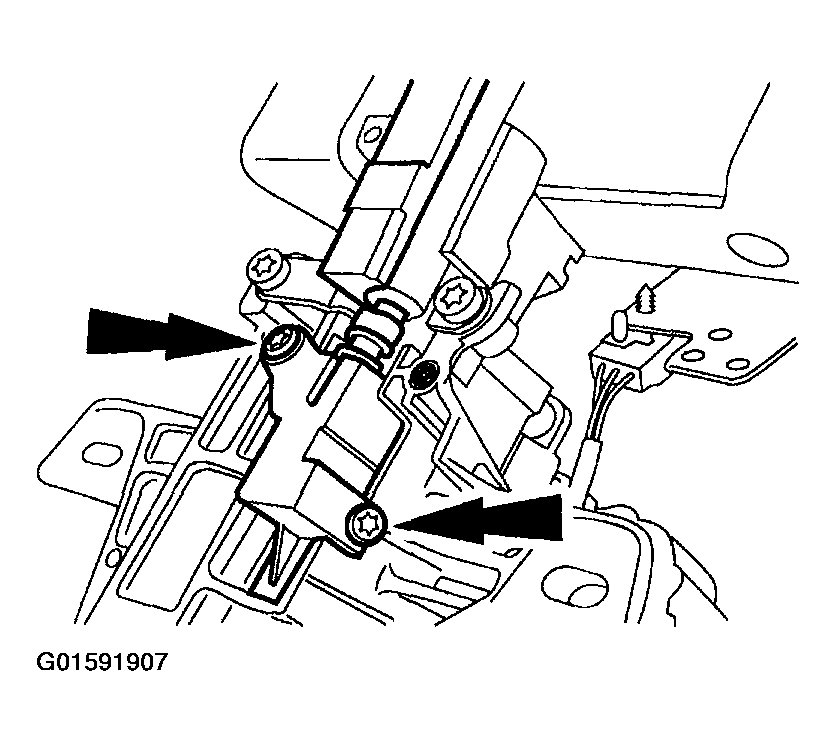

    Fig 11: Disconnect Shift Interlock Actuator
    G01591907Courtesy of FORD MOTOR CO.
