Pinpoint Test A: No Communication With Anti-Lock Brake Control Module

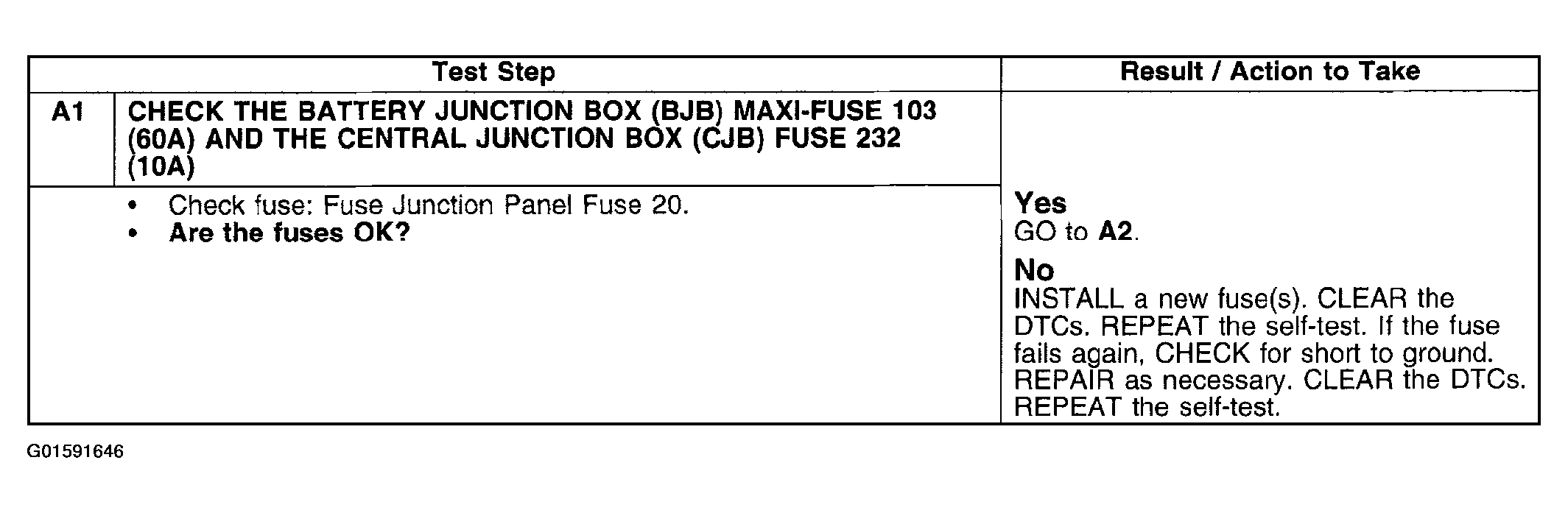

Fig 1: Pinpoint Test A: No Communication With Anti-Lock Brake Control Module (Steps A1)

Courtesy of FORD MOTOR CO.

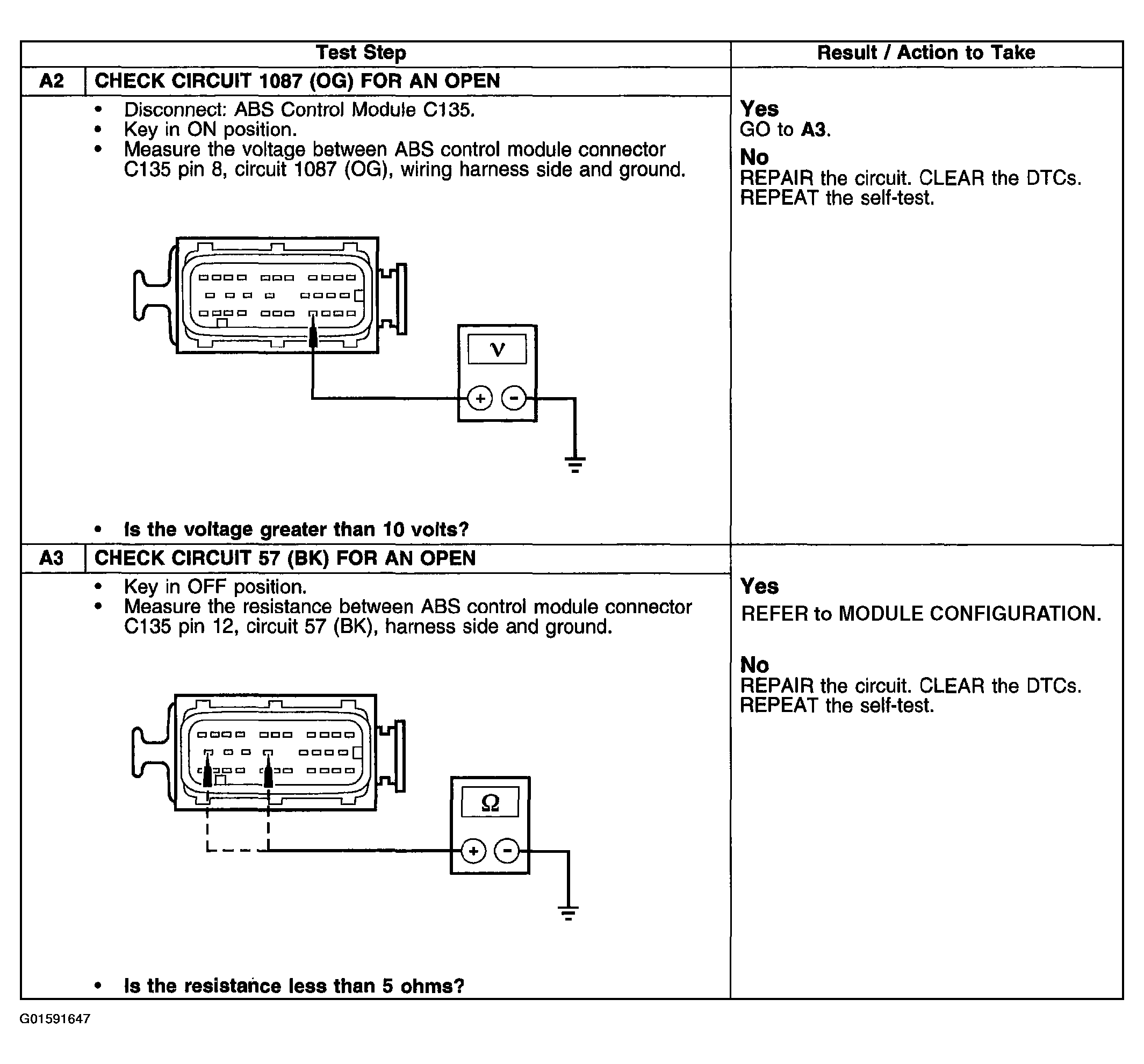

Fig 2: Pinpoint Test A: No Communication With Anti-Lock Brake Control Module (Steps A2-A3)

Courtesy of FORD MOTOR CO.
