Spring Lock Coupling: Disconnect

WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited, resulting in possible personal injury.

WARNING: Fuel in the fuel system remains under high pressure even when the engine is not running. Before servicing or disconnecting any of the fuel lines or fuel system components, the fuel system pressure must be relieved to prevent accidental spraying of fuel, causing personal injury or a fire hazard.

Relieve the fuel pressure. For additional information, refer to FUEL SYSTEM PRESSURE RELEASE .

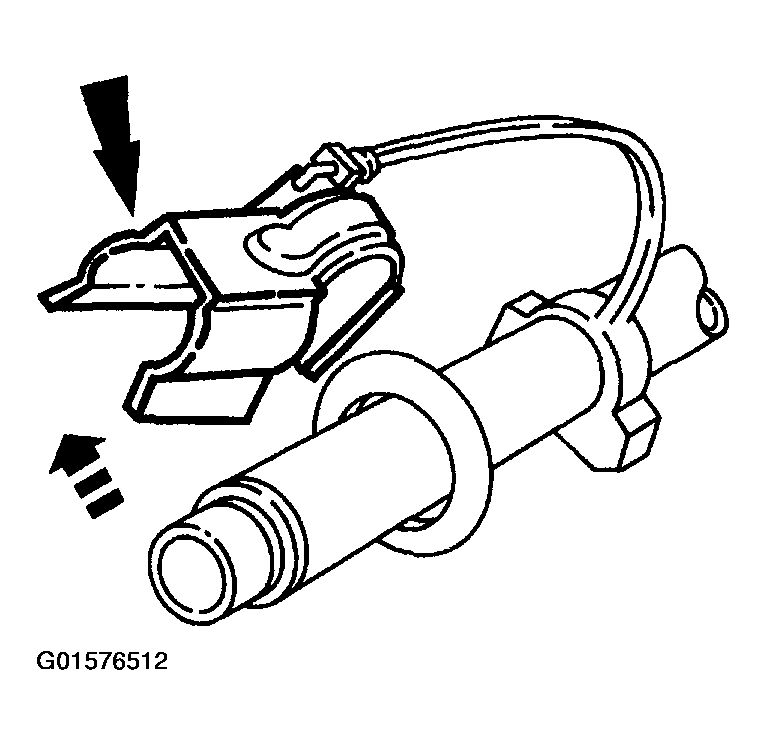

Remove the fuel tube clip.

Fig 1: Identifying Fuel Tube Clip
Courtesy of FORD MOTOR CO.

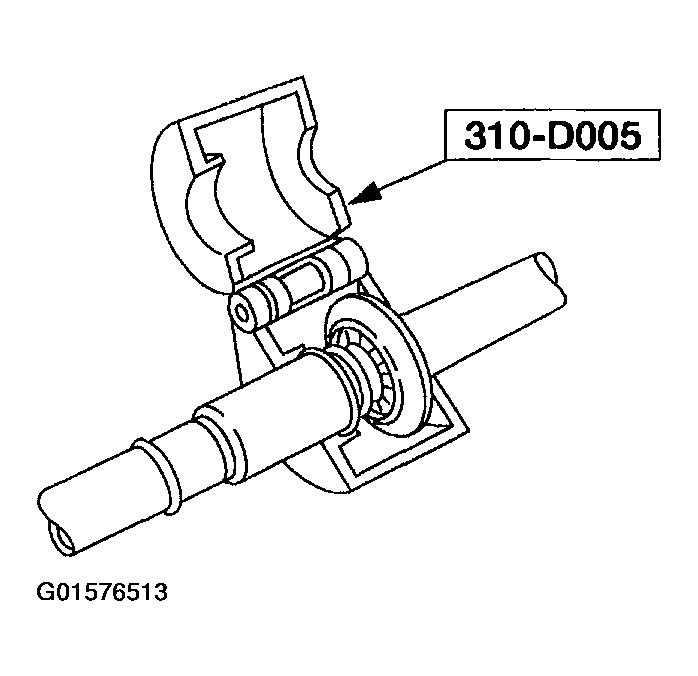

Install the special tool.

Fig 2: Installing Special Tool In Spring Lock Coupling
Courtesy of FORD MOTOR CO.

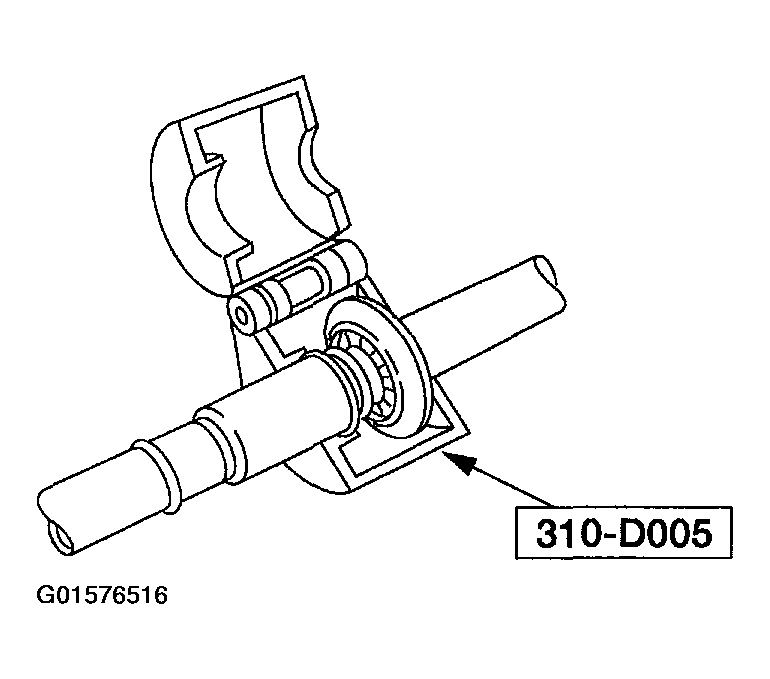

Close and push the special tool into the open side of the cage.

Fig 3: Applying Special Tool Into Open Side Of Cage
Courtesy of FORD MOTOR CO.

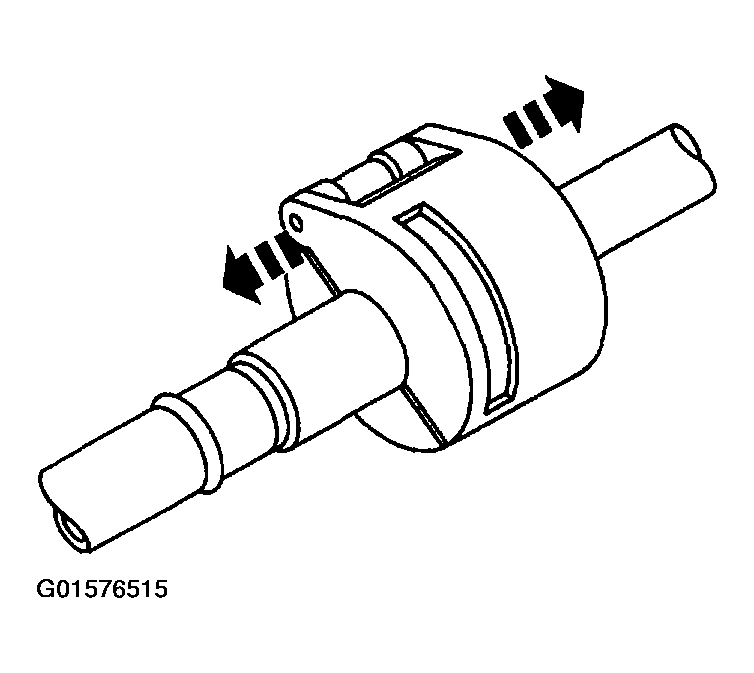

Separate the fitting.

Fig 4: Fitting Special Tool In Spring Lock Coupling
Courtesy of FORD MOTOR CO.

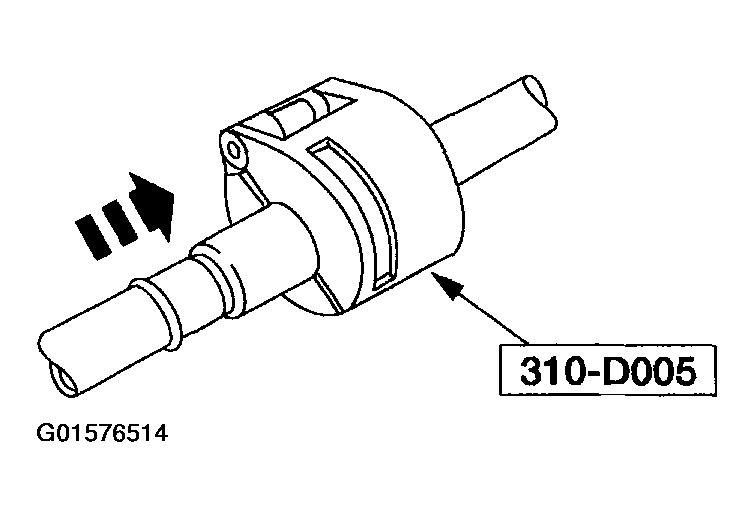

Remove the special tool.

Fig 5: Removing Special Tool In Spring Lock Coupling
Courtesy of FORD MOTOR CO.
