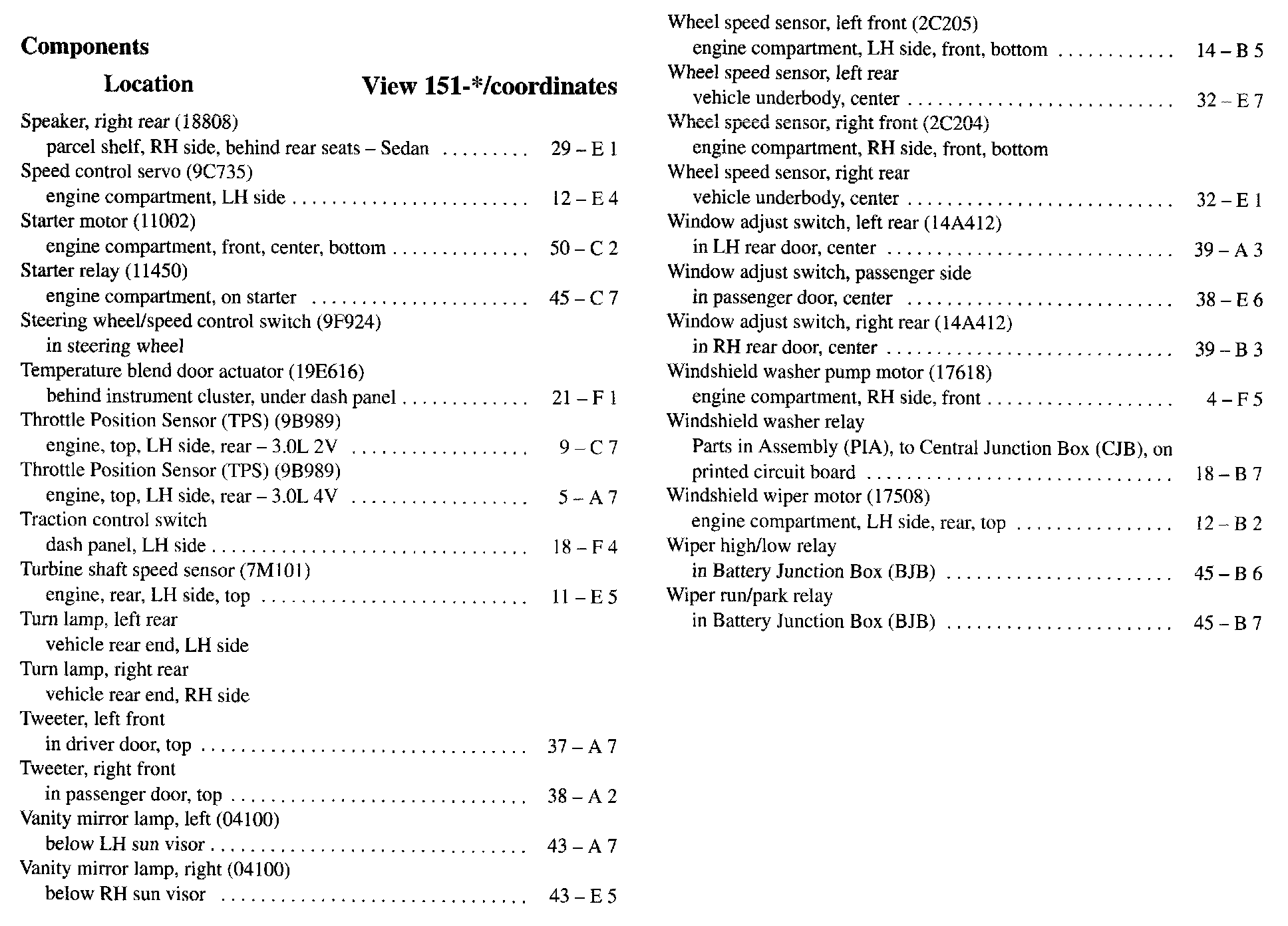

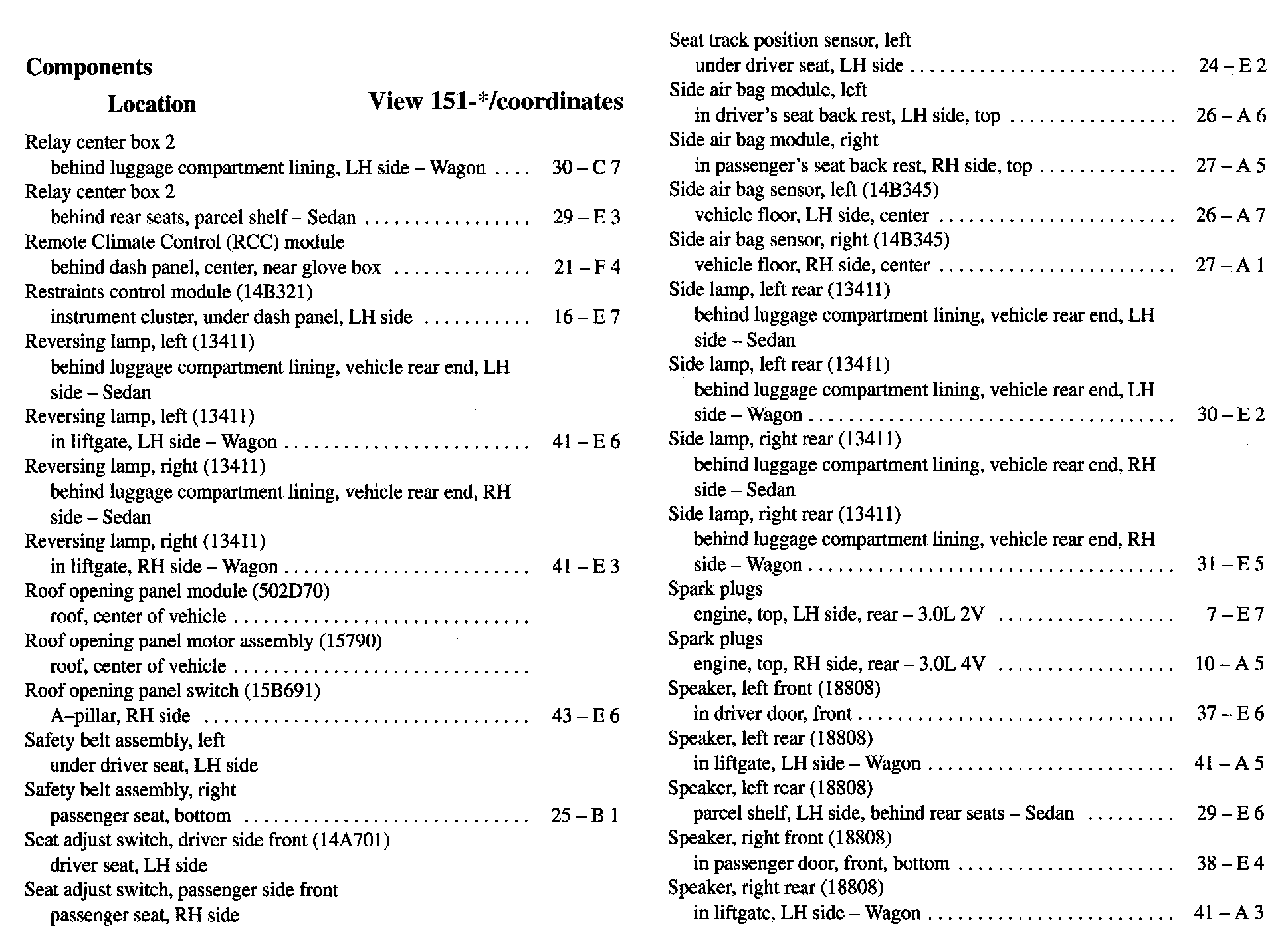

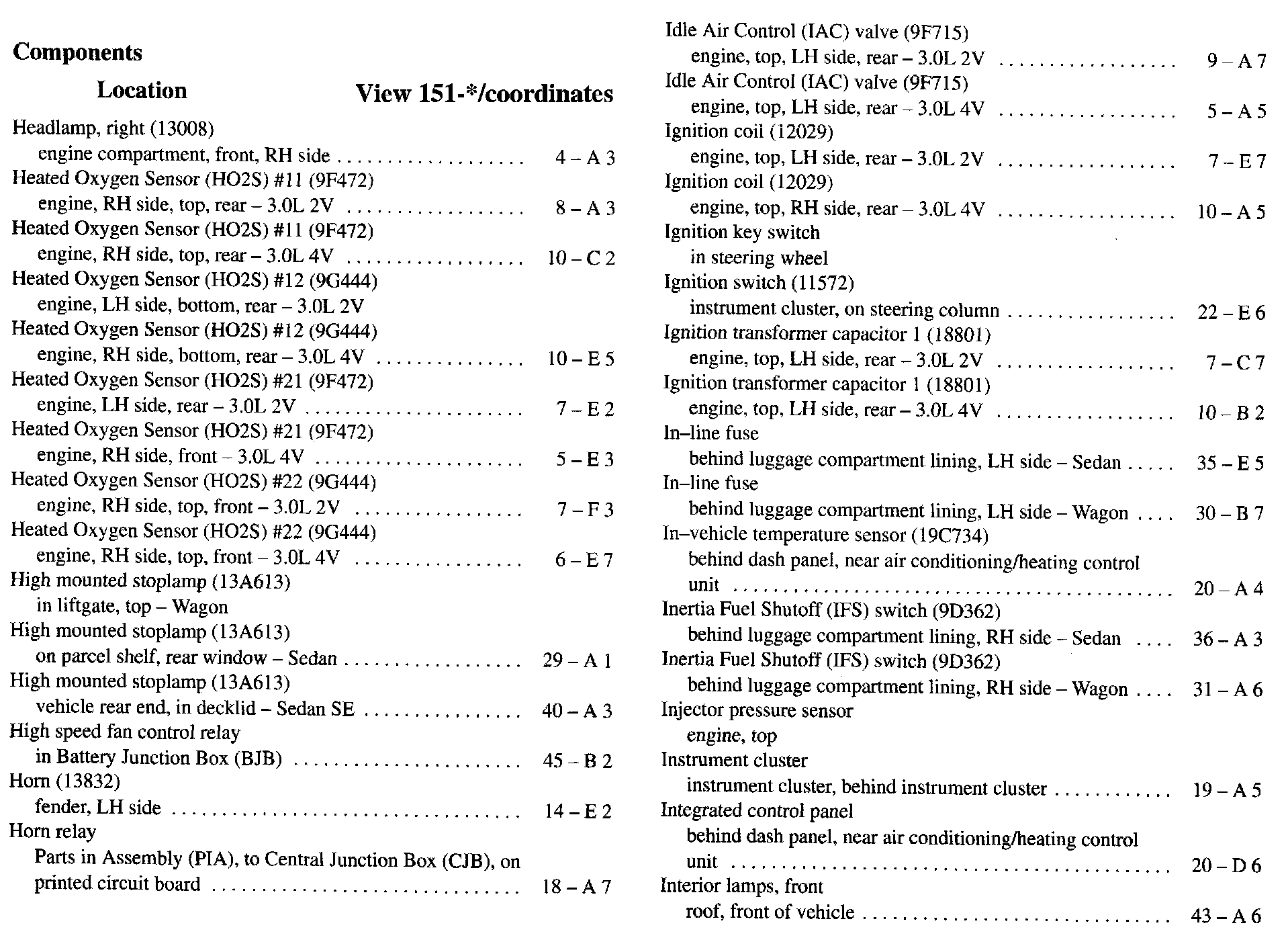

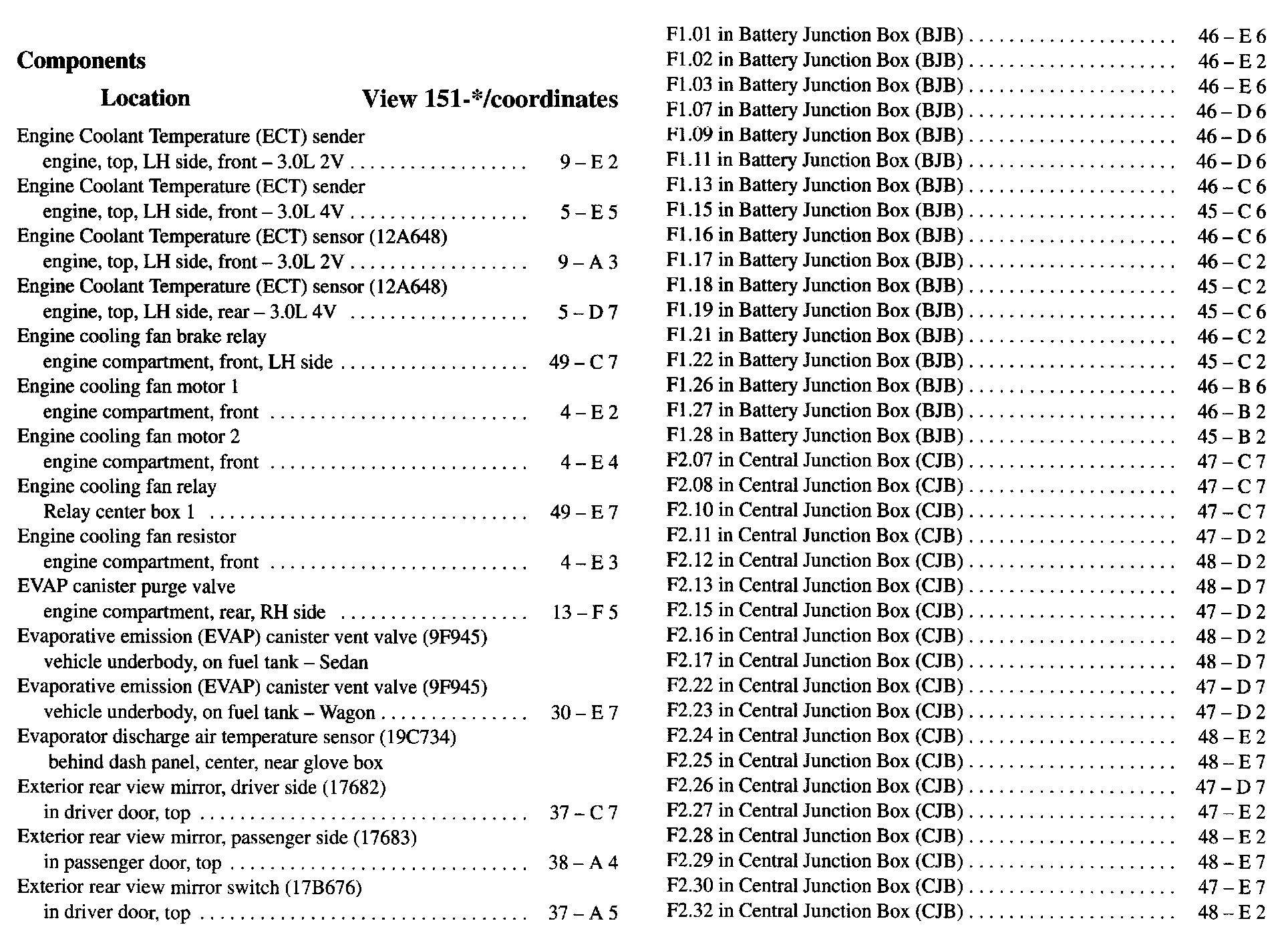

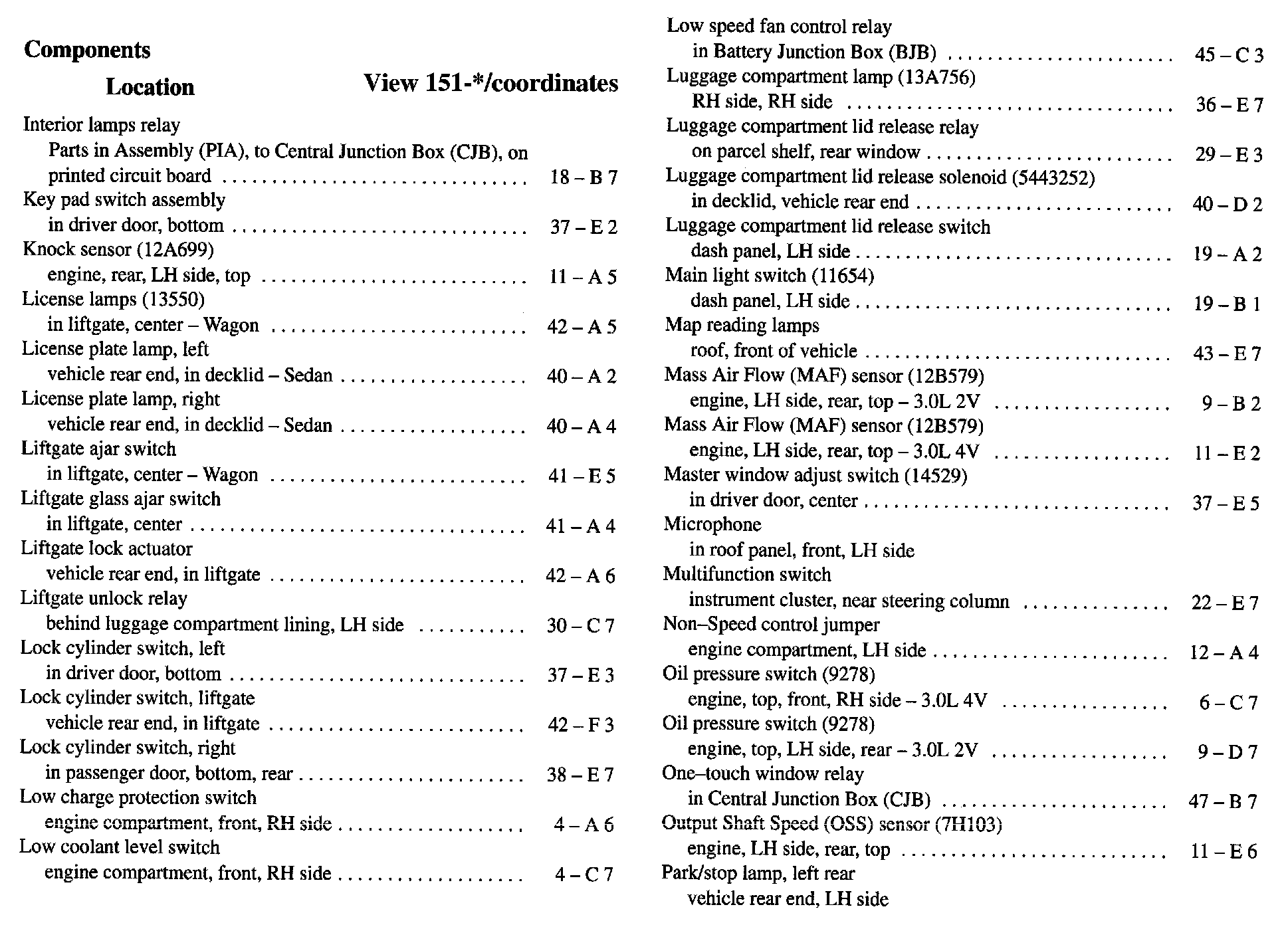

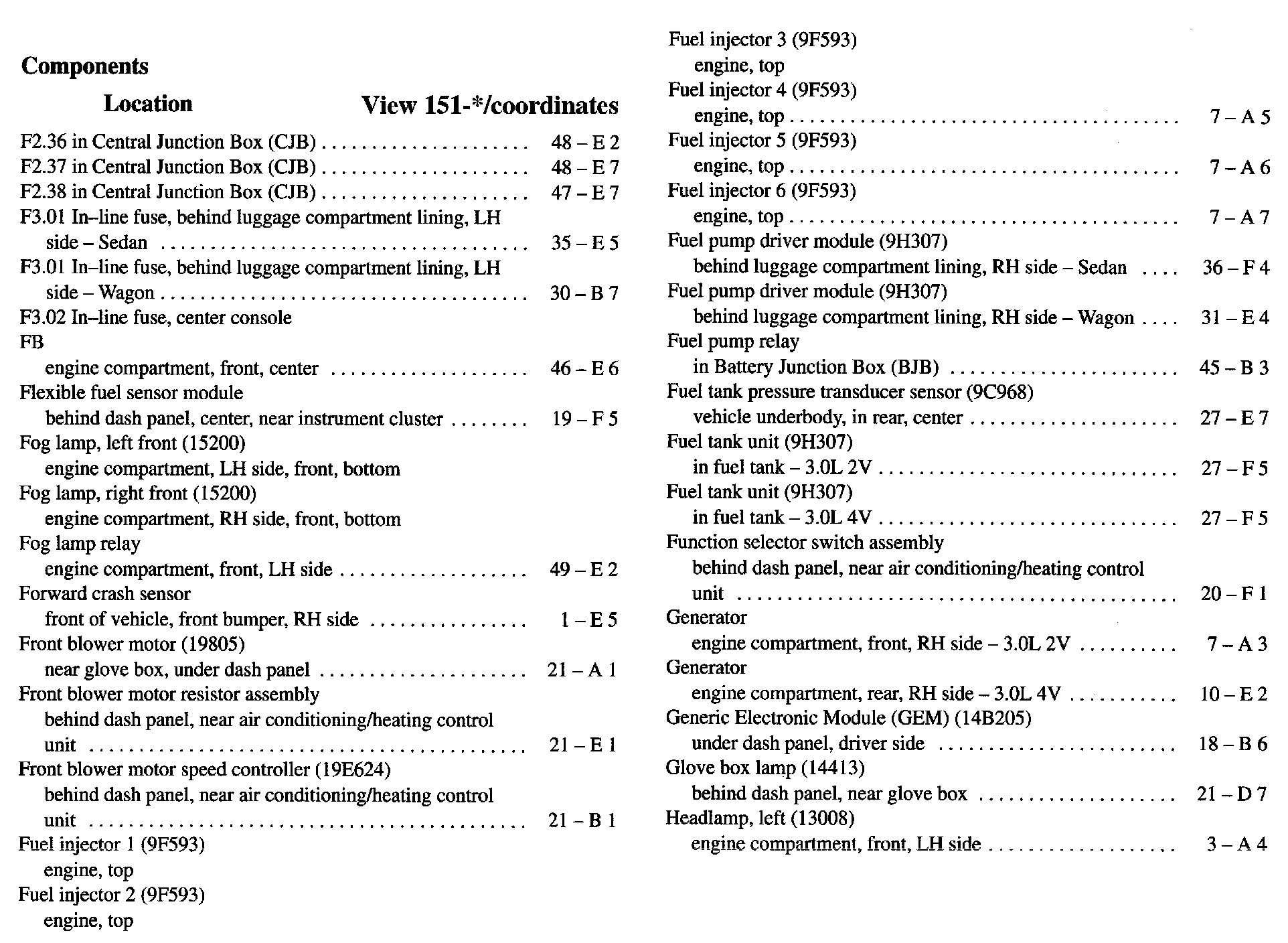

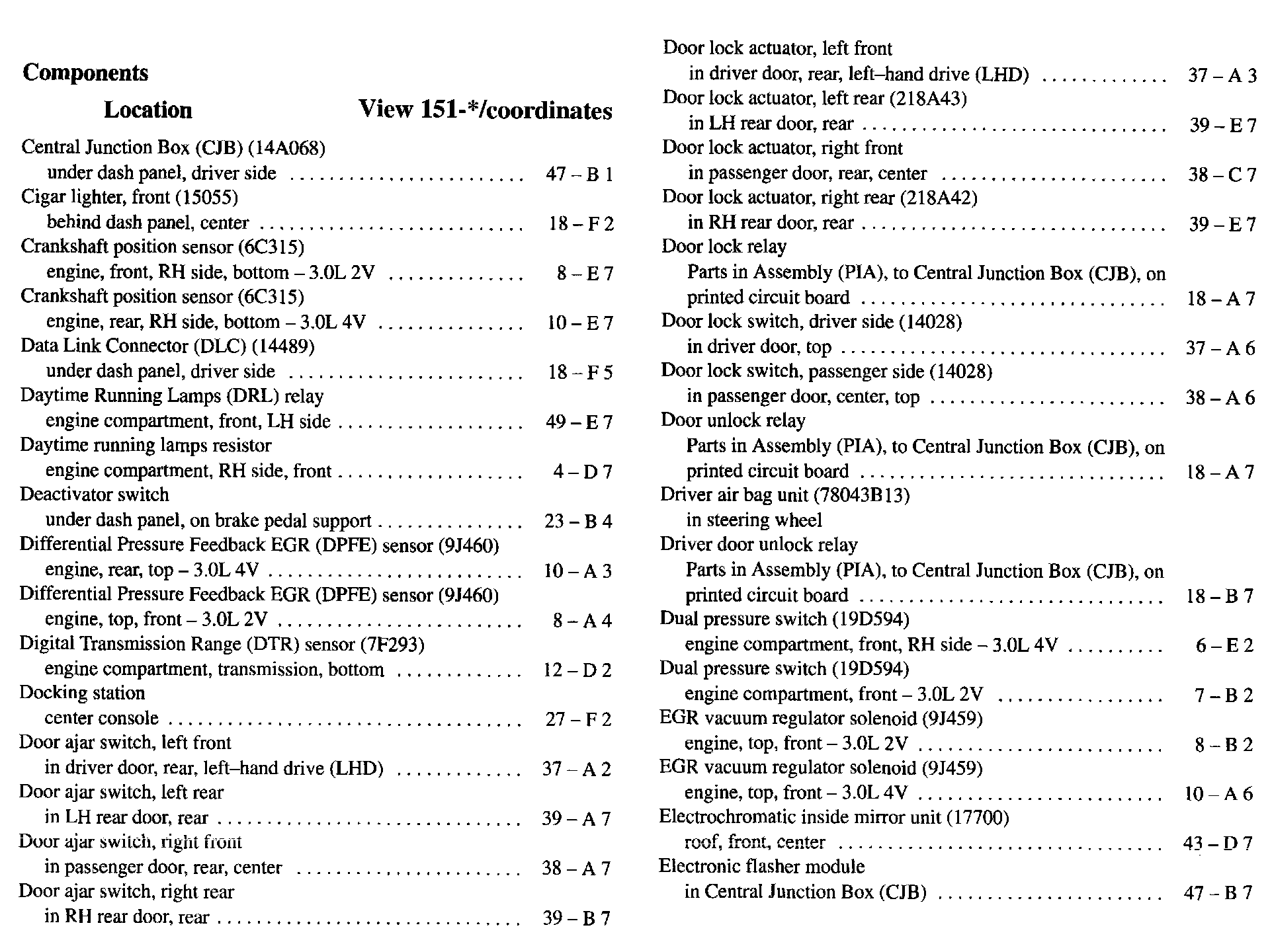

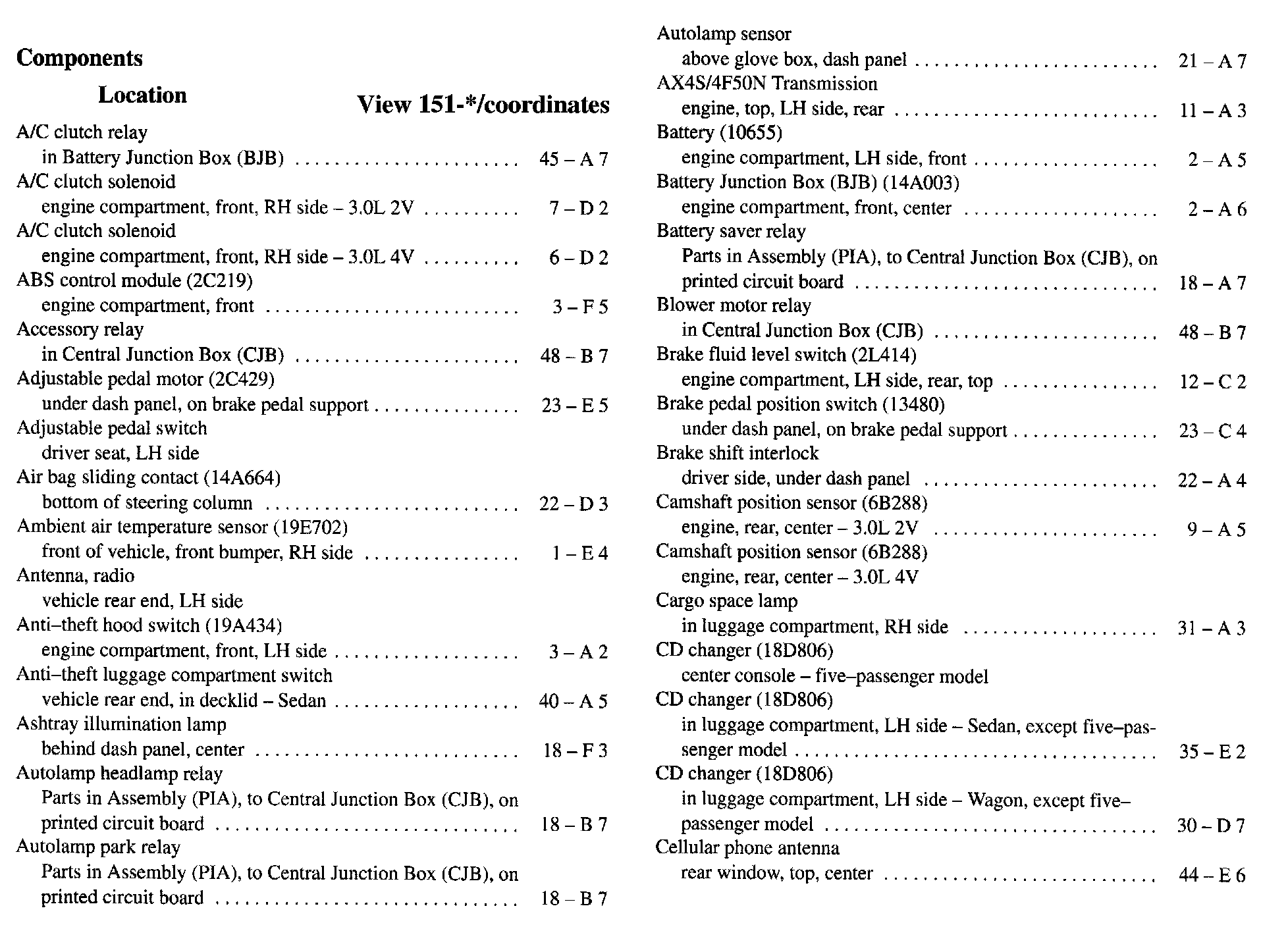

Component Location Index
PLEASE NOTE: If a link on the Component Location Index to a view is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.
A/C - Ce:
Ce - El:
En - F2.32:
F2.36 - He:
He - In:
In - Pa:
Pa - Re:
Re - Sp:
Sp - Wi:
