Rear

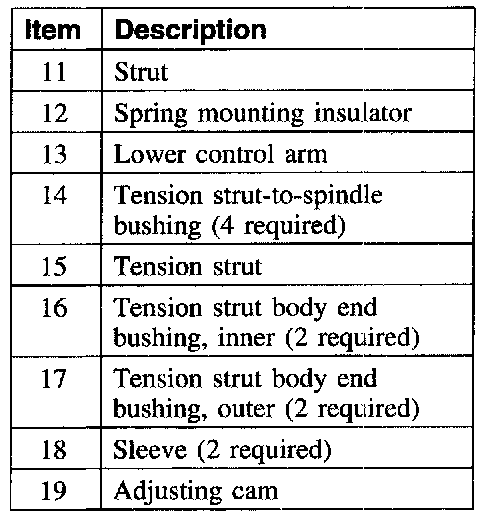

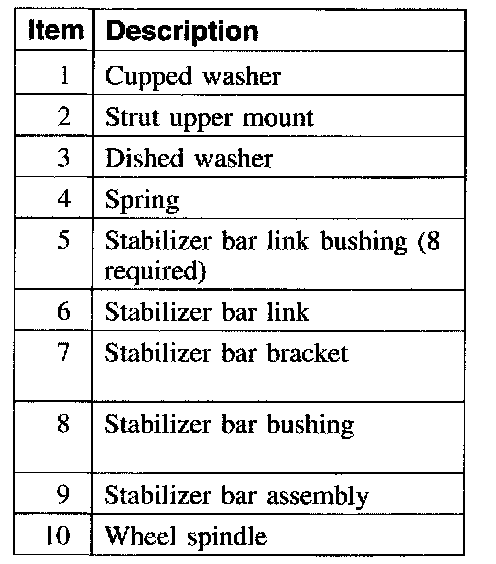

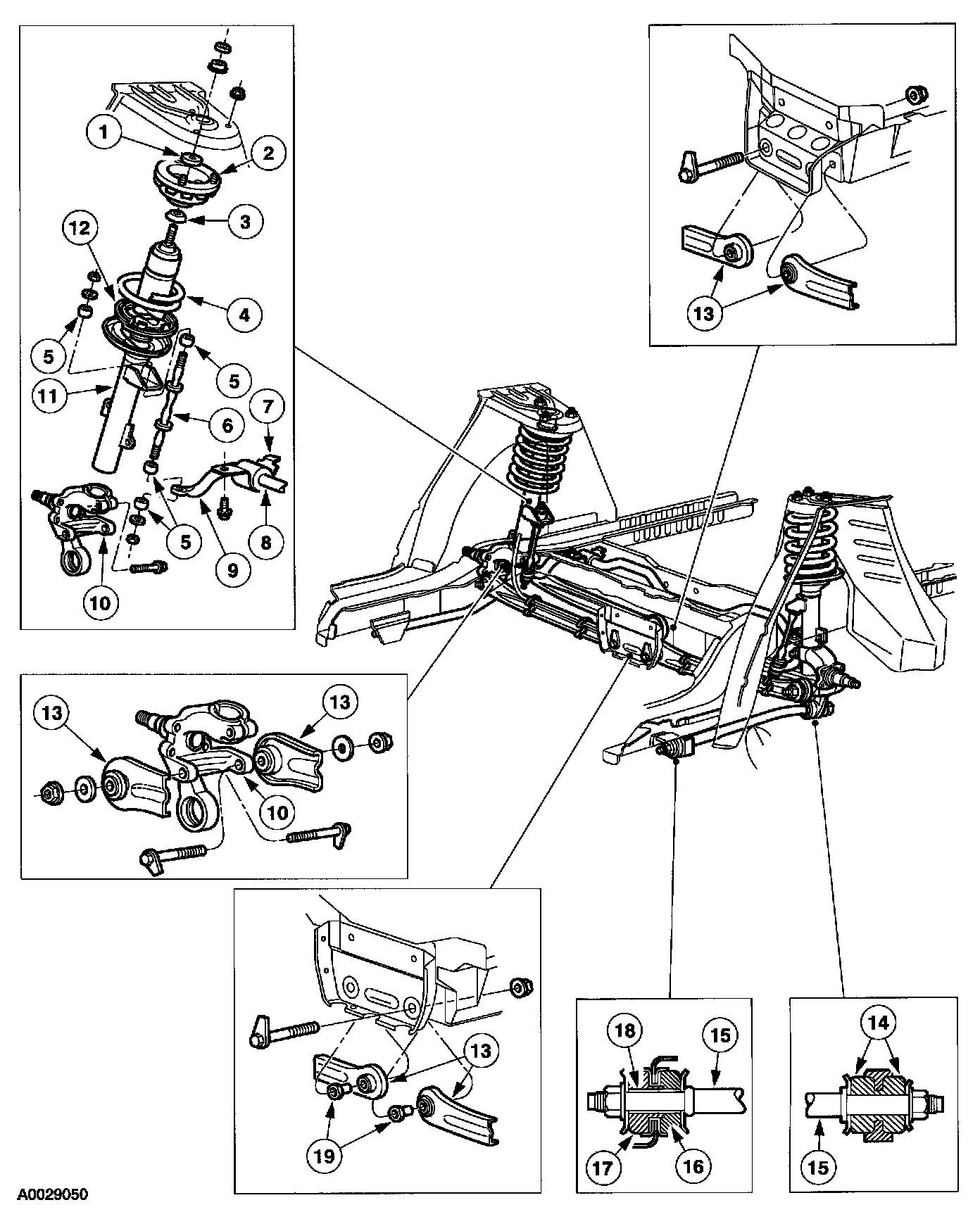

Four Door Rear Suspension Components

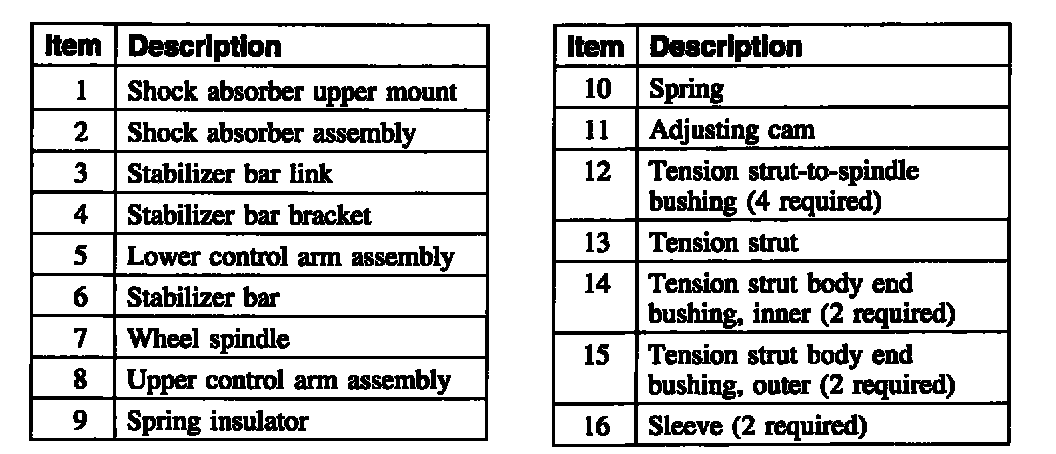

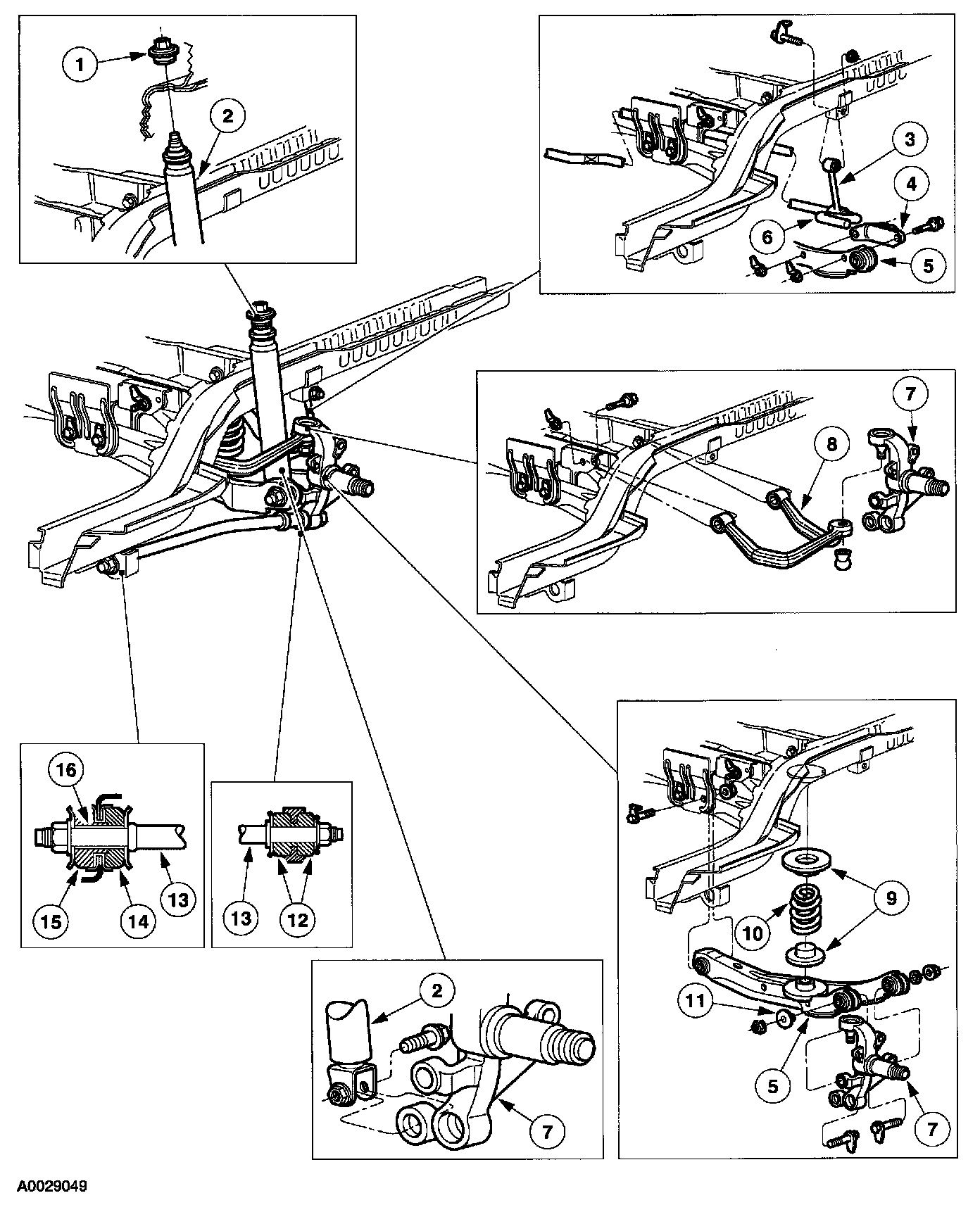

Station Wagon Rear Suspension Components

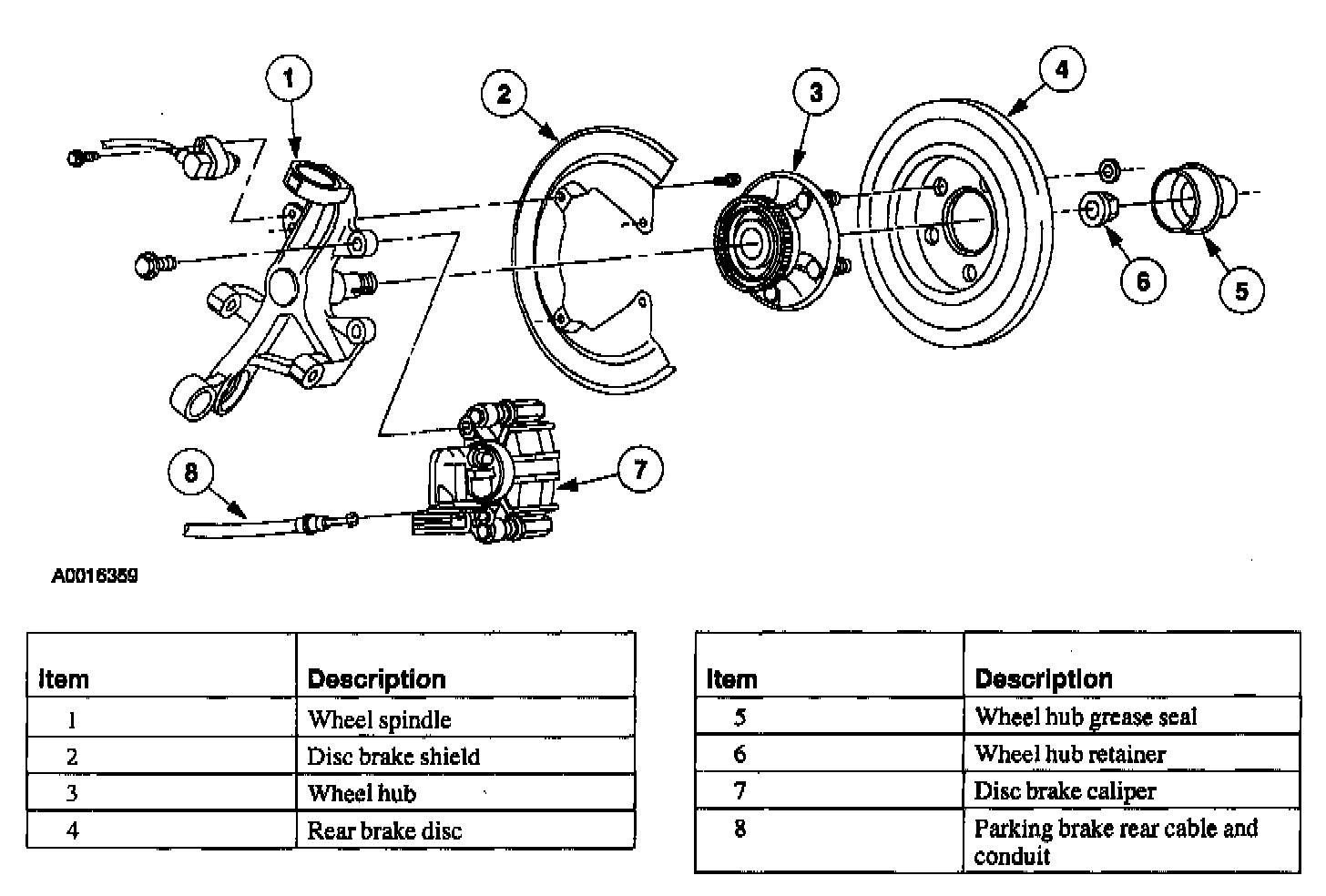

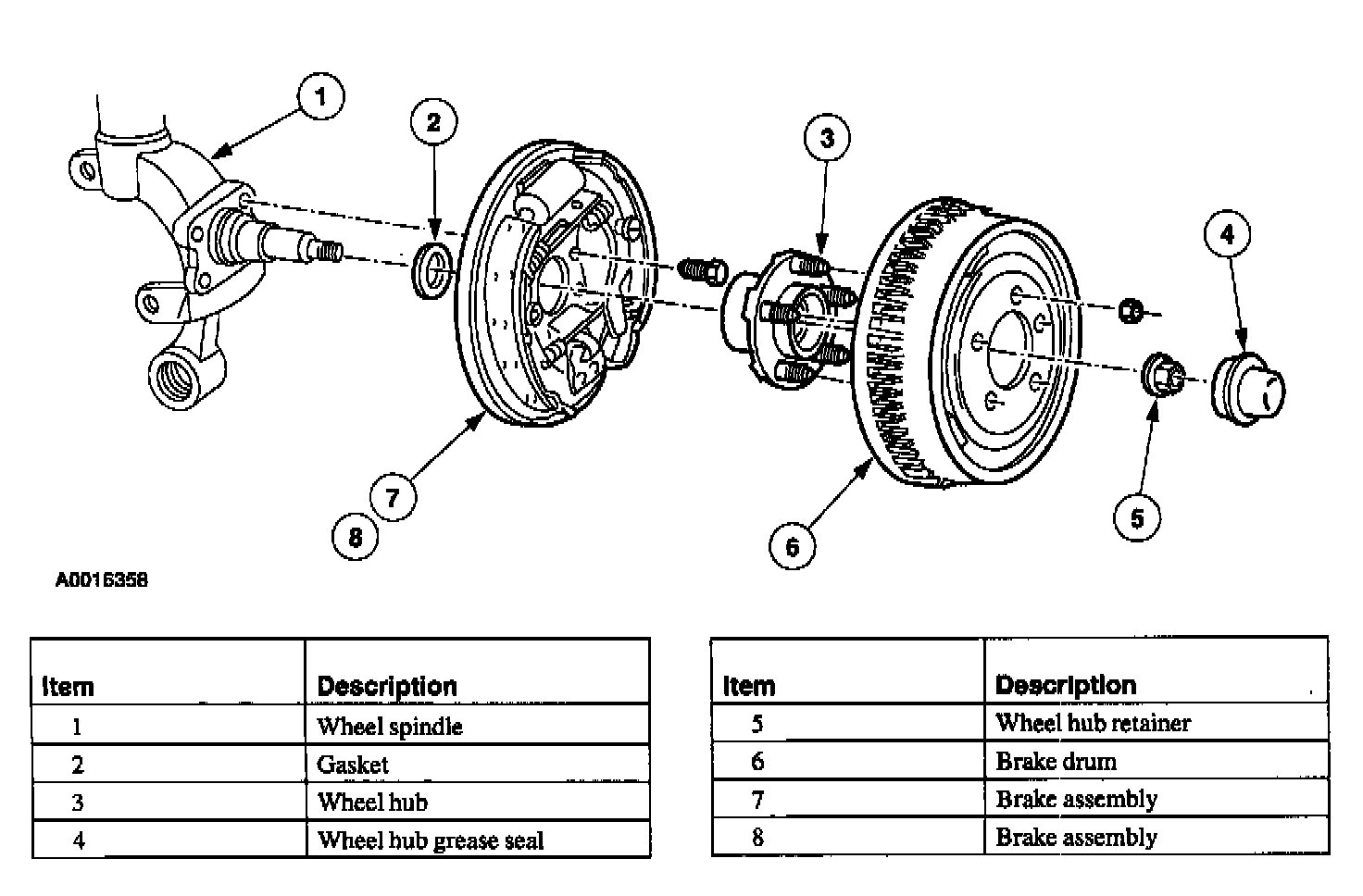

Wheel Assembly





Wheel Assembly-Four Door





Wheel Assembly-Station Wagon
