Intake Manifold

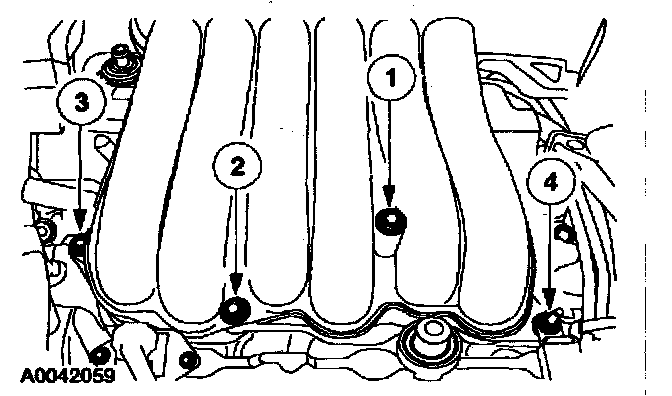

Upper Intake Manifold:

Upper Intake Manifold bolts
Stage 1 hand tight.
Stage 2 10 Nm (89 in. lbs.)

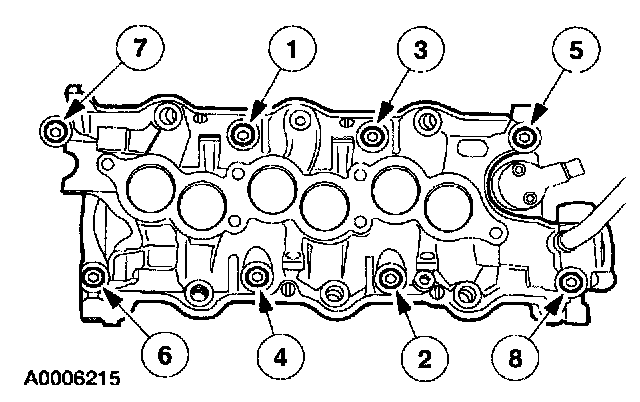

Lower Intake Manifold bolts
Stage 1 15 Nm (11 ft. lbs.)
Stage 2 32 Nm (24 ft. lbs.)

Upper intake manifold support bracket bolt 48 Nm (35 ft. lbs.)
Upper intake manifold support bracket nut 6 Nm (53 ft. lbs.)
