Ignition Switch: Service and Repair

Ignition Switch

Removal and Installation
1. Disconnect the battery ground cable.

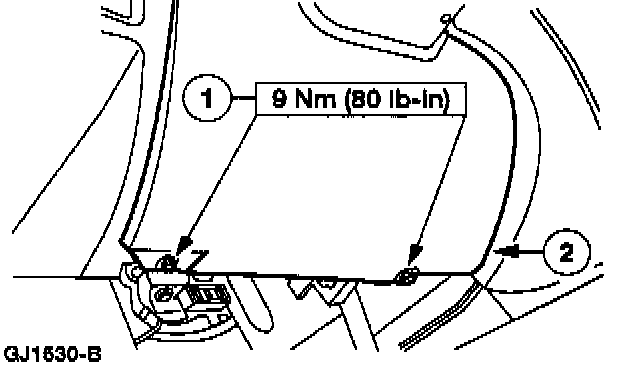

2. Remove the lower instrument panel steering column cover.
1 Remove the screws.
2 Remove the lower instrument panel steering column cover.

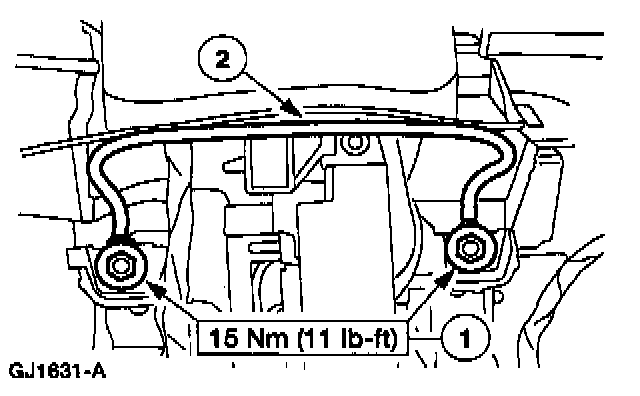

3. Remove the instrument panel steering column opening cover reinforcement.
1 Remove the bolts.
2 Remove the instrument panel steering column opening cover reinforcement.

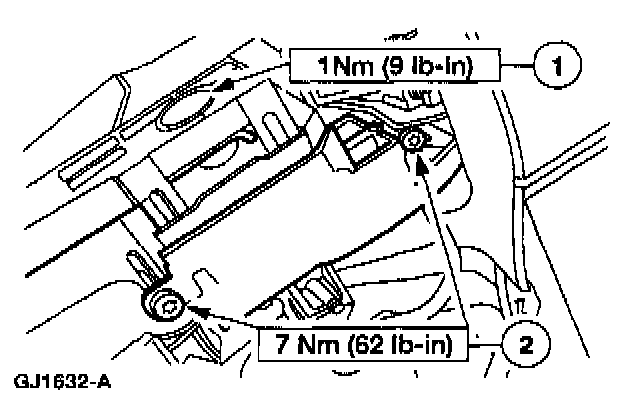

4. Remove the ignition switch.
1 Disconnect the electrical connector.
2 Remove the bolts.
5. To install, reverse the removal procedure.
