Test G

PINPOINT TEST G: A SINGLE POWER WINDOW IS INOPERATIVE - PASSENGER FRONT, LEFT REAR OR RIGHT REAR

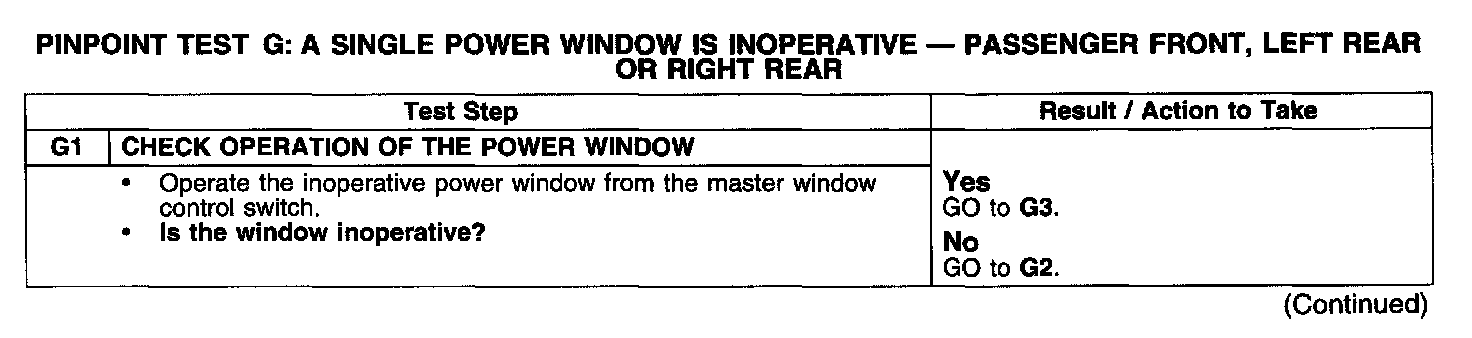

Test G1:

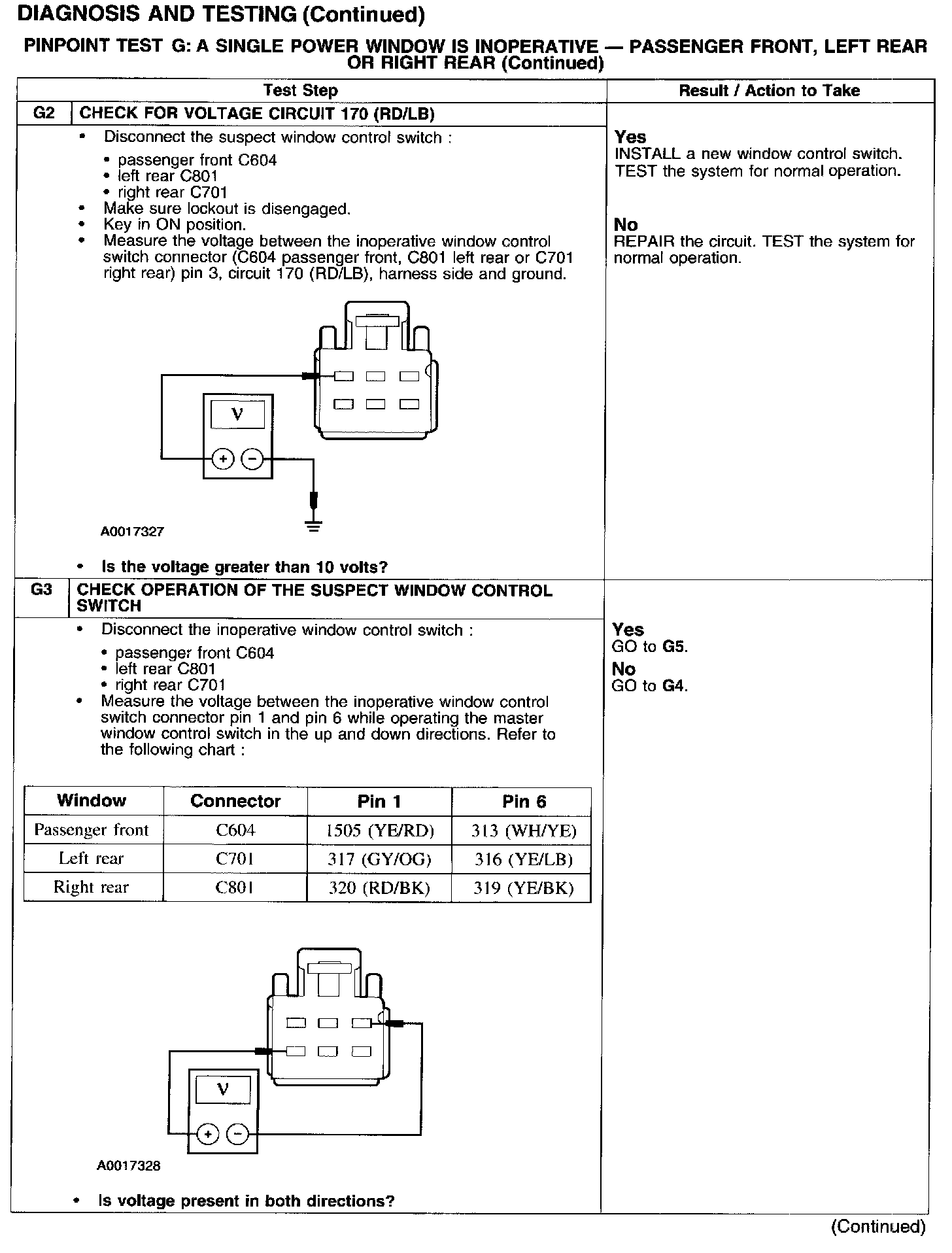

Test G2-G3:

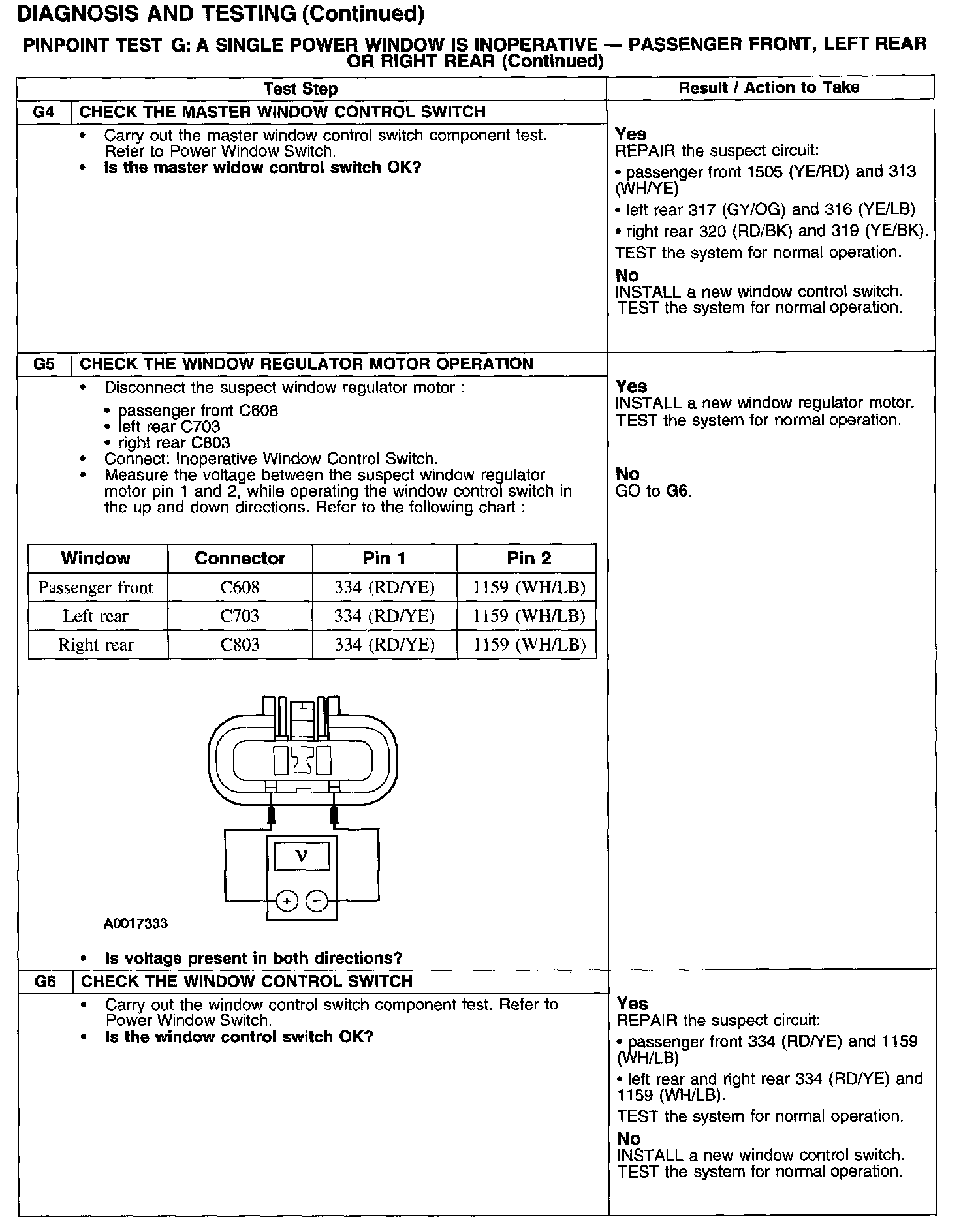

Test G4-G6:
