Heated Seat Switch: Notes

  1. Remove the components in the order listed in the figure below. To remove individual components, carry out only the following steps:

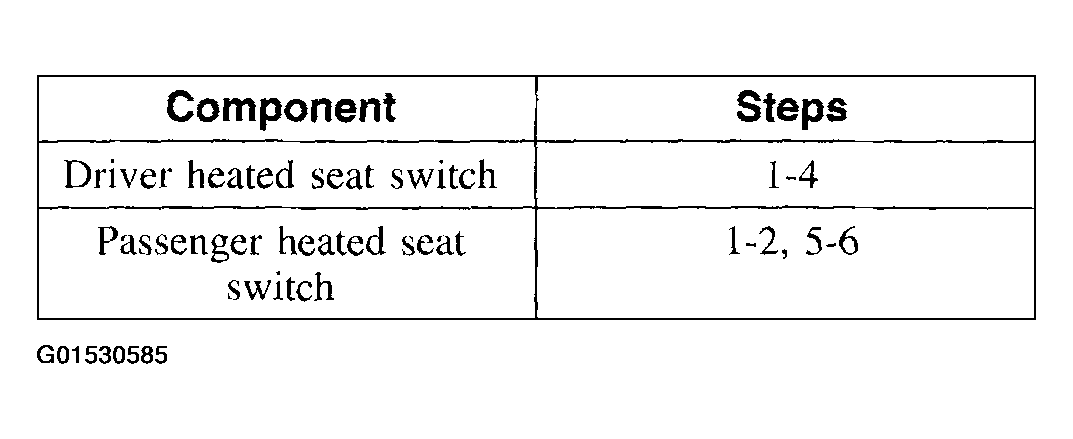

    Fig 1: Heated Seat Switch Components Removal Chart
    G01530585Courtesy of FORD MOTOR CO.

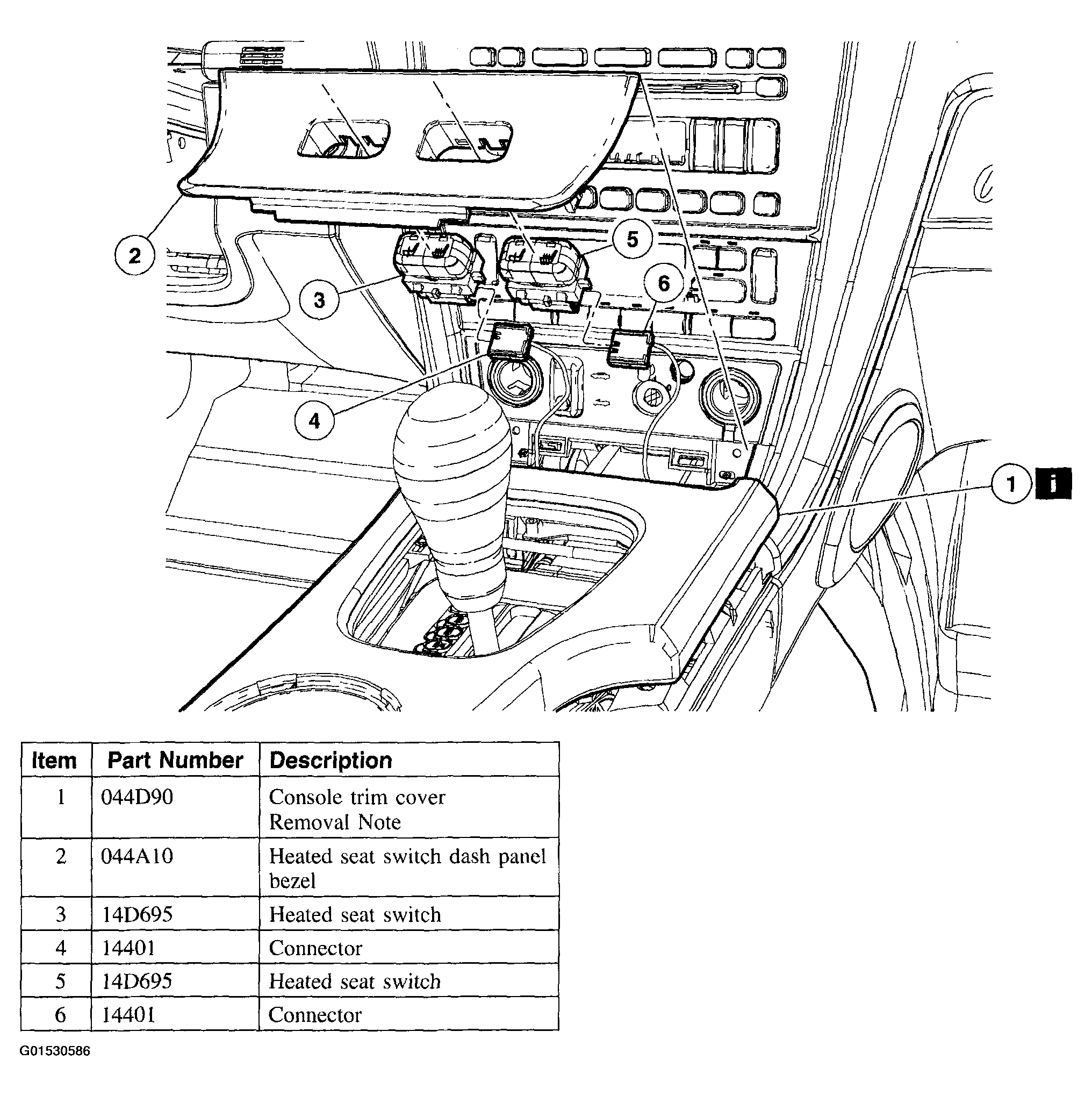

    Fig 2: Heated Seat Switch Component Removal Sequence
    G01530586Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
