Traction Control Cancel Switch C280 (Traction Control Actuator)

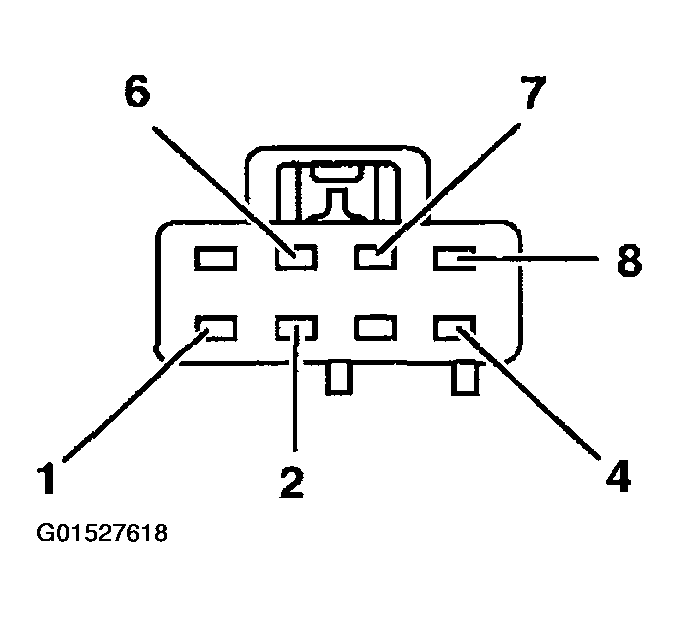

Fig 1: Traction Control Cancel Switch C280 (Traction Control Actuator) Terminal
G01527618Courtesy of FORD MOTOR CO.

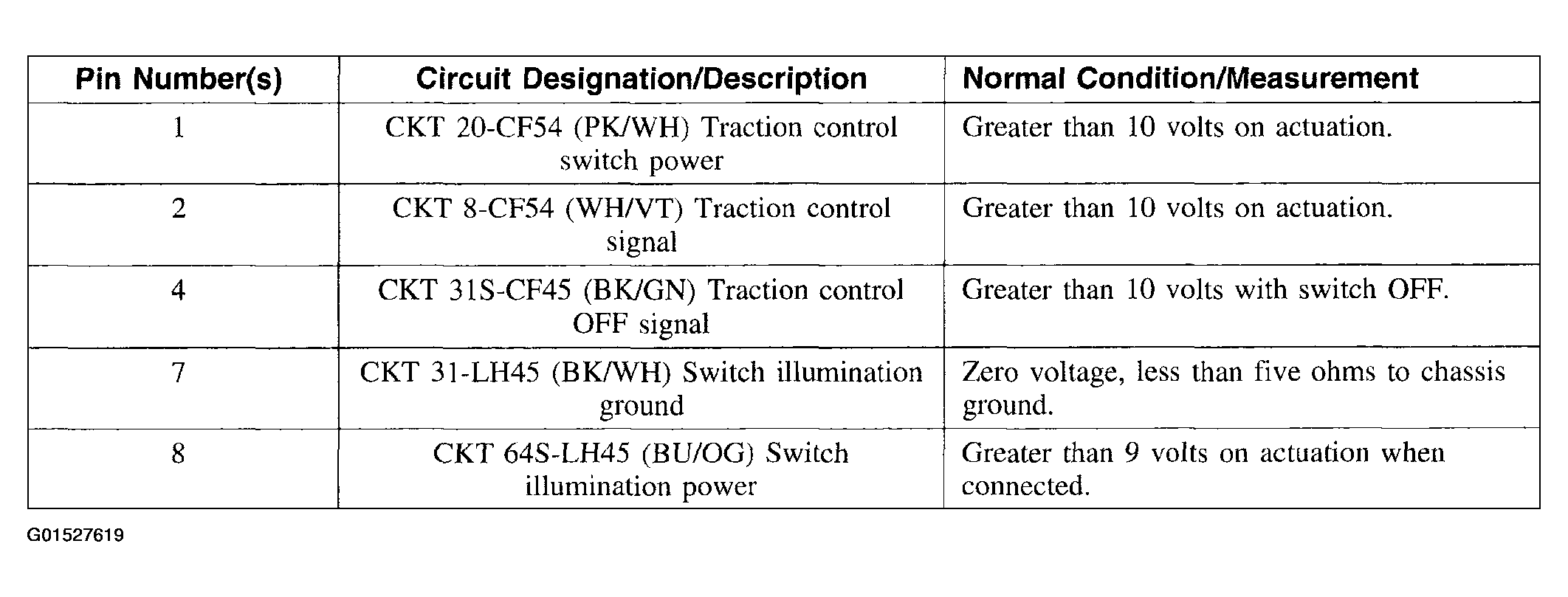

Fig 2: Connector Reference Chart
G01527619Courtesy of FORD MOTOR CO.
