Traction Control Actuator

NOTE: The traction control actuator is also referred to as the traction control cancel switch.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY & CHARGING SYSTEM .
  2. Remove the components in the order indicated in the figure below.

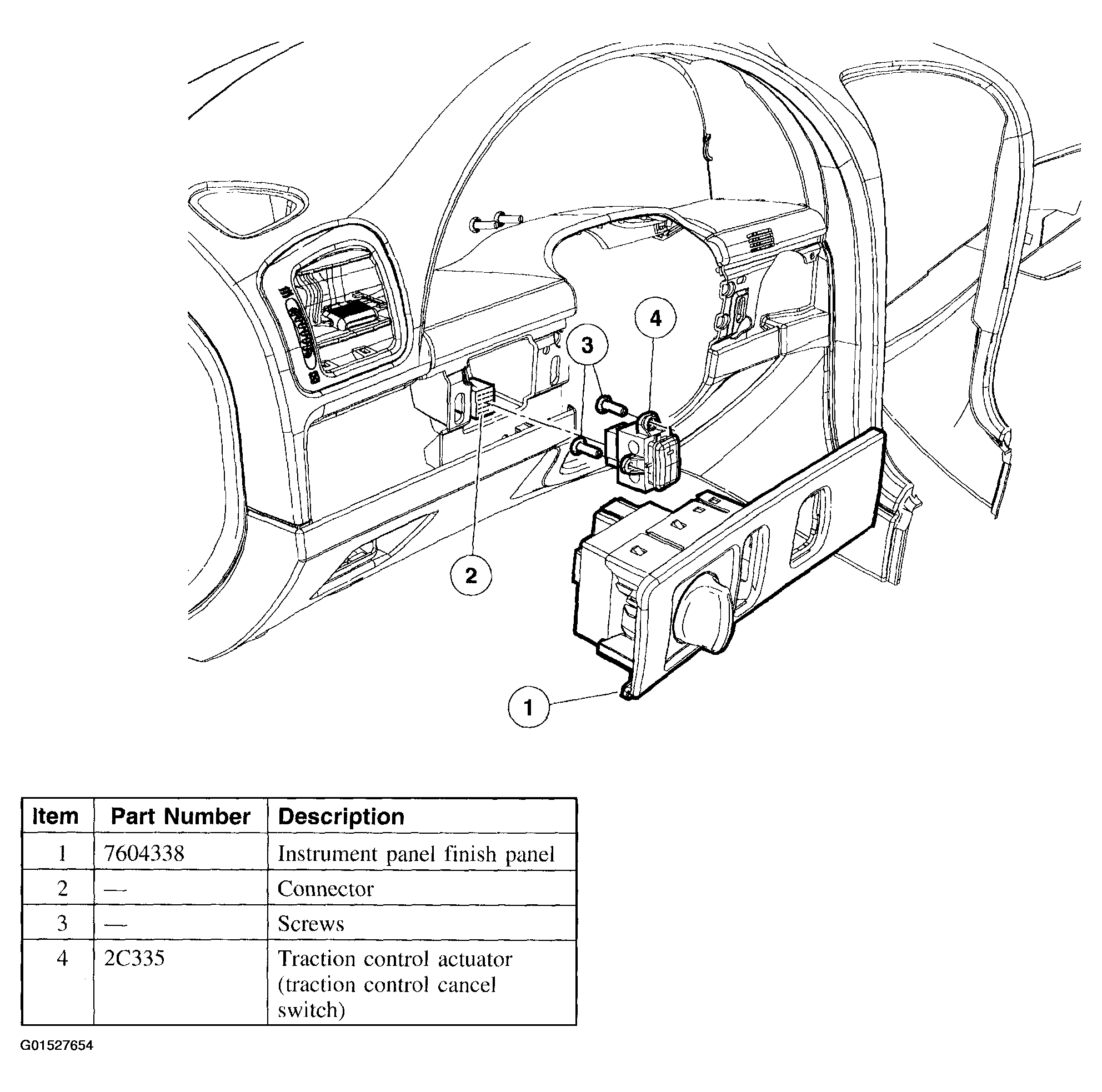

    Fig 1: Traction Control Actuator Component Locator
    G01527654Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
