Connector Views

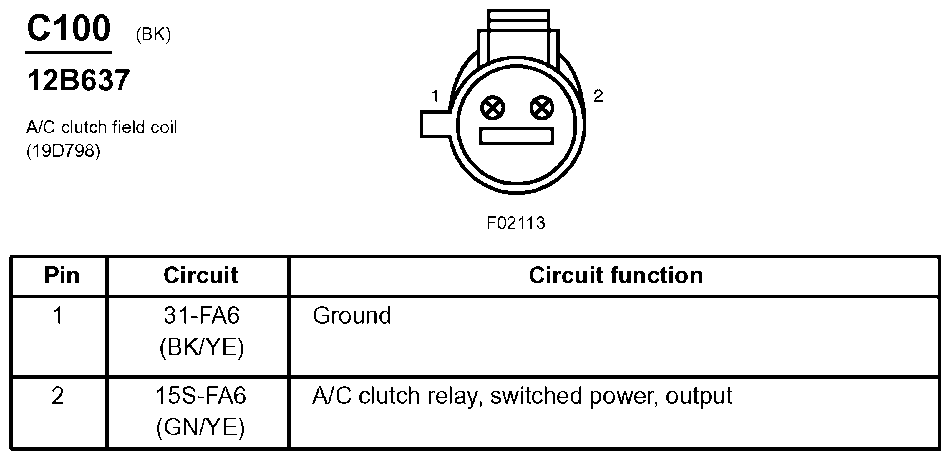

Fig 1: A/C Clutch Field Coil Connector End View (C100)
G07833194Courtesy of FORD MOTOR CO.
Fig 2: Crankshaft Position Sensor Connector End View (C101)
G07833195Courtesy of FORD MOTOR CO.

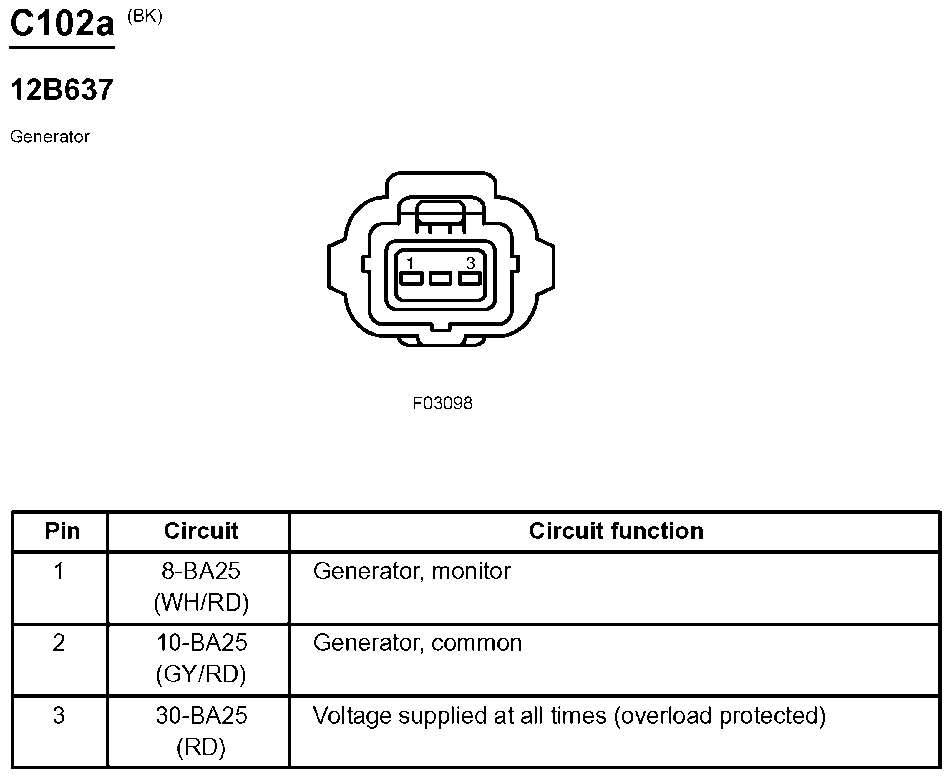

Fig 3: Generator Connector End View (C102a)
G07833196Courtesy of FORD MOTOR CO.

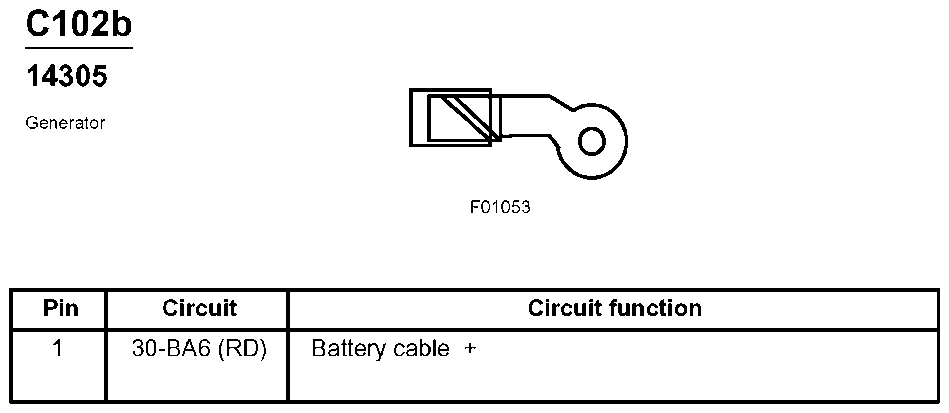

Fig 4: Generator Connector End View (C102b)
G07833197Courtesy of FORD MOTOR CO.

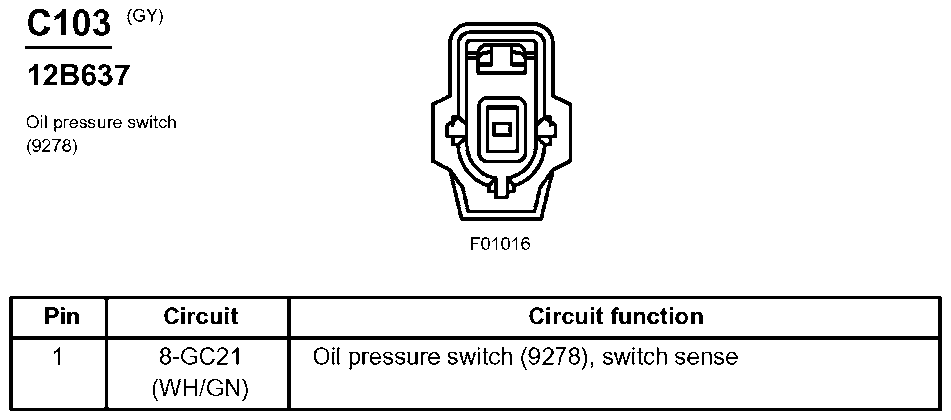

Fig 5: Oil Pressure Switch Connector End View (C103)
G07833198Courtesy of FORD MOTOR CO.

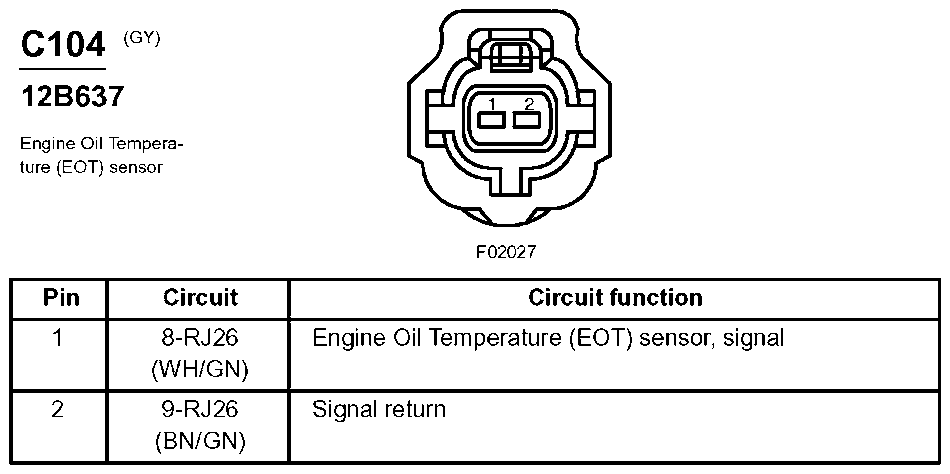

Fig 6: Engine Oil Temperature (EOT) Sensor Connector End View (C104)
G07833199Courtesy of FORD MOTOR CO.

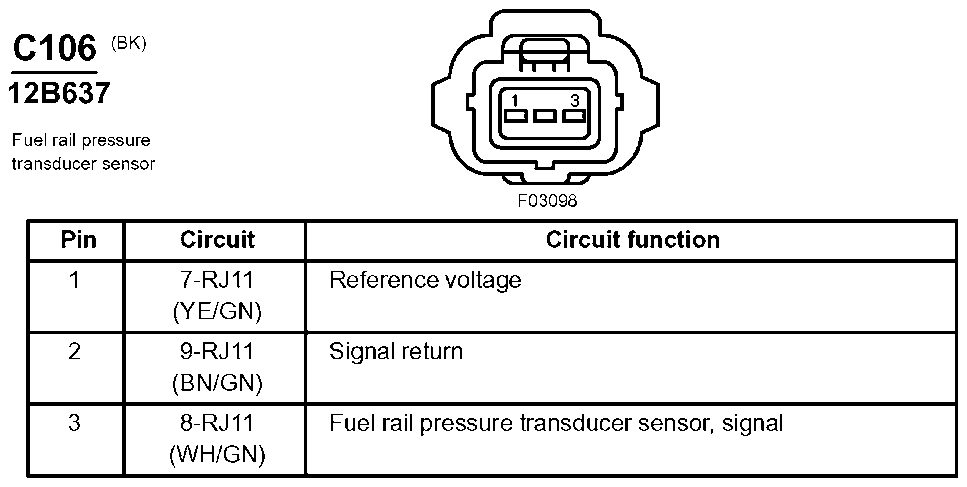

Fig 7: Fuel Rail Pressure Transducer Sensor Connector End View (C106)
G07833200Courtesy of FORD MOTOR CO.
Fig 8: Cylinder-Head Temperature Sensor Connector End View (C107)
G07833201Courtesy of FORD MOTOR CO.

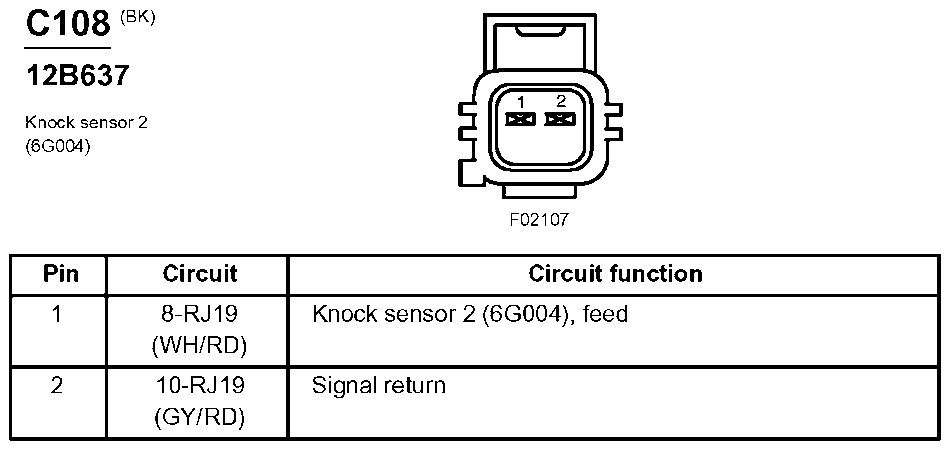

Fig 9: Knock Sensor 2 Connector End View (C108)
G07833202Courtesy of FORD MOTOR CO.
Fig 10: Knock Sensor 1 Connector End View (C109)
G07833203Courtesy of FORD MOTOR CO.

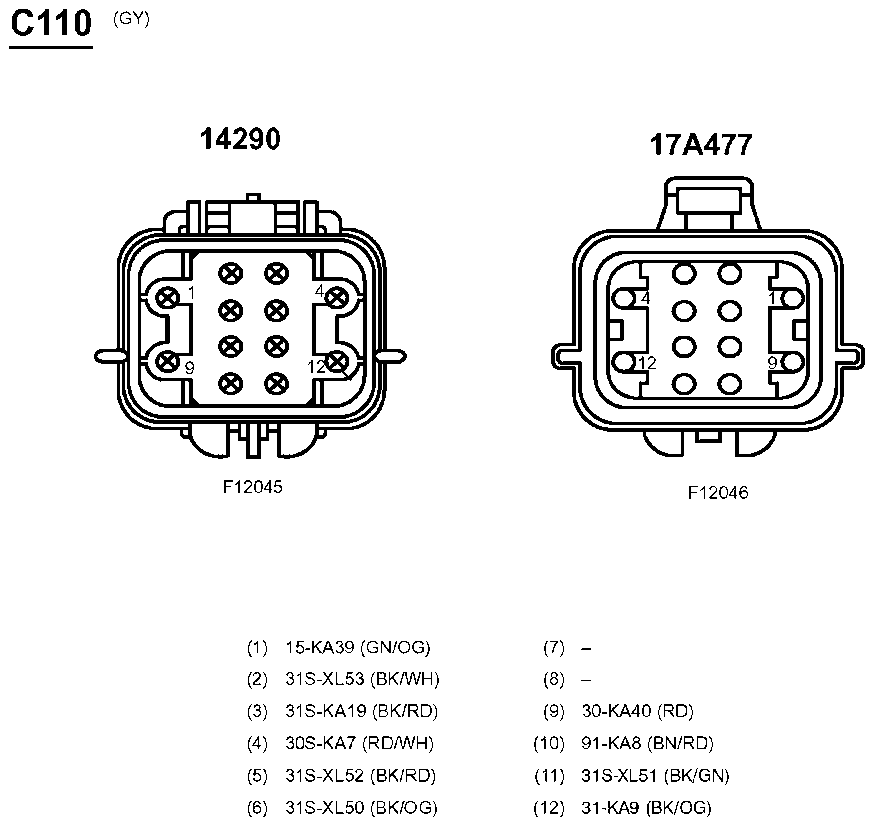

Fig 11: Inline Connector End View (C110)
G07833204Courtesy of FORD MOTOR CO.

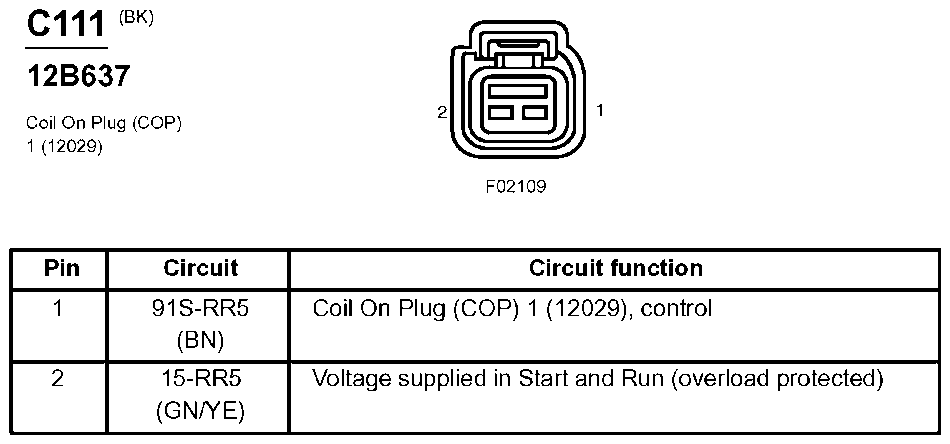

Fig 12: Coil On Plug (COP) 1 Connector End View (C111)
G07833205Courtesy of FORD MOTOR CO.
Fig 13: Coil On Plug (COP) 2 Connector End View (C112)
G07833206Courtesy of FORD MOTOR CO.

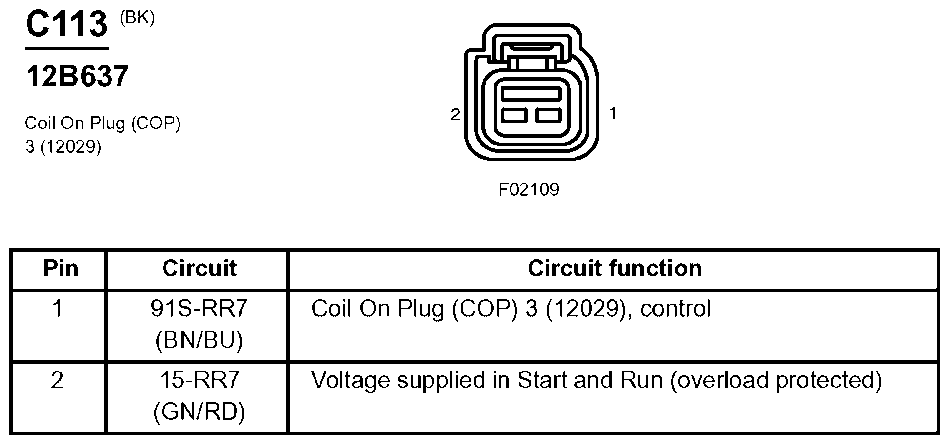

Fig 14: Coil On Plug (COP) 3 Connector End View (C113)
G07833207Courtesy of FORD MOTOR CO.

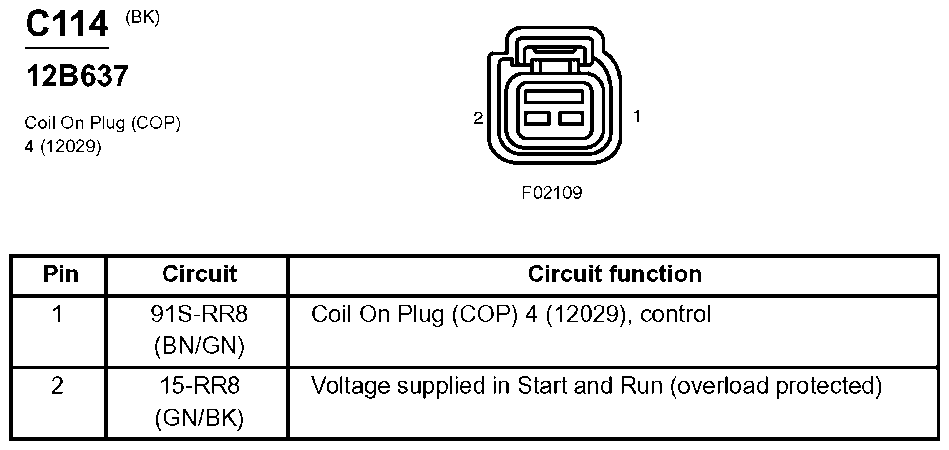

Fig 15: Coil On Plug (COP) 4 Connector End View (C114)
G07833208Courtesy of FORD MOTOR CO.

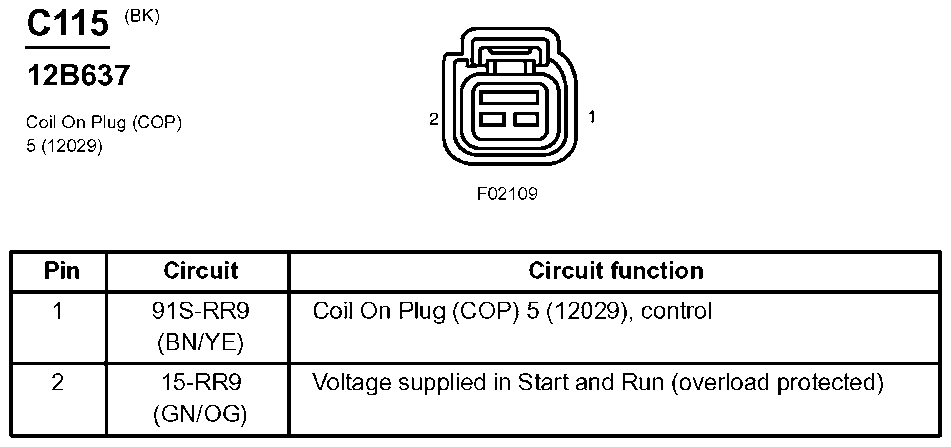

Fig 16: Coil On Plug (COP) 5 Connector End View (C115)
G07833209Courtesy of FORD MOTOR CO.
Fig 17: Coil On Plug (COP) 6 Connector End View (C116)
G07833210Courtesy of FORD MOTOR CO.
Fig 18: Coil On Plug (COP) 7 Connector End View (C117)
G07833211Courtesy of FORD MOTOR CO.

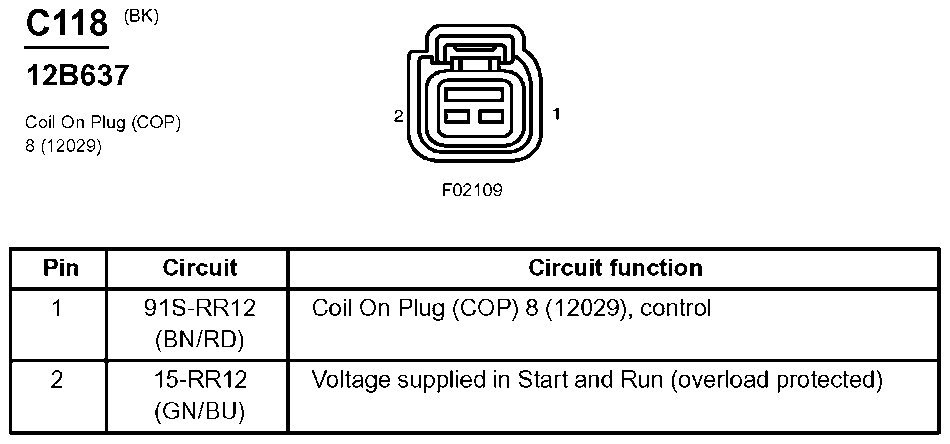

Fig 19: Coil On Plug (COP) 8 Connector End View (C118)
G07833212Courtesy of FORD MOTOR CO.

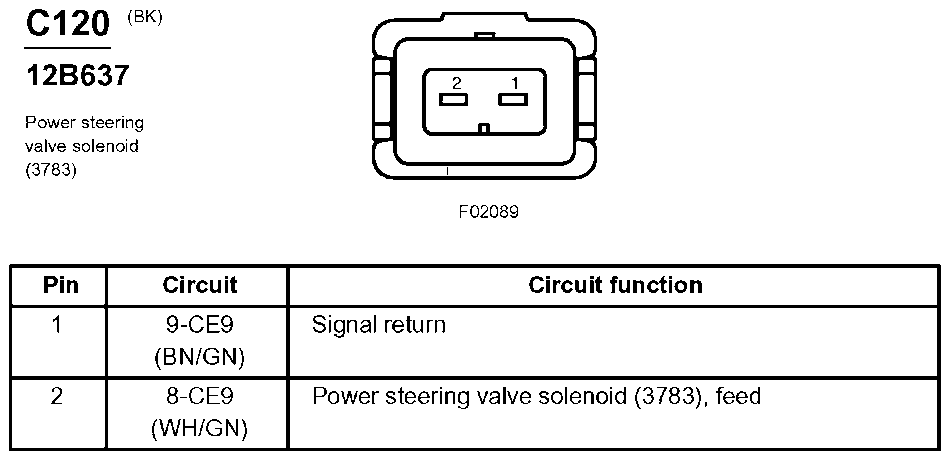

Fig 20: Power Steering Valve Solenoid Connector End View (C120)
G07833213Courtesy of FORD MOTOR CO.

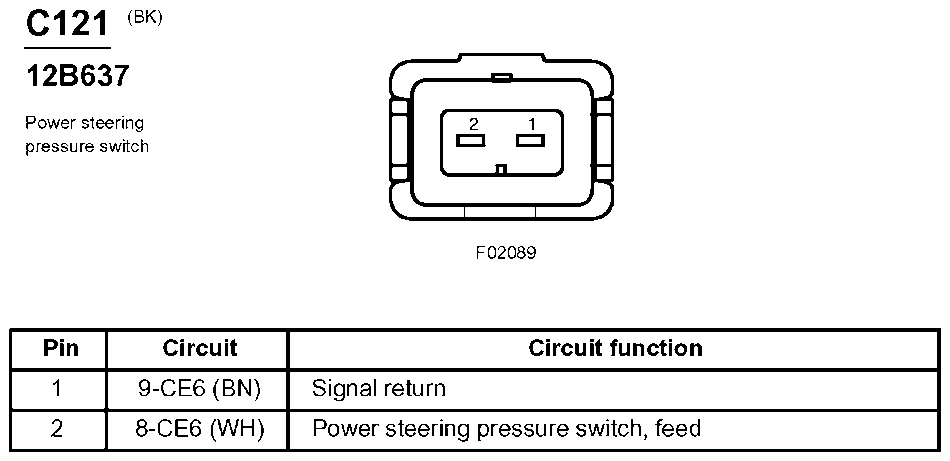

Fig 21: Power Steering Pressure Switch Connector End View (C121)
G07833214Courtesy of FORD MOTOR CO.

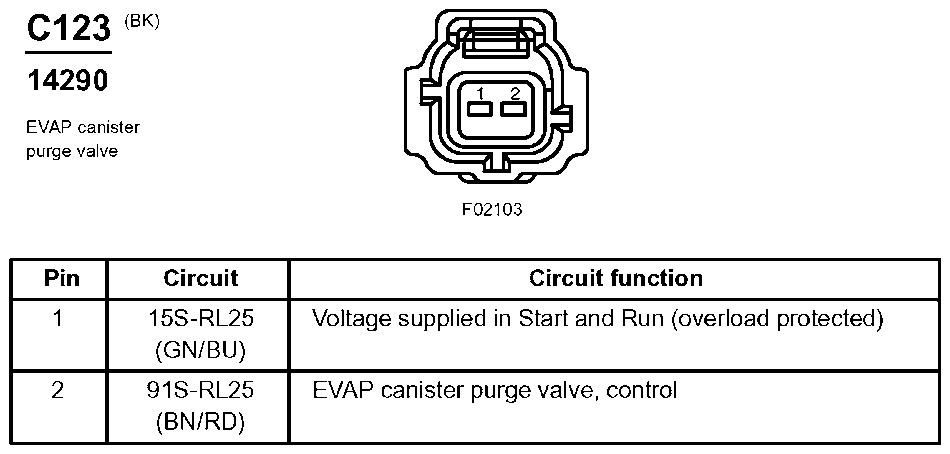

Fig 22: EVAP Canister Purge Valve Connector End View (C123)
G07833215Courtesy of FORD MOTOR CO.
Fig 23: Brake Fluid Level Switch Connector End View (C124)
G07833216Courtesy of FORD MOTOR CO.

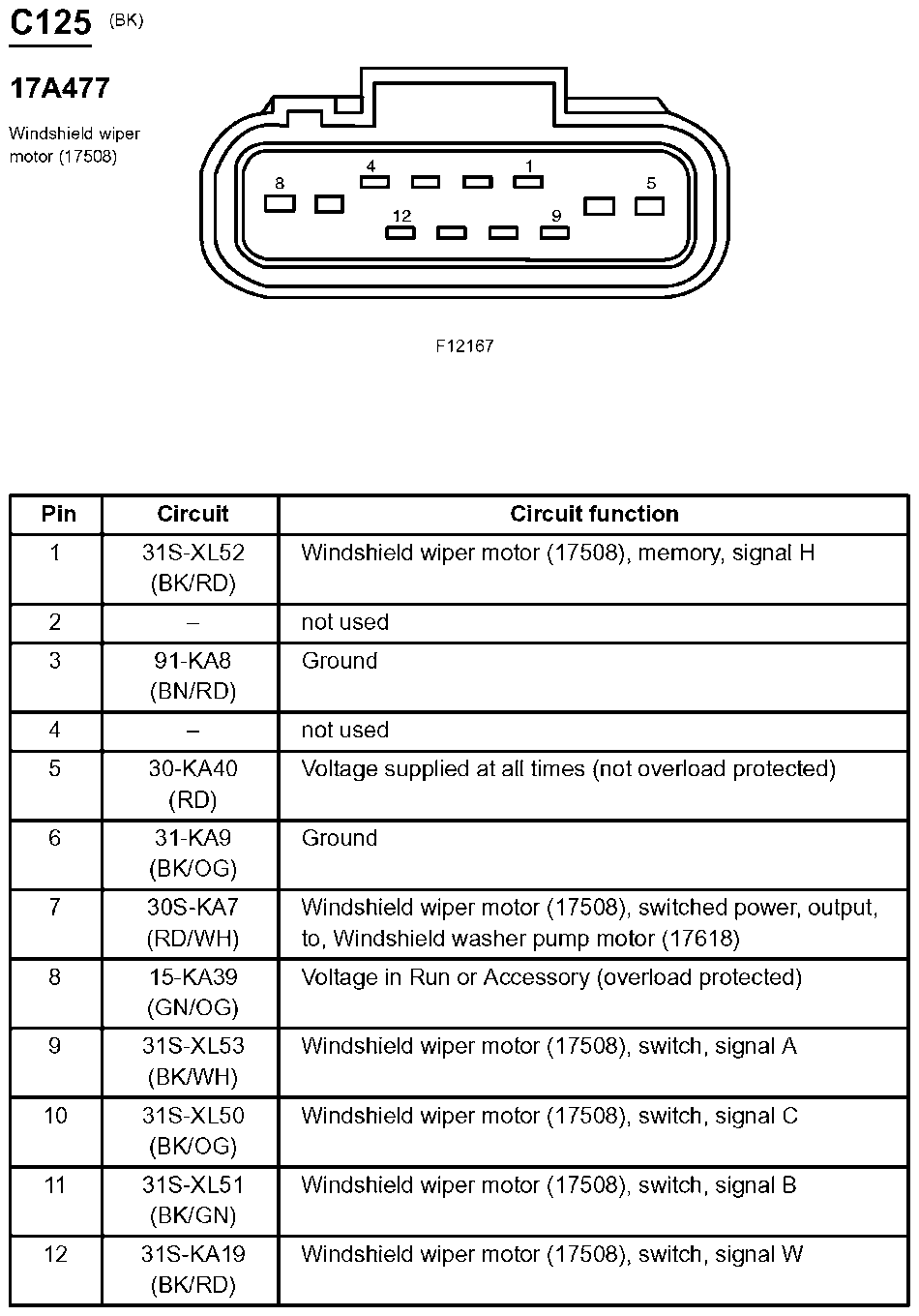

Fig 24: Windshield Wiper Motor Connector End View (C125)
G07833217Courtesy of FORD MOTOR CO.

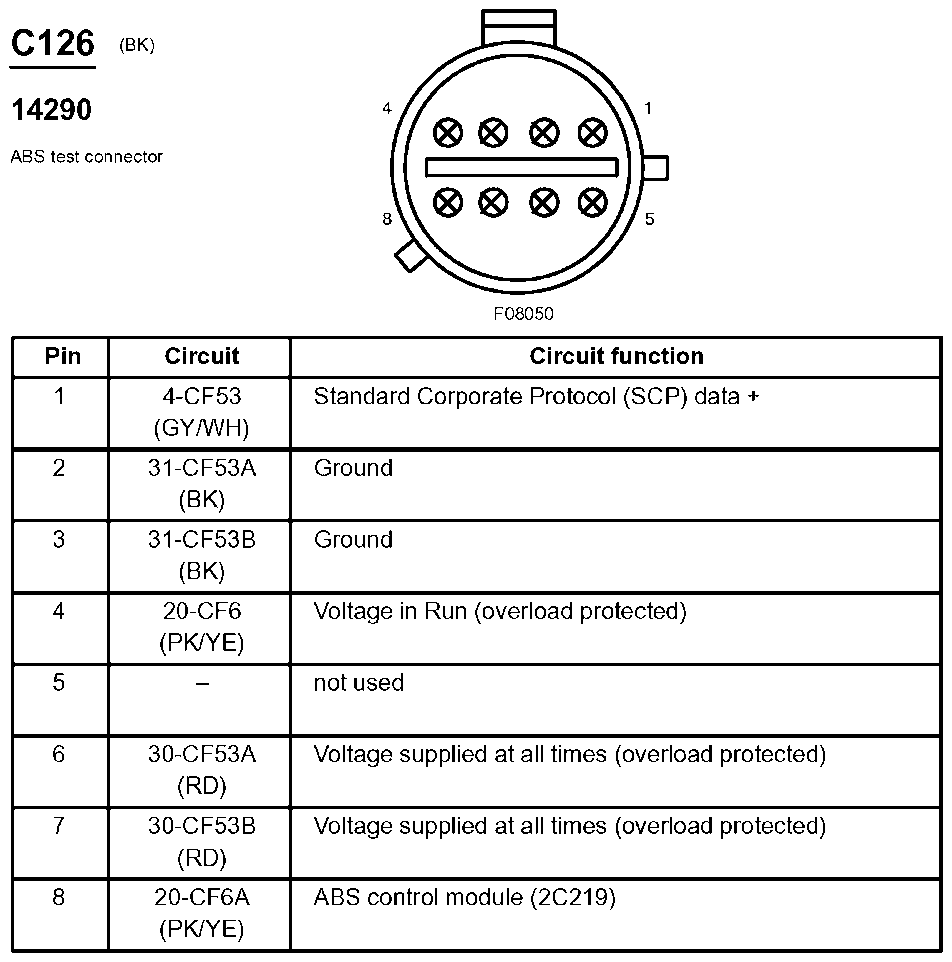

Fig 25: ABS Test Connector End View (C126)
G07833218Courtesy of FORD MOTOR CO.

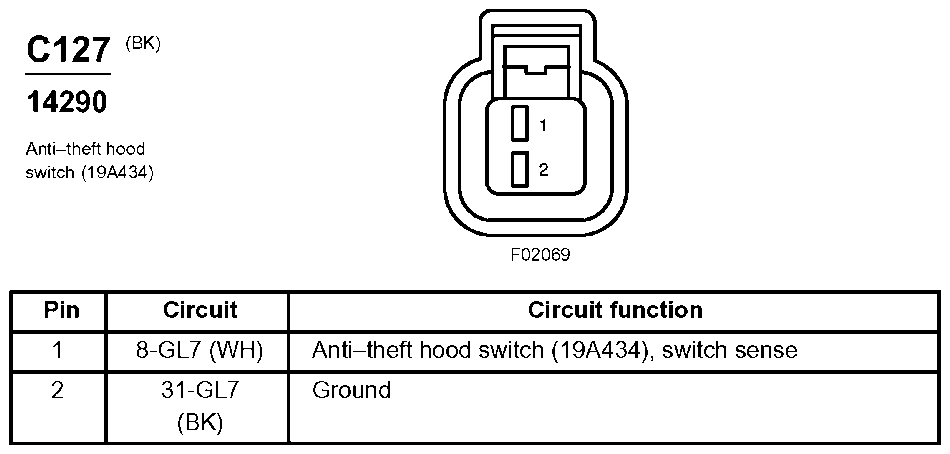

Fig 26: Anti-Theft Hood Switch Connector End View (C127)
G07833219Courtesy of FORD MOTOR CO.
Fig 27: Mass Air Flow (MAF) Sensor Connector End View (C128)
G07833220Courtesy of FORD MOTOR CO.
Fig 28: Horn Connector End View (C131)
G07833221Courtesy of FORD MOTOR CO.

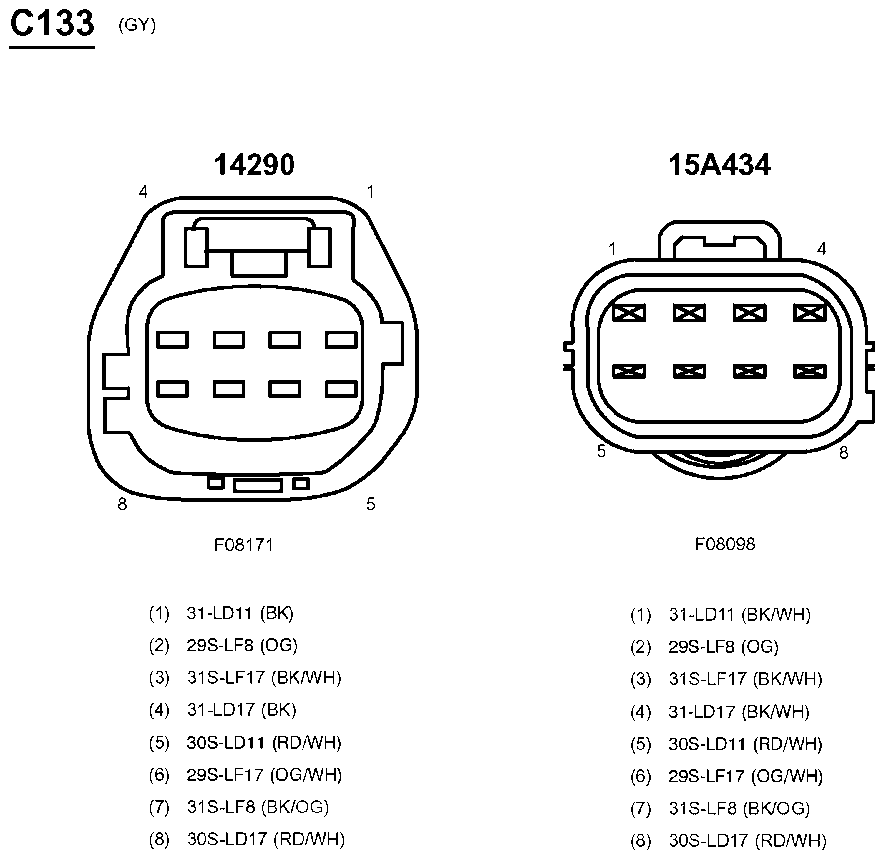

Fig 29: Inline Connector End View (C133)
G07833222Courtesy of FORD MOTOR CO.

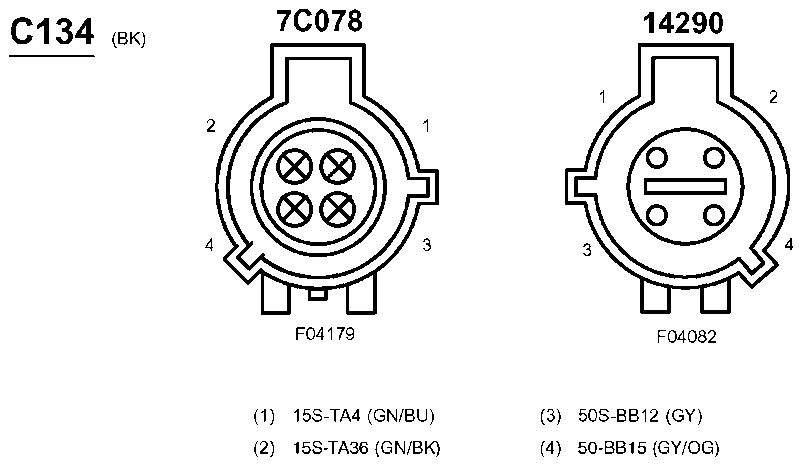

Fig 30: Inline Connector End View (C134)
G07833223Courtesy of FORD MOTOR CO.

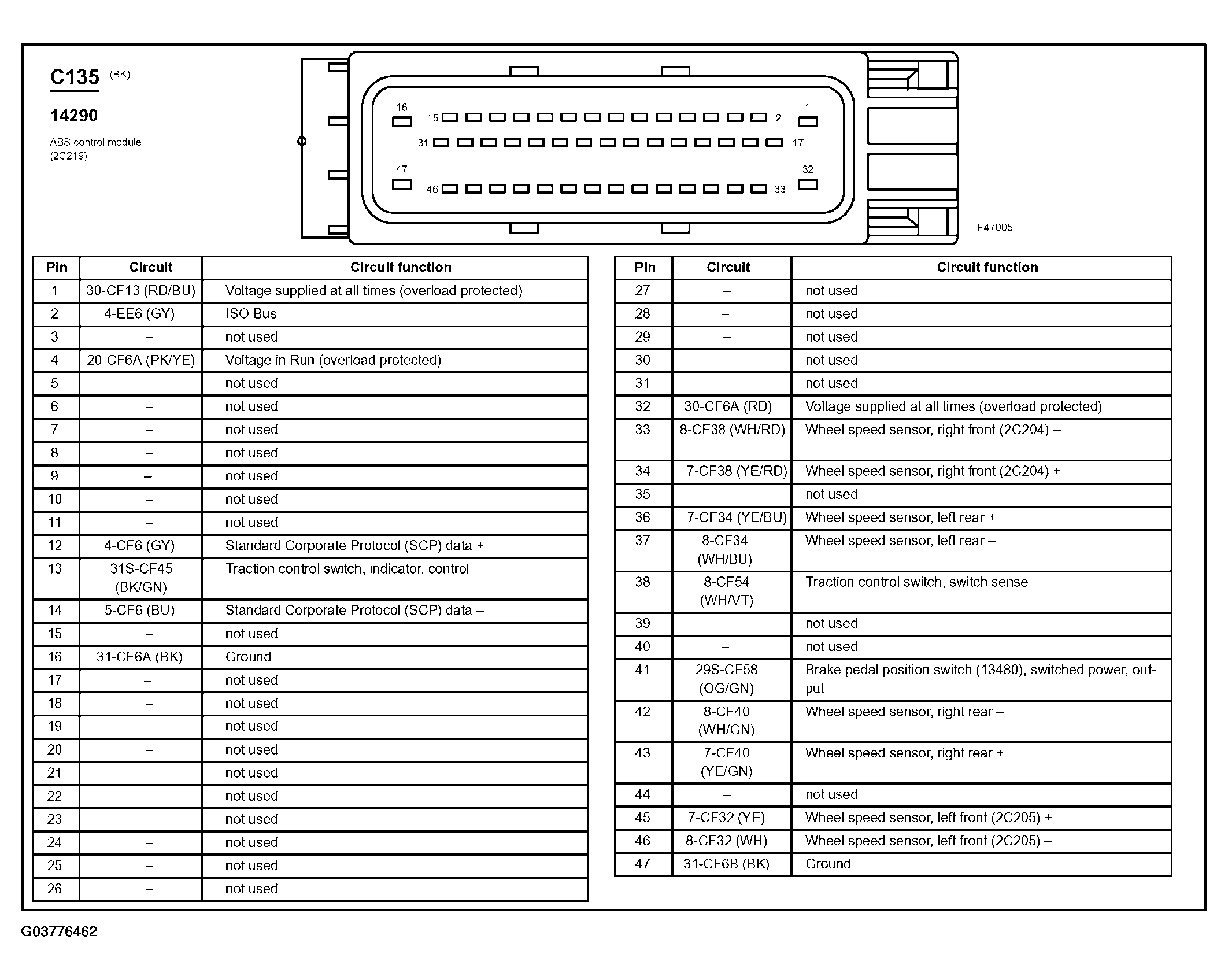

Fig 31: ABS Control Module Connector End View (C135)
G03776462Courtesy of FORD MOTOR CO.
Fig 32: Auxiliary Junction Box (AJB), Underhood Connector End View (C136)
G07833224Courtesy of FORD MOTOR CO.

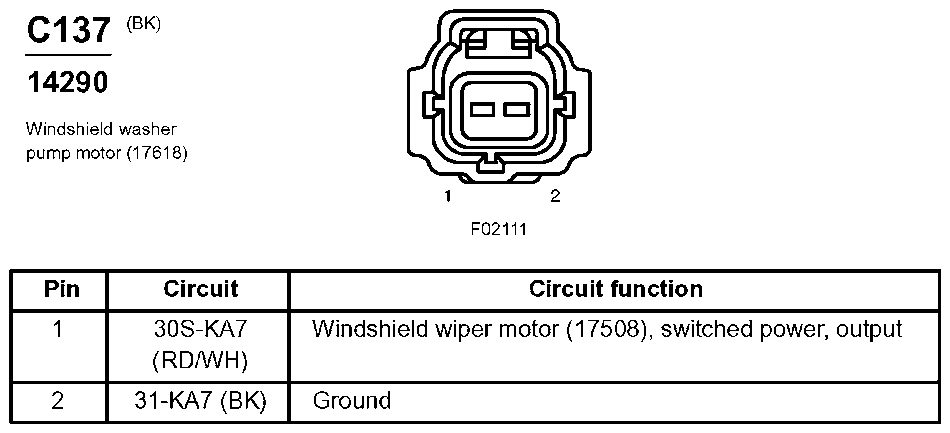

Fig 33: Windshield Washer Pump Motor Connector End View (C137)
G07833225Courtesy of FORD MOTOR CO.

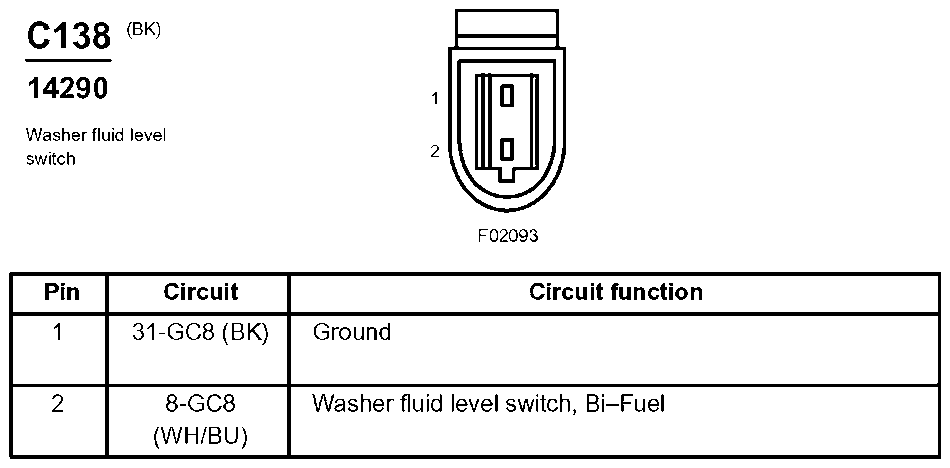

Fig 34: Washer Fluid Level Switch Connector End View (C138)
G07833226Courtesy of FORD MOTOR CO.

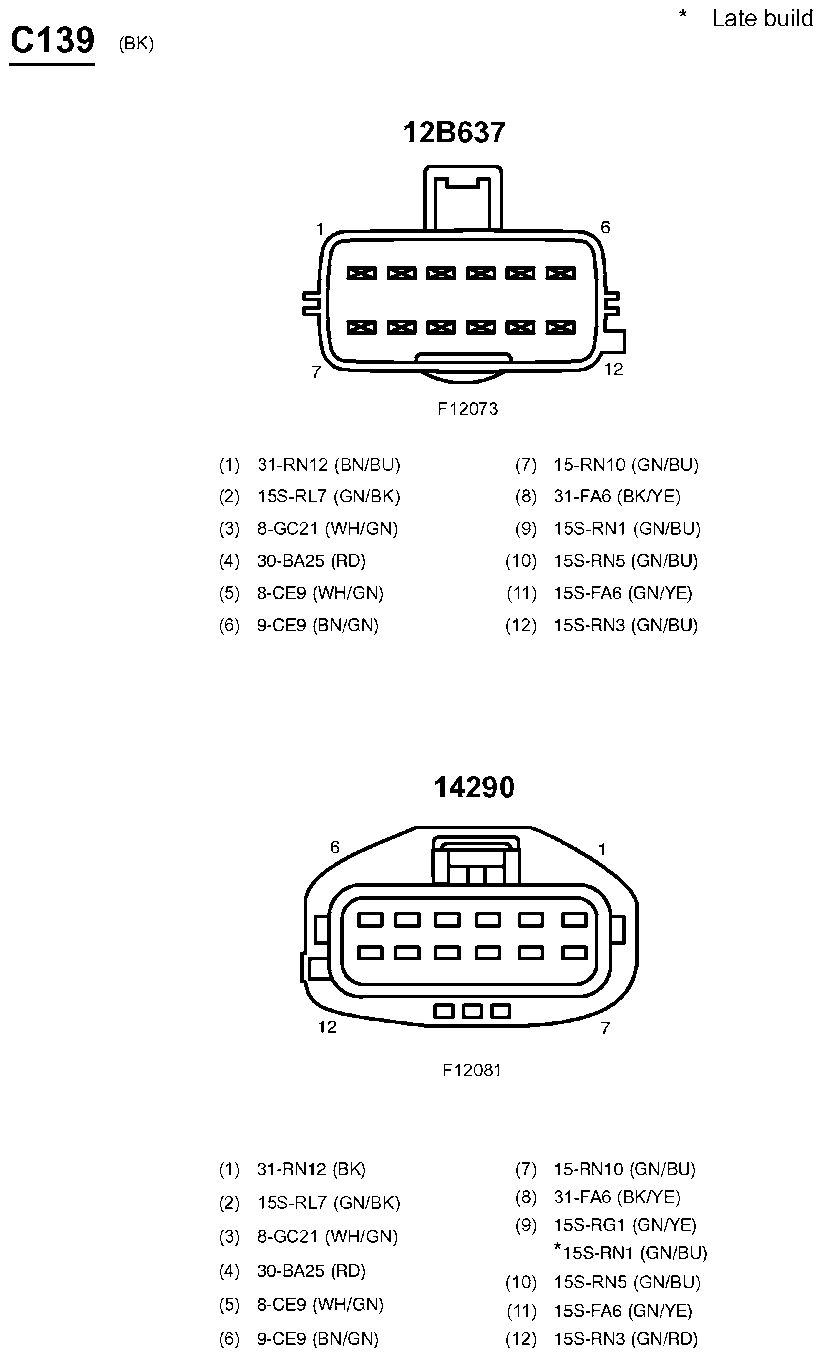

Fig 35: Inline Connector End View (C139)
G07833227Courtesy of FORD MOTOR CO.
Fig 36: Inline Connector End View (C140)
G07833228Courtesy of FORD MOTOR CO.
Fig 37: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)
G07833229Courtesy of FORD MOTOR CO.
Fig 38: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)
G07833230Courtesy of FORD MOTOR CO.
Fig 39: Turbine Shaft Speed (TSS) Sensor Connector End View (C143)
G07833231Courtesy of FORD MOTOR CO.

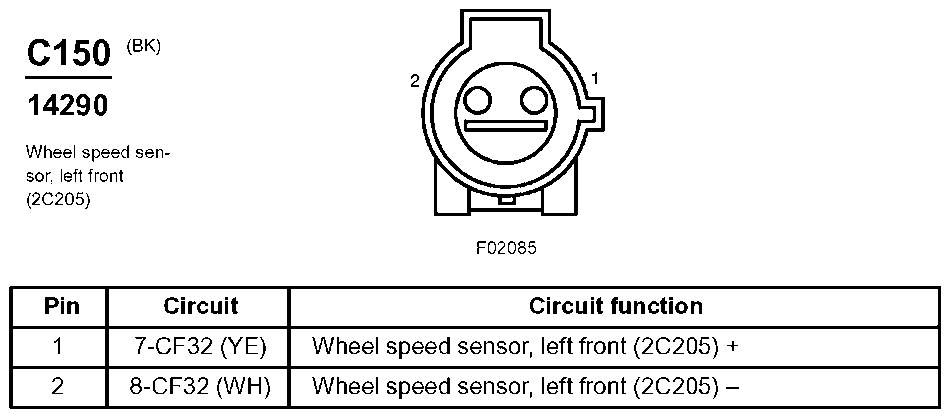

Fig 40: Wheel Speed Sensor, Left Front Connector End View (C150)
G07833232Courtesy of FORD MOTOR CO.
Fig 41: Side Lamp, Left Front Connector End View (C151)
G07833233Courtesy of FORD MOTOR CO.
Fig 42: Wheel Speed Sensor, Right Front Connector End View (C160)
G07833234Courtesy of FORD MOTOR CO.

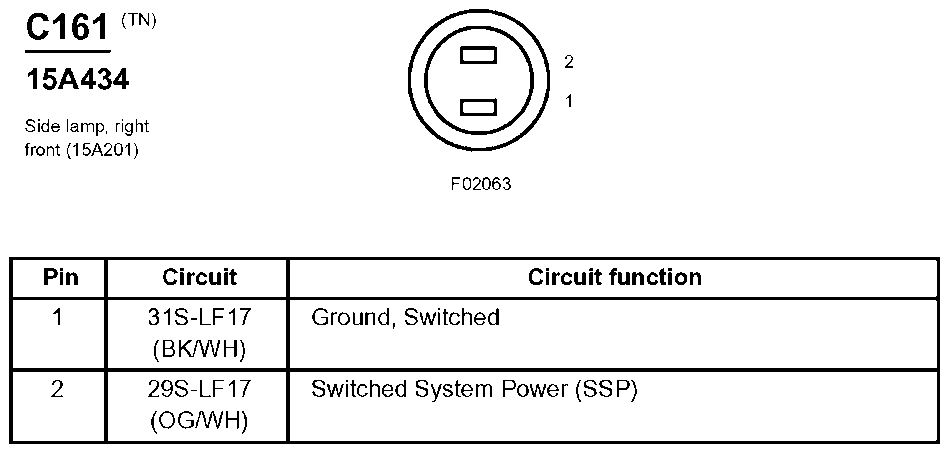

Fig 43: Side Lamp, Right Front Connector End View (C161)
G07833235Courtesy of FORD MOTOR CO.
Fig 44: Auxiliary Coolant Pump Motor Connector End View (C163)
G07833236Courtesy of FORD MOTOR CO.

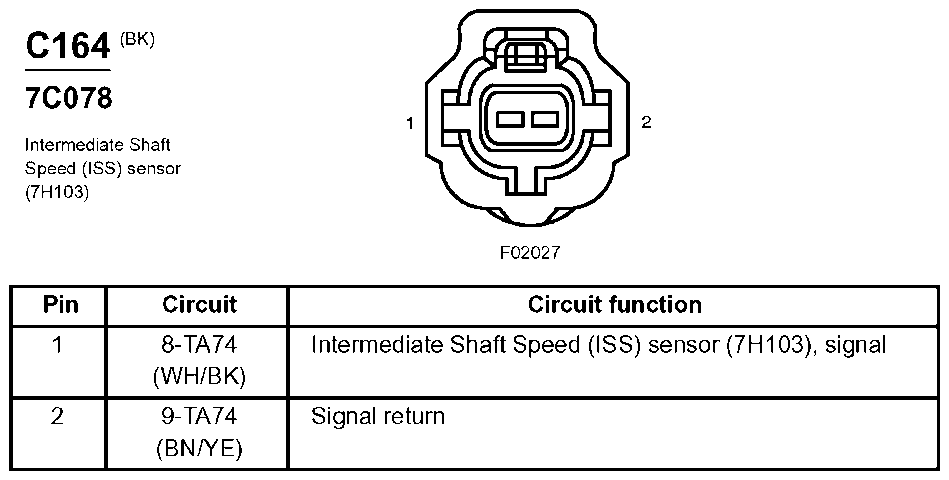

Fig 45: Intermediate Shaft Speed (ISS) Sensor Connector End View (C164)
G07833237Courtesy of FORD MOTOR CO.
Fig 46: Digital Transmission Range (DTR) Sensor Connector End View (C167)
G07833238Courtesy of FORD MOTOR CO.
Fig 47: Automatic Transmission Connector End View (C168)
G07833239Courtesy of FORD MOTOR CO.
Fig 48: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)
G07833240Courtesy of FORD MOTOR CO.
Fig 49: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)
G07833241Courtesy of FORD MOTOR CO.

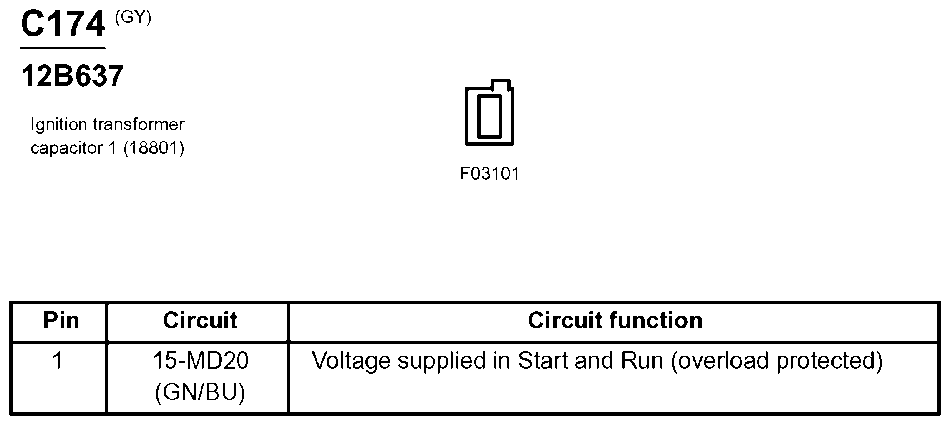

Fig 50: Ignition Transformer Capacitor 1 Connector End View (C174)
G07833242Courtesy of FORD MOTOR CO.

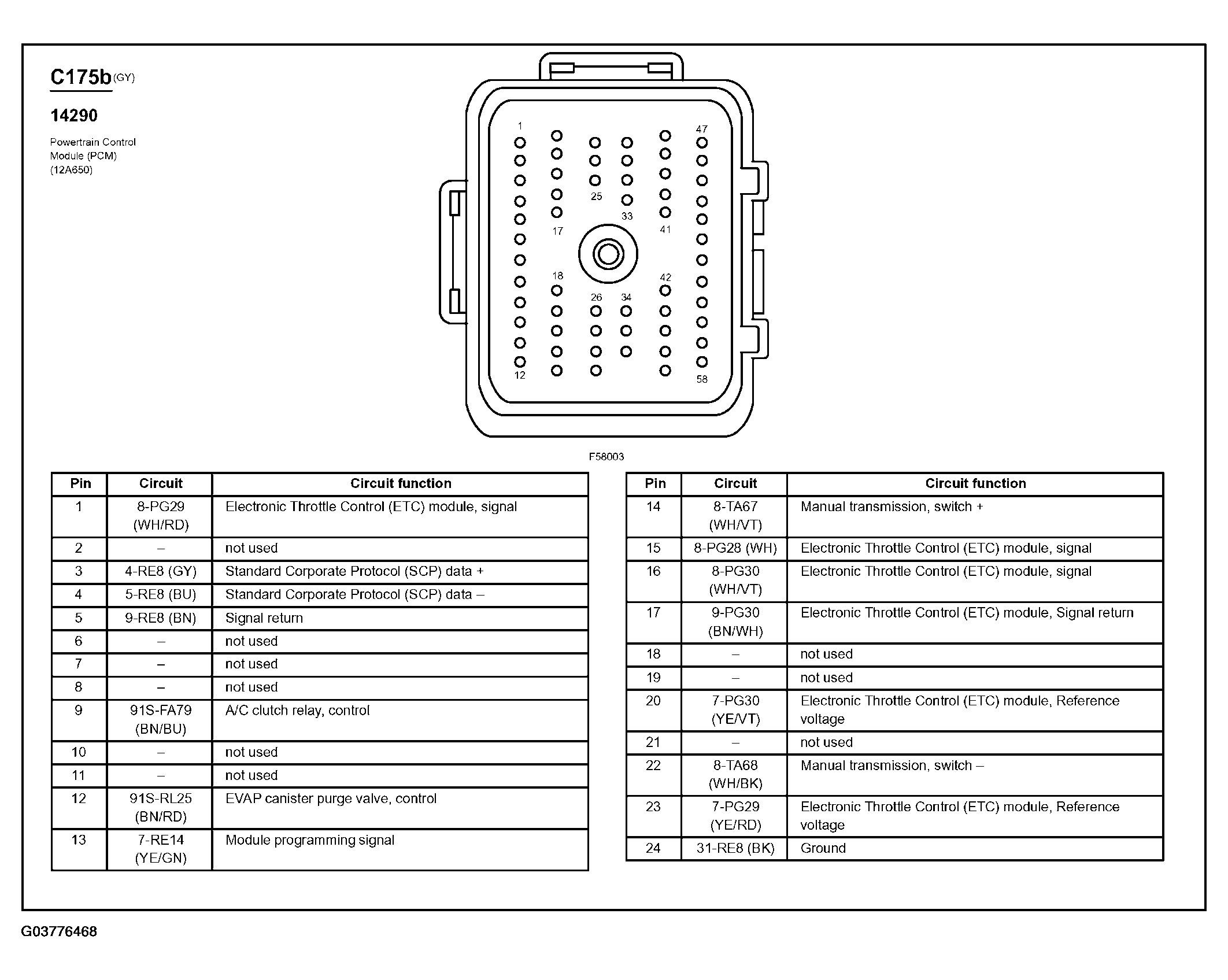

Fig 51: Powertrain Control Module (PCM) Connector End View (C175b) (1 Of 2)
G03776468Courtesy of FORD MOTOR CO.

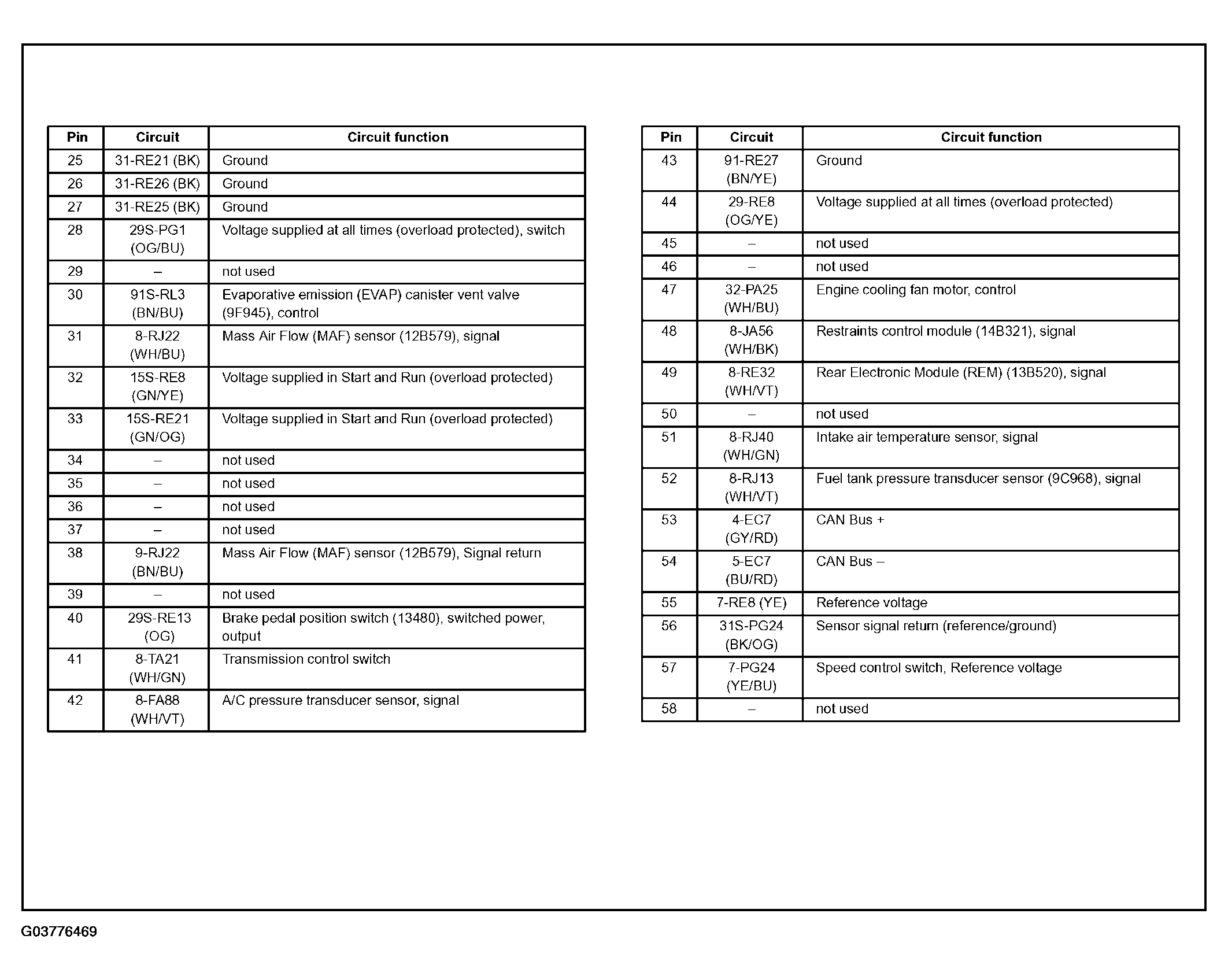

Fig 52: Powertrain Control Module (PCM) Connector End View (C175b) (2 Of 2)
G03776469Courtesy of FORD MOTOR CO.

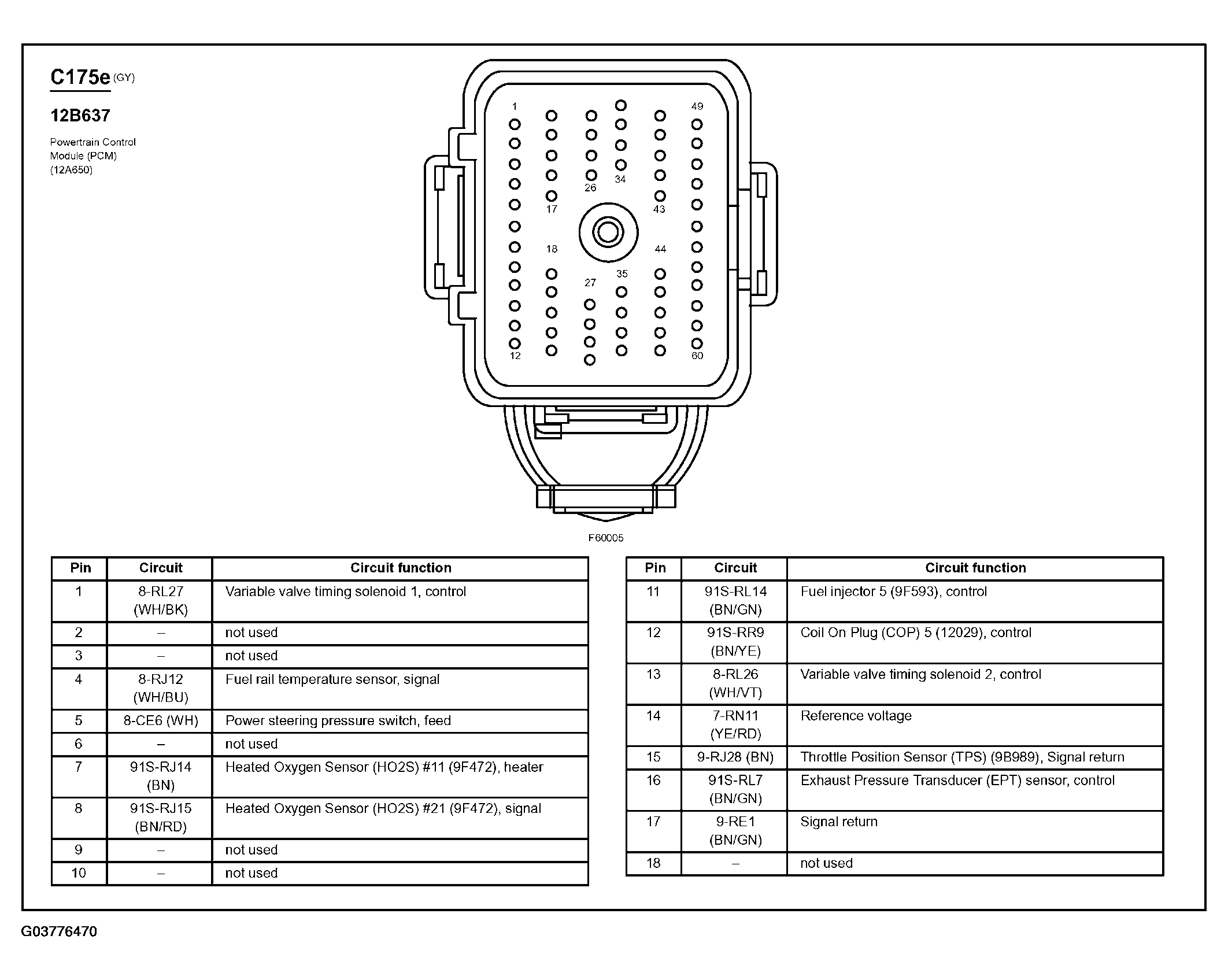

Fig 53: Powertrain Control Module (PCM) Connector End View (C175e) (1 Of 2)
G03776470Courtesy of FORD MOTOR CO.

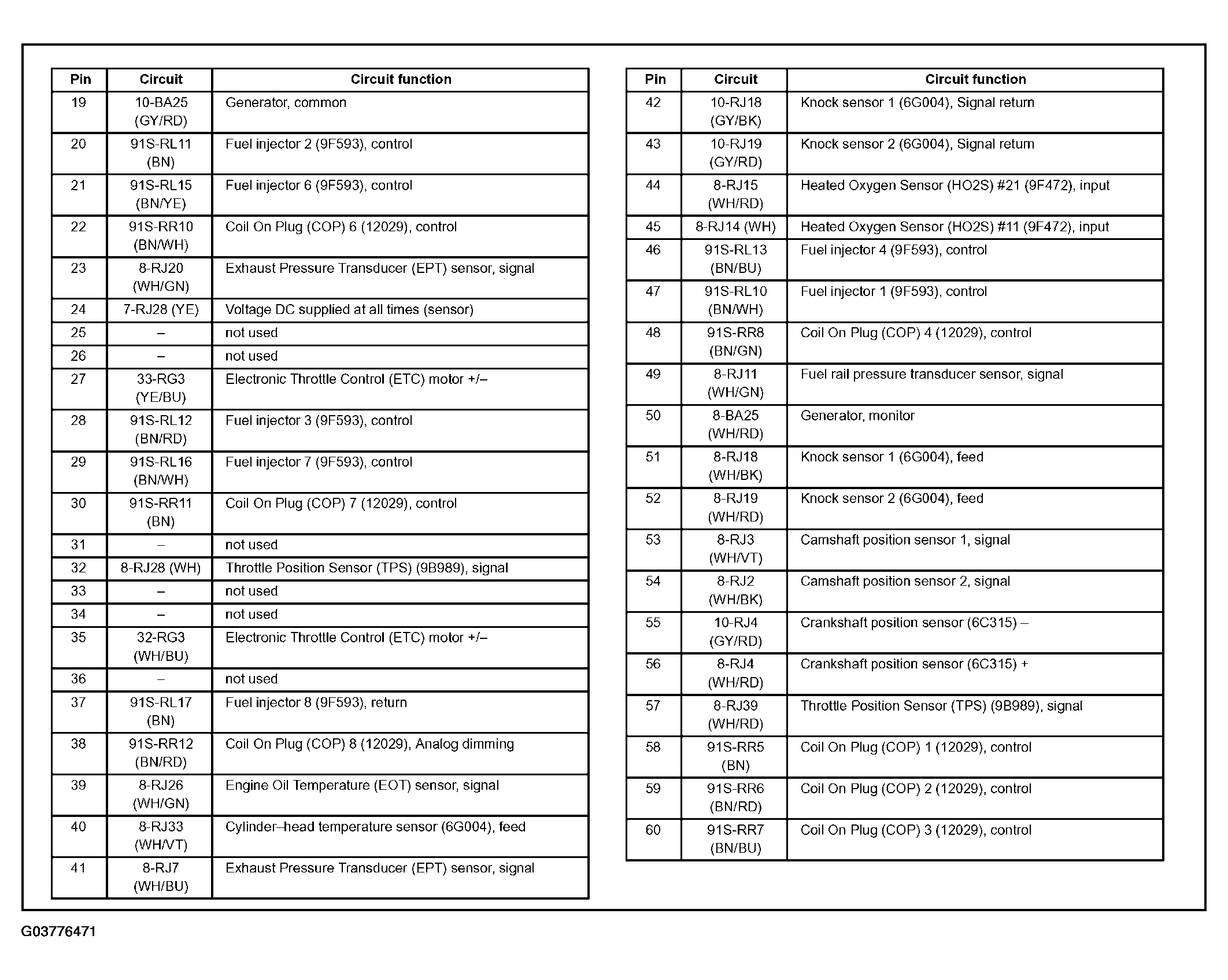

Fig 54: Powertrain Control Module (PCM) Connector End View (C175e) (2 Of 2)
G03776471Courtesy of FORD MOTOR CO.

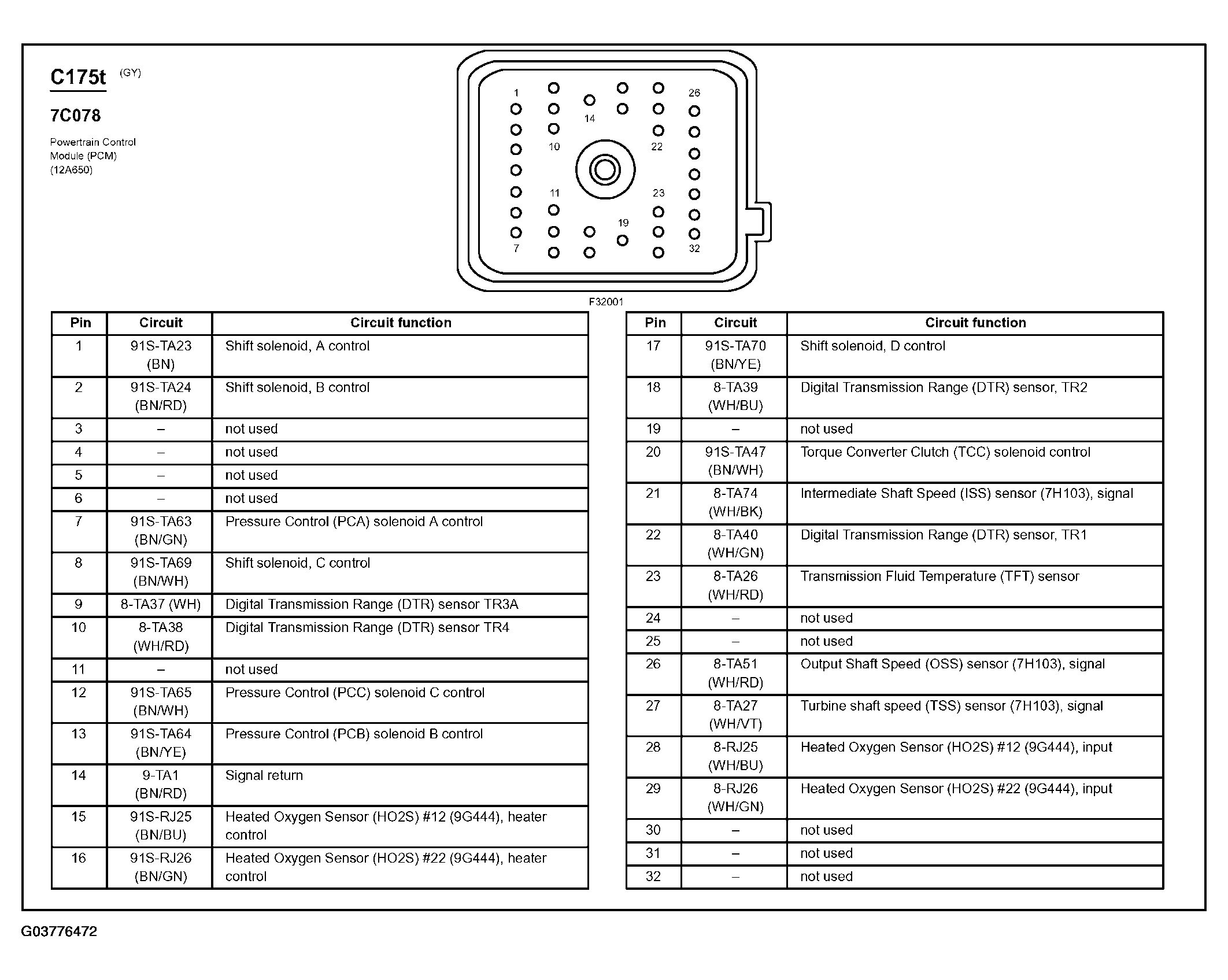

Fig 55: Powertrain Control Module (PCM) Connector End View (C175t)
G03776472Courtesy of FORD MOTOR CO.
Fig 56: Exhaust Pressure Transducer (EPT) Sensor Connector End View (C178)
G07833243Courtesy of FORD MOTOR CO.
Fig 57: Fuel Injector 1 Connector End View (C181)
G07833244Courtesy of FORD MOTOR CO.

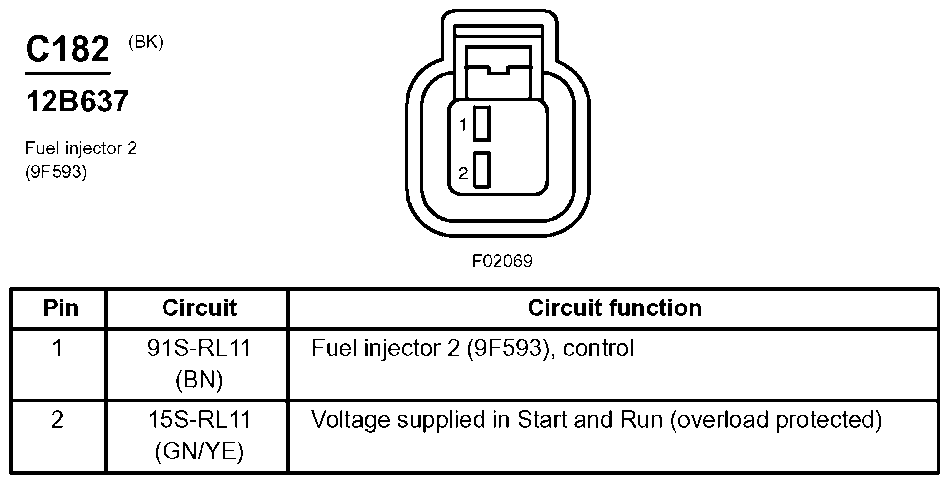

Fig 58: Fuel Injector 2 Connector End View (C182)
G07833245Courtesy of FORD MOTOR CO.
Fig 59: Fuel Injector 3 Connector End View (C183)
G07833246Courtesy of FORD MOTOR CO.
Fig 60: Fuel Injector 4 Connector End View (C184)
G07833247Courtesy of FORD MOTOR CO.

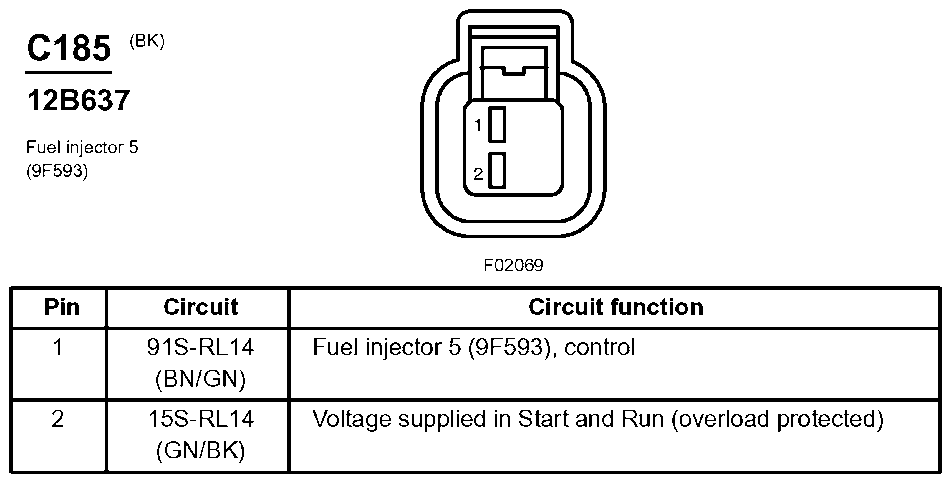

Fig 61: Fuel Injector 5 Connector End View (C185)
G07833248Courtesy of FORD MOTOR CO.

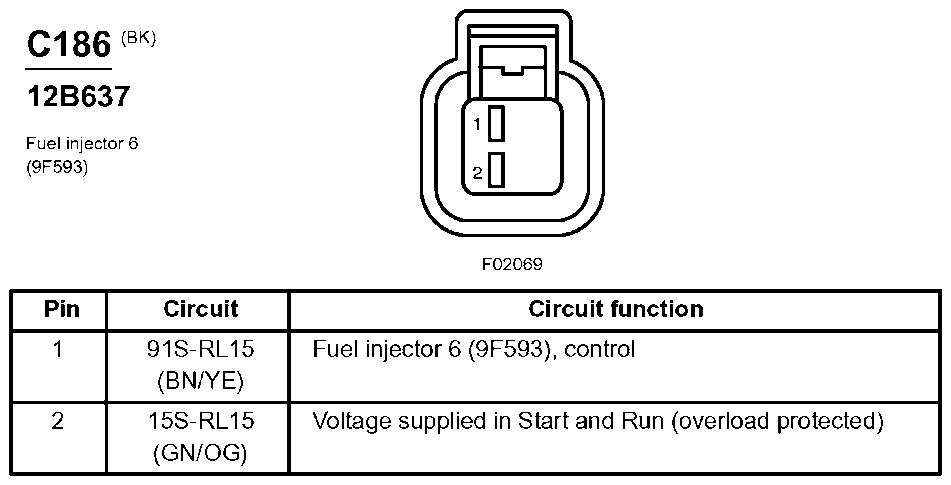

Fig 62: Fuel Injector 6 Connector End View (C186)
G07833249Courtesy of FORD MOTOR CO.

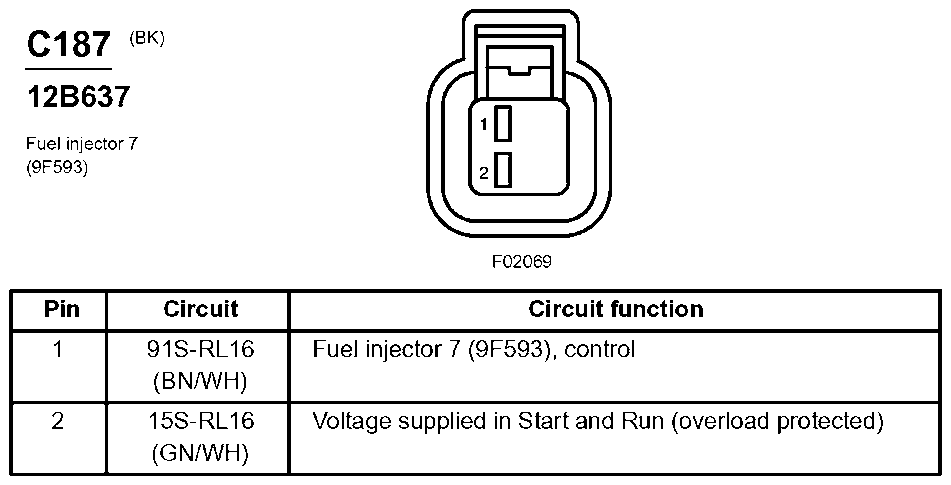

Fig 63: Fuel Injector 7 Connector End View (C187)
G07833250Courtesy of FORD MOTOR CO.
Fig 64: Fuel Injector 8 Connector End View (C188)
G07833251Courtesy of FORD MOTOR CO.

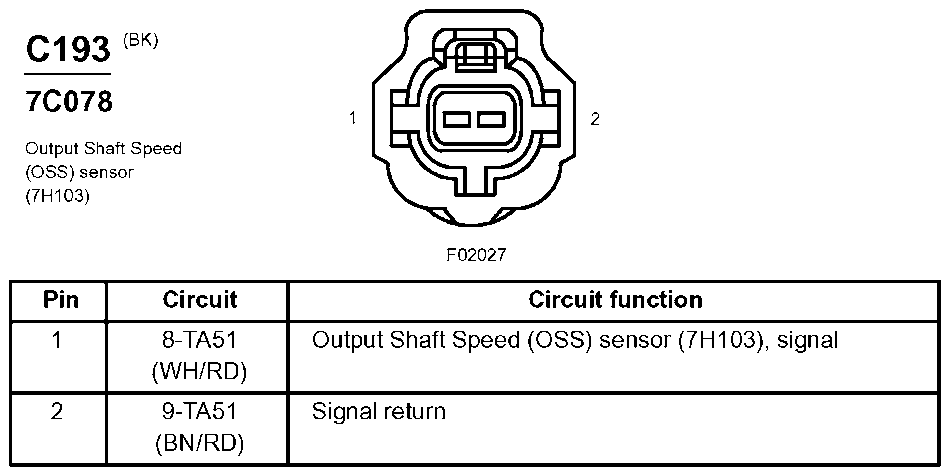

Fig 65: Output Shaft Speed (OSS) Sensor Connector End View (C193)
G07833252Courtesy of FORD MOTOR CO.
Fig 66: Ignition Transformer Capacitor 2 Connector End View (C194)
G07833253Courtesy of FORD MOTOR CO.
Fig 67: Stud Dash Panel Connector End View (C195a)
G07833254Courtesy of FORD MOTOR CO.

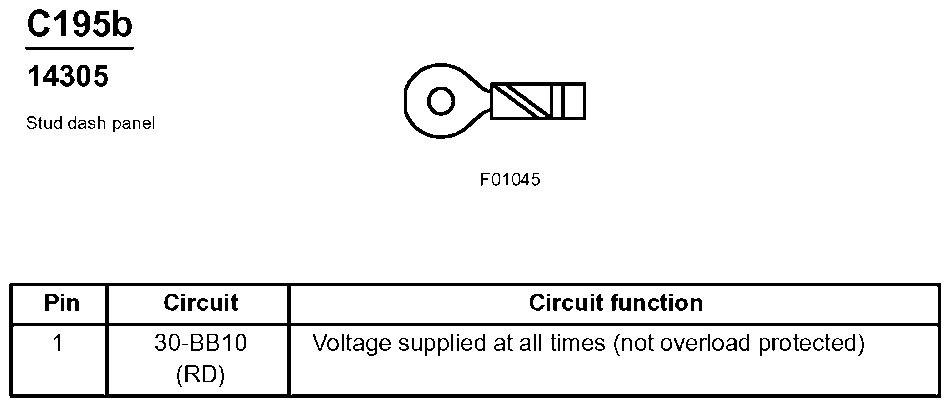

Fig 68: Stud Dash Panel Connector End View (C195b)
G07833255Courtesy of FORD MOTOR CO.
Fig 69: Starter Motor Connector End View (C197a)
G07833256Courtesy of FORD MOTOR CO.

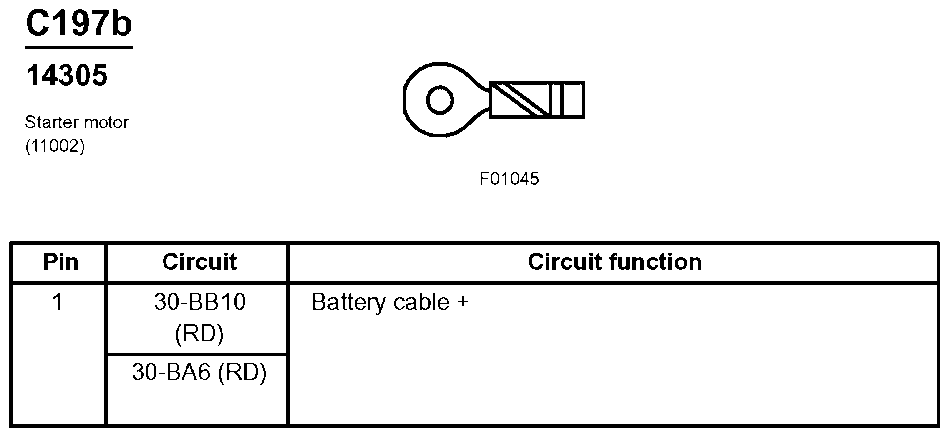

Fig 70: Starter Motor Connector End View (C197b)
G07833257Courtesy of FORD MOTOR CO.

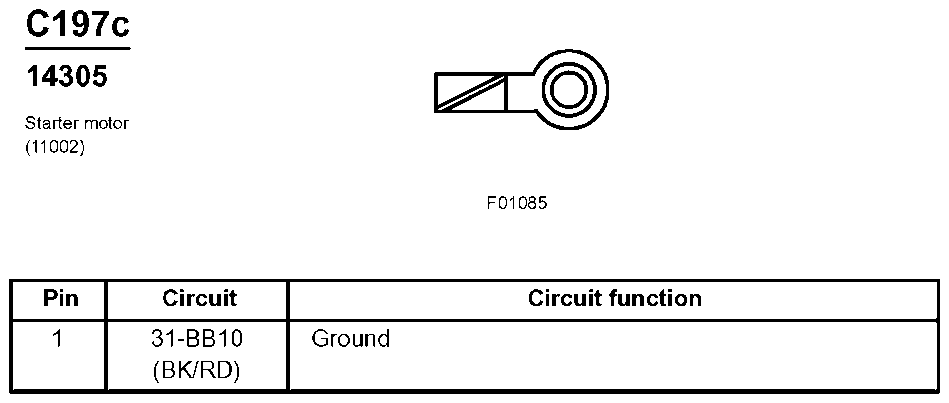

Fig 71: Starter Motor Connector End View (C197c)
G07833258Courtesy of FORD MOTOR CO.
Fig 72: Outside Temperature Sensor Connector End View (C198)
G07833259Courtesy of FORD MOTOR CO.

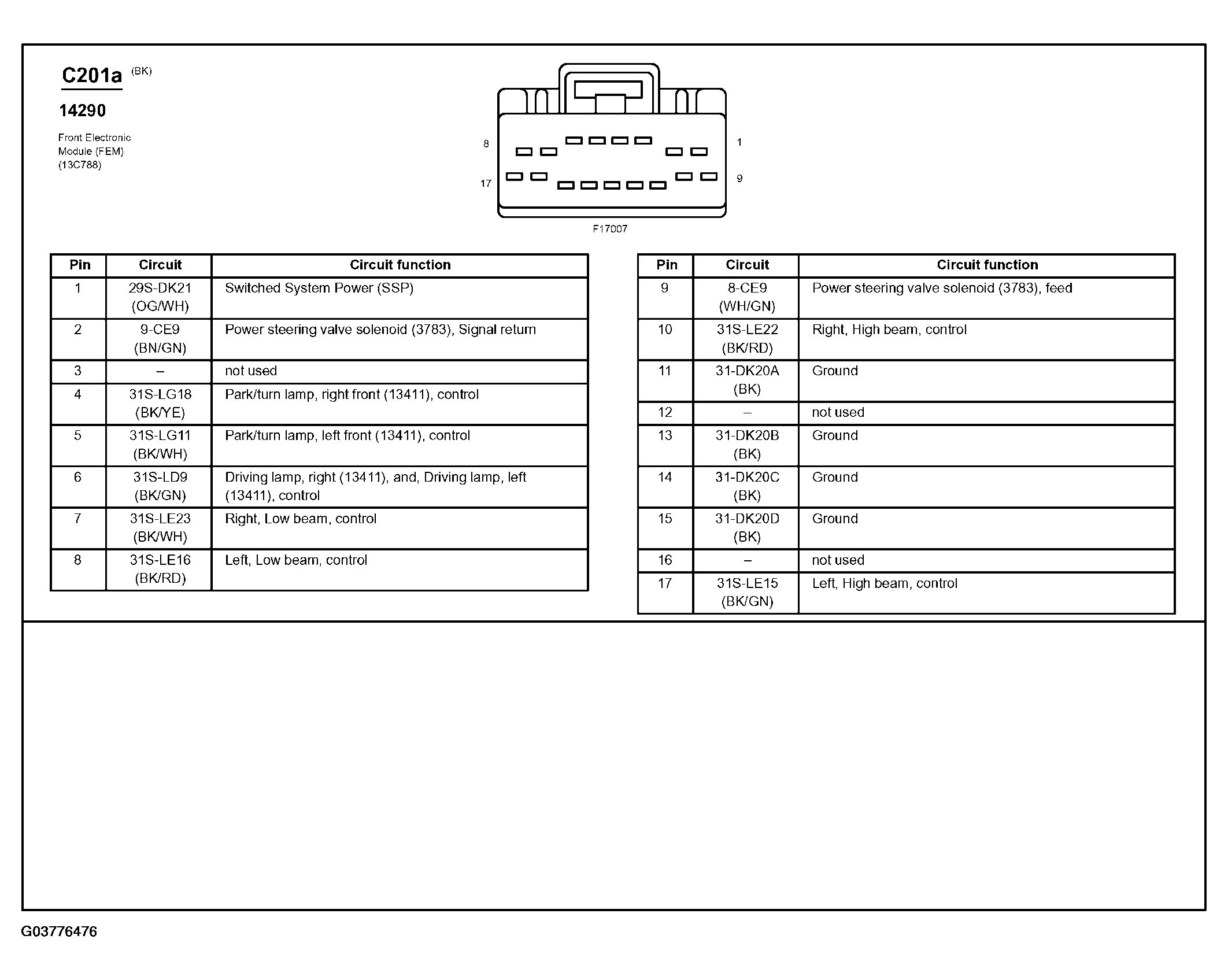

Fig 73: Front Electronic Module (FEM) Connector End View (C201a)
G03776476Courtesy of FORD MOTOR CO.

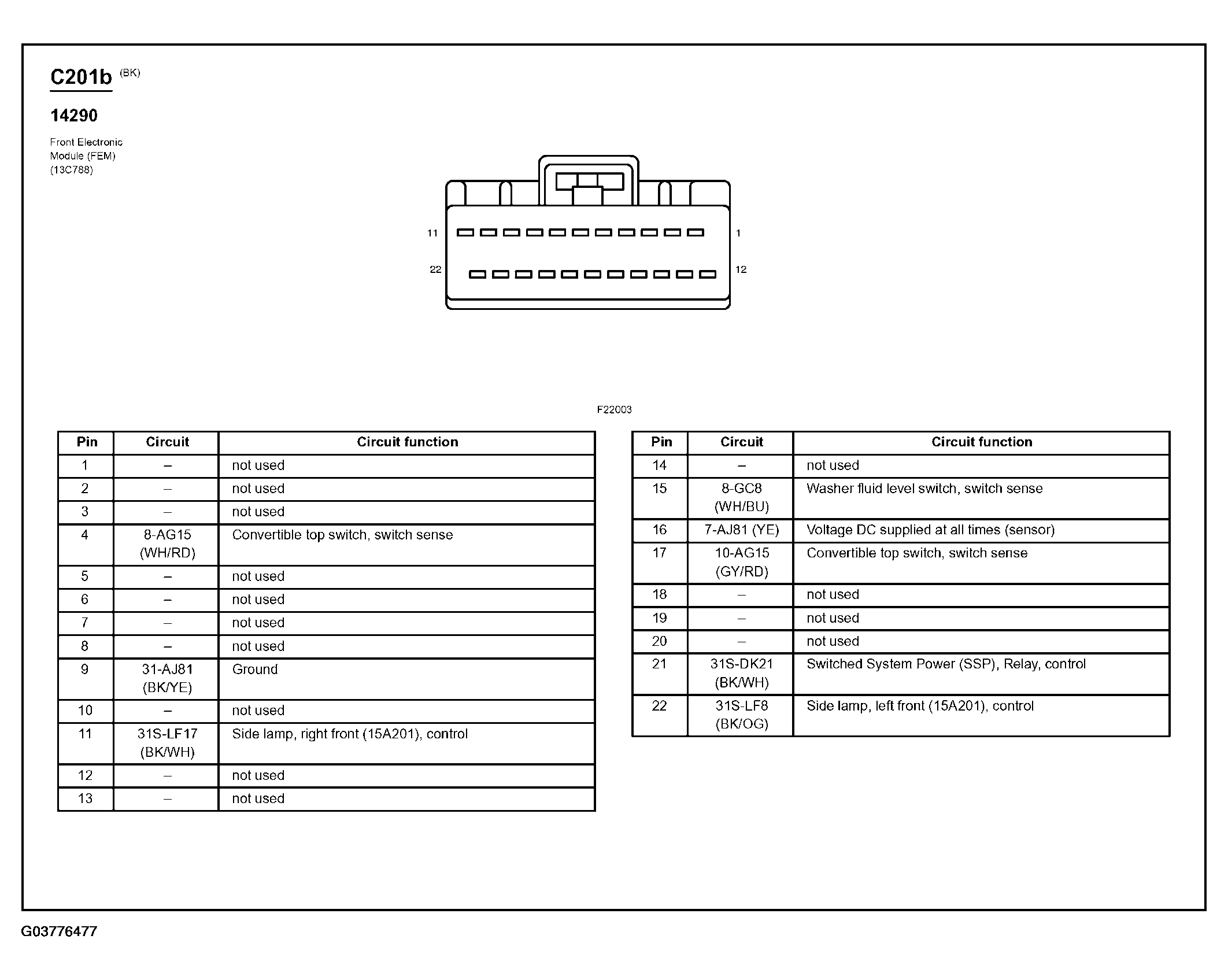

Fig 74: Front Electronic Module (FEM) Connector End View (C201b)
G03776477Courtesy of FORD MOTOR CO.
Fig 75: Front Electronic Module (FEM) Connector End View (C201c)
G03776478Courtesy of FORD MOTOR CO.
Fig 76: Front Electronic Module (FEM) Connector End View (C201d)
G03776479Courtesy of FORD MOTOR CO.

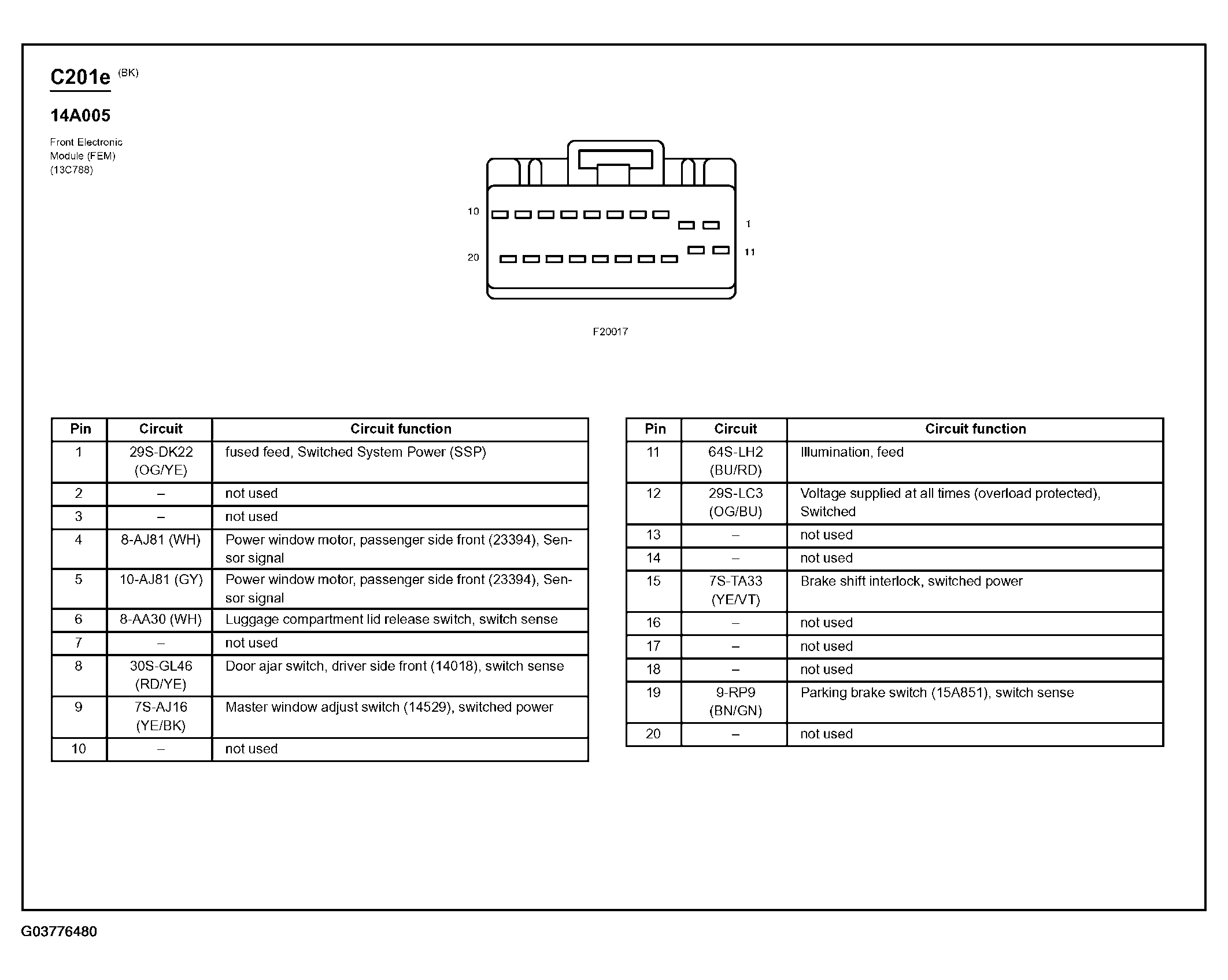

Fig 77: Front Electronic Module (FEM) Connector End View (C201e)
G03776480Courtesy of FORD MOTOR CO.

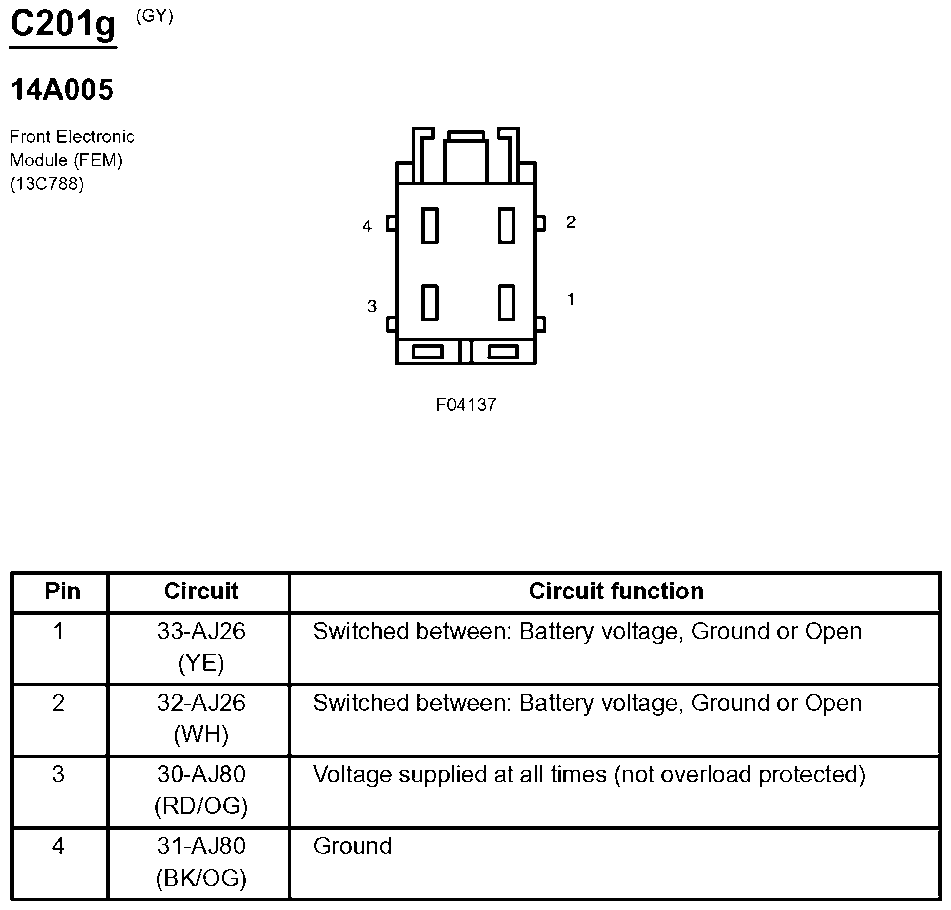

Fig 78: Front Electronic Module (FEM) Connector End View (C201g)
G07833260Courtesy of FORD MOTOR CO.
Fig 79: Multifunction Switch Connector End View (C202)
G07833261Courtesy of FORD MOTOR CO.
Fig 80: Exterior Rear View Mirror Switch Connector End View (C204)
G07833262Courtesy of FORD MOTOR CO.
Fig 81: Main Light Switch Connector End View (C205)
G07833263Courtesy of FORD MOTOR CO.
Fig 82: Instrument Panel Dimming Module Connector End View (C206)
G07833264Courtesy of FORD MOTOR CO.
Fig 83: Footwell Lamp, Left Front Connector End View (C209)
G07833265Courtesy of FORD MOTOR CO.

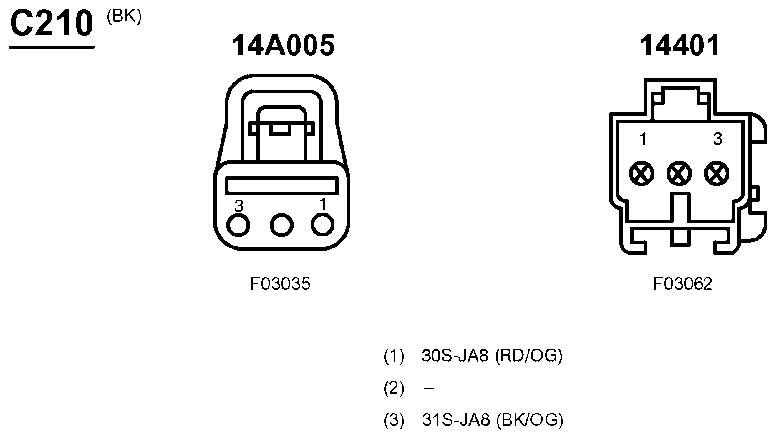

Fig 84: Inline Connector End View (C210)
G07833266Courtesy of FORD MOTOR CO.
Fig 85: Inline Connector End View (C211)
G07833267Courtesy of FORD MOTOR CO.

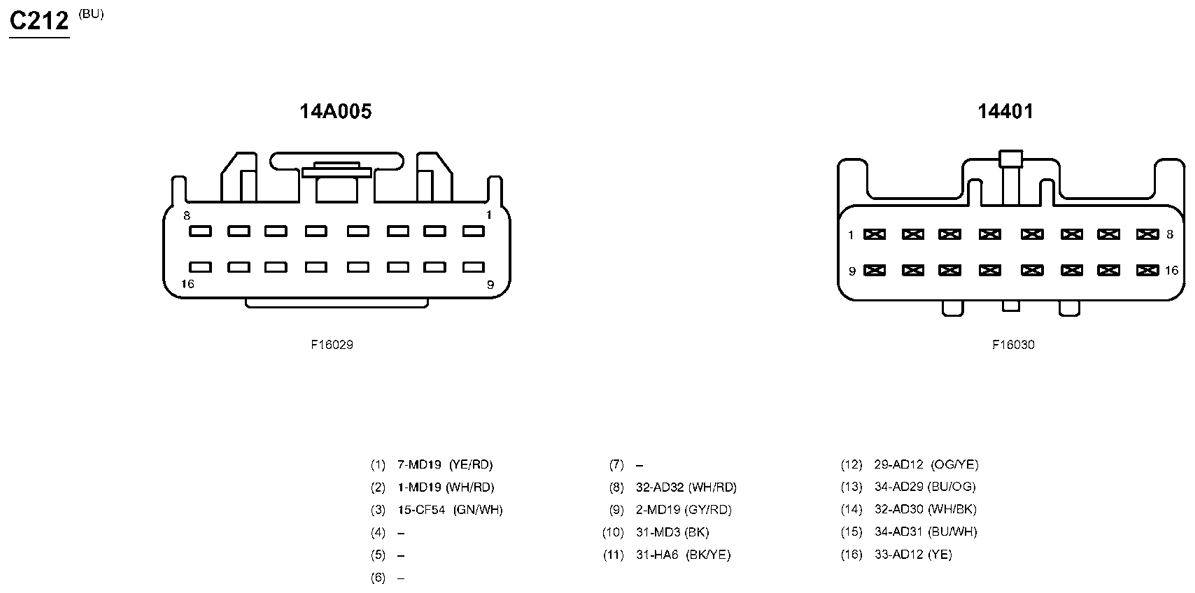

Fig 86: Inline Connector End View (C212)
G03776484Courtesy of FORD MOTOR CO.
Fig 87: Inline Connector End View (C213)
G07833268Courtesy of FORD MOTOR CO.

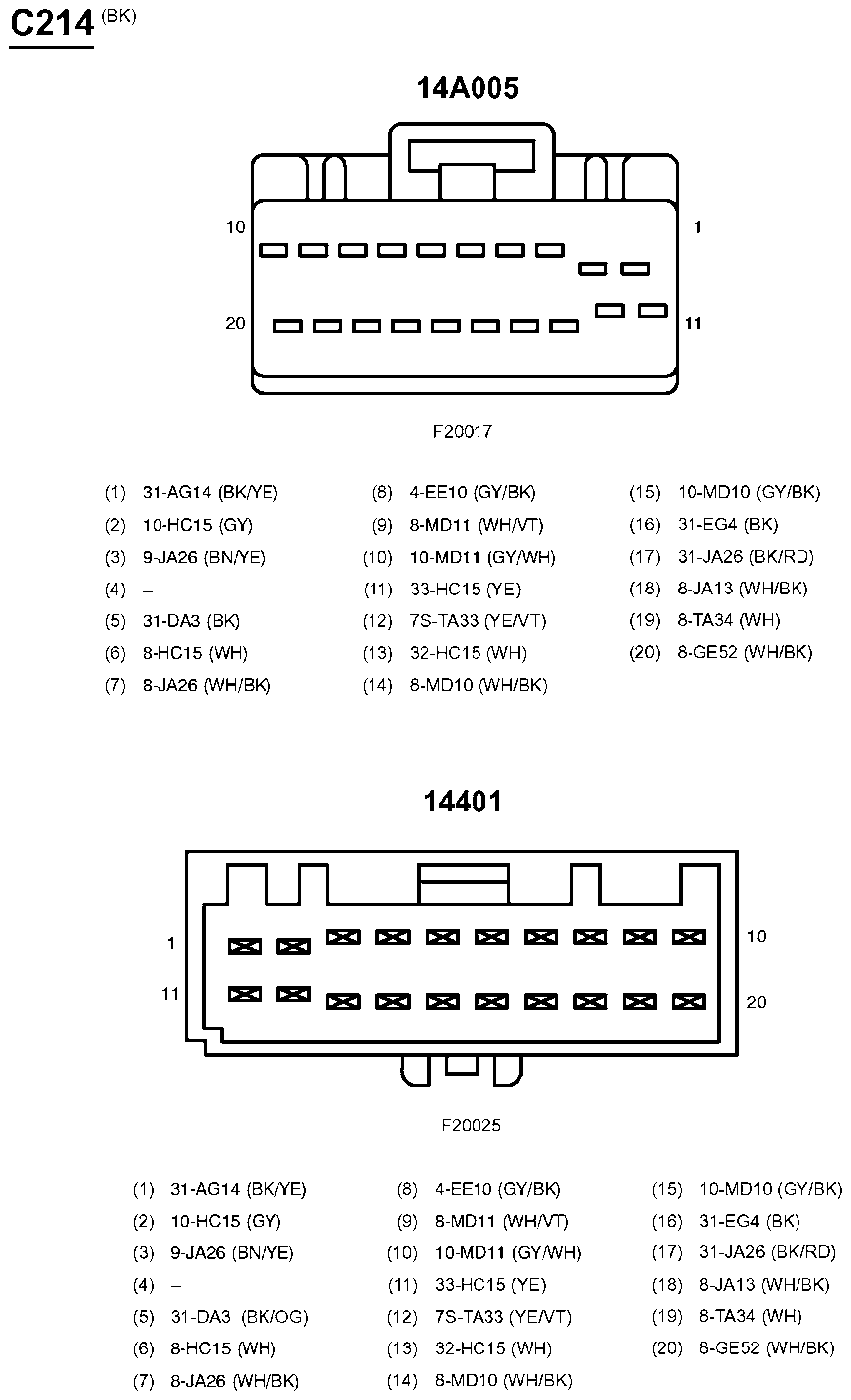

Fig 88: Inline Connector End View (C214)
G07833269Courtesy of FORD MOTOR CO.

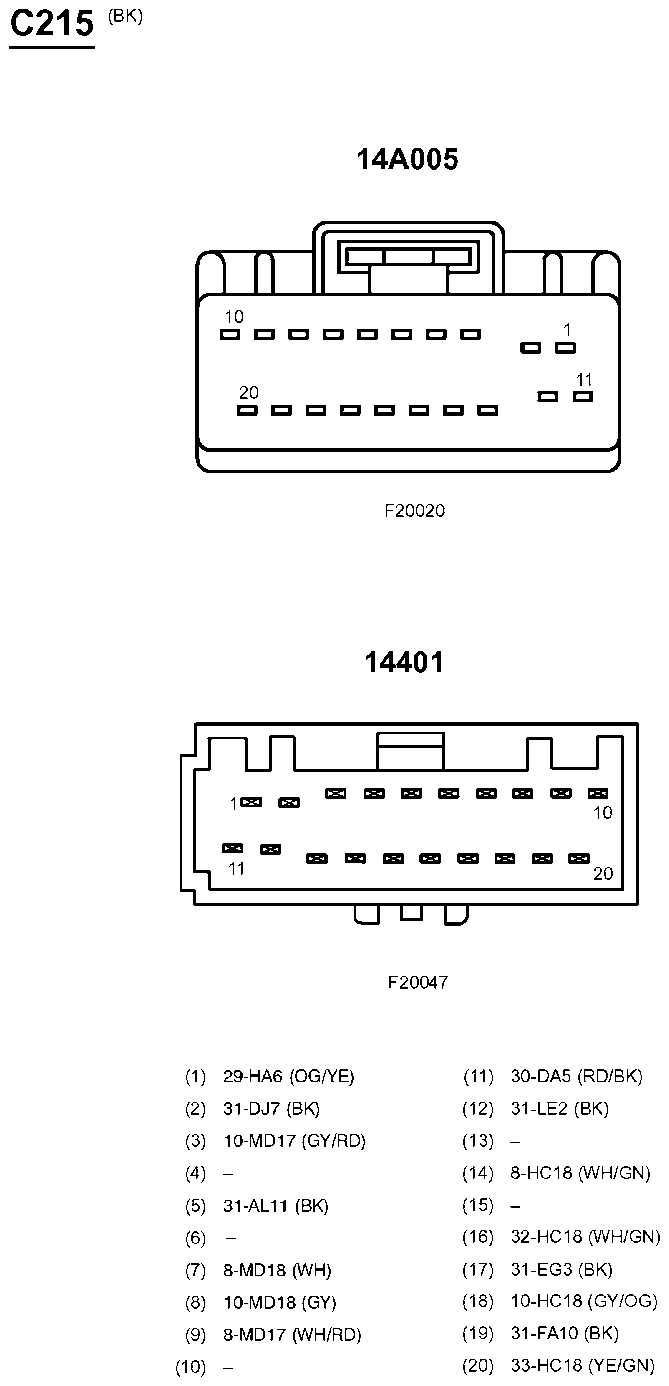

Fig 89: Inline Connector End View (C215)
G07833270Courtesy of FORD MOTOR CO.

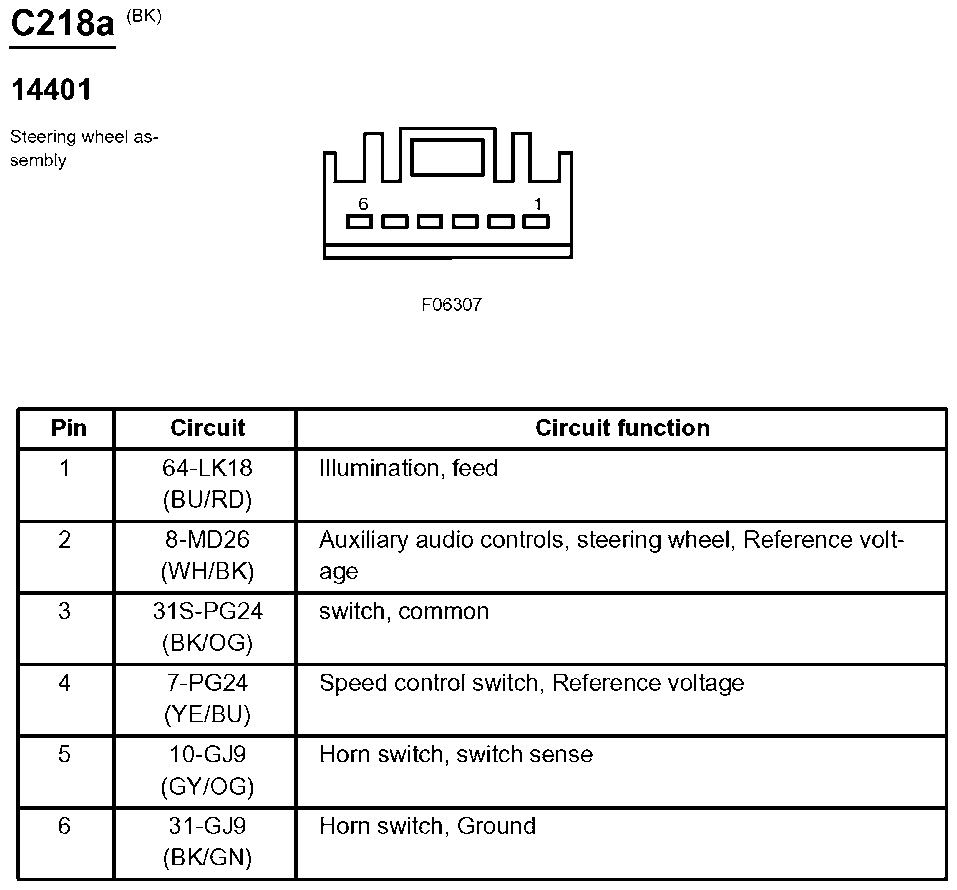

Fig 90: Steering Wheel Assembly Connector End View (C218a)
G07833271Courtesy of FORD MOTOR CO.

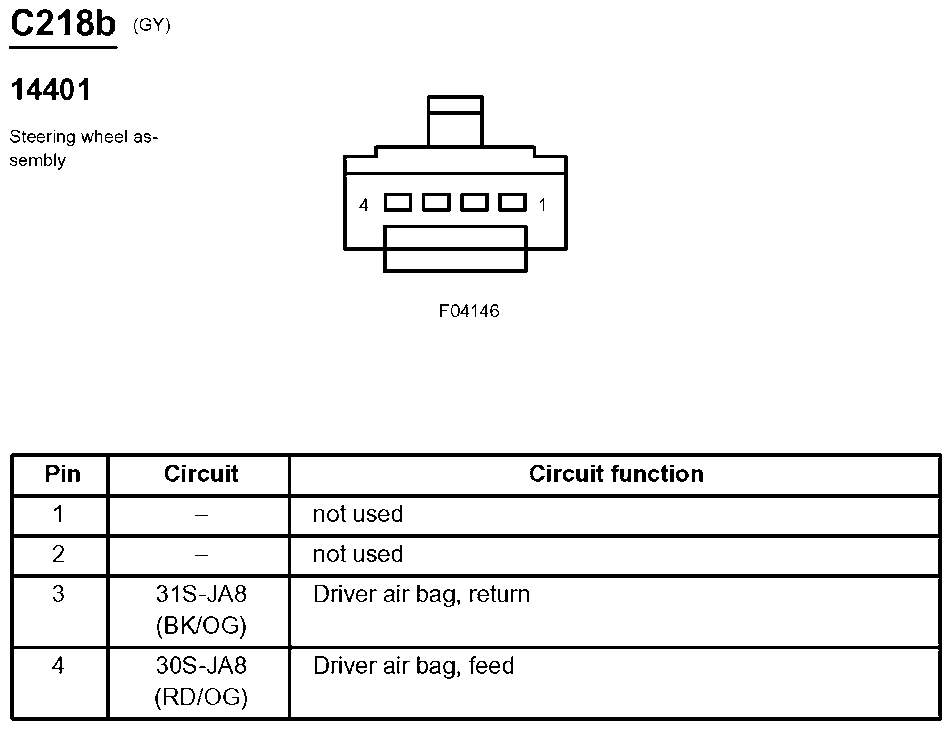

Fig 91: Steering Wheel Assembly Connector End View (C218b)
G03776487Courtesy of FORD MOTOR CO.
Fig 92: Inline Connector End View (C219)
G03776488Courtesy of FORD MOTOR CO.

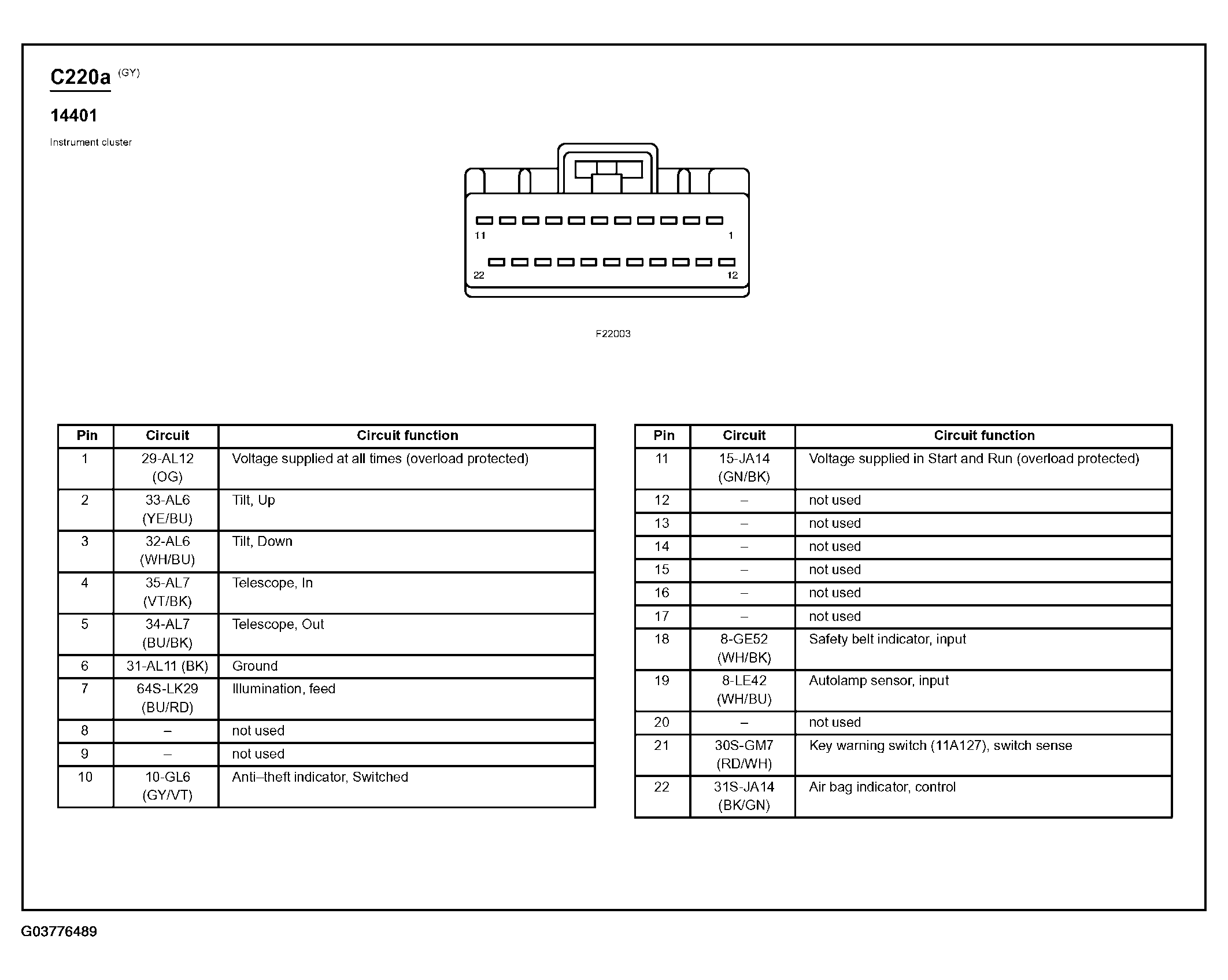

Fig 93: Instrument Cluster Connector End View (C220a)
G03776489Courtesy of FORD MOTOR CO.

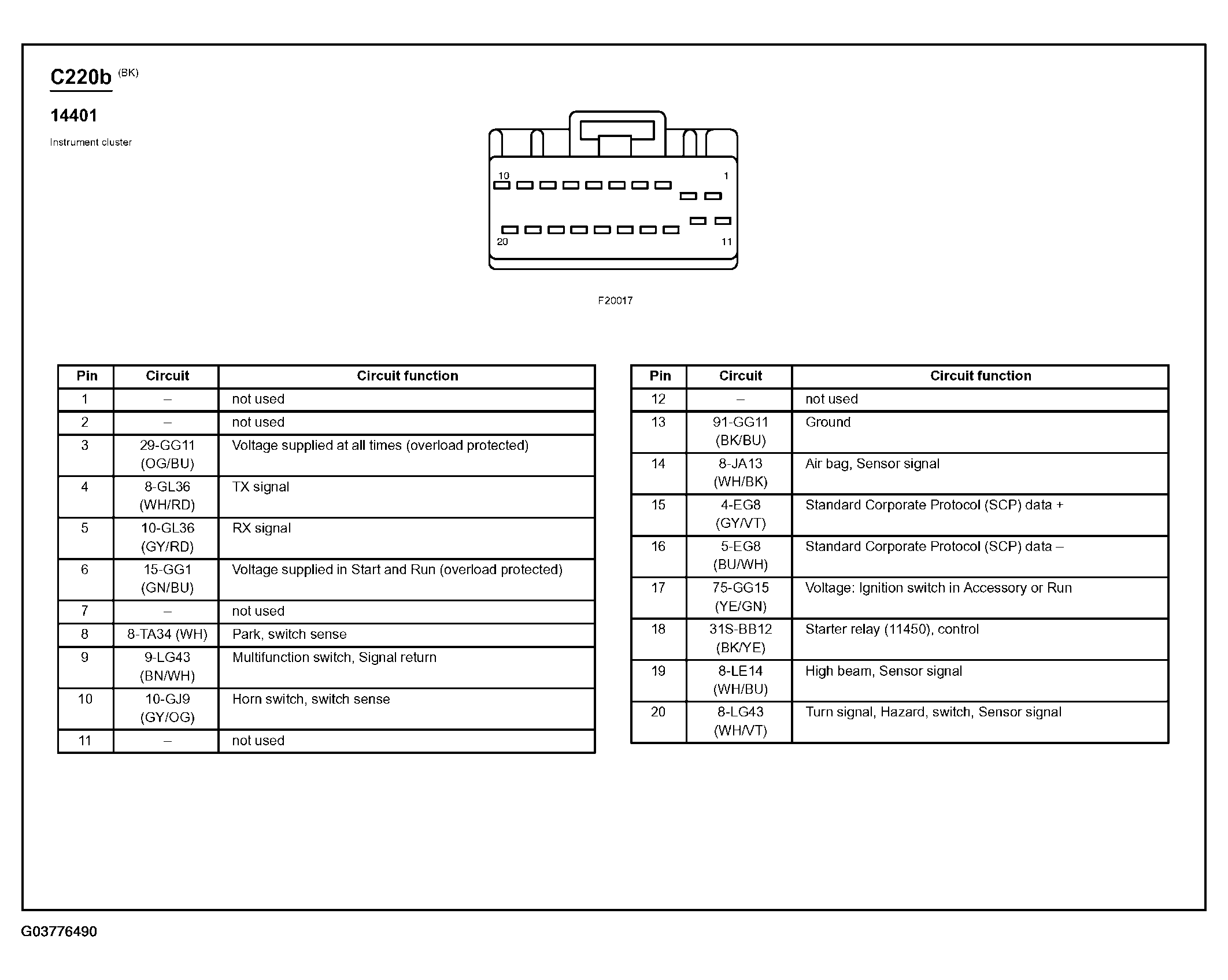

Fig 94: Instrument Cluster Connector End View (C220b)
G03776490Courtesy of FORD MOTOR CO.

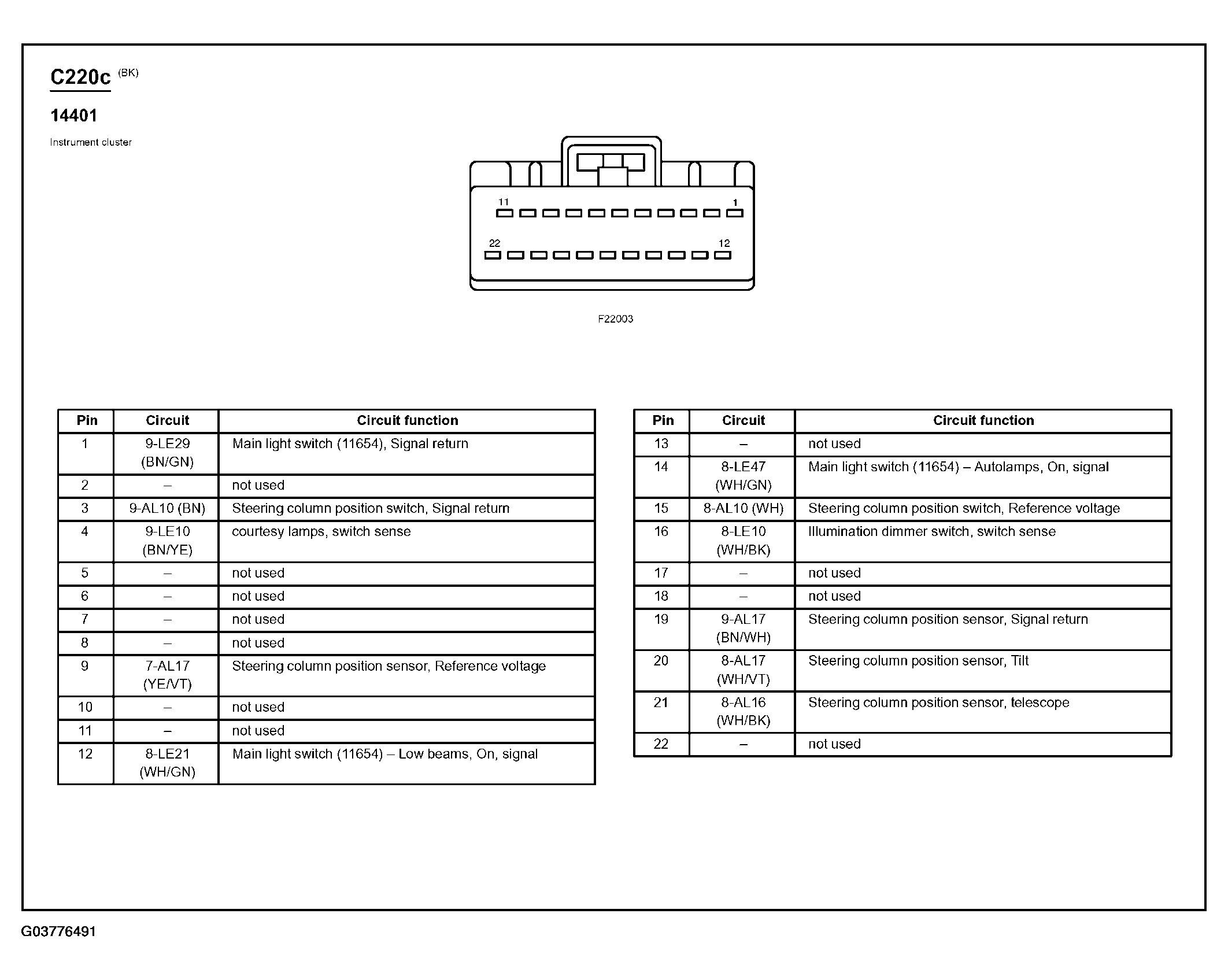

Fig 95: Instrument Cluster Connector End View (C220c)
G03776491Courtesy of FORD MOTOR CO.

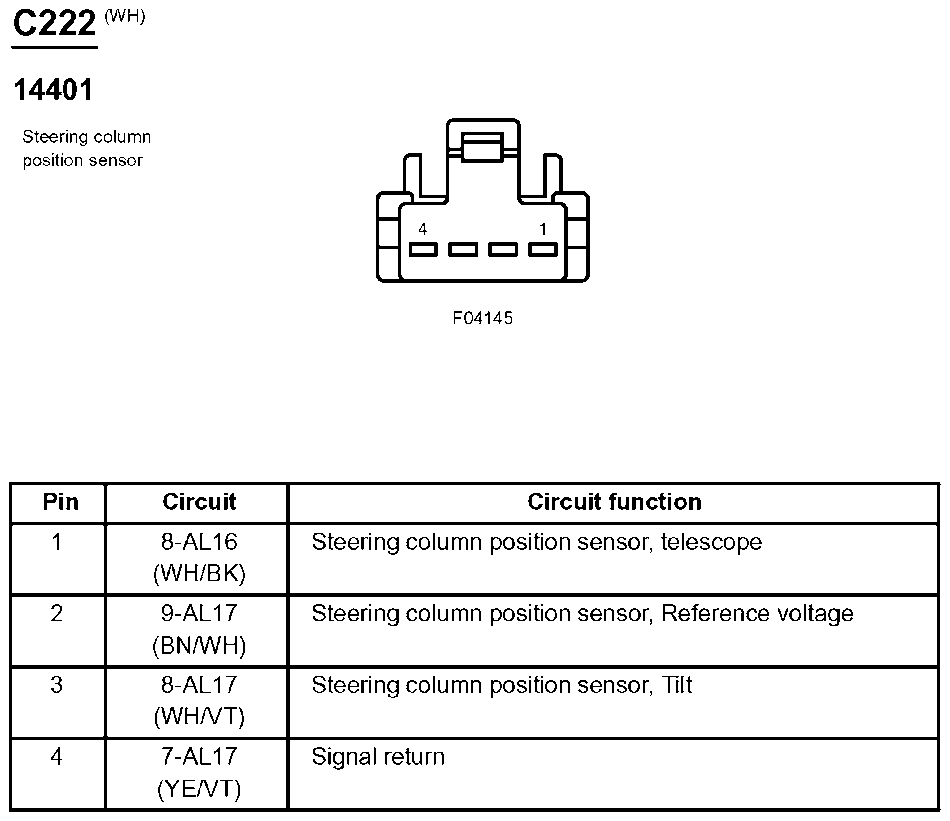

Fig 96: Steering Column Position Sensor Connector End View (C222)
G07833272Courtesy of FORD MOTOR CO.
Fig 97: Center Image Amplifier Connector End View (C225)
G07833273Courtesy of FORD MOTOR CO.
Fig 98: Steering Column Position Motor Connector End View (C227)
G03776493Courtesy of FORD MOTOR CO.

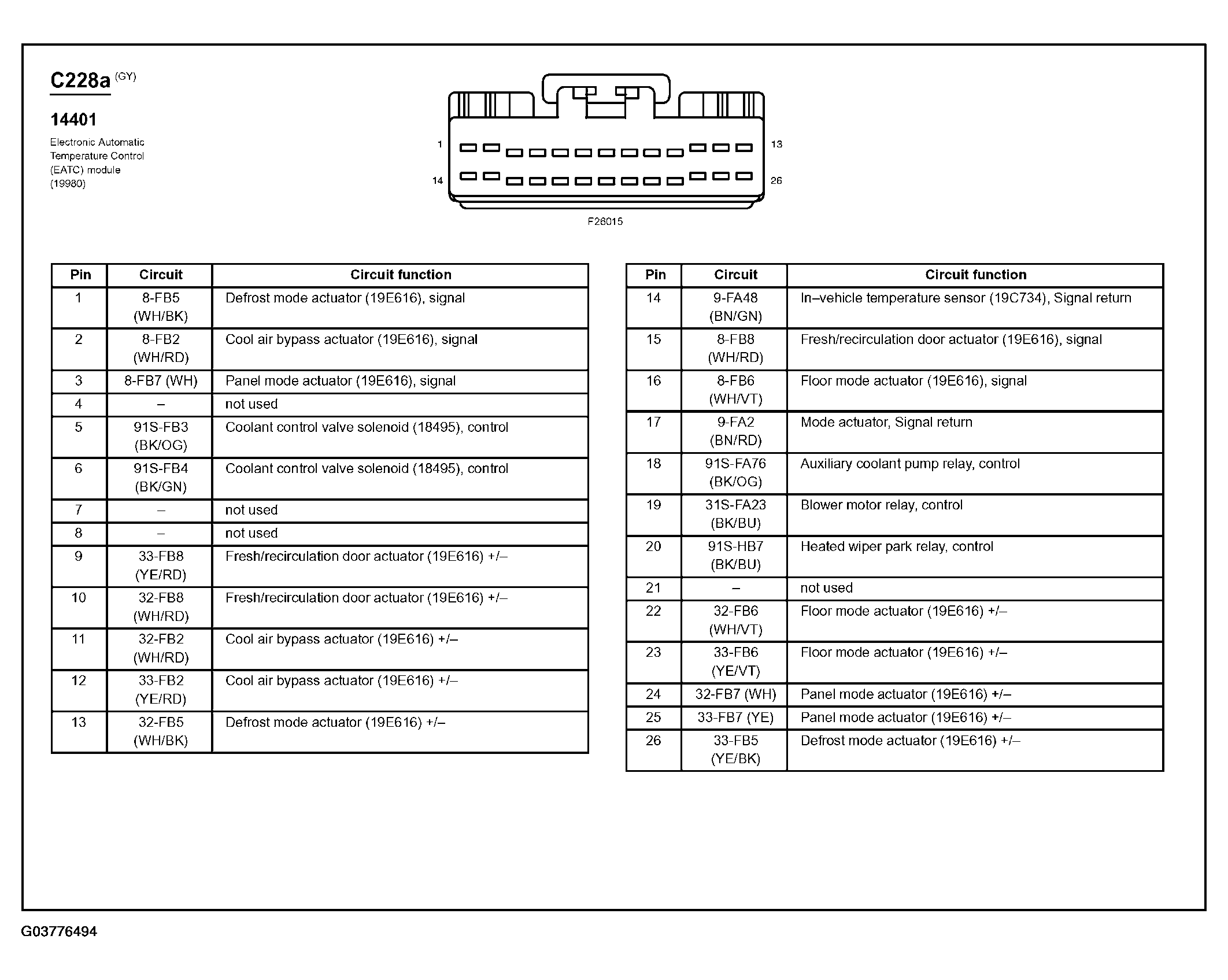

Fig 99: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228a)
G03776494Courtesy of FORD MOTOR CO.

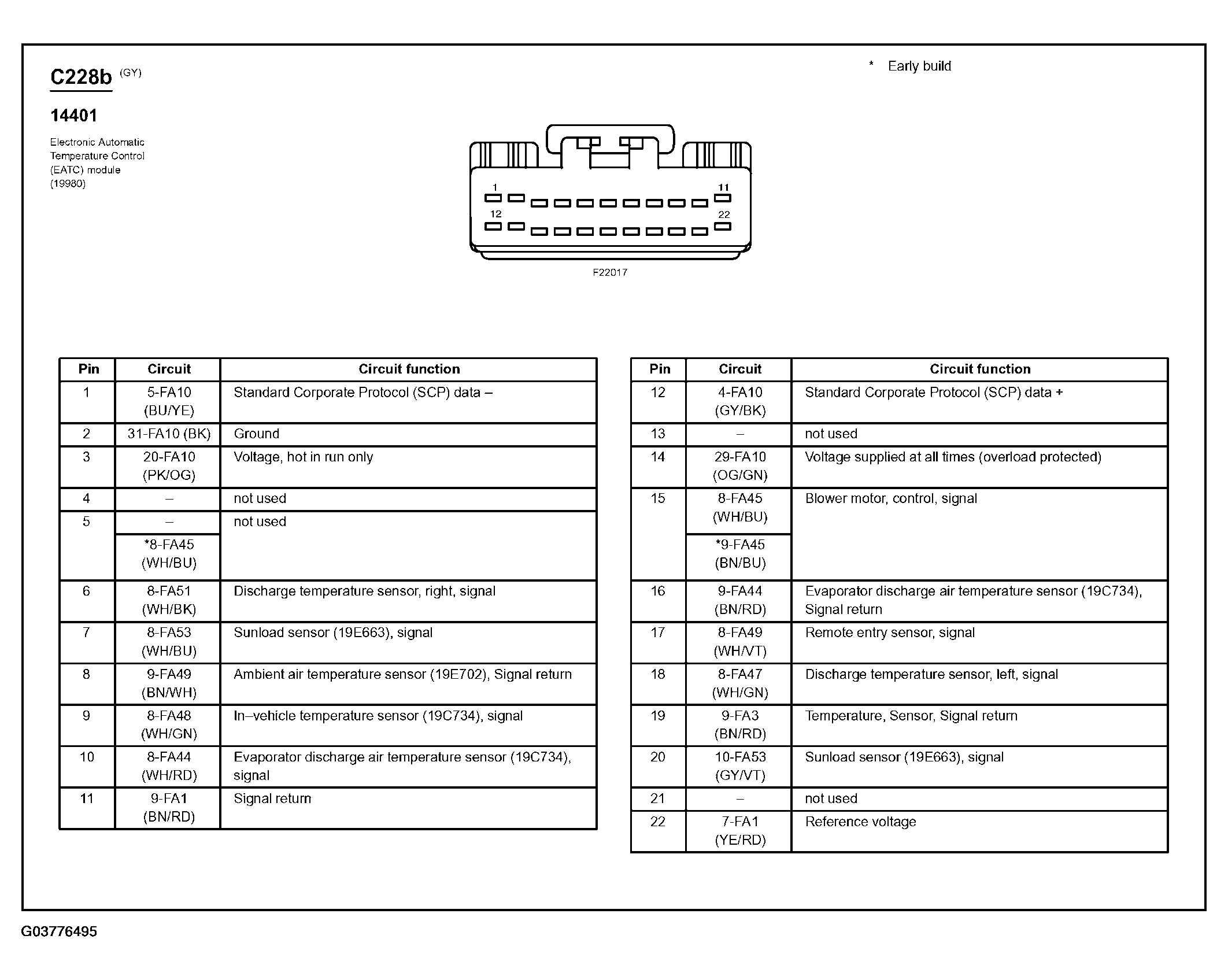

Fig 100: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228b)
G03776495Courtesy of FORD MOTOR CO.

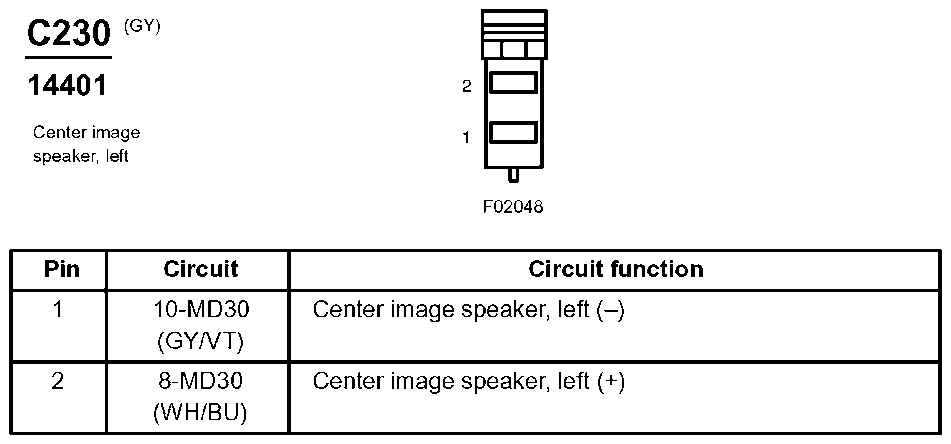

Fig 101: Center Image Speaker, Left Connector End View (C230)
G07833274Courtesy of FORD MOTOR CO.

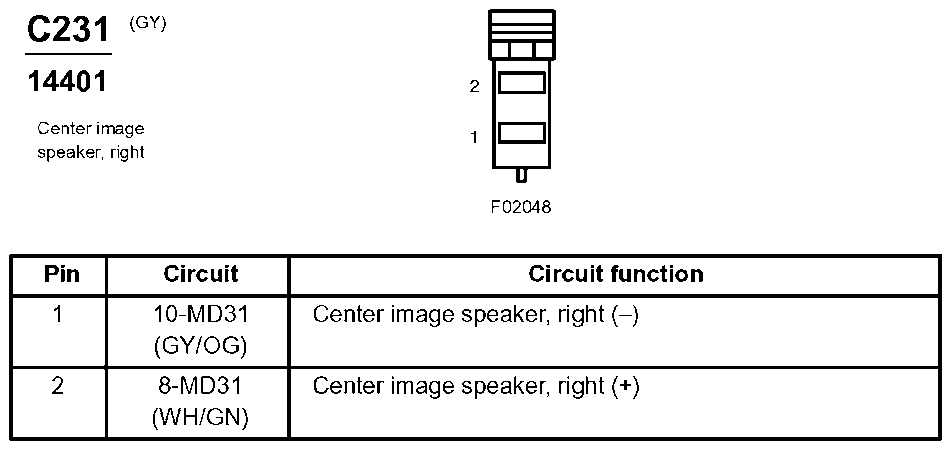

Fig 102: Center Image Speaker, Right Connector End View (C231)
G07833275Courtesy of FORD MOTOR CO.
Fig 103: Defrost Mode Actuator Connector End View (C232)
G07833276Courtesy of FORD MOTOR CO.
Fig 104: In-Vehicle Temperature Sensor Connector End View (C233)
G07833277Courtesy of FORD MOTOR CO.
Fig 105: Floor Mode Actuator Connector End View (C234)
G07833278Courtesy of FORD MOTOR CO.
Fig 106: Discharge Temperature Sensor, Left Connector End View (C235)
G07833279Courtesy of FORD MOTOR CO.

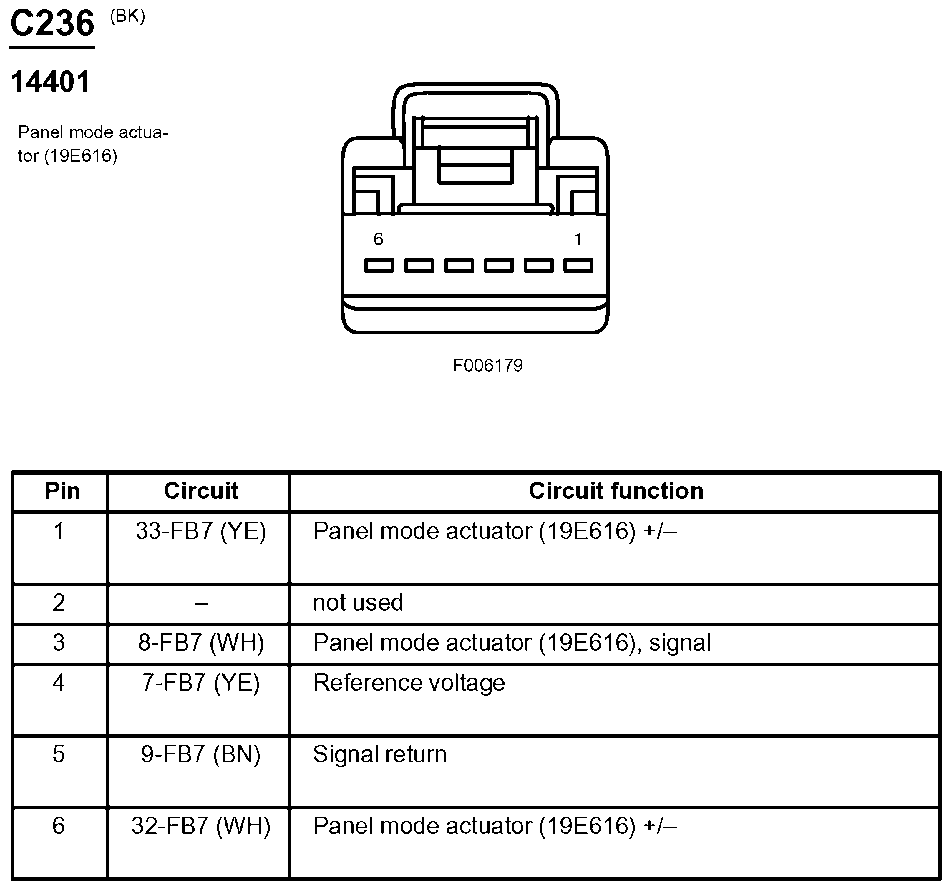

Fig 107: Panel Mode Actuator Connector End View (C236)
G07833280Courtesy of FORD MOTOR CO.
Fig 108: Inline Connector End View (C237)
G07833281Courtesy of FORD MOTOR CO.

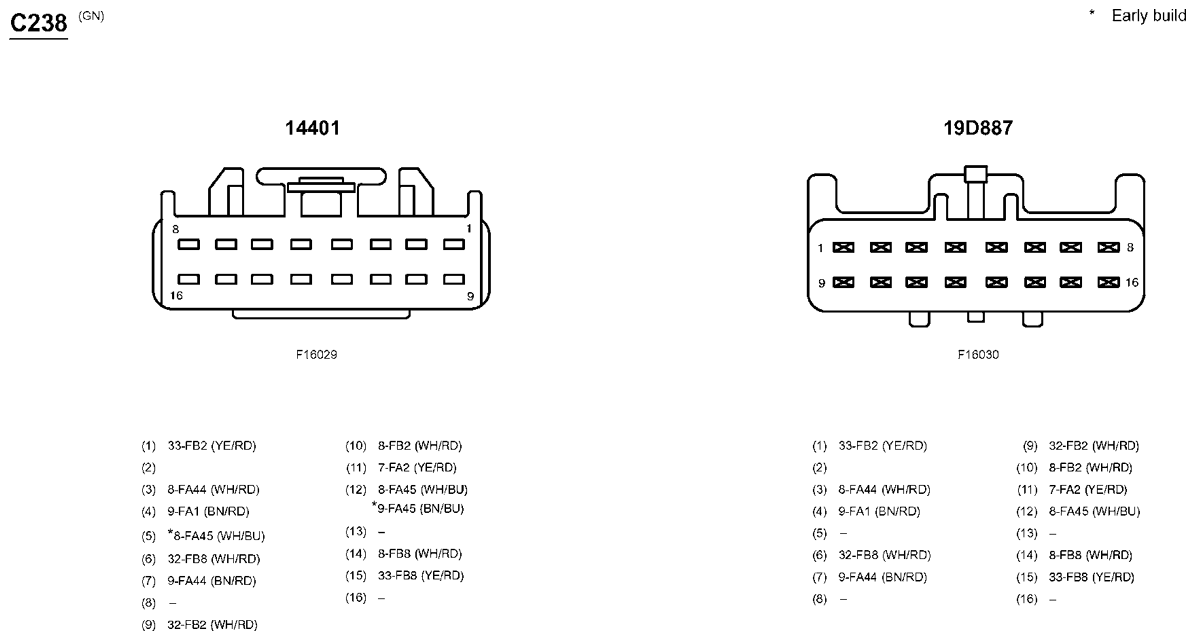

Fig 109: Inline Connector End View (C238)
G03776498Courtesy of FORD MOTOR CO.

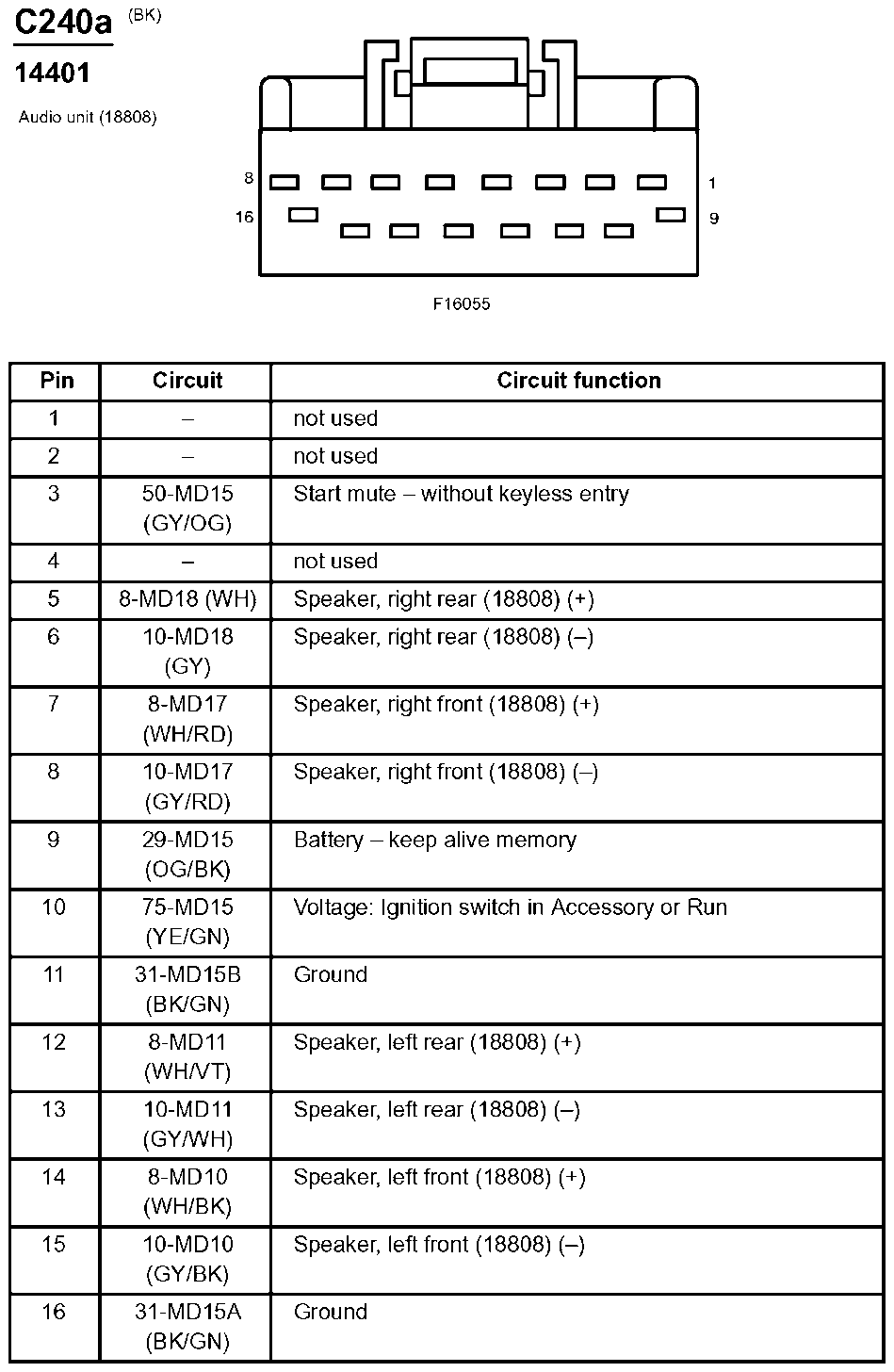

Fig 110: Radio Connector End View (C240a)
G07833282Courtesy of FORD MOTOR CO.
Fig 111: Audio Unit Connector End View (C240b)
G07833283Courtesy of FORD MOTOR CO.
Fig 112: Audio Unit Connector End View (C240c)
G07833284Courtesy of FORD MOTOR CO.
Fig 113: Inline Connector End View (C248)
G07833285Courtesy of FORD MOTOR CO.

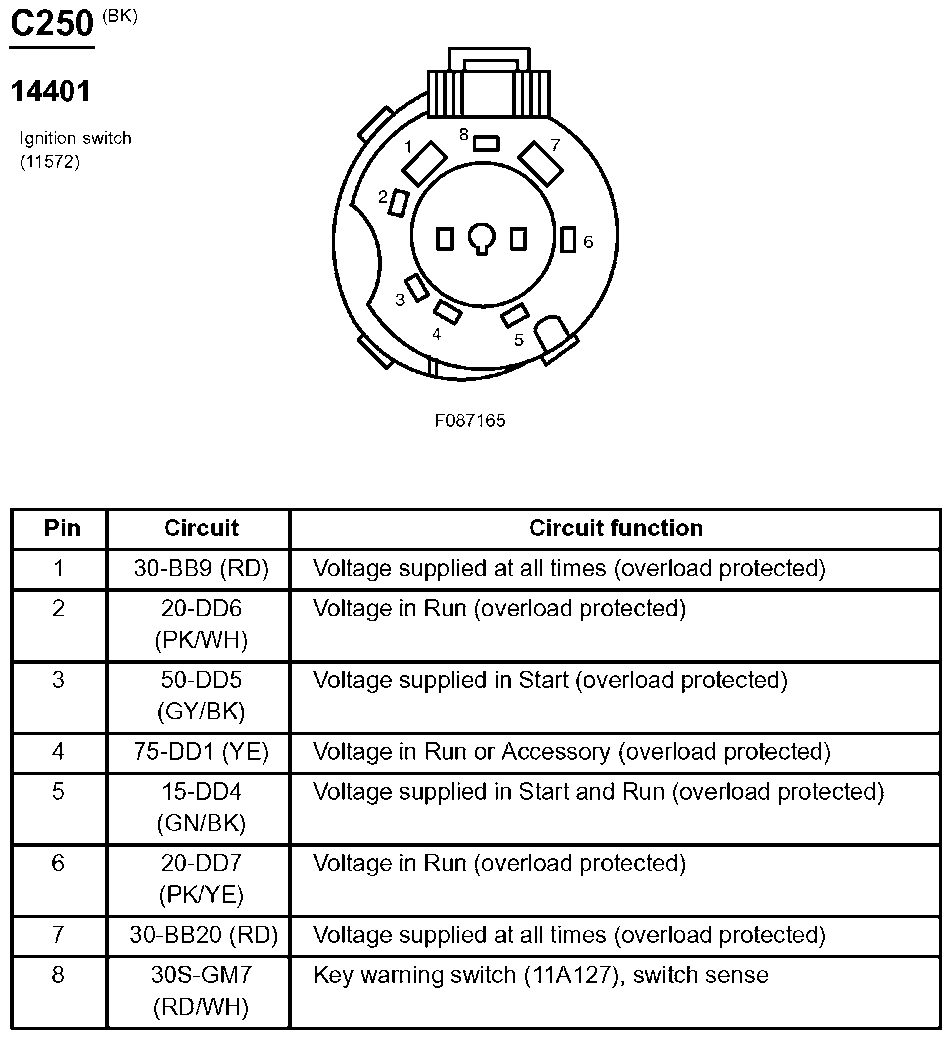

Fig 114: Ignition Switch Connector End View (C250)
G07833286Courtesy of FORD MOTOR CO.

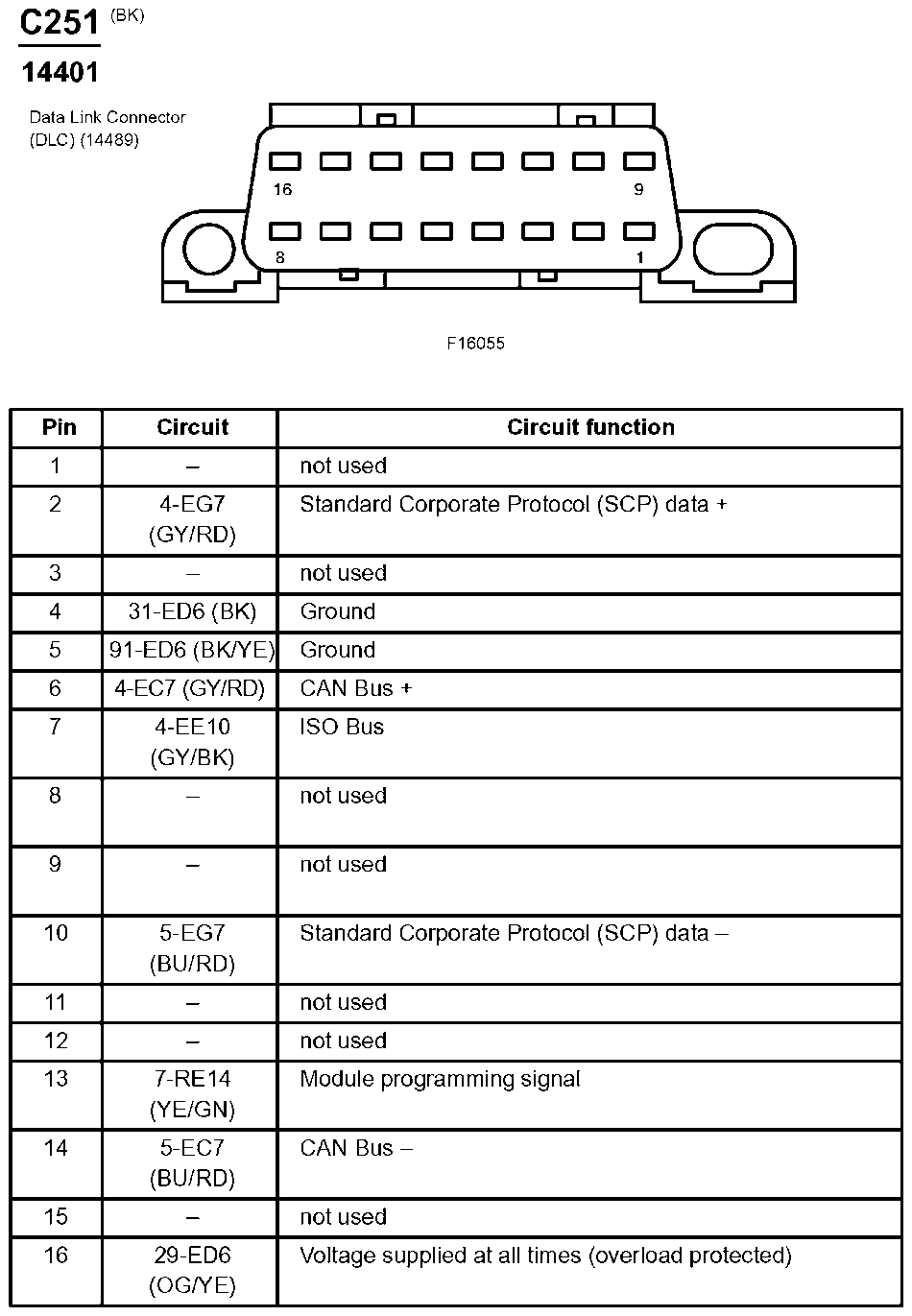

Fig 115: Data Link Connector (DLC) Connector End View (C251)
G07833287Courtesy of FORD MOTOR CO.
Fig 116: Passive Anti-Theft Transceiver Module Connector End View (C252)
G07833288Courtesy of FORD MOTOR CO.
Fig 117: Glove Box Lamp Connector End View (C254)
G07833289Courtesy of FORD MOTOR CO.

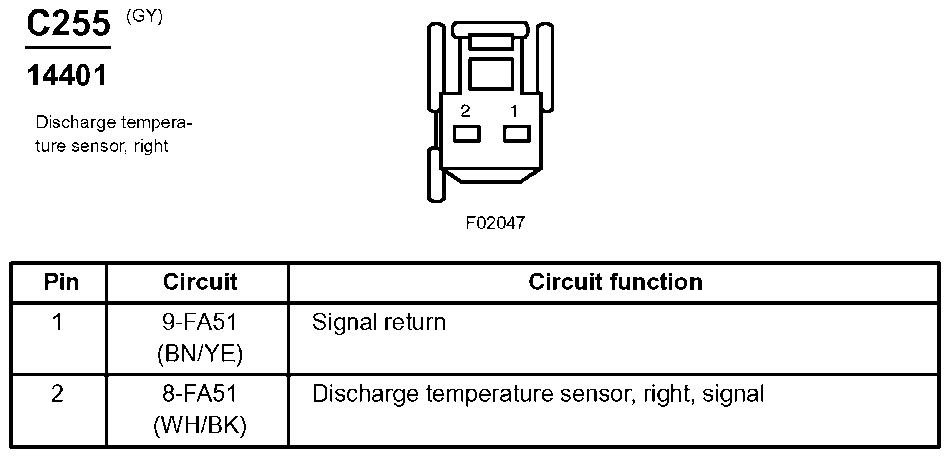

Fig 118: Discharge Temperature Sensor, Right Connector End View (C255)
G07833290Courtesy of FORD MOTOR CO.
Fig 119: Passenger Air Bag Module Connector End View (C256)
G07833291Courtesy of FORD MOTOR CO.
Fig 120: Inline Connector End View (C260)
G07833292Courtesy of FORD MOTOR CO.
Fig 121: Inline Connector End View (C264)
G07833293Courtesy of FORD MOTOR CO.

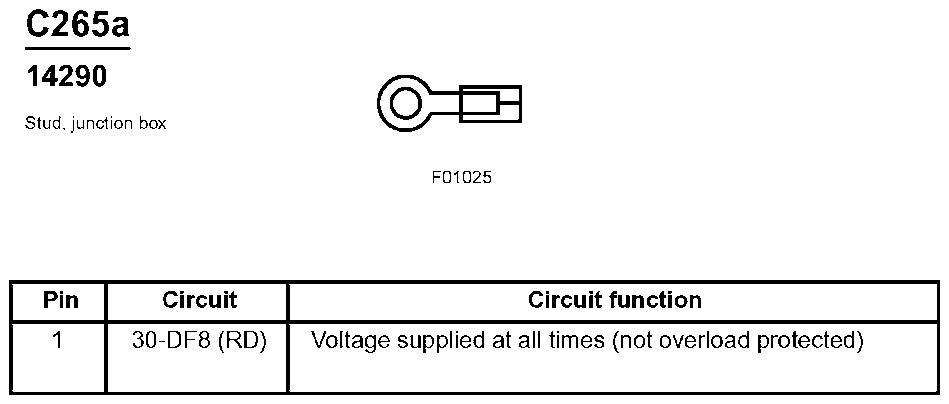

Fig 122: Stud, Junction Box Connector End View (C265a)
G07833294Courtesy of FORD MOTOR CO.

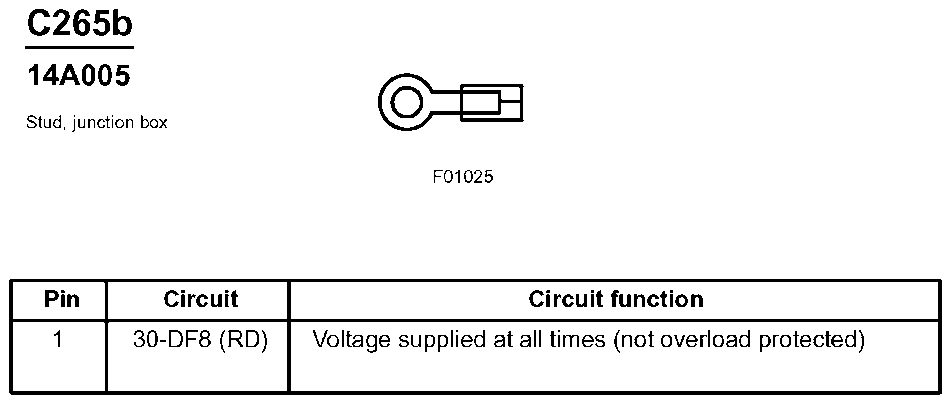

Fig 123: Stud, Junction Box Connector End View (C265b)
G07833295Courtesy of FORD MOTOR CO.

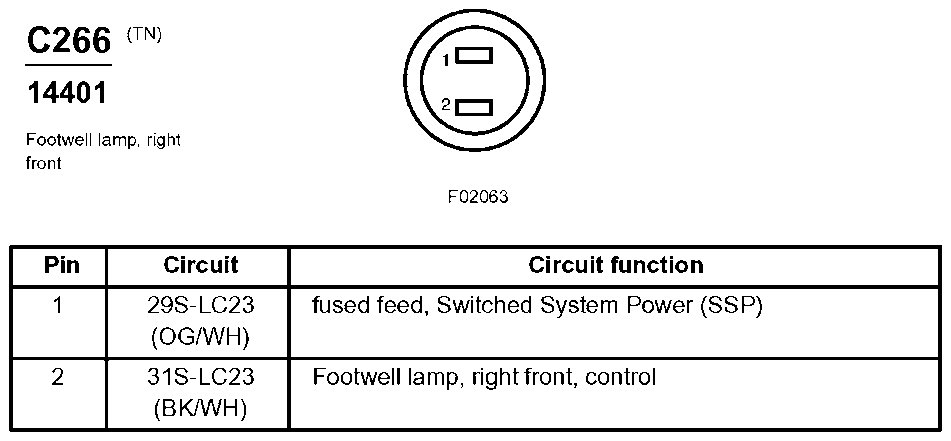

Fig 124: Footwell Lamp, Right Front Connector End View (C266)
G07833296Courtesy of FORD MOTOR CO.
Fig 125: Inline Connector End View (C268)
G07833297Courtesy of FORD MOTOR CO.

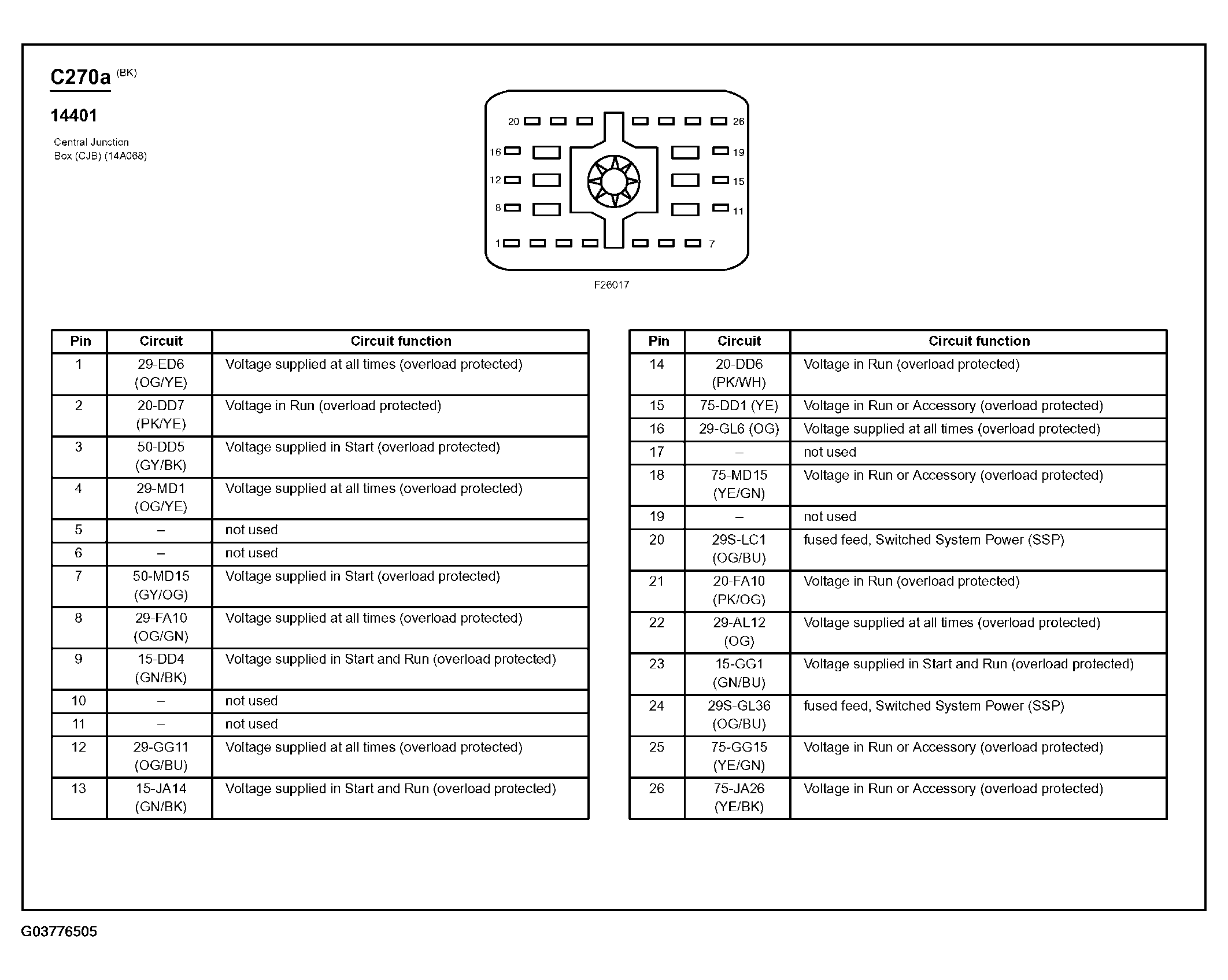

Fig 126: Central Junction Box (CJB) Connector End View (C270a)
G03776505Courtesy of FORD MOTOR CO.

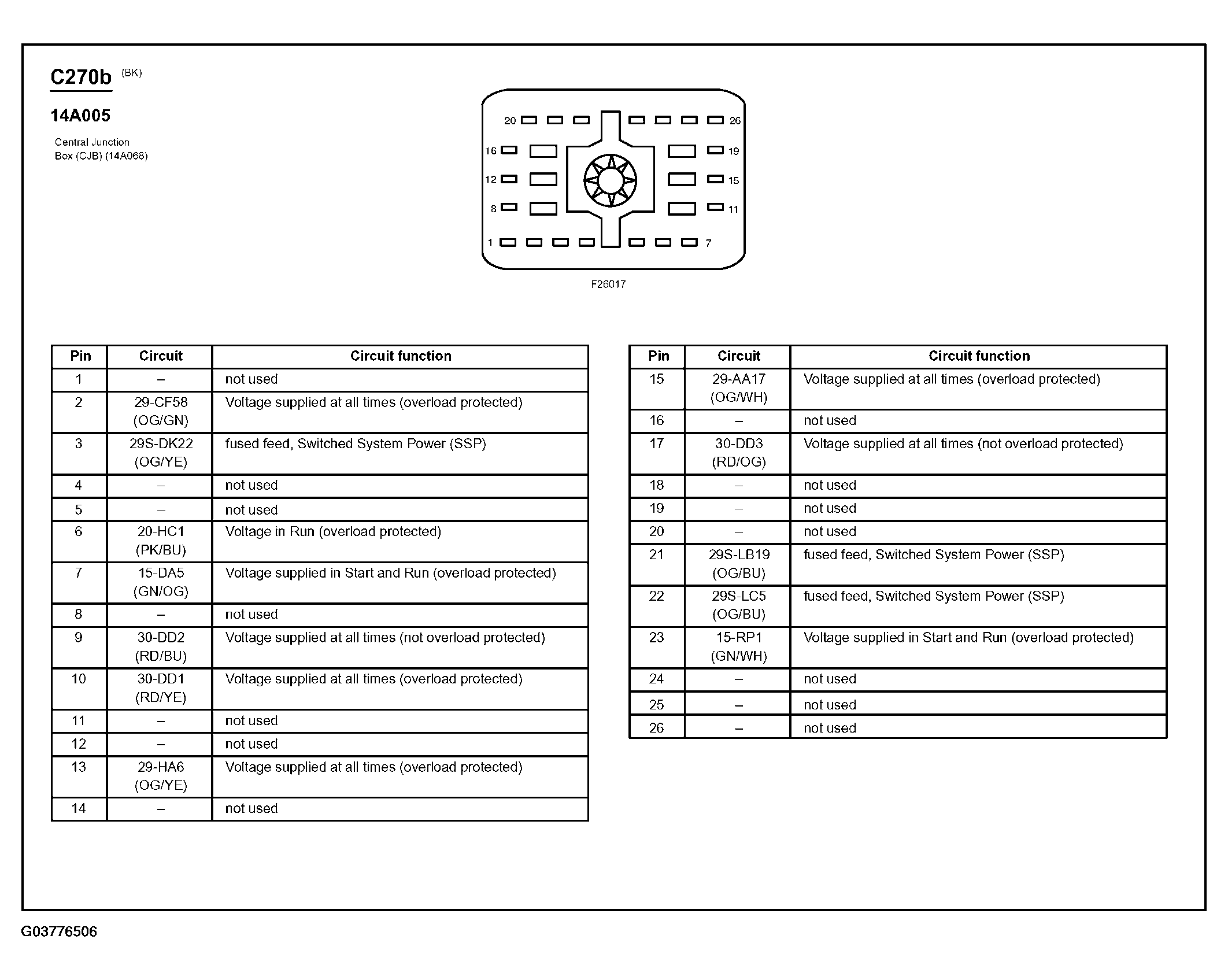

Fig 127: Central Junction Box (CJB) Connector End View (C270b)
G03776506Courtesy of FORD MOTOR CO.
Fig 128: Central Junction Box (CJB) Connector End View (C270c)
G07833298Courtesy of FORD MOTOR CO.

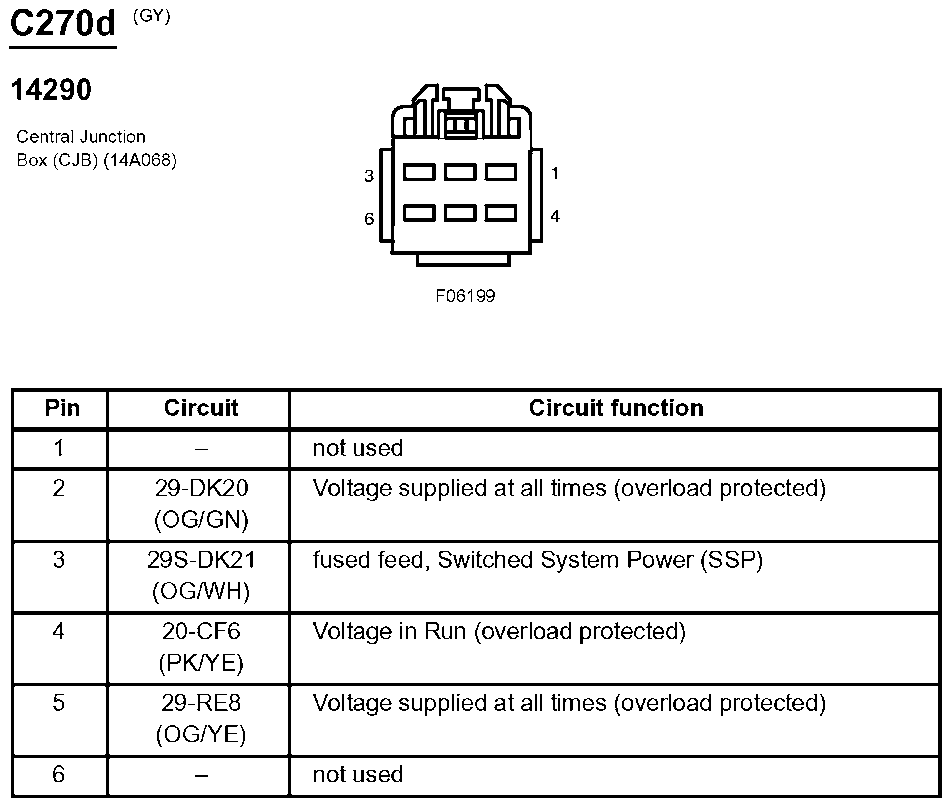

Fig 129: Central Junction Box (CJB) Connector End View (C270d)
G07833299Courtesy of FORD MOTOR CO.
Fig 130: Central Junction Box (CJB) Connector End View (C270e)
G07833300Courtesy of FORD MOTOR CO.
Fig 131: Inline Connector End View (C275)
G07833301Courtesy of FORD MOTOR CO.
Fig 132: Brake Pressure Switch Connector End View (C277)
G07833302Courtesy of FORD MOTOR CO.
Fig 133: Brake Pedal Position Switch Connector End View (C278)
G07833303Courtesy of FORD MOTOR CO.
Fig 134: Traction Control Switch Connector End View (C280)
G07833304Courtesy of FORD MOTOR CO.
Fig 135: Inertia Fuel Shutoff (IFS) Switch Connector End View (C282)
G07833305Courtesy of FORD MOTOR CO.

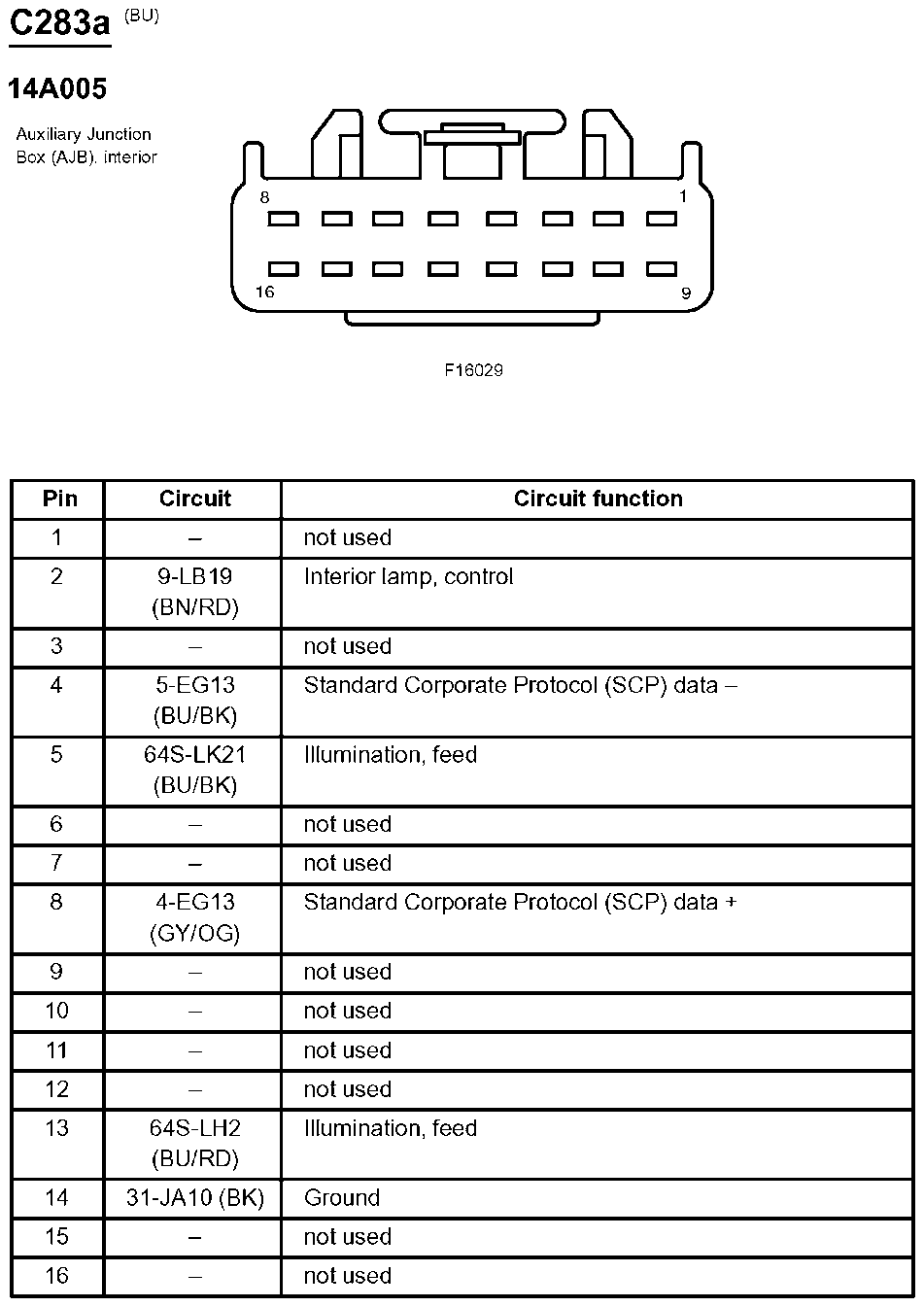

Fig 136: Auxiliary Junction Box (AJB), Interior Connector End View (C283a)
G07833306Courtesy of FORD MOTOR CO.

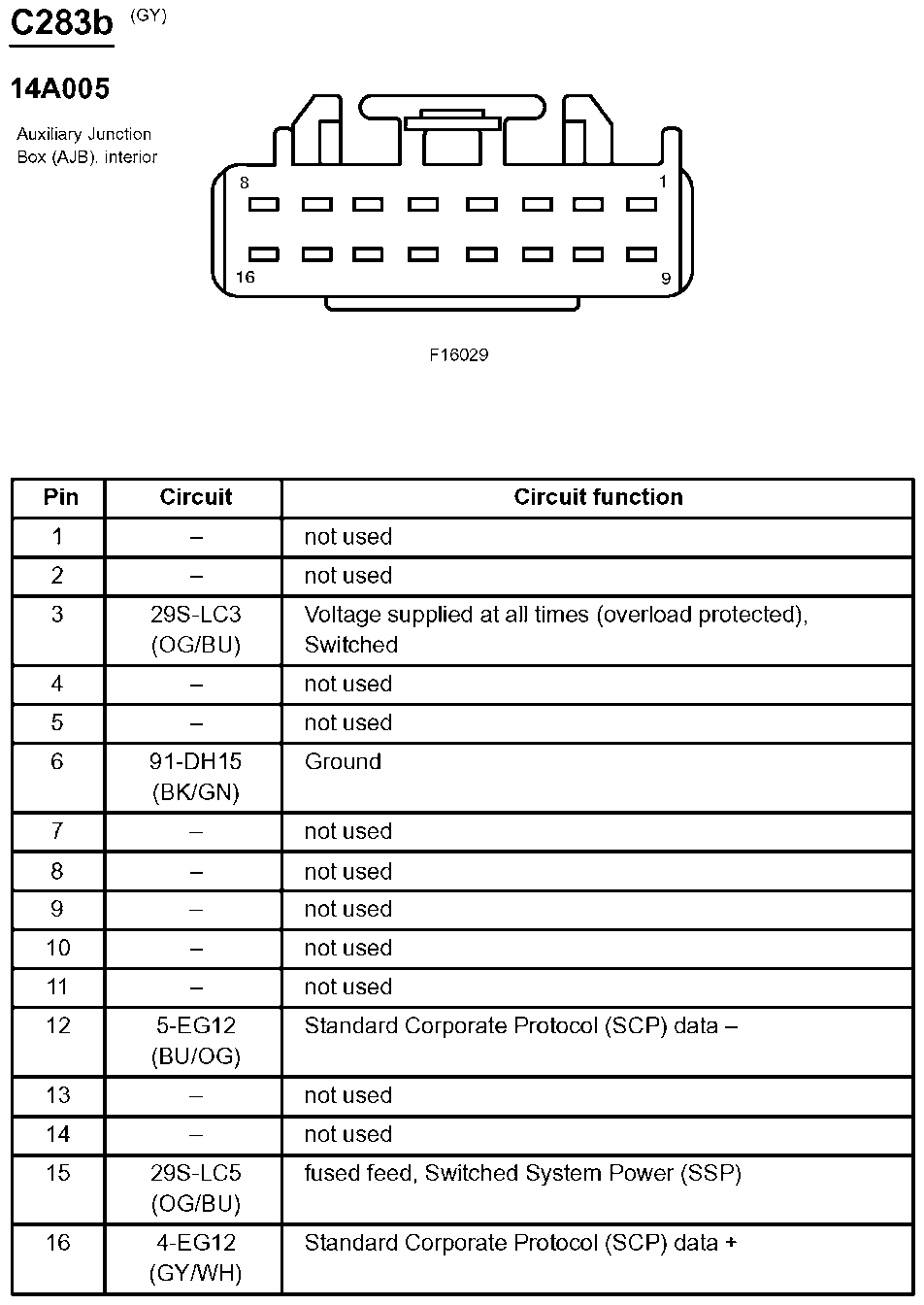

Fig 137: Auxiliary Junction Box (AJB), Interior Connector End View (C283b)
G07833307Courtesy of FORD MOTOR CO.
Fig 138: Auxiliary Junction Box (AJB), Interior Connector End View (C283c)
G07833308Courtesy of FORD MOTOR CO.
Fig 139: Auxiliary Junction Box (AJB), Interior Connector End View (C283d)
G07833309Courtesy of FORD MOTOR CO.

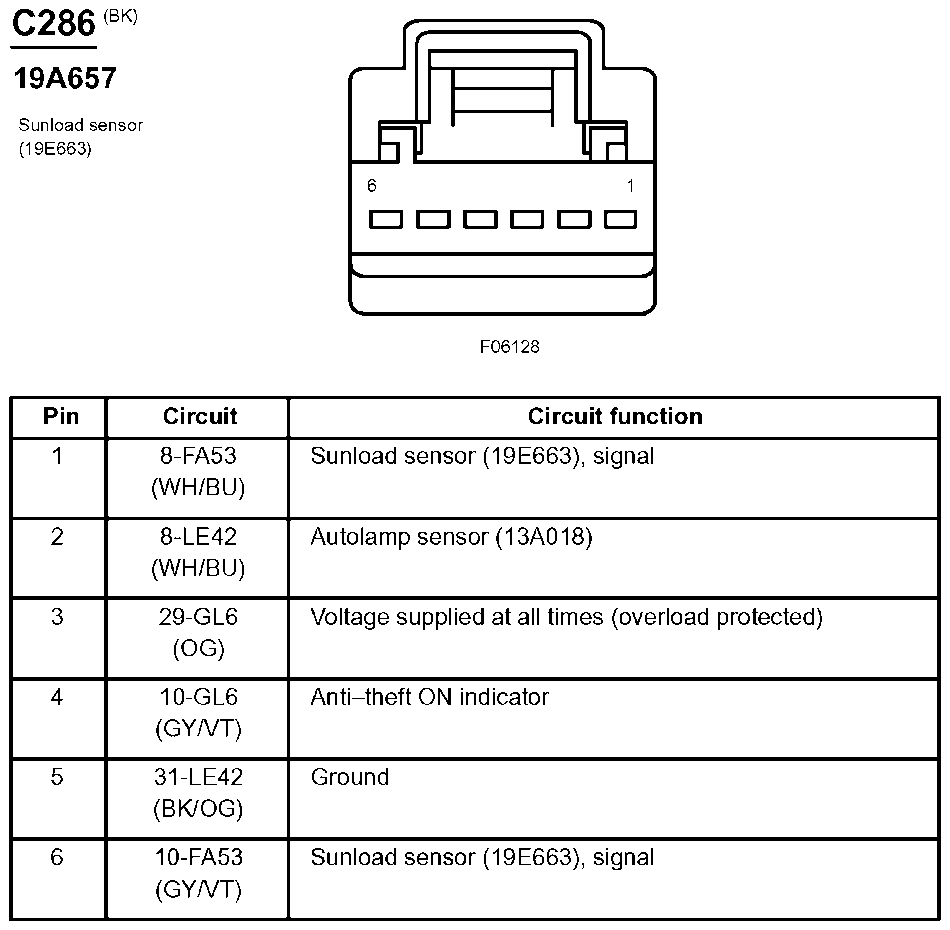

Fig 140: Sunload Sensor Connector End View (C286)
G07833310Courtesy of FORD MOTOR CO.

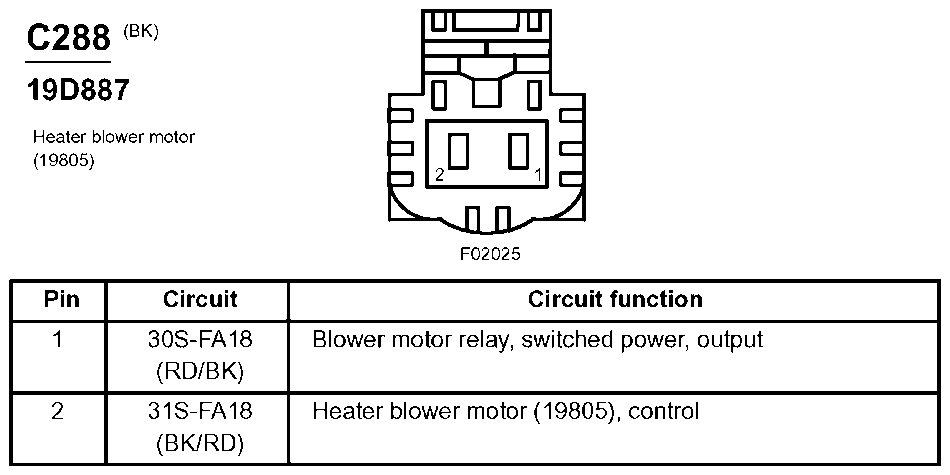

Fig 141: Heater Blower Motor Connector End View (C288)
G07833311Courtesy of FORD MOTOR CO.
Fig 142: Fresh/Recirculation Door Actuator Connector End View (C289)
G07833312Courtesy of FORD MOTOR CO.

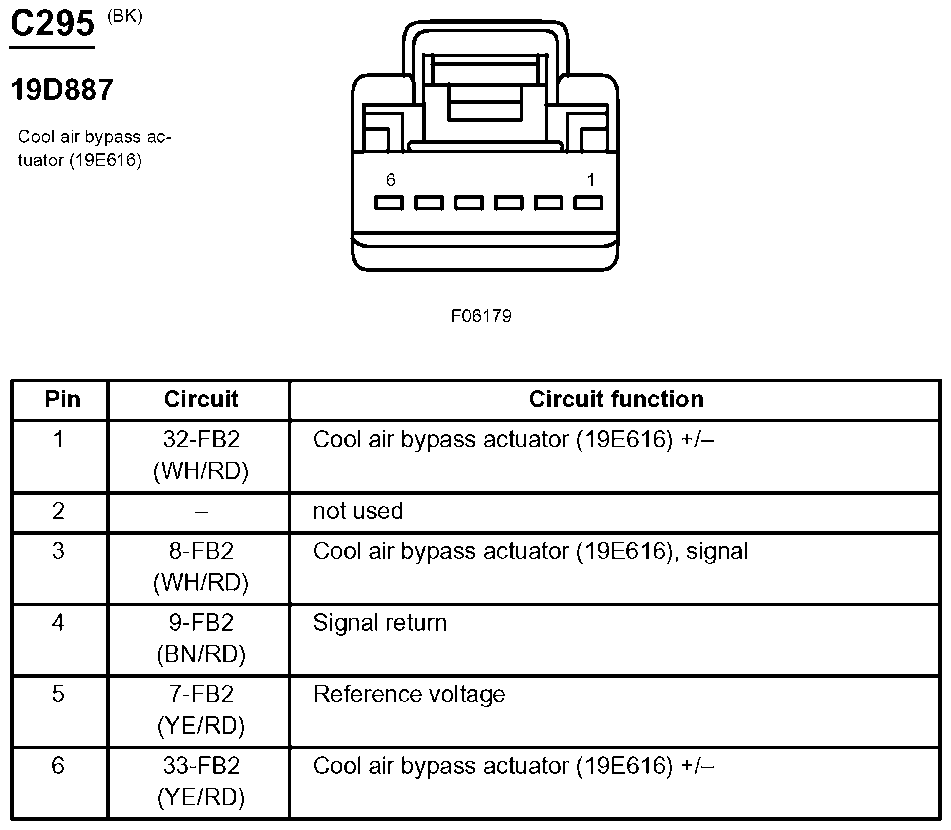

Fig 143: Cool Air Bypass Actuator Connector End View (C295)
G07833313Courtesy of FORD MOTOR CO.
Fig 144: Evaporator Discharge Air Temperature Sensor Connector End View (C296)
G07833314Courtesy of FORD MOTOR CO.
Fig 145: Heater Blower Control Module Connector End View (C297)
G07833315Courtesy of FORD MOTOR CO.
Fig 146: Inline Connector End View (C300)
G07833316Courtesy of FORD MOTOR CO.

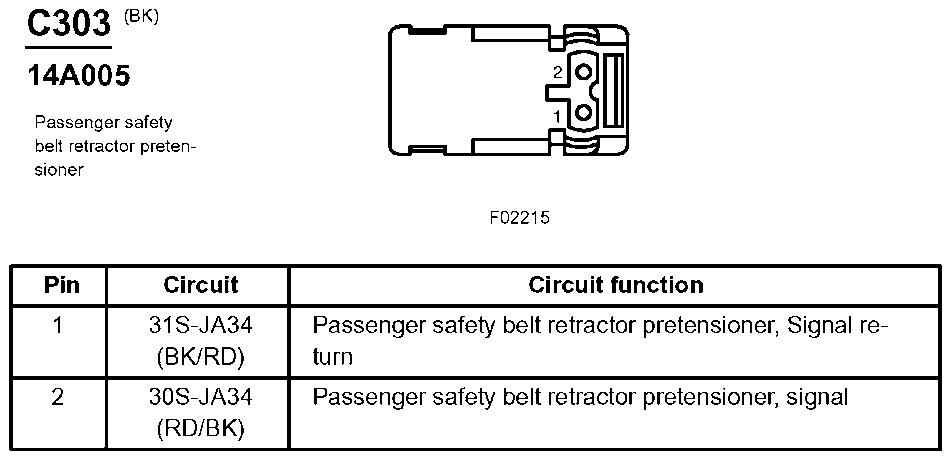

Fig 147: Passenger Safety Belt Retractor Pretensioner Connector End View (C303)
G07833317Courtesy of FORD MOTOR CO.
Fig 148: Side Air Bag Sensor, Right Connector End View (C304)
G07833318Courtesy of FORD MOTOR CO.

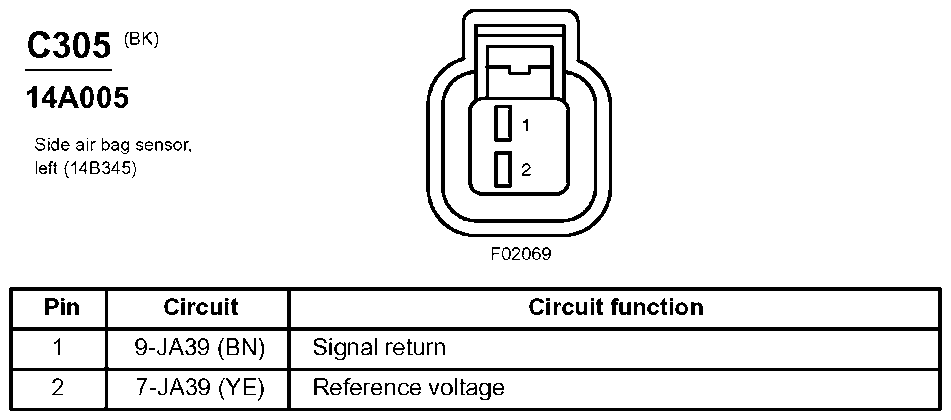

Fig 149: Side Air Bag Sensor, Left Connector End View (C305)
G07833319Courtesy of FORD MOTOR CO.
Fig 150: Parking Brake Switch Connector End View (C306)
G07833320Courtesy of FORD MOTOR CO.
Fig 151: Transmission Shift Selector Connector End View (C307)
G03776515Courtesy of FORD MOTOR CO.
Fig 152: Restraints Control Module Connector End View (C310a)
G03776516Courtesy of FORD MOTOR CO.
Fig 153: Restraints Control Module Connector End View (C310b)
G07833321Courtesy of FORD MOTOR CO.

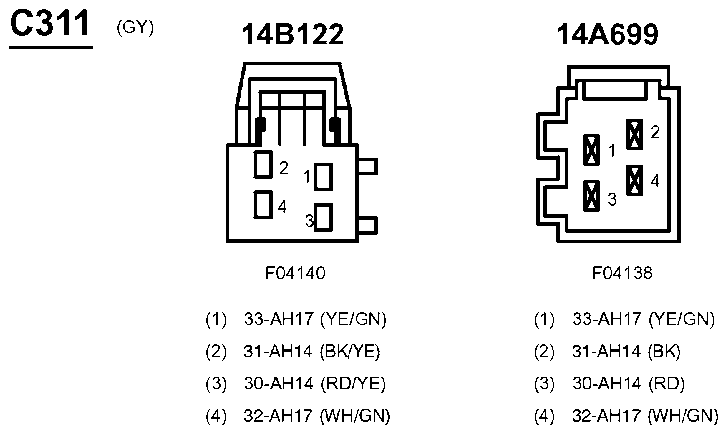

Fig 154: Inline Connector End View (C311)
G07833322Courtesy of FORD MOTOR CO.

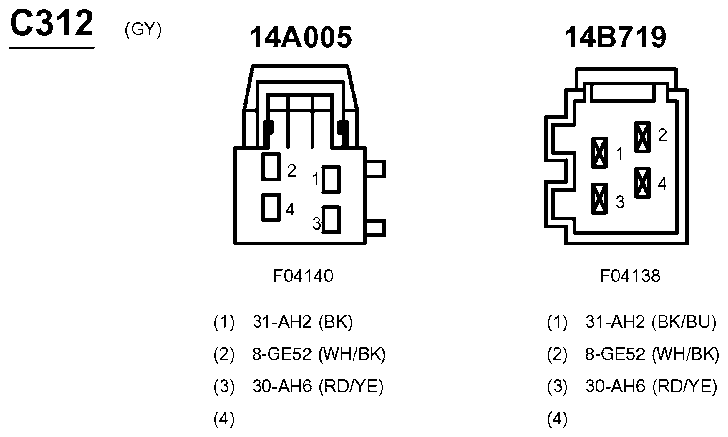

Fig 155: Inline Connector End View (C312)
G07833323Courtesy of FORD MOTOR CO.
Fig 156: Inline Connector End View (C313)
G07833324Courtesy of FORD MOTOR CO.

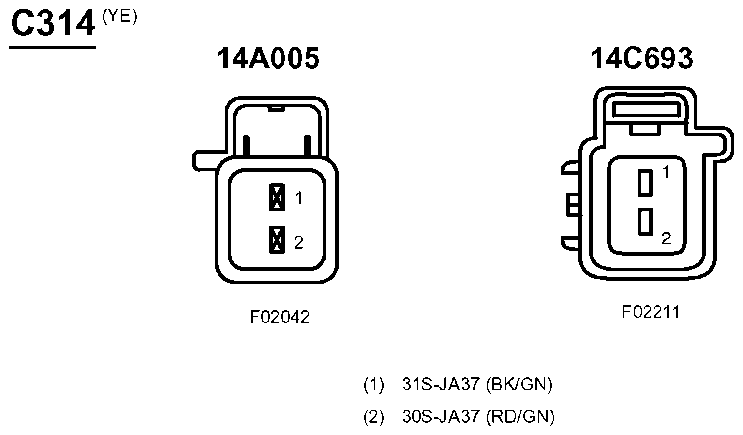

Fig 157: Inline Connector End View (C314)
G07833325Courtesy of FORD MOTOR CO.

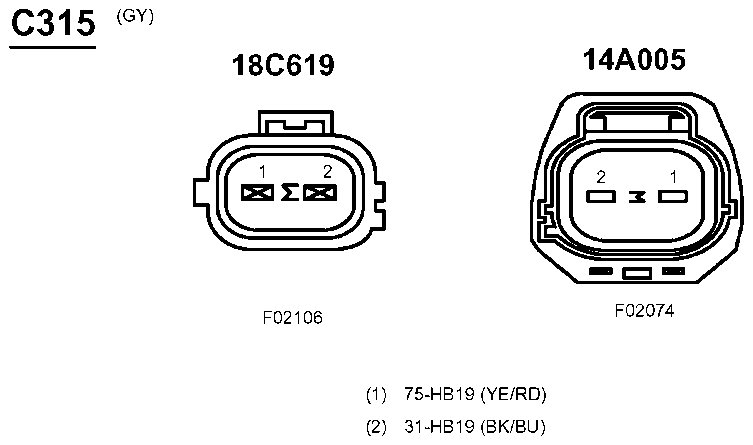

Fig 158: Inline Connector End View (C315)
G07833326Courtesy of FORD MOTOR CO.

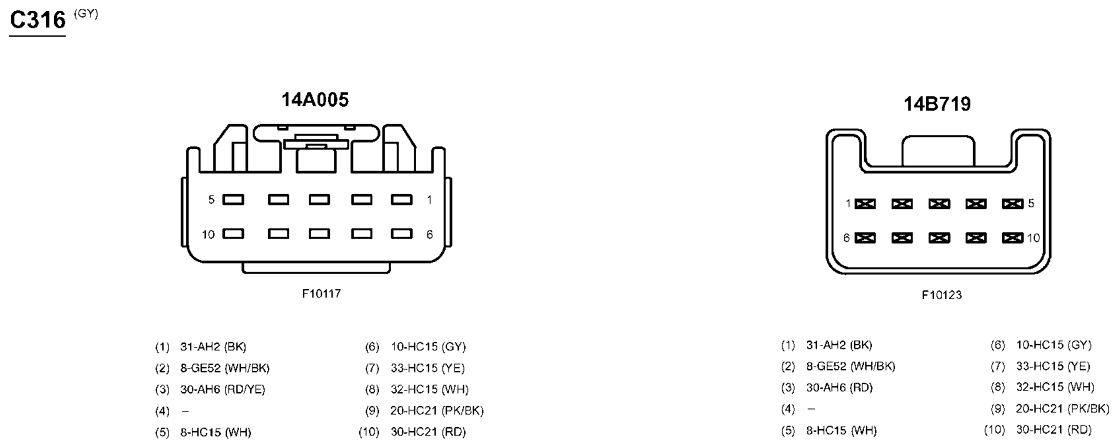

Fig 159: Inline Connector End View (C316)
G07833327Courtesy of FORD MOTOR CO.
Fig 160: Safety Belt Buckle Switch Connector End View (C323)
G07833328Courtesy of FORD MOTOR CO.

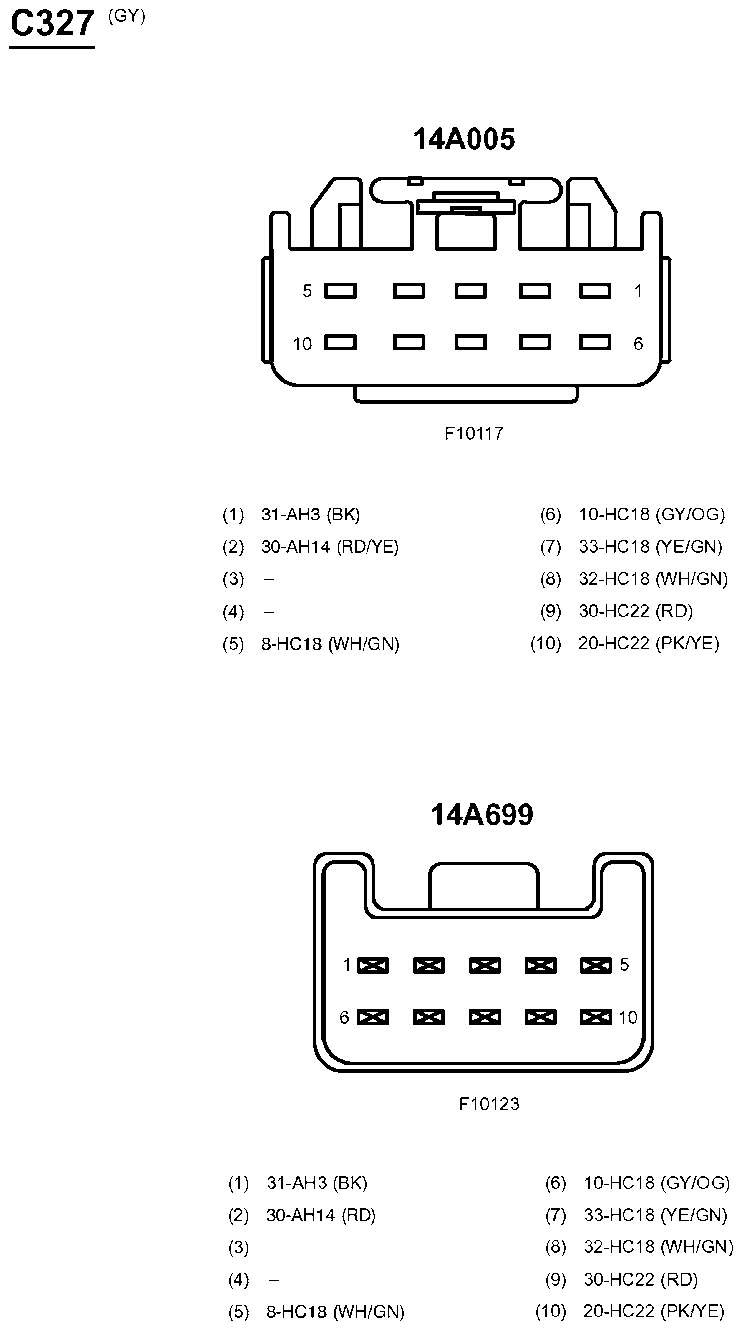

Fig 161: Inline Connector End View (C327)
G07833329Courtesy of FORD MOTOR CO.

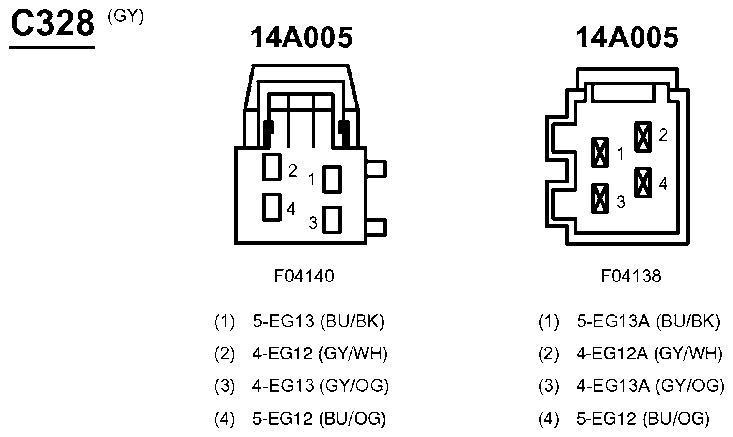

Fig 162: Inline Connector End View (C328)
G07833330Courtesy of FORD MOTOR CO.

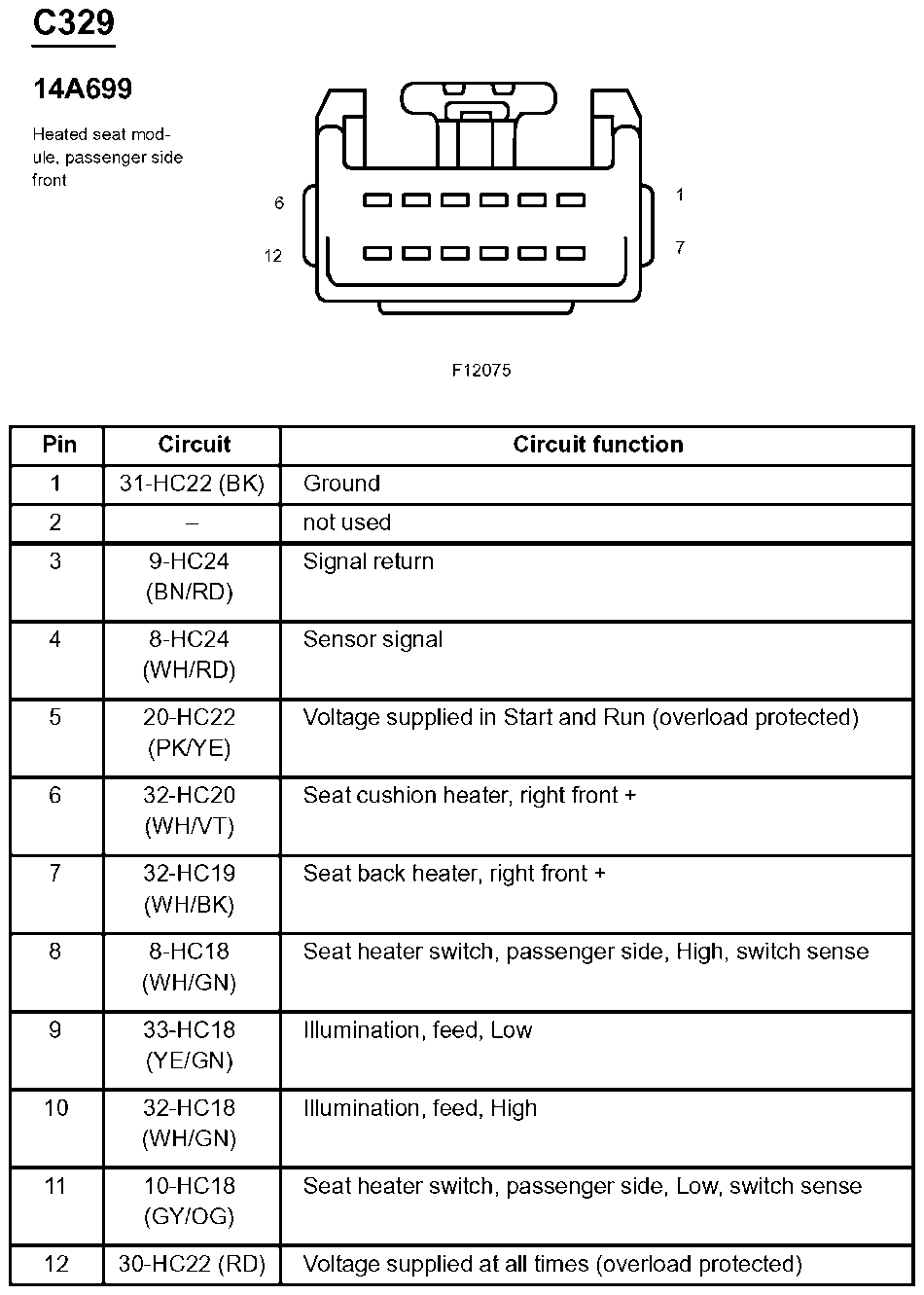

Fig 163: Heated Seat Module, Passenger Side Front Connector End View (C329)
G07833331Courtesy of FORD MOTOR CO.
Fig 164: Seat Adjust Switch, Passenger Side Front Connector End View (C330)
G07833332Courtesy of FORD MOTOR CO.
Fig 165: Seat Cushion Heater, Right Front Connector End View (C334)
G07833333Courtesy of FORD MOTOR CO.
Fig 166: Seat Back Heater, Right Front Connector End View (C335)
G07833334Courtesy of FORD MOTOR CO.

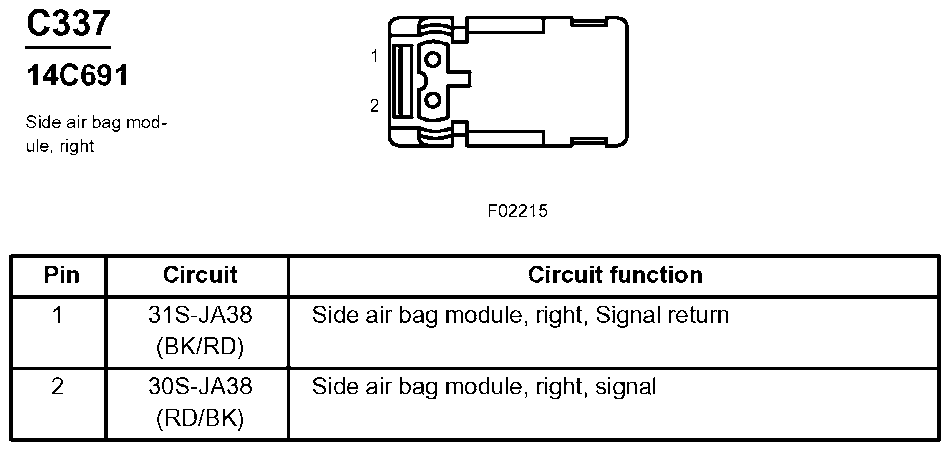

Fig 167: Side Air Bag Module, Right Connector End View (C337)
G07833335Courtesy of FORD MOTOR CO.

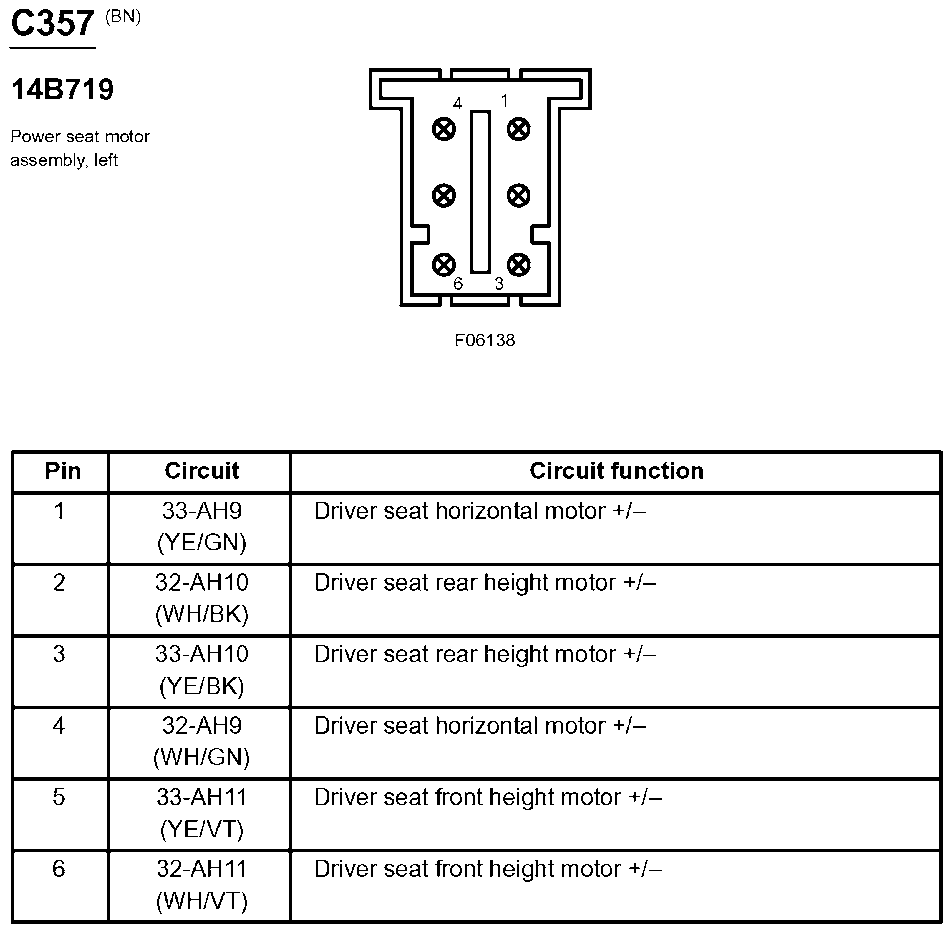

Fig 168: Power Seat Motor Assembly, Left Connector End View (C357)
G07833336Courtesy of FORD MOTOR CO.
Fig 169: Heated Seat Module, Driver Side Front Connector End View (C359)
G07833337Courtesy of FORD MOTOR CO.

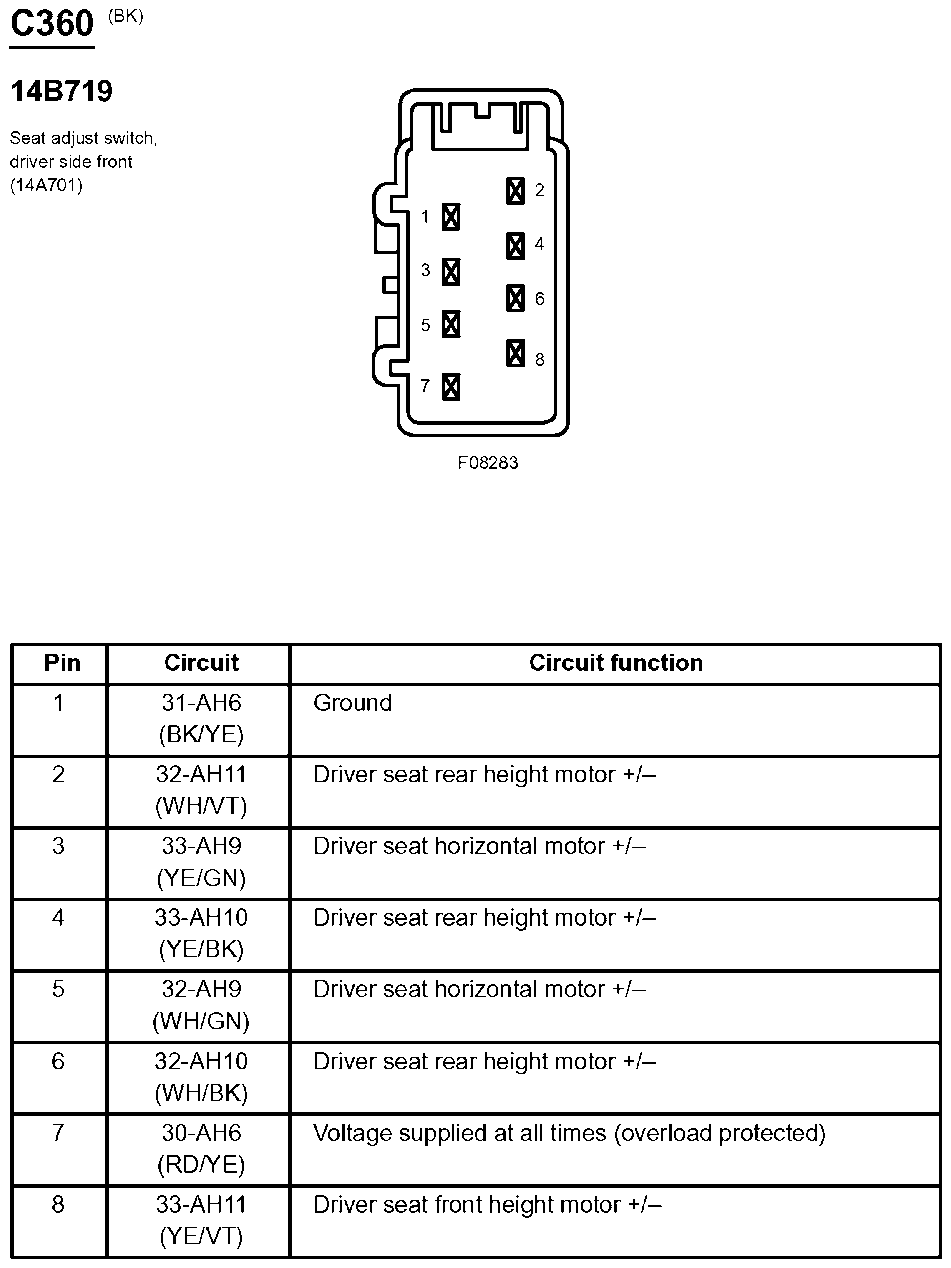

Fig 170: Seat Adjust Switch, Driver Side Front Connector End View (C360)
G07833338Courtesy of FORD MOTOR CO.
Fig 171: Seat Cushion Heater, Left Front Connector End View (C364)
G07833339Courtesy of FORD MOTOR CO.

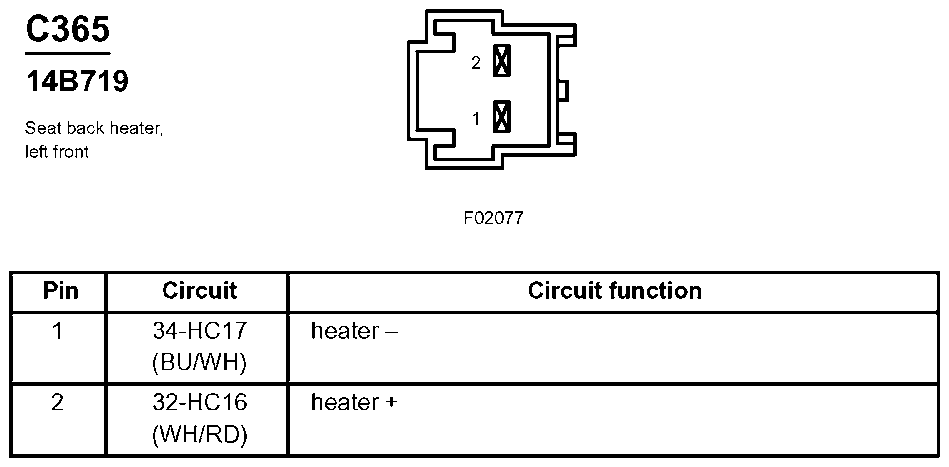

Fig 172: Seat Back Heater, Left Front Connector End View (C365)
G07833340Courtesy of FORD MOTOR CO.

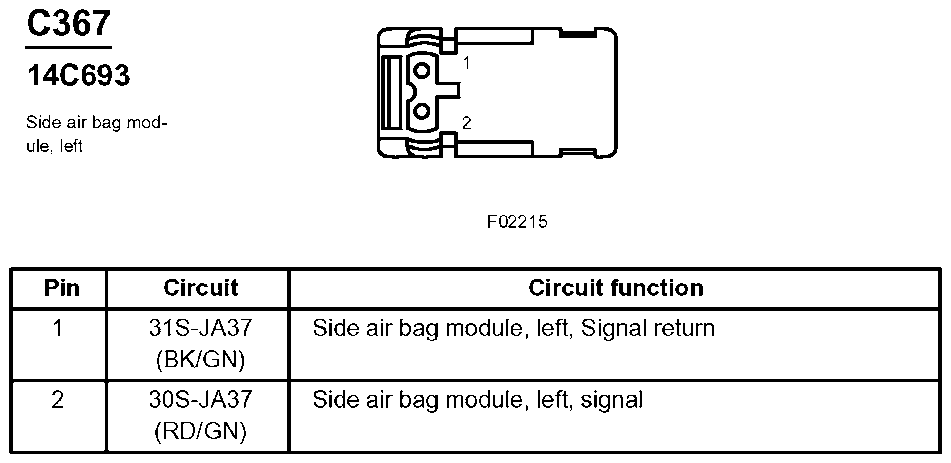

Fig 173: Side Air Bag Module, Left Connector End View (C367)
G07833341Courtesy of FORD MOTOR CO.

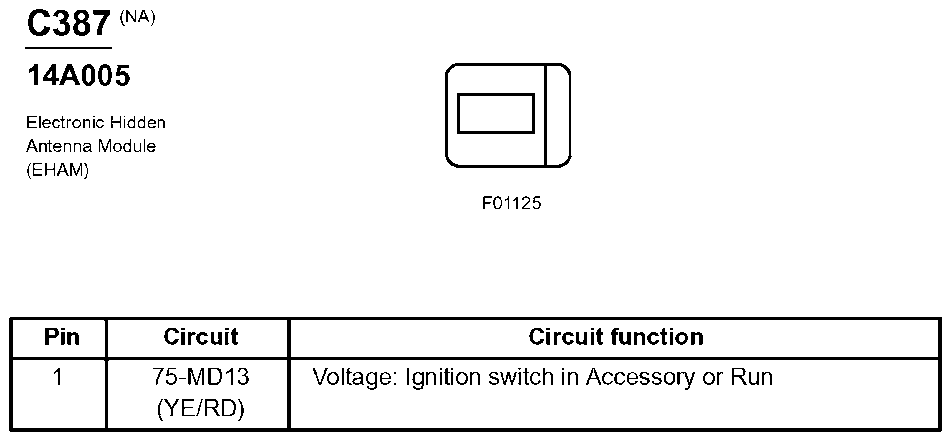

Fig 174: Electronic Hidden Antenna Module (EHAM) Connector End View (C387)
G07833342Courtesy of FORD MOTOR CO.
Fig 175: Speaker, Left Rear Connector End View (C395)
G07833343Courtesy of FORD MOTOR CO.

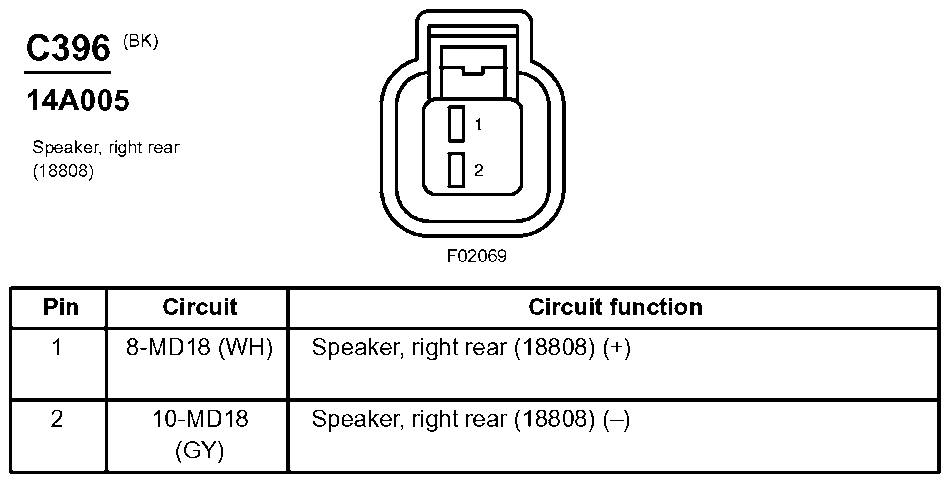

Fig 176: Speaker, Right Rear Connector End View (C396)
G07833344Courtesy of FORD MOTOR CO.
Fig 177: Rear Window Defrost Grid Connector End View (C402a)
G07833345Courtesy of FORD MOTOR CO.

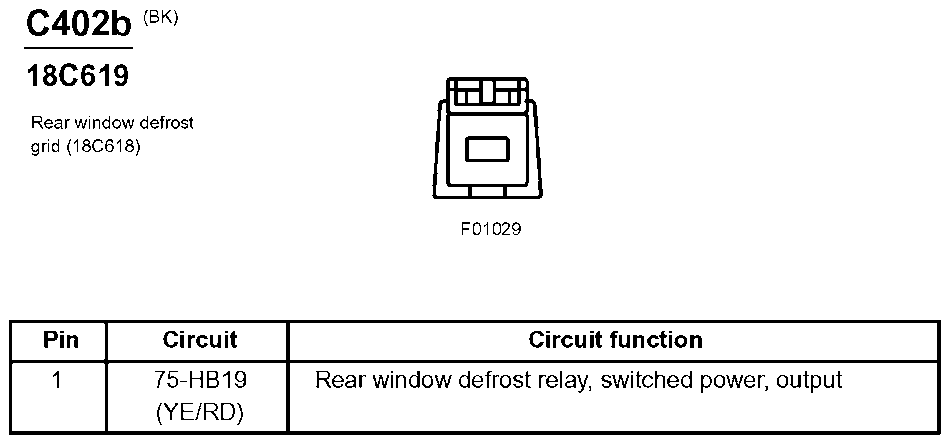

Fig 178: Rear Window Defrost Grid Connector End View (C402b)
G07833346Courtesy of FORD MOTOR CO.

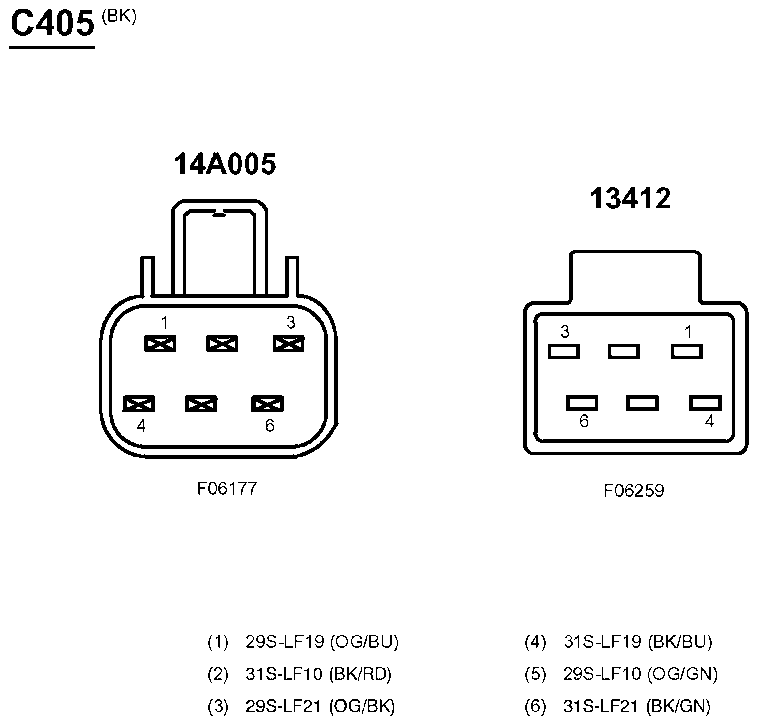

Fig 179: Inline Connector End View (C405)
G07833347Courtesy of FORD MOTOR CO.

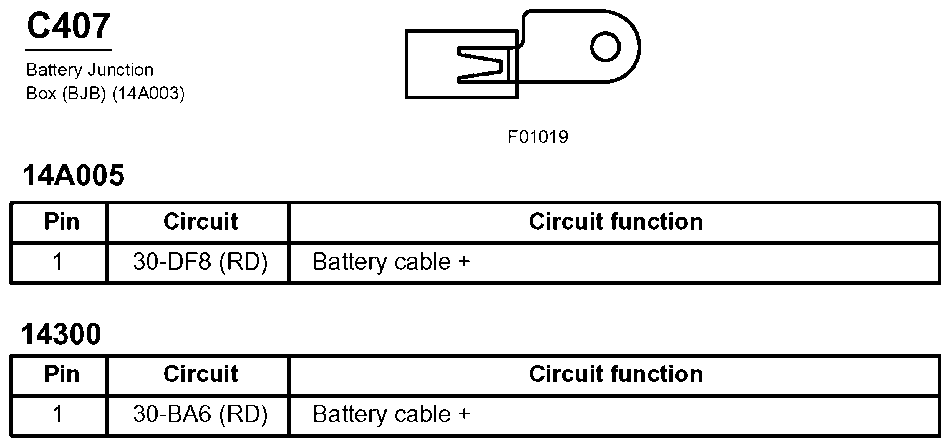

Fig 180: Battery Junction Box (BJB) Connector End View (C407)
G07833348Courtesy of FORD MOTOR CO.

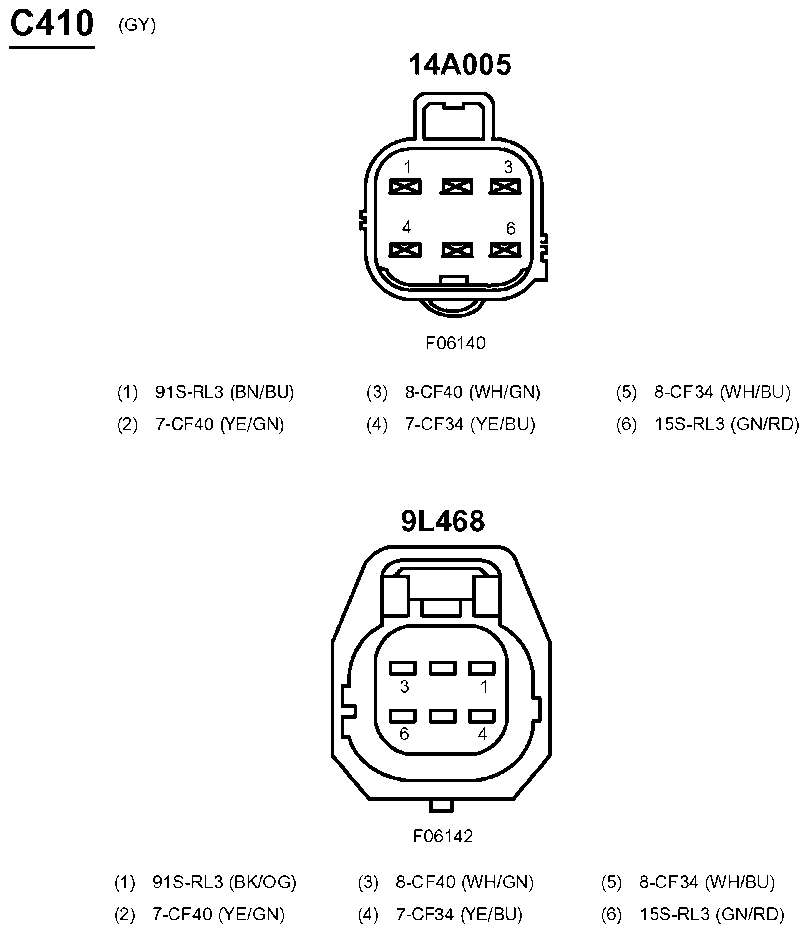

Fig 181: Inline Connector End View (C410)
G07833349Courtesy of FORD MOTOR CO.

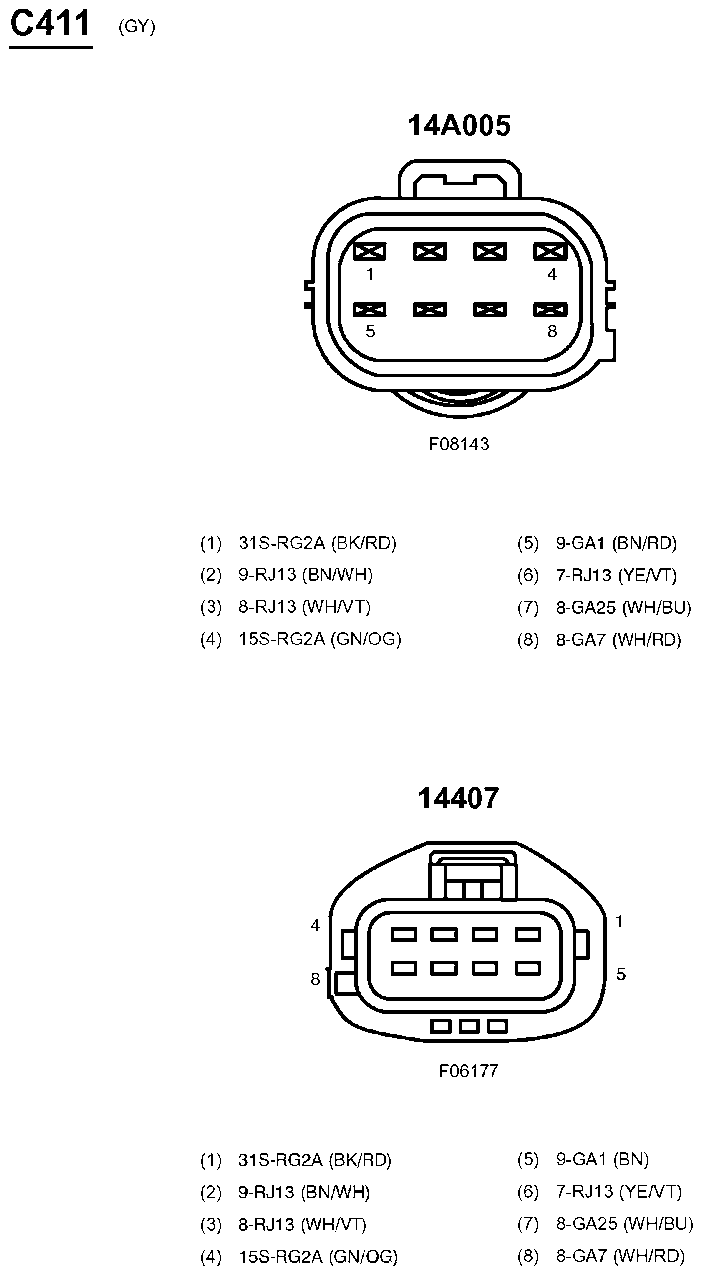

Fig 182: Inline Connector End View (C411)
G07833350Courtesy of FORD MOTOR CO.

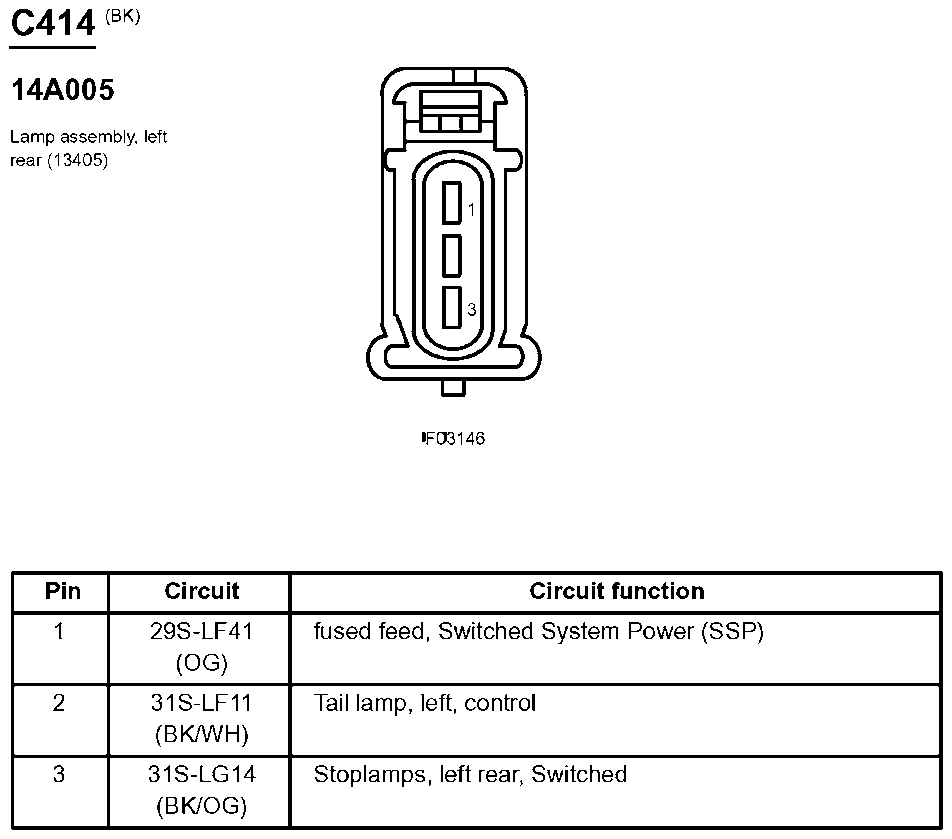

Fig 183: Lamp Assembly, Left Rear Connector End View (C414)
G07833351Courtesy of FORD MOTOR CO.
Fig 184: Lamp Assembly, Right Rear Connector End View (C417)
G07833352Courtesy of FORD MOTOR CO.

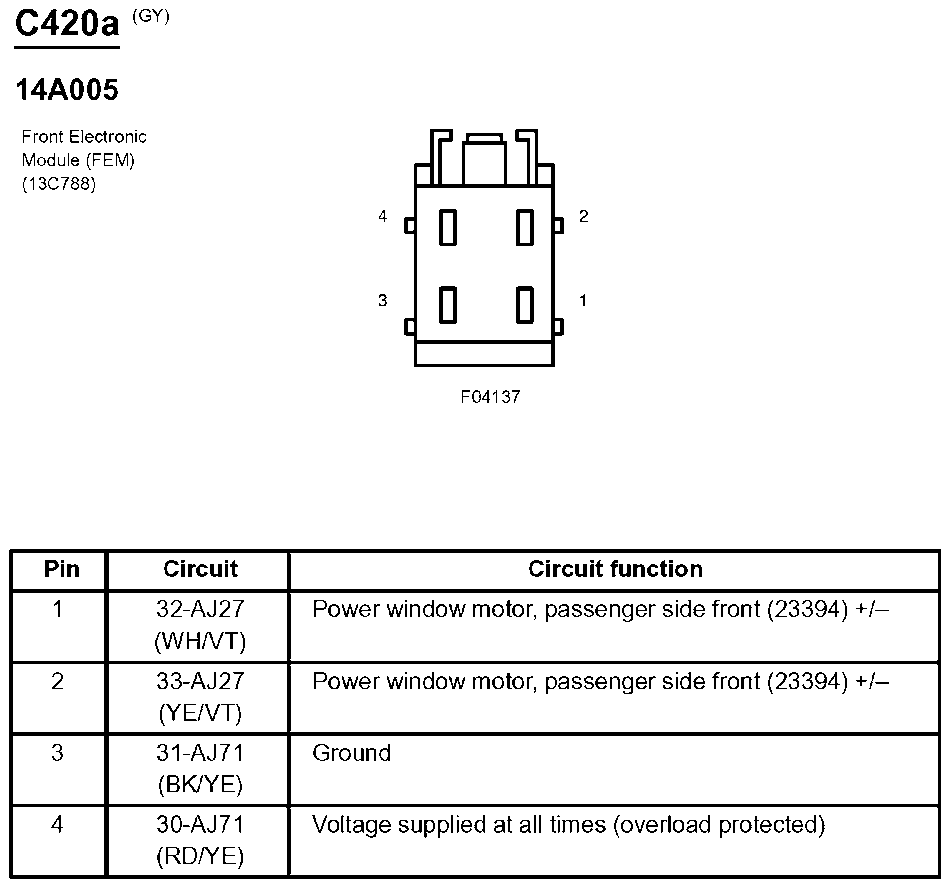

Fig 185: Front Electronic Module (FEM) Connector End View (C420a)
G07833353Courtesy of FORD MOTOR CO.

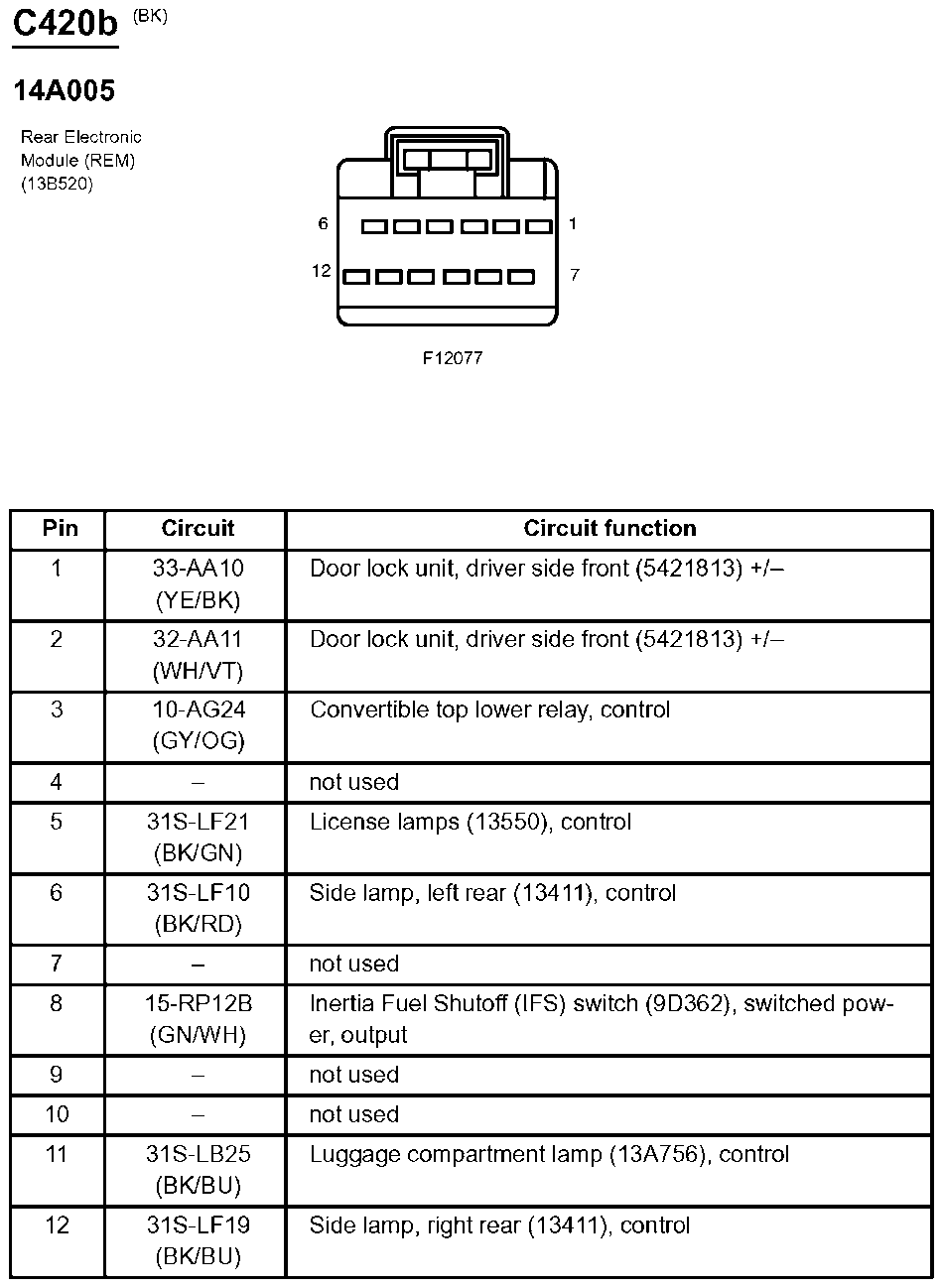

Fig 186: Rear Electronic Module (REM) Connector End View (C420b)
G03776528Courtesy of FORD MOTOR CO.
Fig 187: Rear Electronic Module (REM) Connector End View (C420c)
G03776529Courtesy of FORD MOTOR CO.

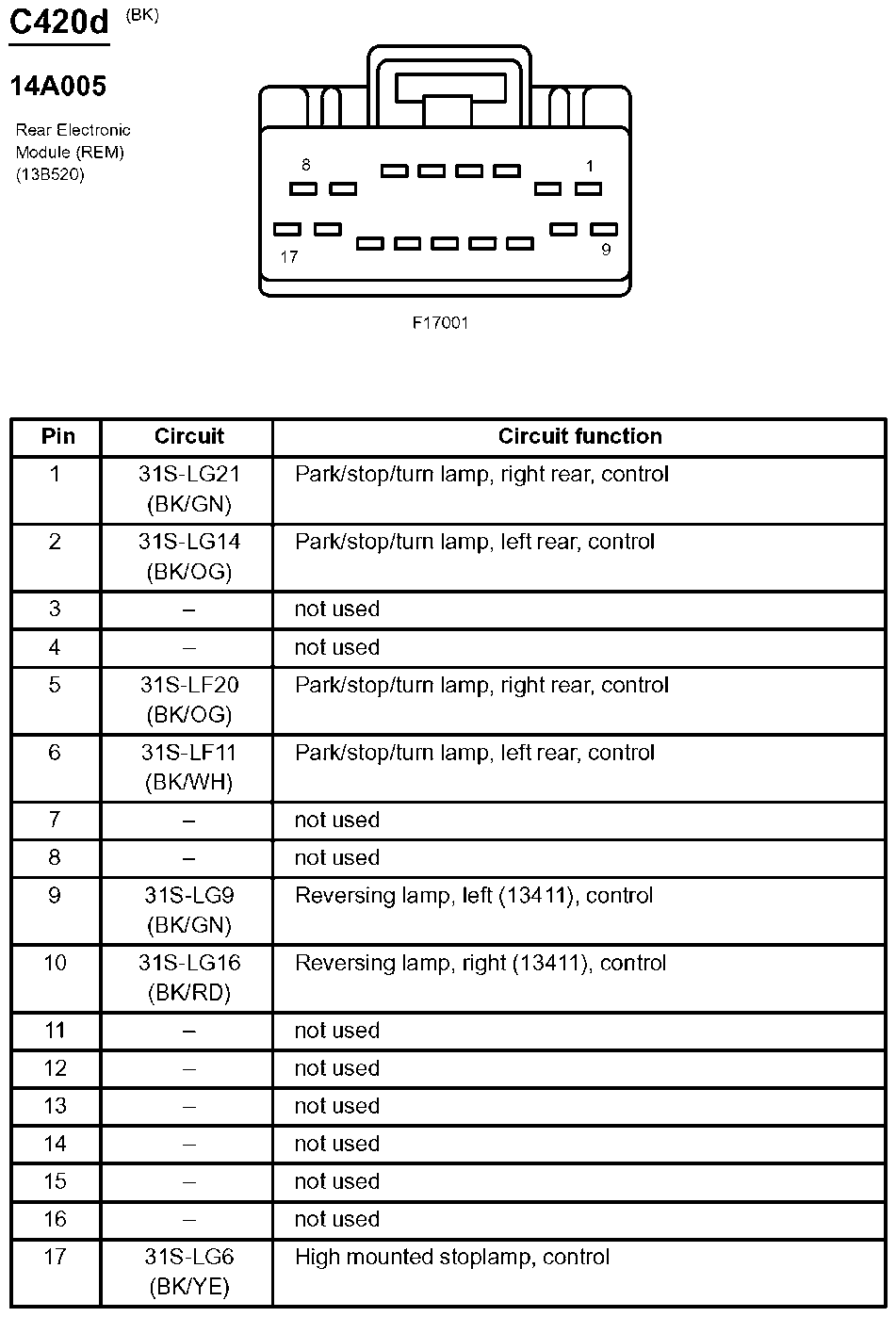

Fig 188: Rear Electronic Module (REM) Connector End View (C420d)
G03776530Courtesy of FORD MOTOR CO.
Fig 189: Rear Electronic Module (REM) Connector End View (C420e)
G03776531Courtesy of FORD MOTOR CO.

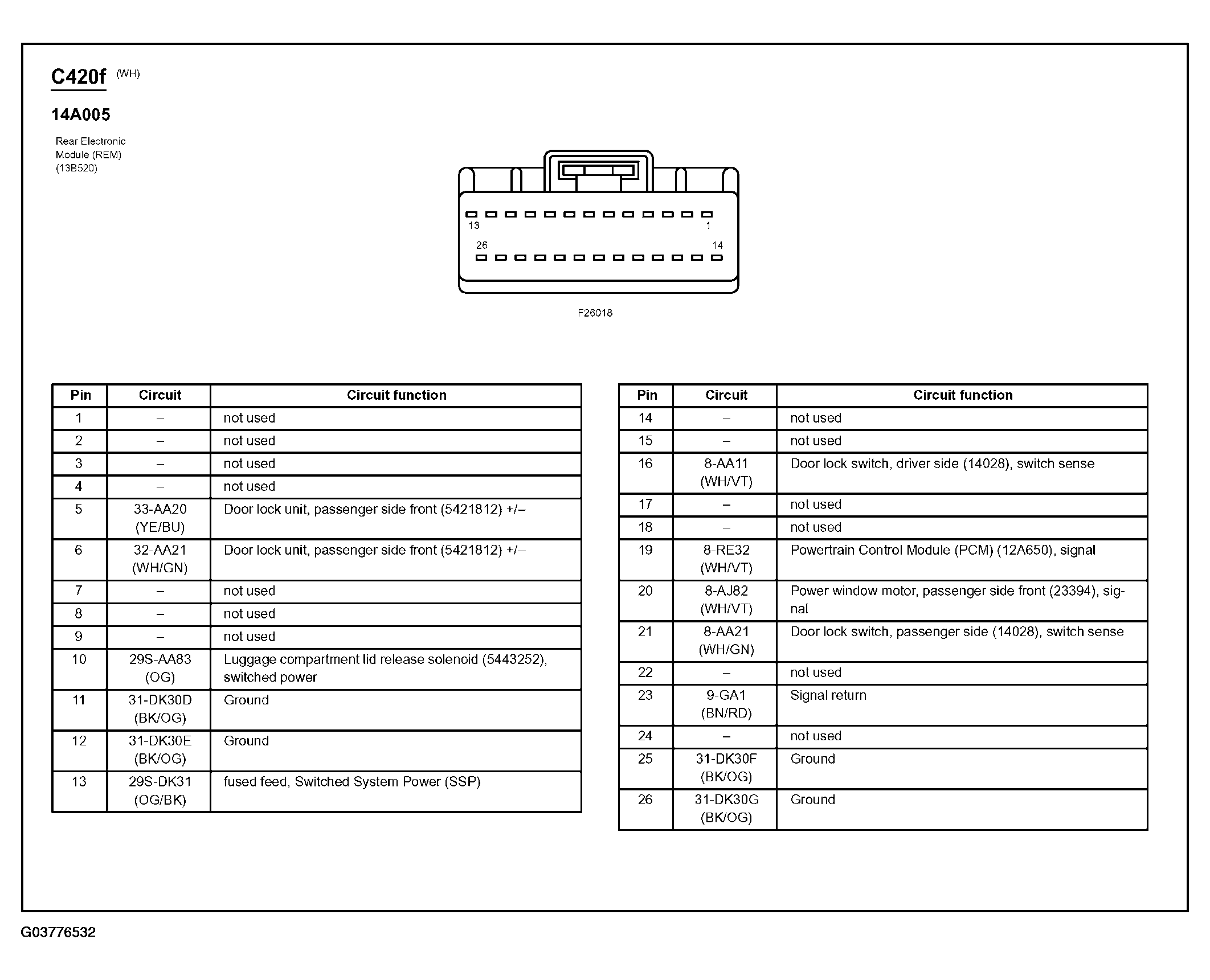

Fig 190: Rear Electronic Module (REM) Connector End View (C420f)
G03776532Courtesy of FORD MOTOR CO.

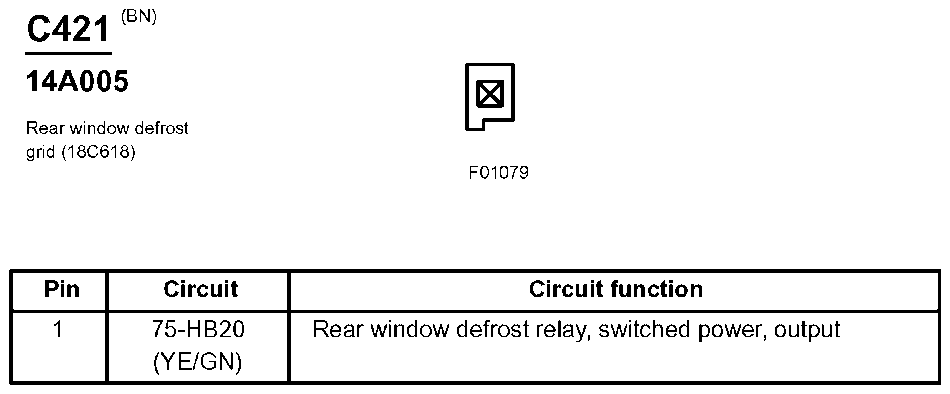

Fig 191: Rear Window Defrost Grid Connector End View (C421)
G07833354Courtesy of FORD MOTOR CO.
Fig 192: Wheel Speed Sensor, Right Rear Connector End View (C426)
G07833355Courtesy of FORD MOTOR CO.
Fig 193: Luggage Compartment Lamp Connector End View (C428)
G07833356Courtesy of FORD MOTOR CO.
Fig 194: Luggage Compartment Lid Ajar Switch Connector End View (C429)
G07833357Courtesy of FORD MOTOR CO.
Fig 195: Luggage Compartment Lid Release Solenoid Connector End View (C430)
G07833358Courtesy of FORD MOTOR CO.

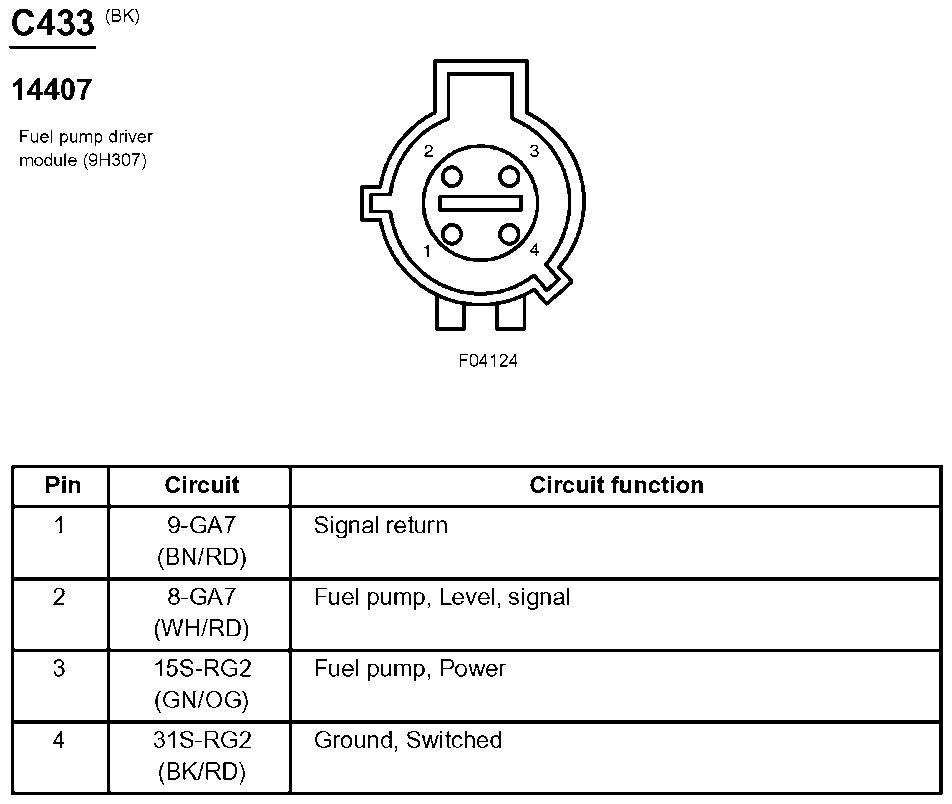

Fig 196: Fuel Pump Driver Module Connector End View (C433)
G07833359Courtesy of FORD MOTOR CO.

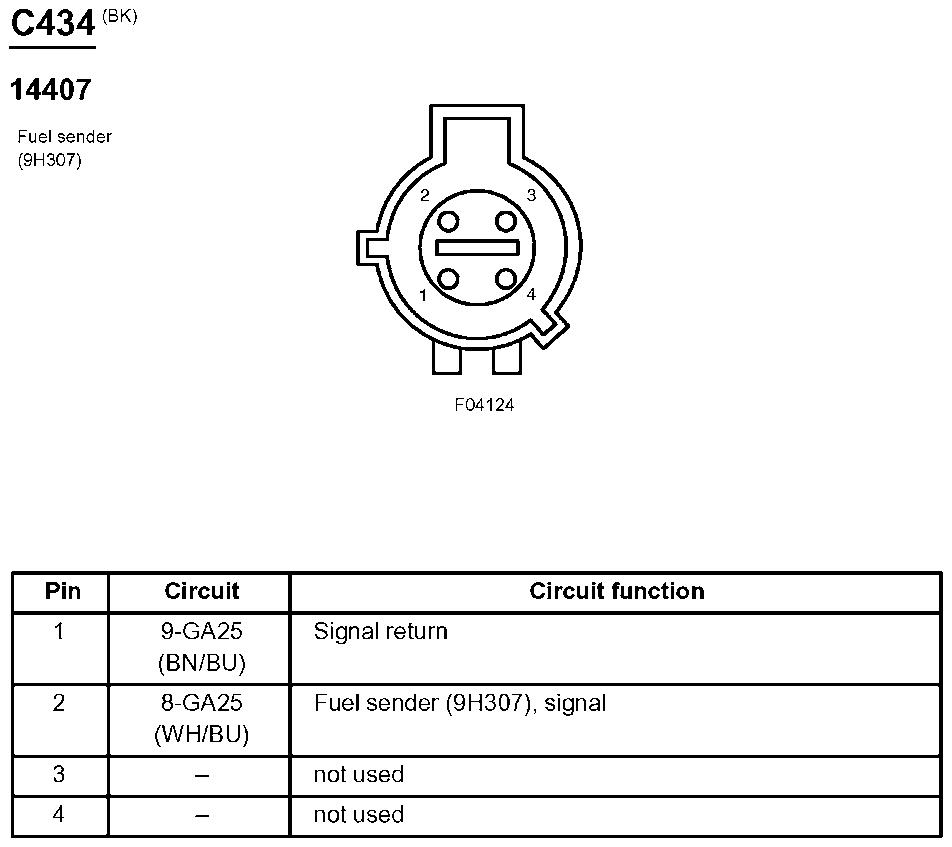

Fig 197: Fuel Sender Connector End View (C434)
G07833360Courtesy of FORD MOTOR CO.

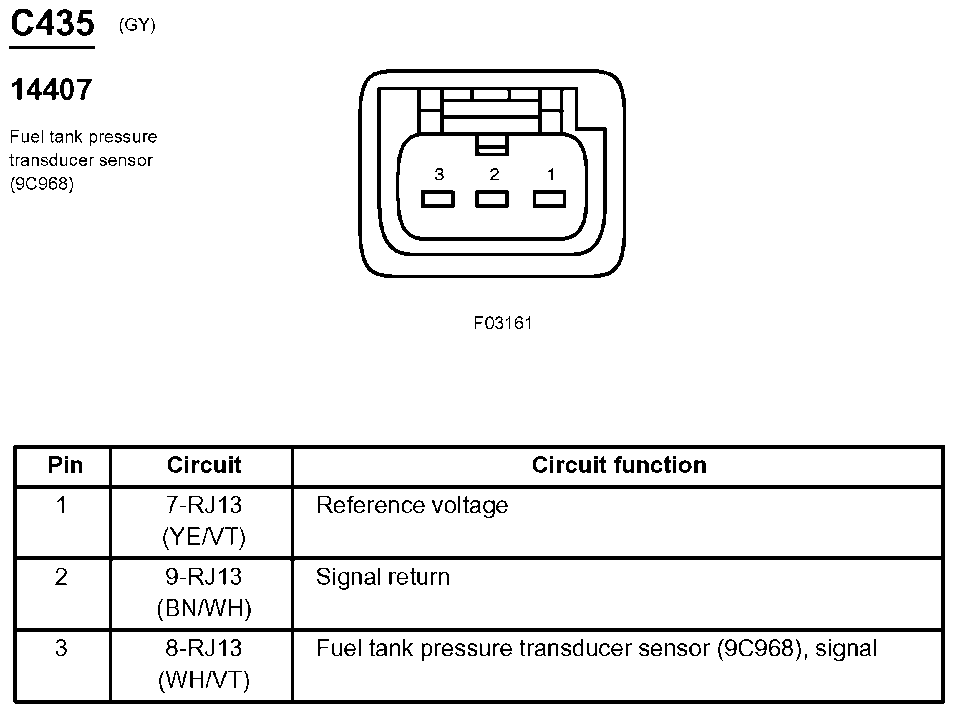

Fig 198: Fuel Tank Pressure Transducer Sensor Connector End View (C435)
G07833361Courtesy of FORD MOTOR CO.
Fig 199: Wheel Speed Sensor, Left Rear Connector End View (C440)
G07833362Courtesy of FORD MOTOR CO.

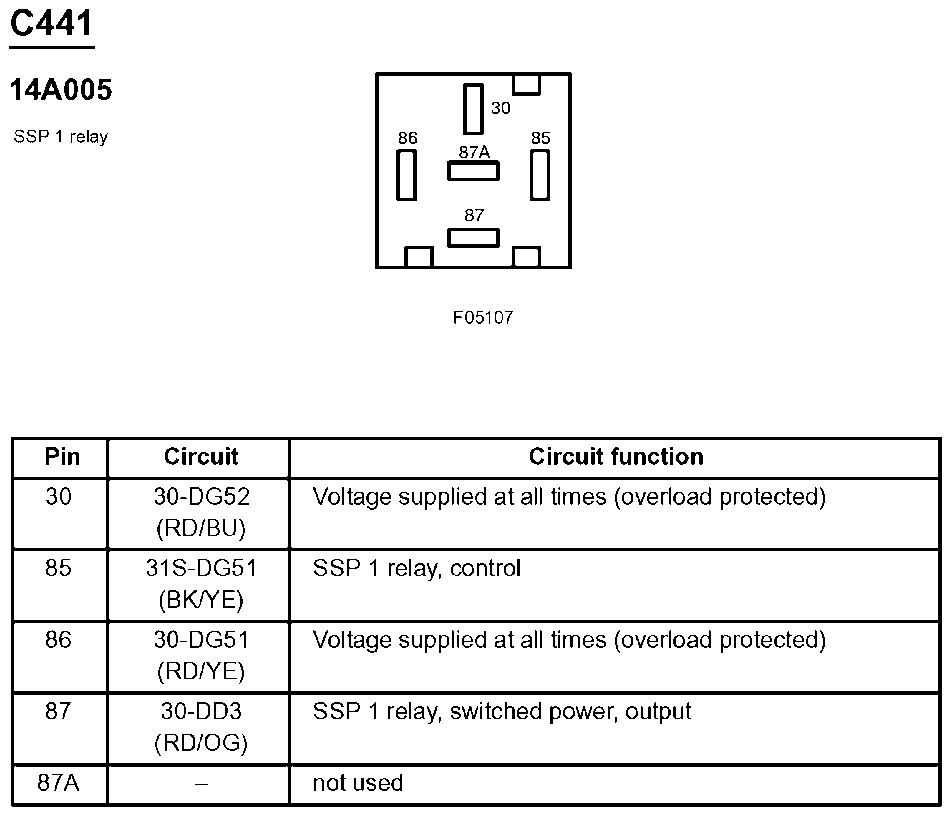

Fig 200: SSP 1 Relay Connector End View (C441)
G07833363Courtesy of FORD MOTOR CO.

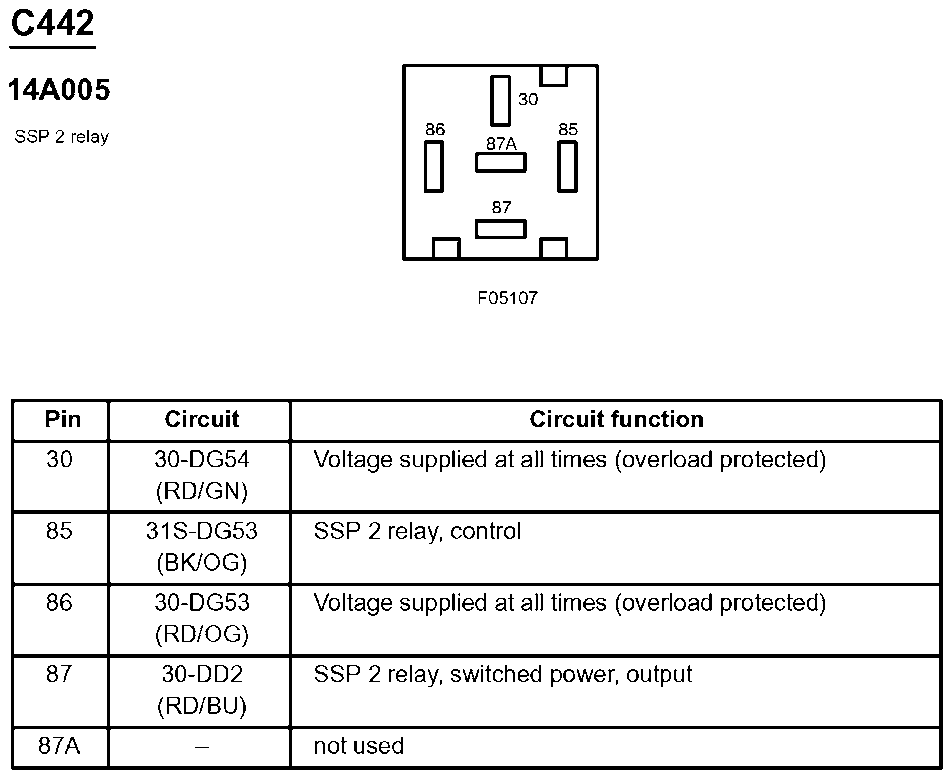

Fig 201: SSP 2 Relay Connector End View (C442)
G07833364Courtesy of FORD MOTOR CO.

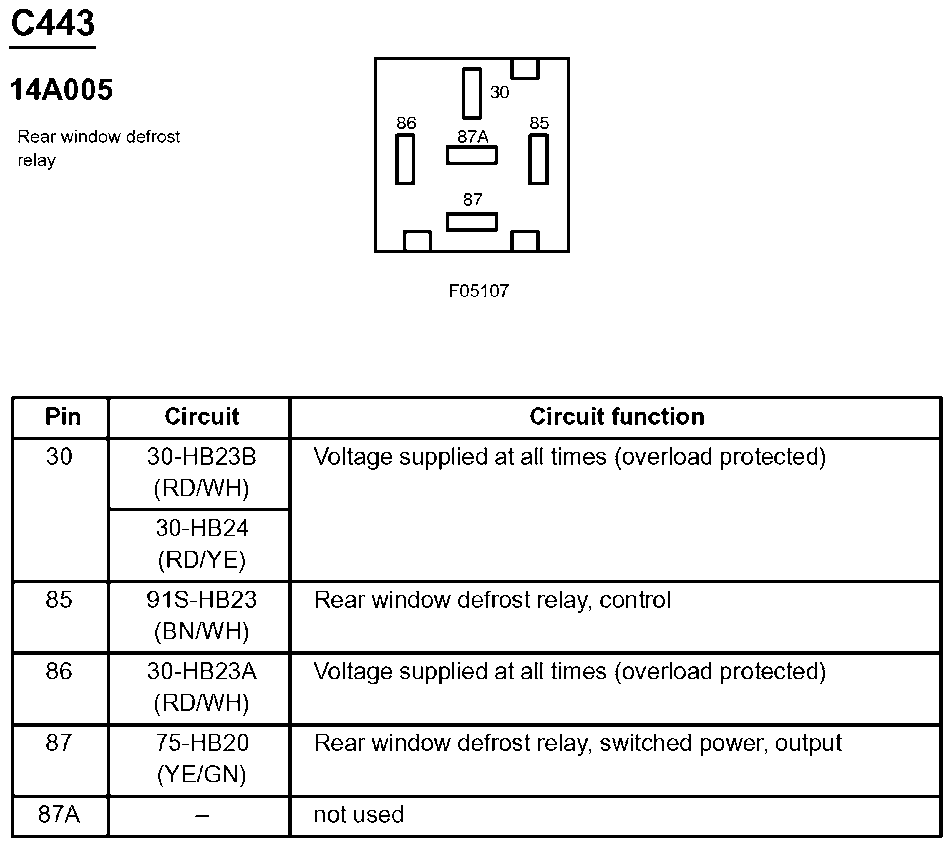

Fig 202: Rear Window Defrost Relay Connector End View (C443)
G07833365Courtesy of FORD MOTOR CO.
Fig 203: SSP 3 Relay Connector End View (C444)
G07833366Courtesy of FORD MOTOR CO.

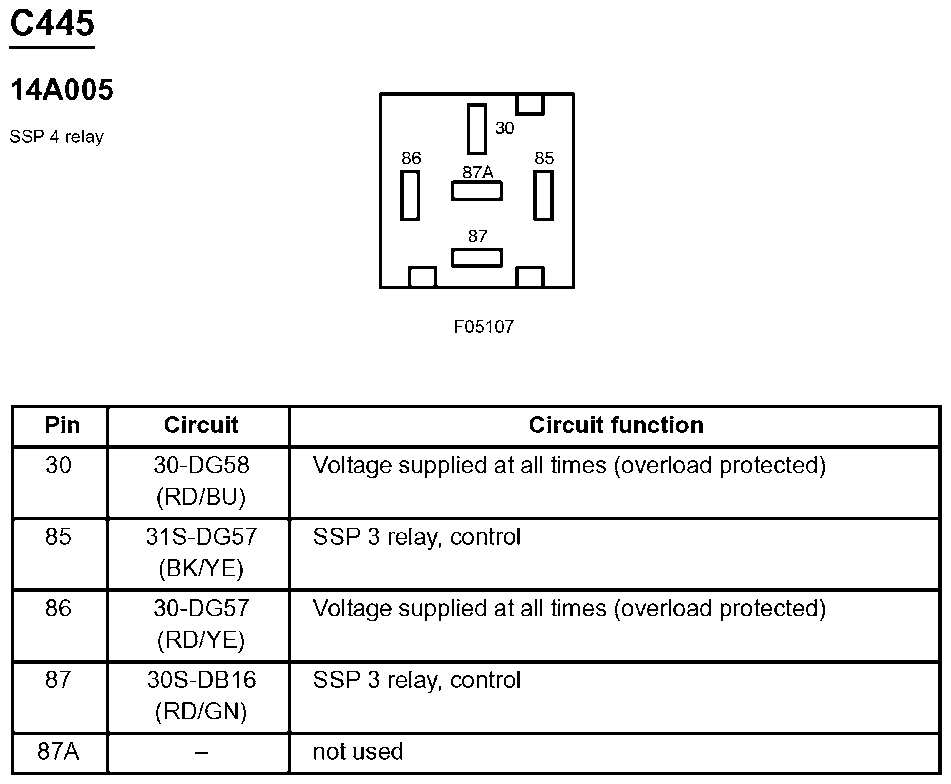

Fig 204: SSP 4 Relay Connector End View (C445)
G07833367Courtesy of FORD MOTOR CO.

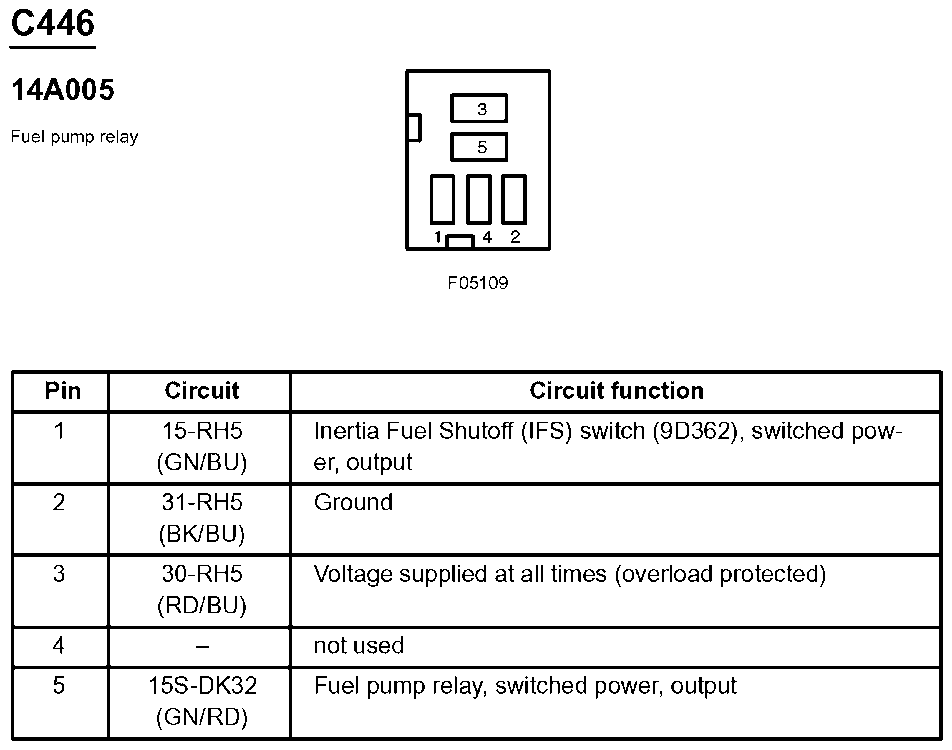

Fig 205: Fuel Pump Relay Connector End View (C446)
G07833368Courtesy of FORD MOTOR CO.

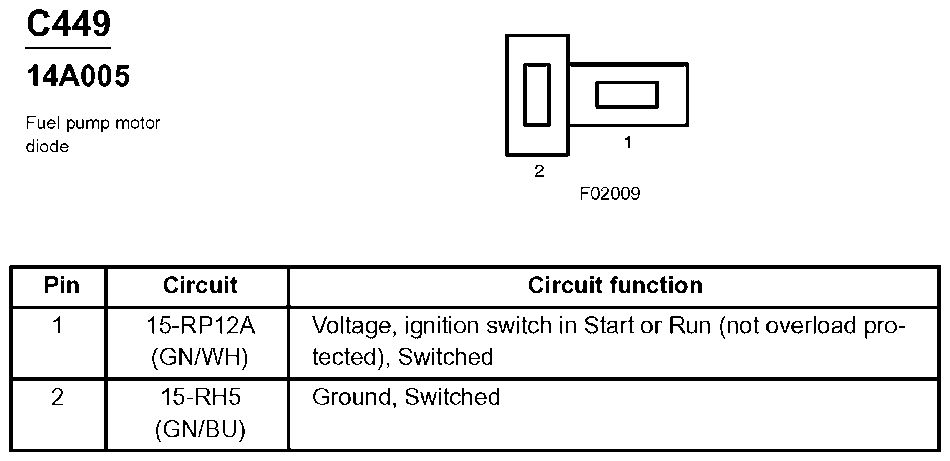

Fig 206: Fuel Pump Motor Diode Connector End View (C449)
G07833369Courtesy of FORD MOTOR CO.

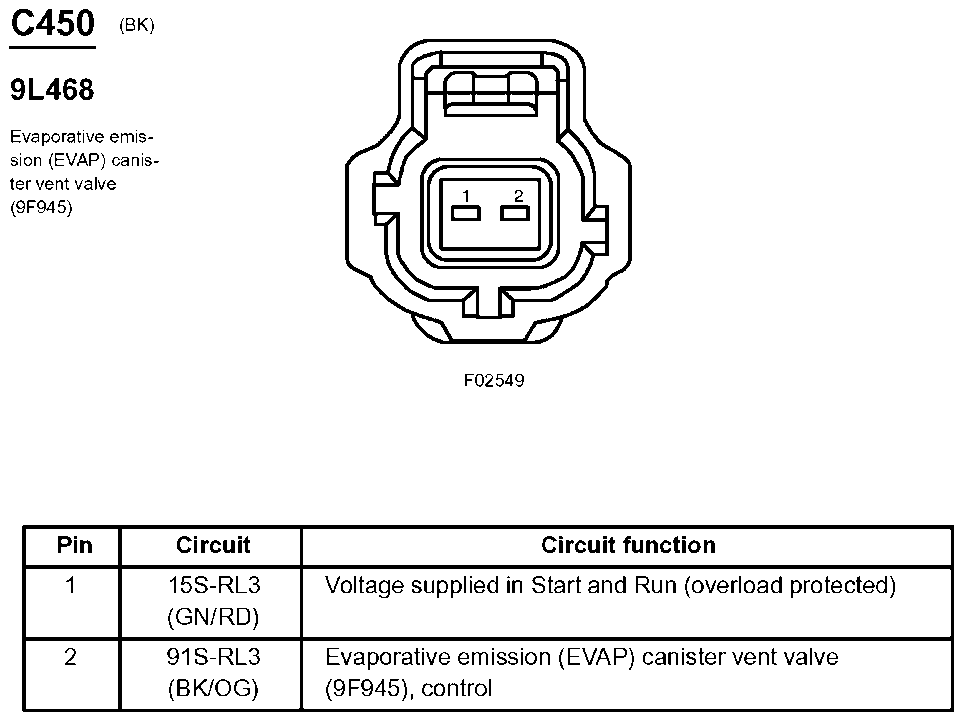

Fig 207: Evaporative Emission (EVAP) Canister Vent Valve Connector End View (C450)
G07833370Courtesy of FORD MOTOR CO.
Fig 208: Reversing Lamp, Left Connector End View (C451)
G07833371Courtesy of FORD MOTOR CO.

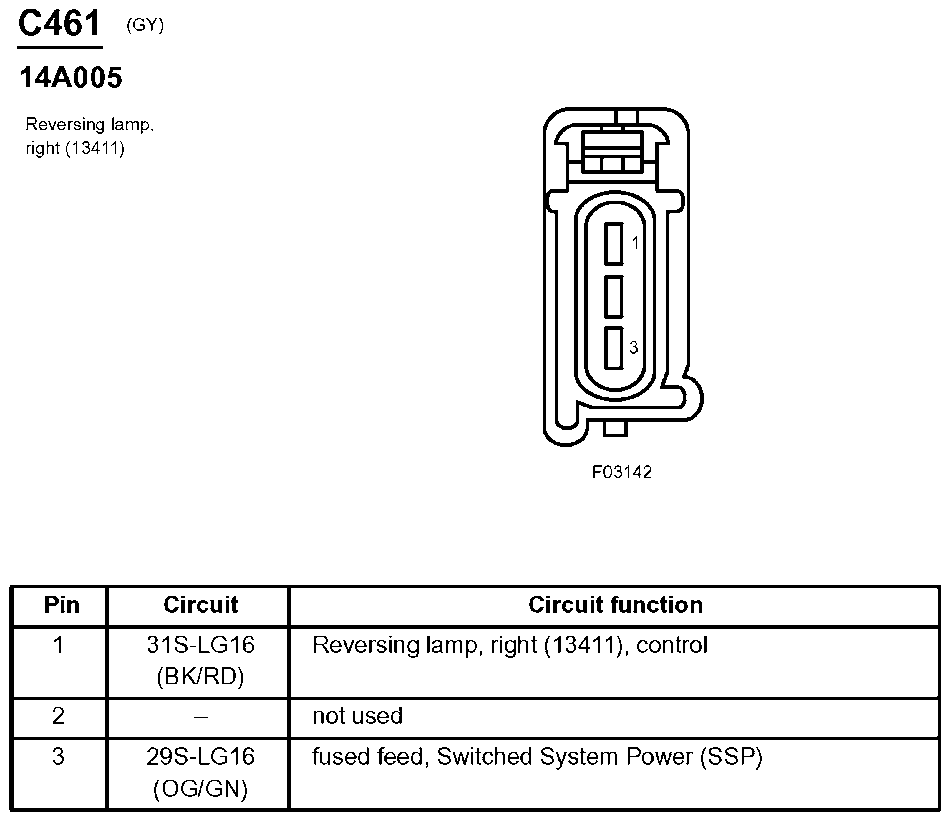

Fig 209: Reversing Lamp, Right Connector End View (C461)
G07833372Courtesy of FORD MOTOR CO.

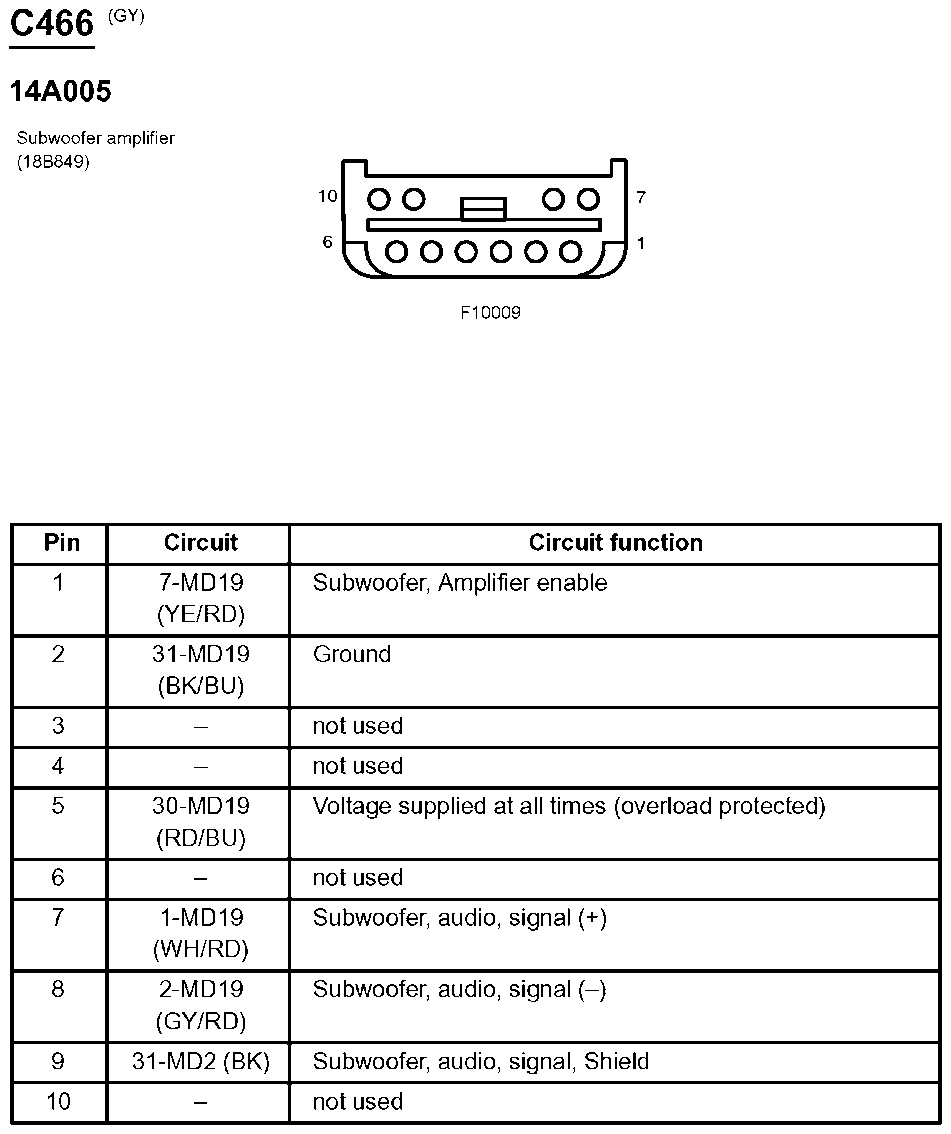

Fig 210: Subwoofer Amplifier Connector End View (C466)
G07833373Courtesy of FORD MOTOR CO.
Fig 211: High Mounted Stoplamp Connector End View (C475)
G07833374Courtesy of FORD MOTOR CO.

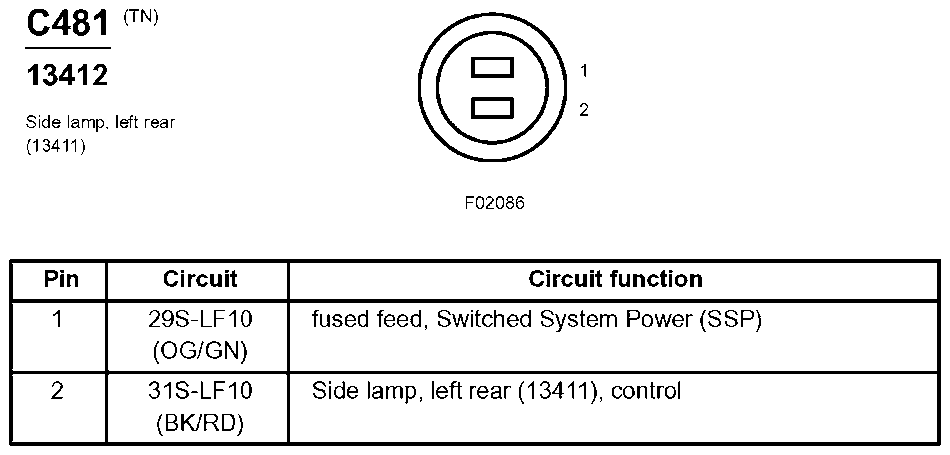

Fig 212: Side Lamp, Left Rear Connector End View (C481)
G07833375Courtesy of FORD MOTOR CO.

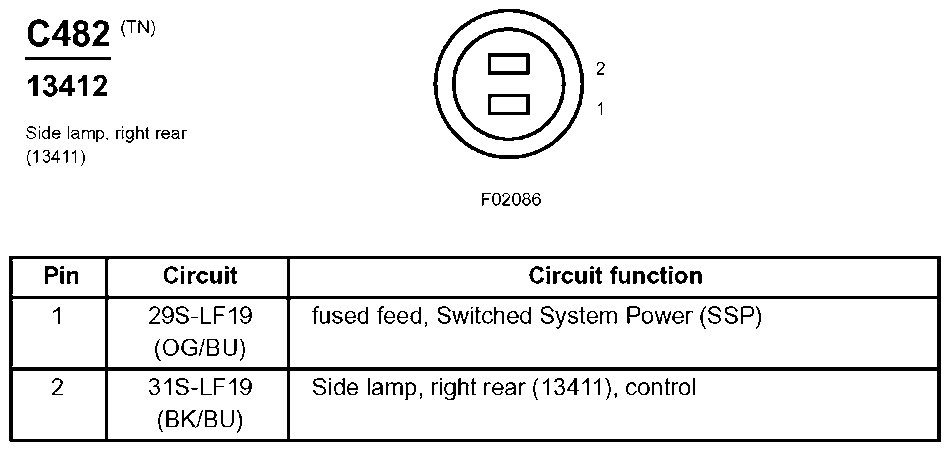

Fig 213: Side Lamp, Right Rear Connector End View (C482)
G07833376Courtesy of FORD MOTOR CO.
Fig 214: License Lamps Connector End View (C490)
G07833377Courtesy of FORD MOTOR CO.

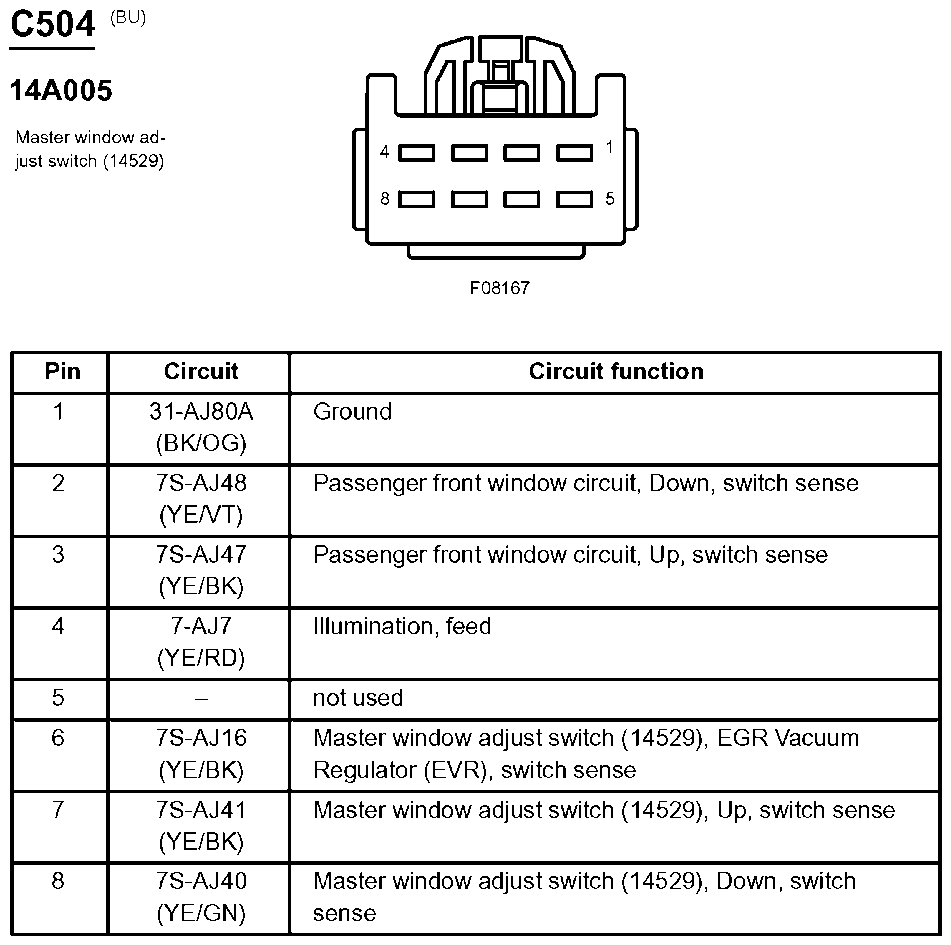

Fig 215: Master Window Adjust Switch Connector End View (C504)
G07833378Courtesy of FORD MOTOR CO.
Fig 216: Door Lock Switch, Driver Side Connector End View (C505)
G07833379Courtesy of FORD MOTOR CO.
Fig 217: Inline Connector End View (C510)
G07833380Courtesy of FORD MOTOR CO.
Fig 218: Perimeter Anti-Theft Reset Switch Connector End View (C515)
G07833381Courtesy of FORD MOTOR CO.
Fig 219: Exterior Rear View Mirror, Left Connector End View (C522)
G07833382Courtesy of FORD MOTOR CO.
Fig 220: Speaker, Left Front Connector End View (C523)
G07833383Courtesy of FORD MOTOR CO.

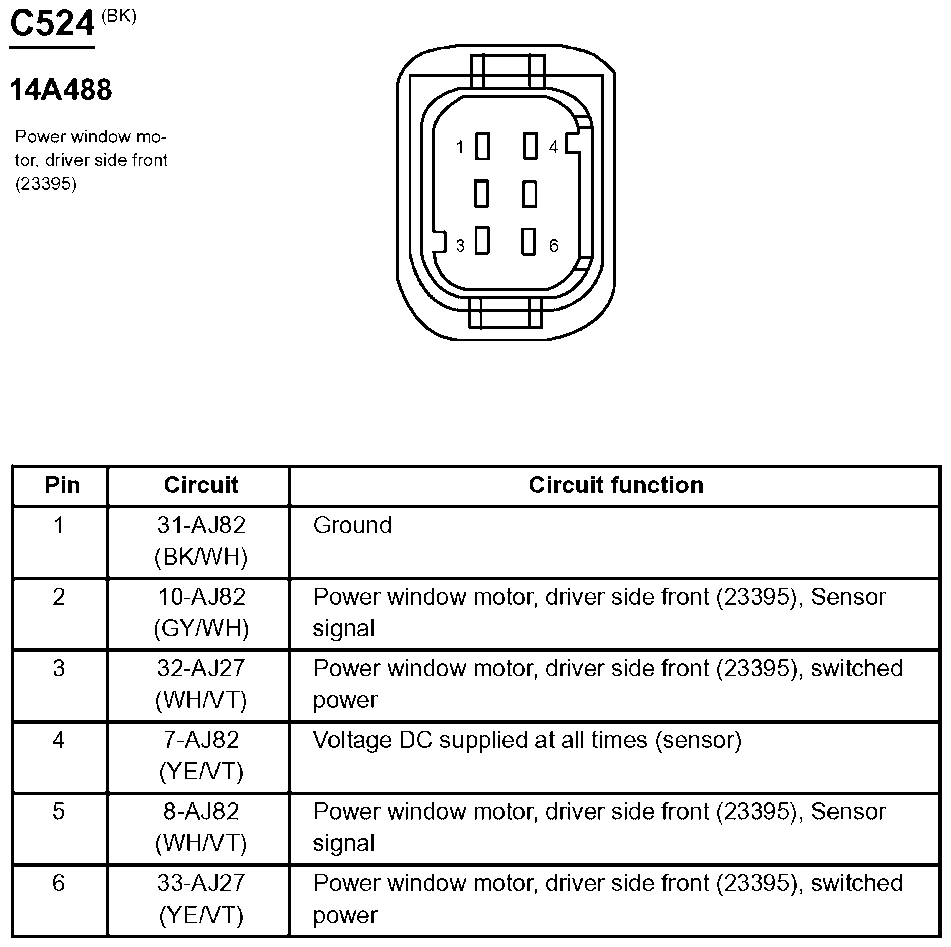

Fig 221: Power Window Motor, Driver Side Front Connector End View (C524)
G07833384Courtesy of FORD MOTOR CO.
Fig 222: Door Lock Unit, Driver Side Front Connector End View (C525)
G07833385Courtesy of FORD MOTOR CO.
Fig 223: Door Ajar Switch, Driver Side Front Connector End View (C526)
G07833386Courtesy of FORD MOTOR CO.

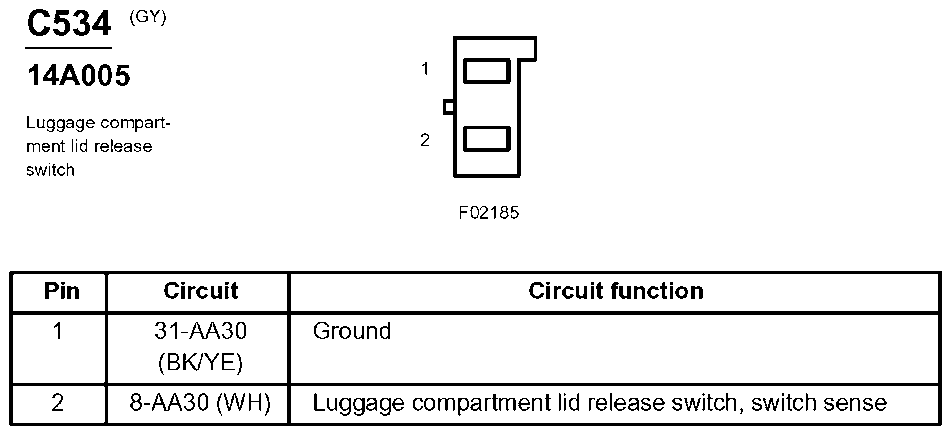

Fig 224: Luggage Compartment Lid Release Switch Connector End View (C534)
G07833387Courtesy of FORD MOTOR CO.

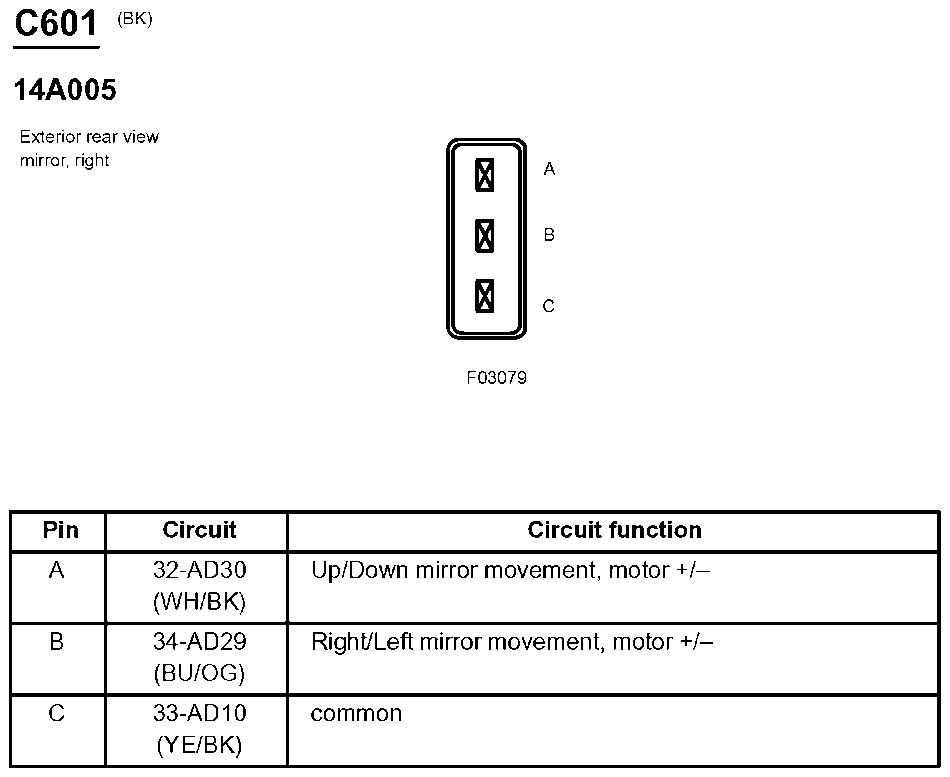

Fig 225: Exterior Rear View Mirror, Right Connector End View (C601)
G07833388Courtesy of FORD MOTOR CO.
Fig 226: Door Ajar Switch, Passenger Side Front Connector End View (C602)
G07833389Courtesy of FORD MOTOR CO.

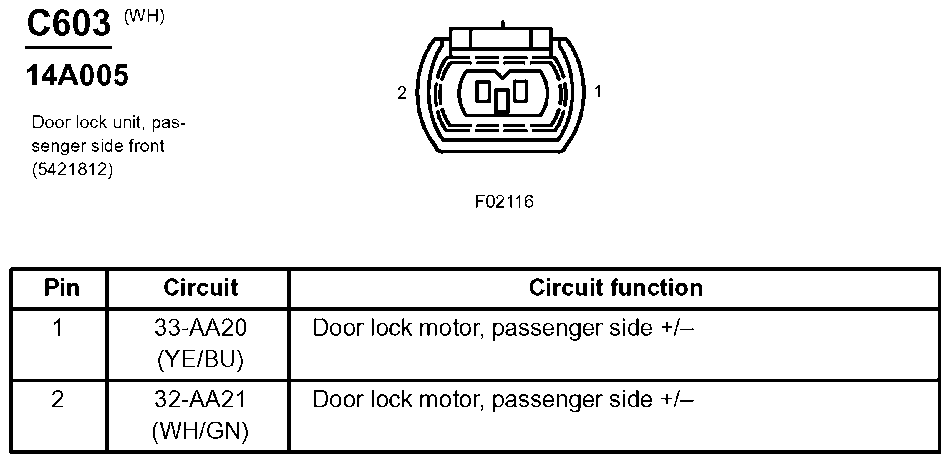

Fig 227: Door Lock Unit, Passenger Side Front Connector End View (C603)
G07833390Courtesy of FORD MOTOR CO.
Fig 228: Window Adjust Switch, Passenger Side Connector End View (C604)
G07833391Courtesy of FORD MOTOR CO.
Fig 229: Door Lock Switch, Passenger Side Connector End View (C605)
G07833392Courtesy of FORD MOTOR CO.

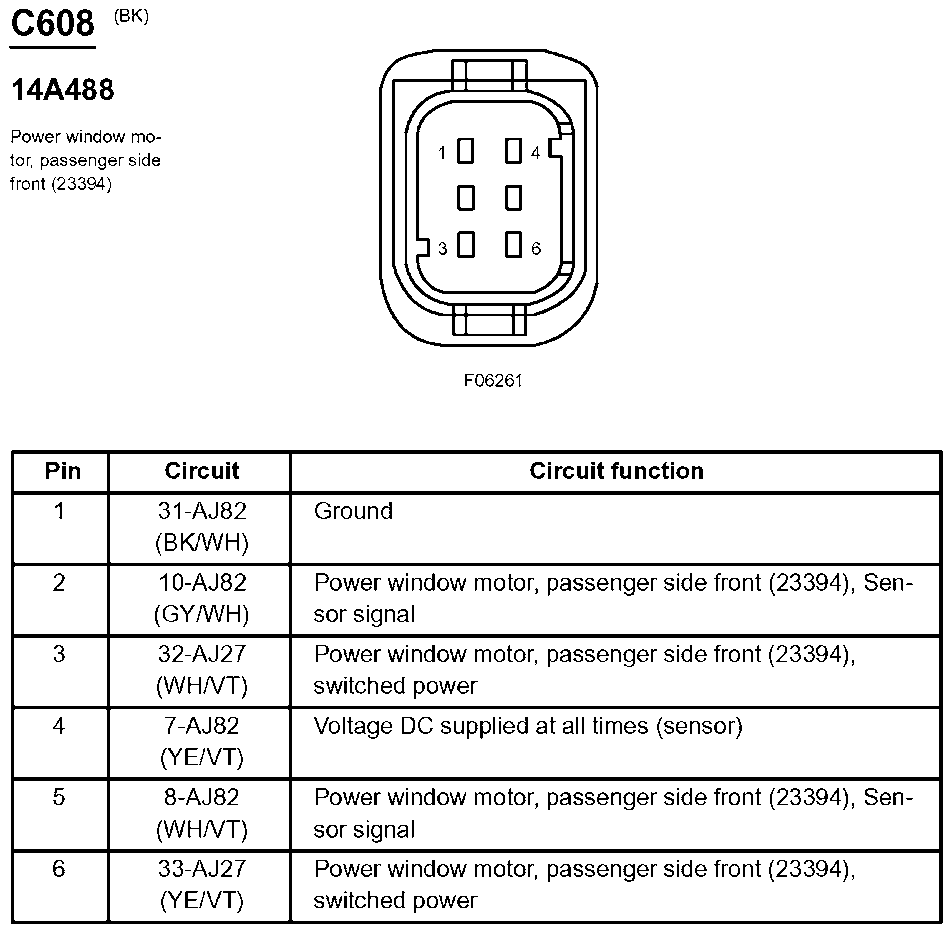

Fig 230: Power Window Motor, Passenger Side Front Connector End View (C608)
G07833393Courtesy of FORD MOTOR CO.

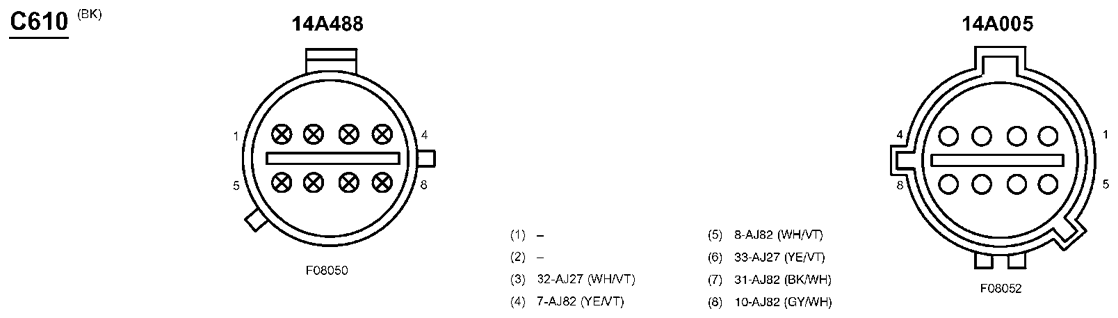

Fig 231: Inline Connector End View (C610)
G07833394Courtesy of FORD MOTOR CO.

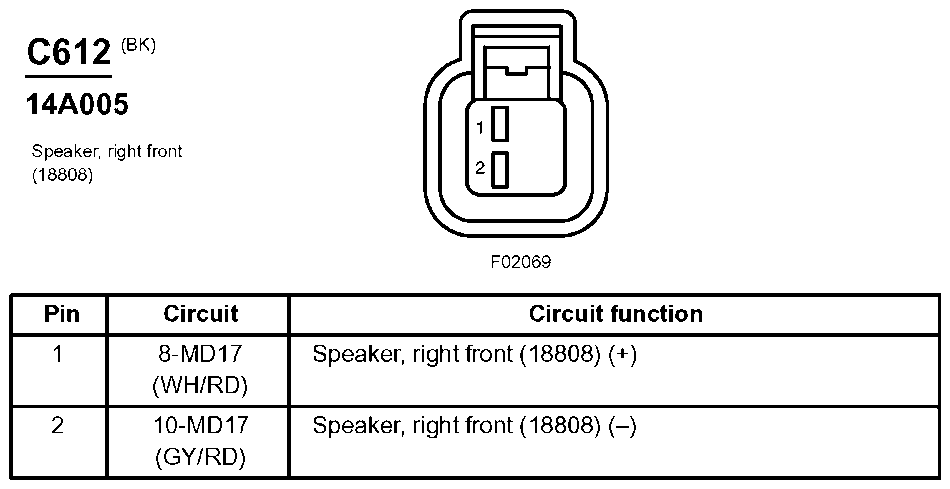

Fig 232: Speaker, Right Front Connector End View (C612)
G07833395Courtesy of FORD MOTOR CO.
Fig 233: Interior/Map Lamps Assembly, Front Connector End View (C929)
G07833396Courtesy of FORD MOTOR CO.

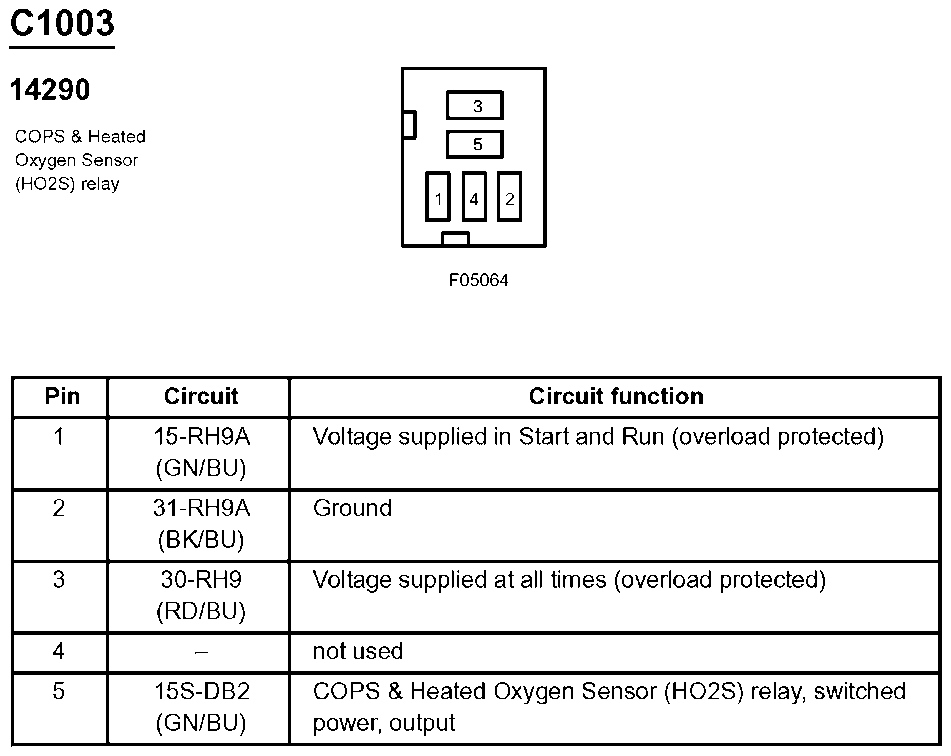

Fig 234: COPS & Heated Oxygen Sensor (HO2S) Relay Connector End View (C1003)
G07833397Courtesy of FORD MOTOR CO.
Fig 235: Auxiliary Coolant Pump Relay Connector End View (C1005)
G07833398Courtesy of FORD MOTOR CO.
Fig 236: Horn Relay Connector End View (C1006)
G07833399Courtesy of FORD MOTOR CO.
Fig 237: A/C Clutch Relay Connector End View (C1008)
G07833400Courtesy of FORD MOTOR CO.

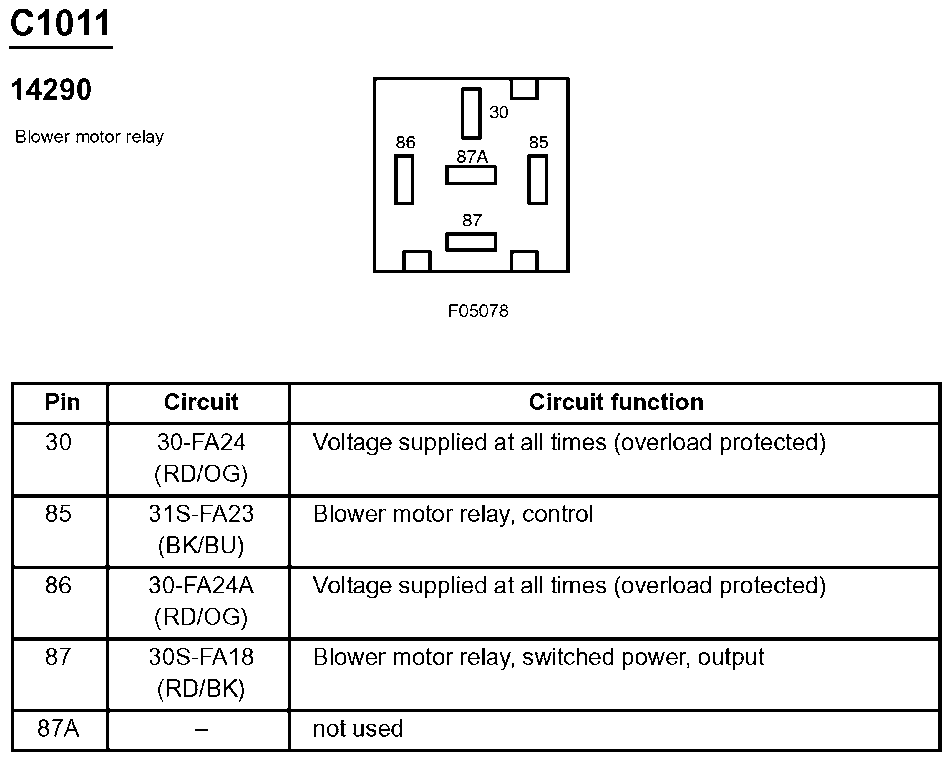

Fig 238: Blower Motor Relay Connector End View (C1011)
G07833401Courtesy of FORD MOTOR CO.

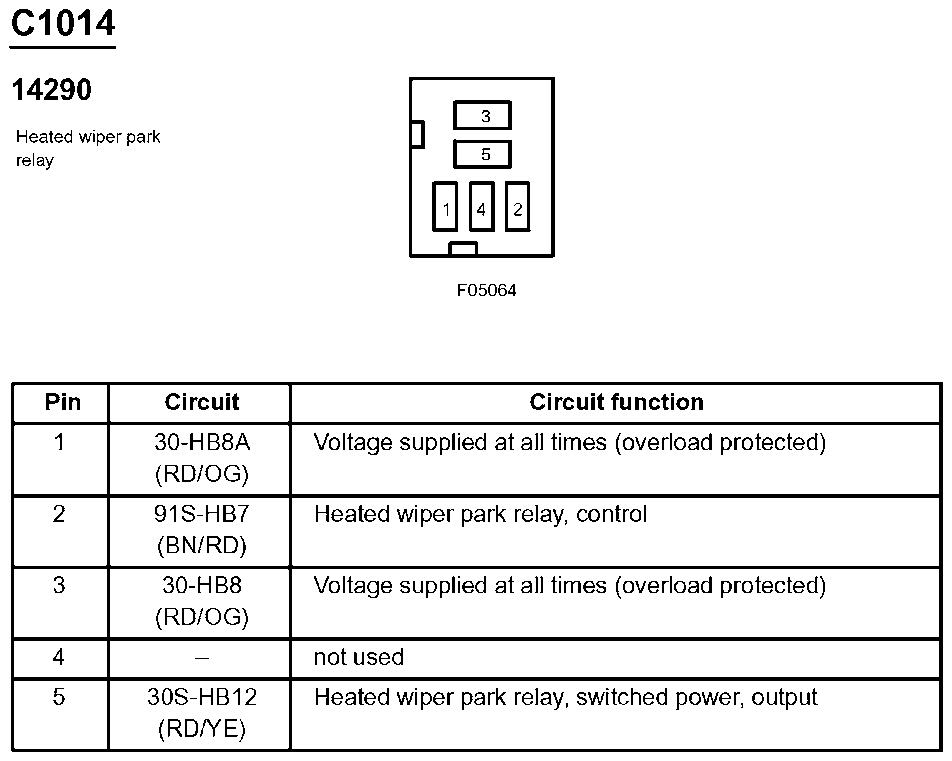

Fig 239: Heated Wiper Park Relay Connector End View (C1014)
G07833402Courtesy of FORD MOTOR CO.
Fig 240: PCM Power Relay Connector End View (C1016)
G07833403Courtesy of FORD MOTOR CO.
Fig 241: Starter Relay Connector End View (C1017)
G07833404Courtesy of FORD MOTOR CO.

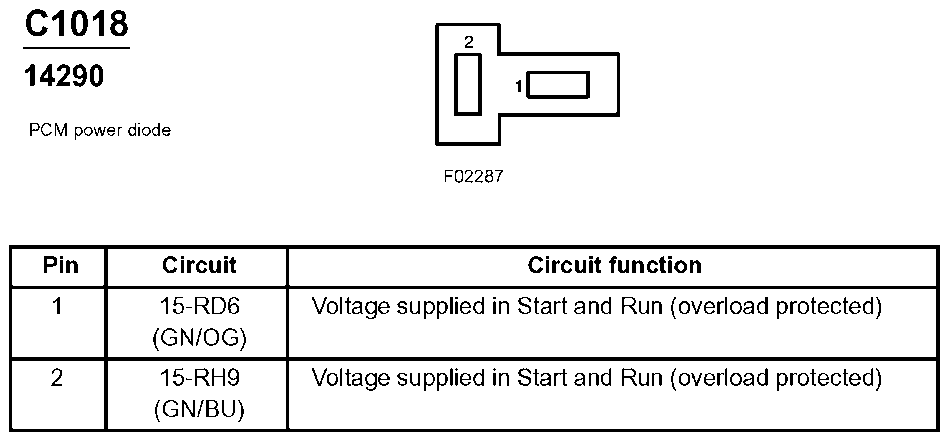

Fig 242: PCM Power Diode Connector End View (C1018)
G07833405Courtesy of FORD MOTOR CO.

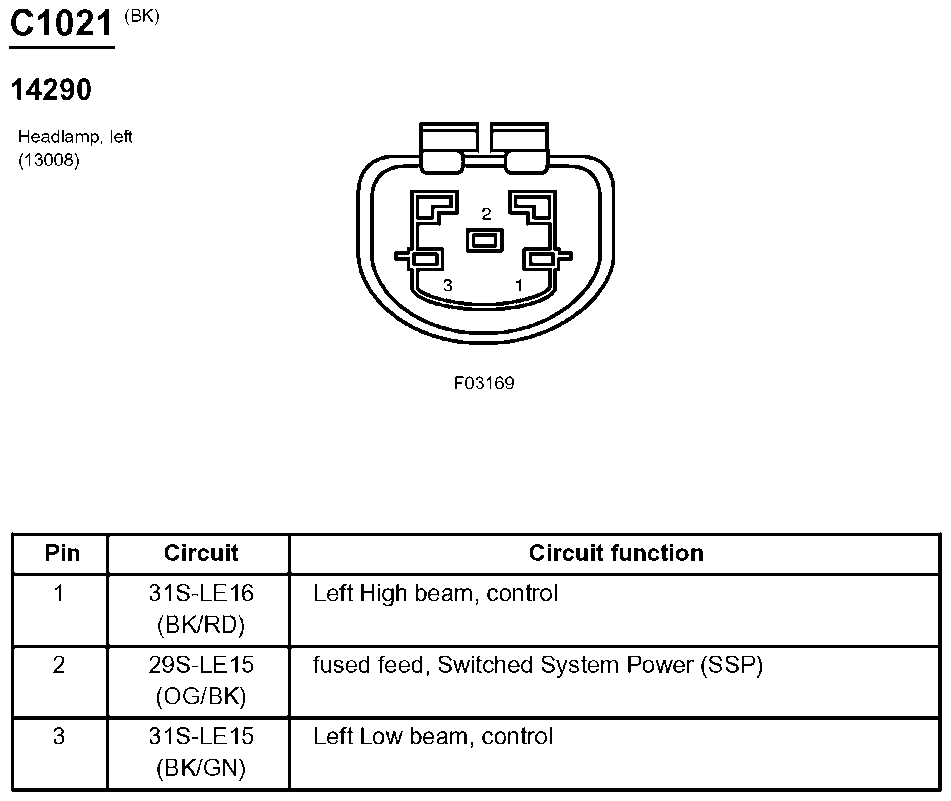

Fig 243: Headlamp, Left Connector End View (C1021)
G07833406Courtesy of FORD MOTOR CO.
Fig 244: Park/Turn Lamp, Left Front Connector End View (C1023)
G07833407Courtesy of FORD MOTOR CO.

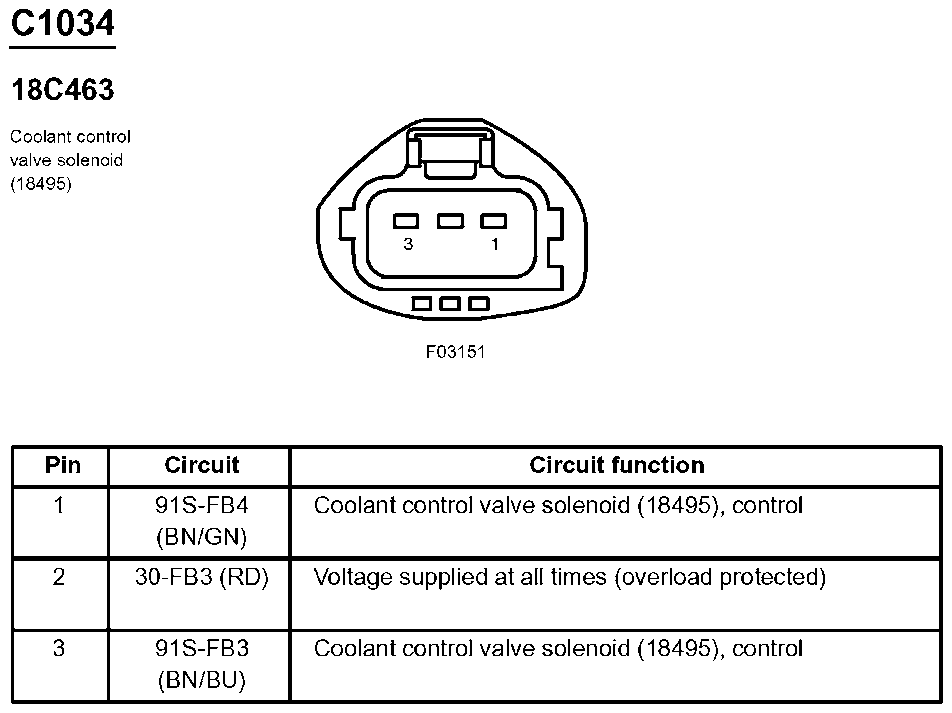

Fig 245: Coolant Control Valve Solenoid Connector End View (C1034)
G07833408Courtesy of FORD MOTOR CO.

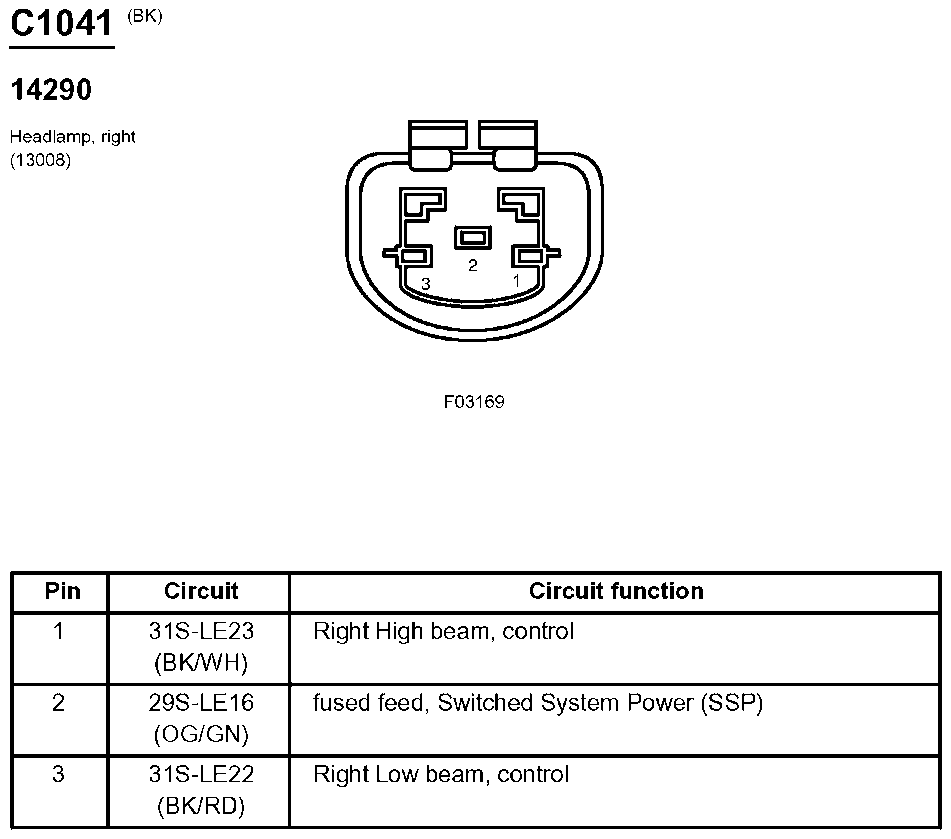

Fig 246: Headlamp, Right Connector End View (C1041)
G07833409Courtesy of FORD MOTOR CO.

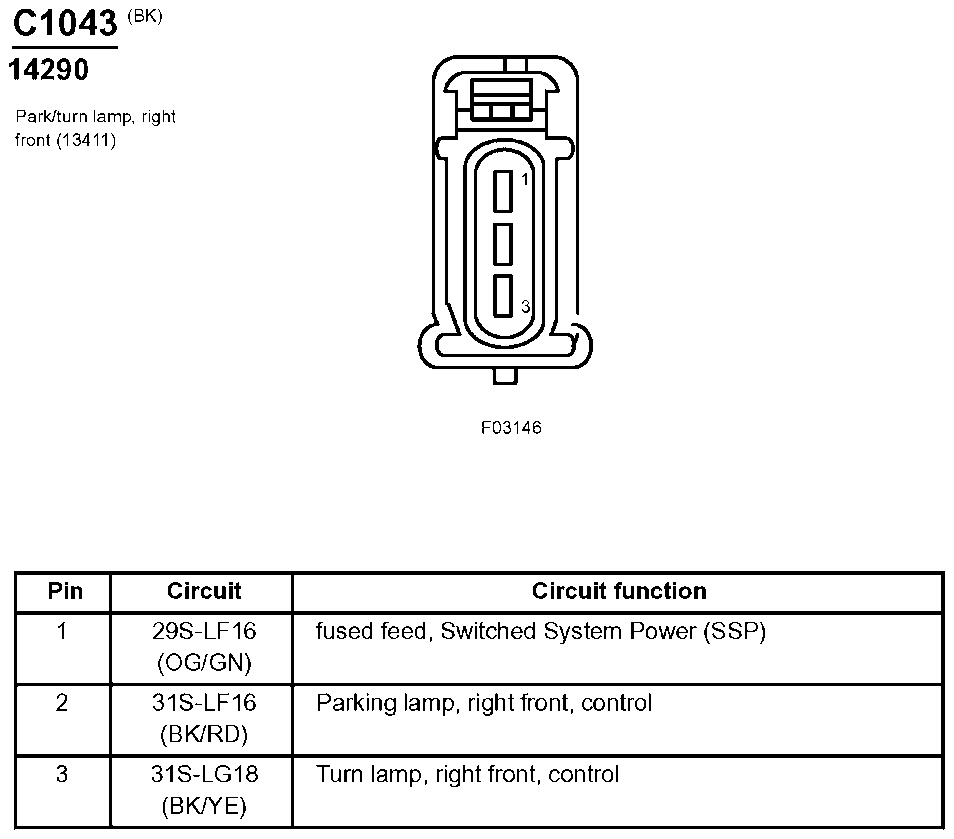

Fig 247: Park/Turn Lamp, Right Front Connector End View (C1043)
G07833410Courtesy of FORD MOTOR CO.

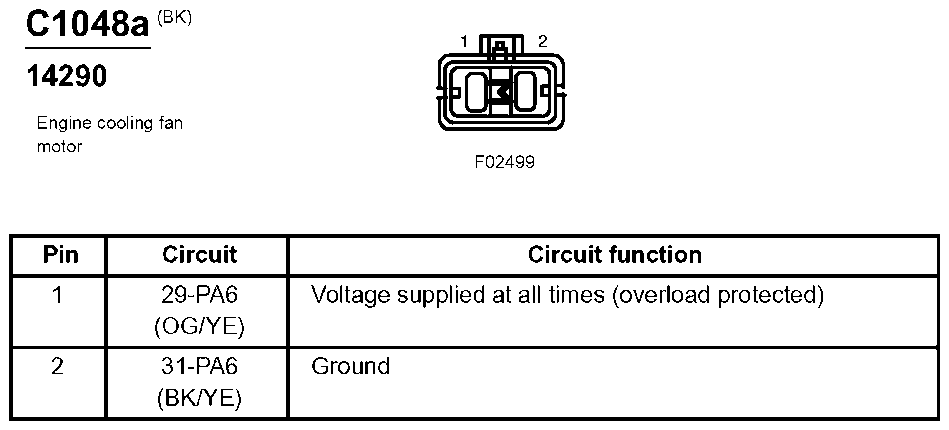

Fig 248: Engine Cooling Fan Motor Connector End View (C1048a)
G07833411Courtesy of FORD MOTOR CO.
Fig 249: Engine Cooling Fan Motor Connector End View (C1048b)
G07833412Courtesy of FORD MOTOR CO.
Fig 250: Driving Lamp, Left Connector End View (C1166)
G07833413Courtesy of FORD MOTOR CO.

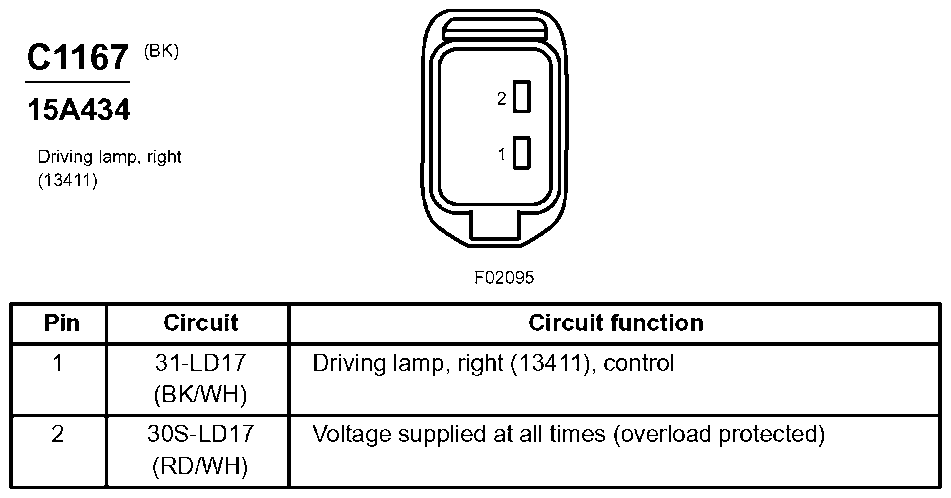

Fig 251: Driving Lamp, Right Connector End View (C1167)
G07833414Courtesy of FORD MOTOR CO.
Fig 252: Inline Connector End View (C1168)
G07833415Courtesy of FORD MOTOR CO.
Fig 253: Throttle Position Sensor (TPS) Connector End View (C1189)
G07833416Courtesy of FORD MOTOR CO.
Fig 254: Fuel Rail Temperature Sensor Connector End View (C1257)
G07833417Courtesy of FORD MOTOR CO.

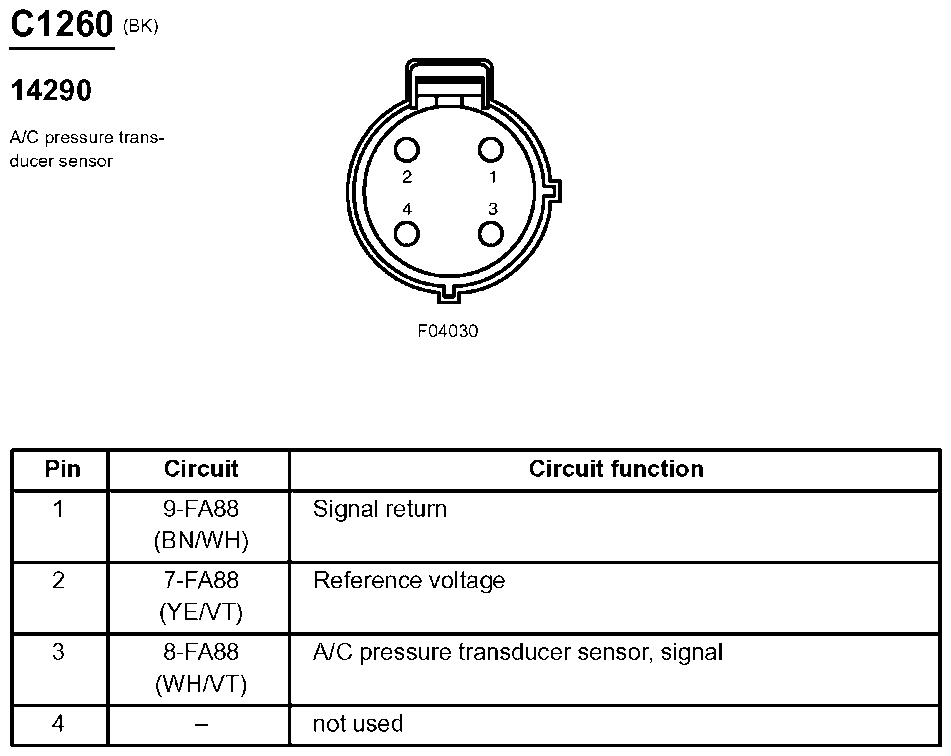

Fig 255: A/C Pressure Transducer Sensor Connector End View (C1260)
G07833418Courtesy of FORD MOTOR CO.
Fig 256: Camshaft Position Sensor 1 Connector End View (C1366)
G07833419Courtesy of FORD MOTOR CO.

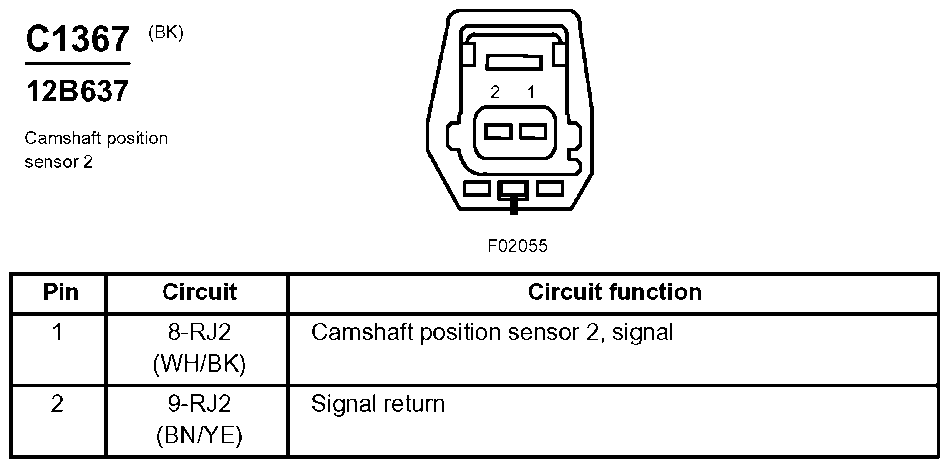

Fig 257: Camshaft Position Sensor 2 Connector End View (C1367)
G07833420Courtesy of FORD MOTOR CO.
Fig 258: Electronic Throttle Control (ETC) Motor Connector End View (C1368)
G07833421Courtesy of FORD MOTOR CO.
Fig 259: Variable Valve Timing Solenoid 1 Connector End View (C1369)
G07833422Courtesy of FORD MOTOR CO.
Fig 260: Variable Valve Timing Solenoid 2 Connector End View (C1370)
G07833423Courtesy of FORD MOTOR CO.
Fig 261: Brake Shift Interlock Connector End View (C2008)
G07833424Courtesy of FORD MOTOR CO.

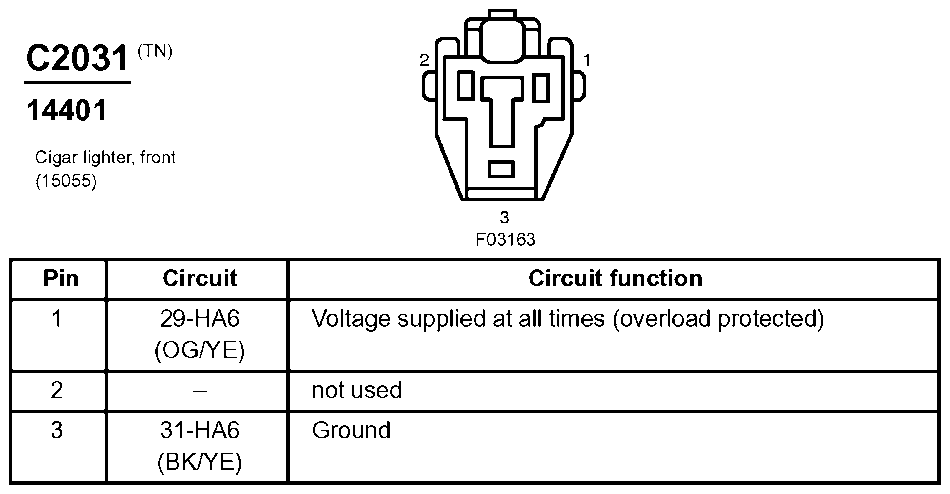

Fig 262: Cigar Lighter, Front Connector End View (C2031)
G07833425Courtesy of FORD MOTOR CO.

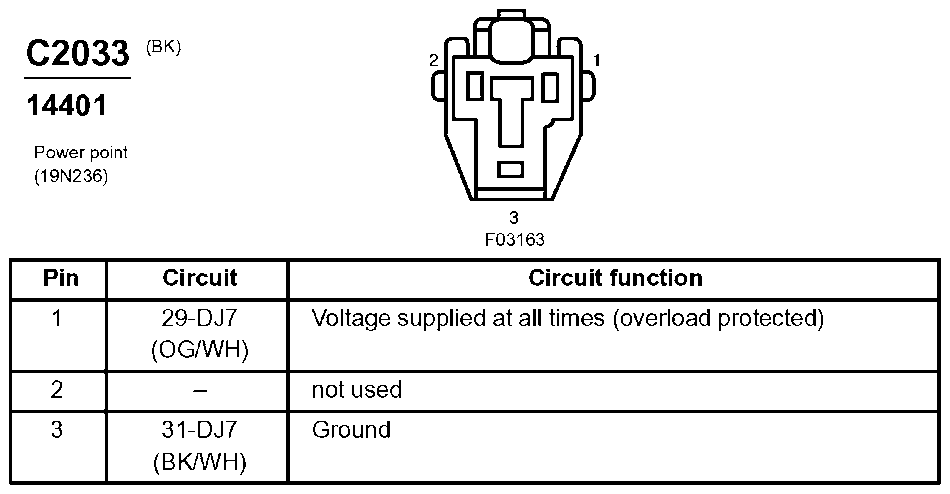

Fig 263: Power Point Connector End View (C2033)
G07833426Courtesy of FORD MOTOR CO.
Fig 264: Passenger Air Bag Deactivation (PAD) Switch Connector End View (C2099)
G07833427Courtesy of FORD MOTOR CO.
Fig 265: Convertible Top Switch Connector End View (C2138)
G07833428Courtesy of FORD MOTOR CO.

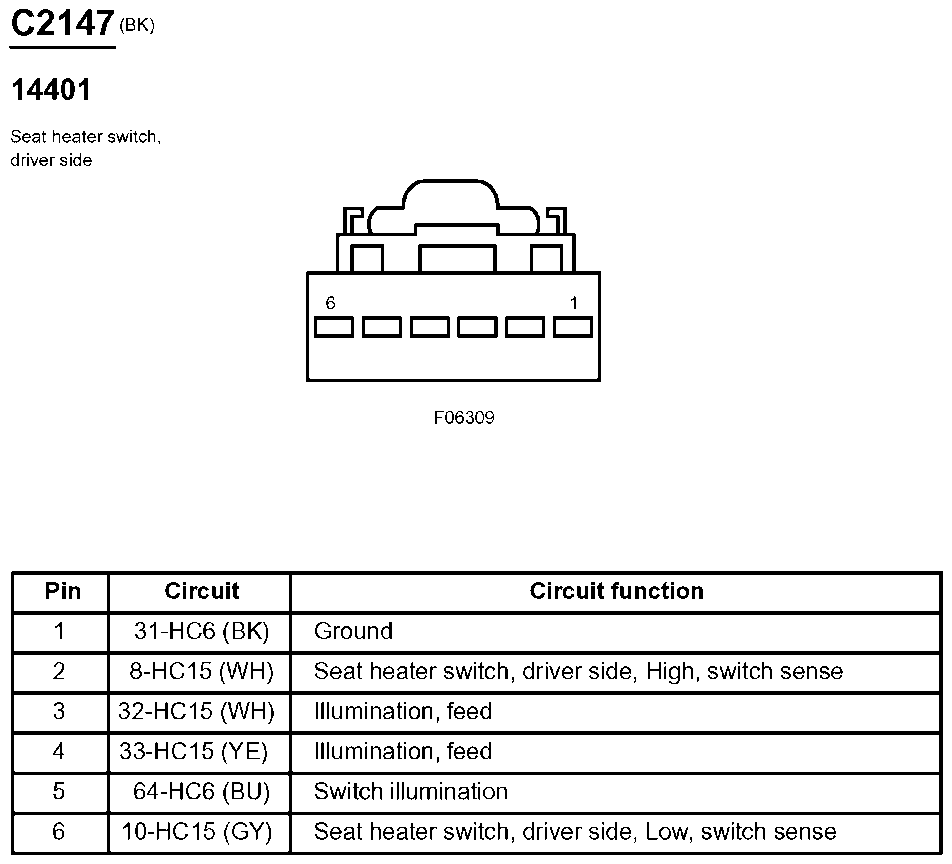

Fig 266: Seat Heater Switch, Driver Side Connector End View (C2147)
G07833429Courtesy of FORD MOTOR CO.
Fig 267: Seat Heater Switch, Passenger Side Connector End View (C2148)
G07833430Courtesy of FORD MOTOR CO.

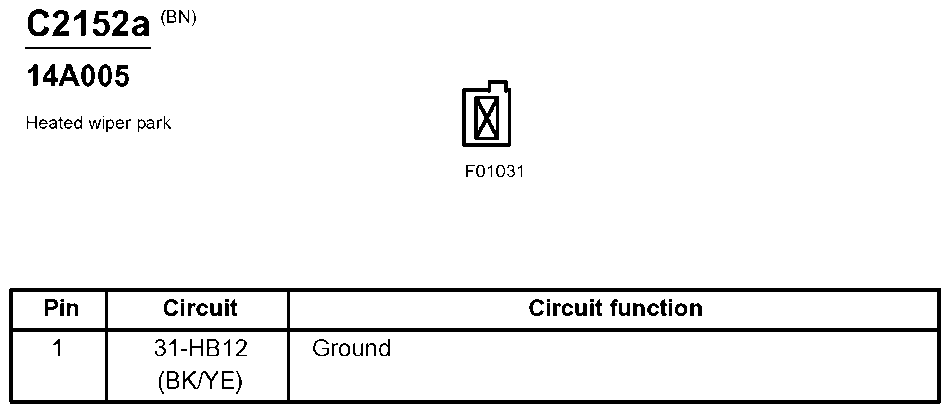

Fig 268: Heated Wiper Park Connector End View (C2152a)
G07833431Courtesy of FORD MOTOR CO.

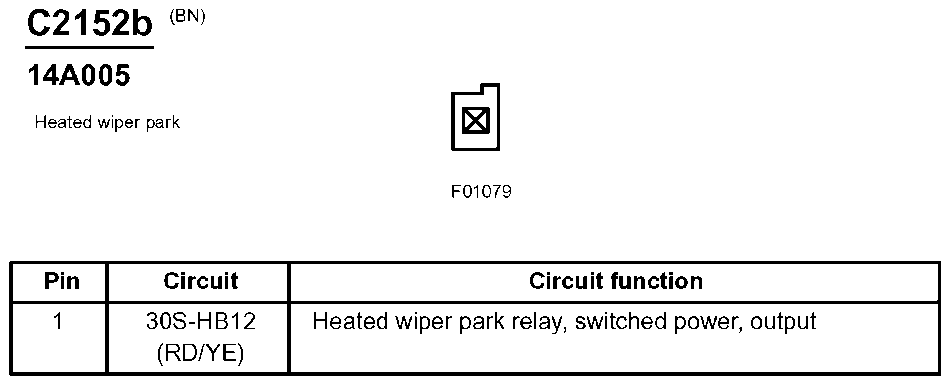

Fig 269: Heated Wiper Park Connector End View (C2152b)
G07833432Courtesy of FORD MOTOR CO.
Fig 270: Radio Capacitor Connector End View (C2243)
G07833433Courtesy of FORD MOTOR CO.
Fig 271: Steering Column Position Switch Connector End View (C2250)
G07833434Courtesy of FORD MOTOR CO.
Fig 272: Electronic Throttle Control (ETC) Module Connector End View (C2251)
G07833435Courtesy of FORD MOTOR CO.
Fig 273: Driver Safety Belt Retractor Pretensioner Connector End View (C3014)
G07833436Courtesy of FORD MOTOR CO.
Fig 274: Power Seat Motor Assembly, Right Connector End View (C3015)
G07833437Courtesy of FORD MOTOR CO.
Fig 275: Convertible Top Motor Connector End View (C4062)
G07833438Courtesy of FORD MOTOR CO.

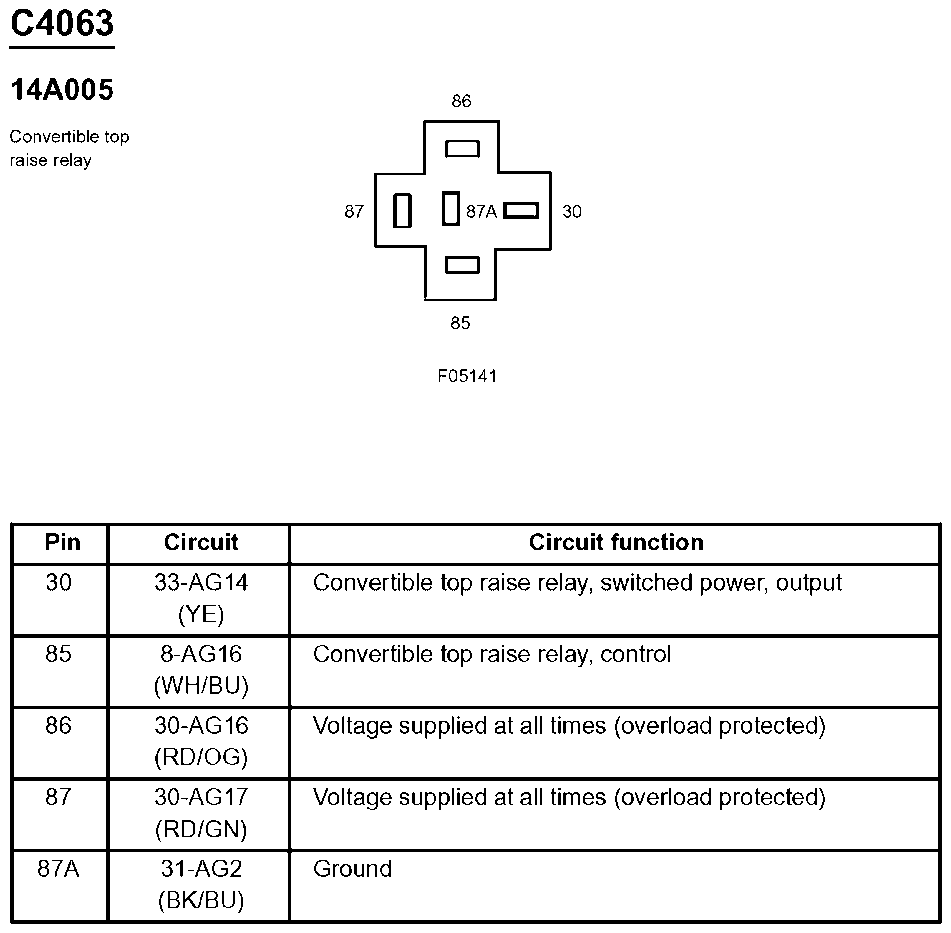

Fig 276: Convertible Top Raise Relay Connector End View (C4063)
G07833439Courtesy of FORD MOTOR CO.
Fig 277: Convertible Top Lower Relay Connector End View (C4064)
G07833440Courtesy of FORD MOTOR CO.

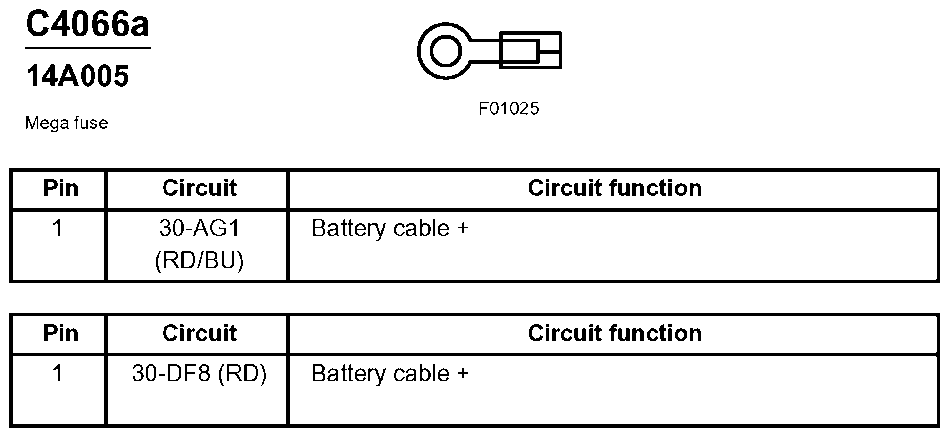

Fig 278: Mega Fuse Connector End View (C4066a)
G07833441Courtesy of FORD MOTOR CO.

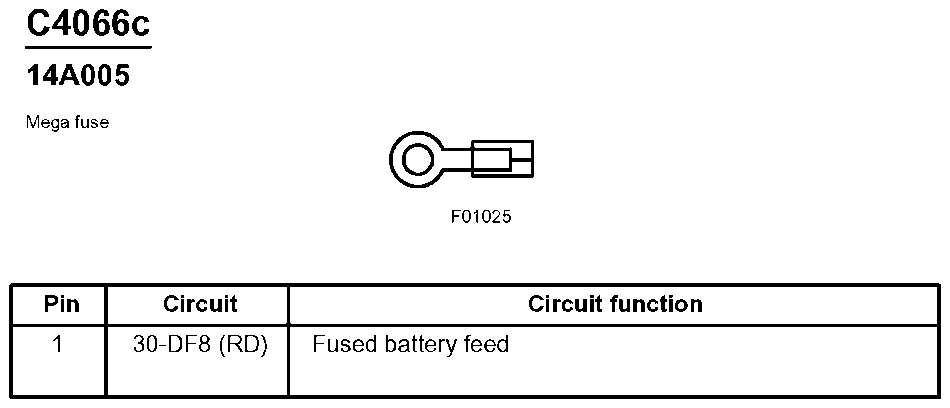

Fig 279: Mega Fuse Connector End View (C4066c)
G07833442Courtesy of FORD MOTOR CO.
Fig 280: Heated Backlight Relay Connector End View (C4067)
G07833443Courtesy of FORD MOTOR CO.
Fig 281: Subwoofer, Left Connector End View (C4068)
G07833444Courtesy of FORD MOTOR CO.

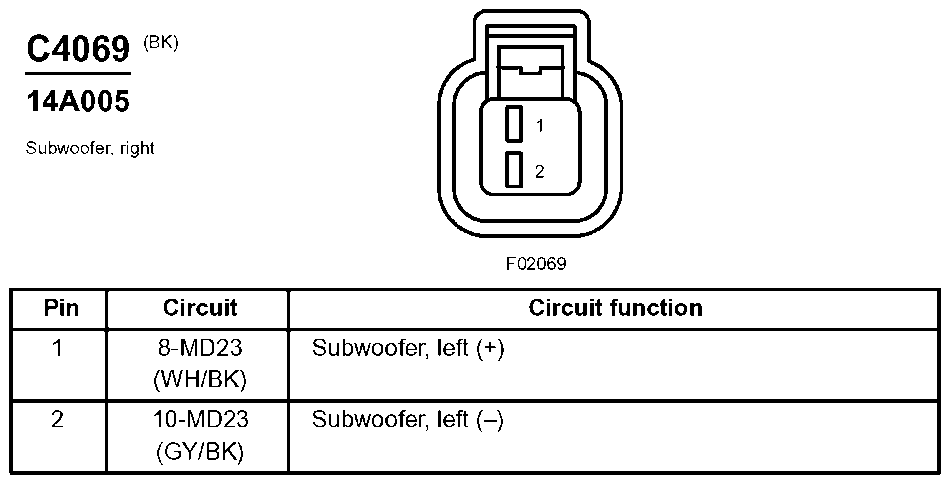

Fig 282: Subwoofer, Right Connector End View (C4069)
G07833445Courtesy of FORD MOTOR CO.

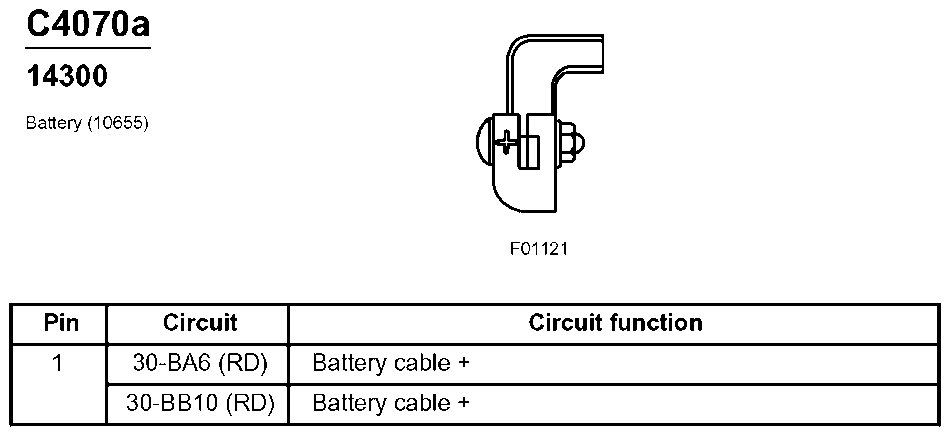

Fig 283: Battery Connector End View (C4070a)
G07833446Courtesy of FORD MOTOR CO.
Fig 284: Battery Connector End View (C4070b)
G07833447Courtesy of FORD MOTOR CO.

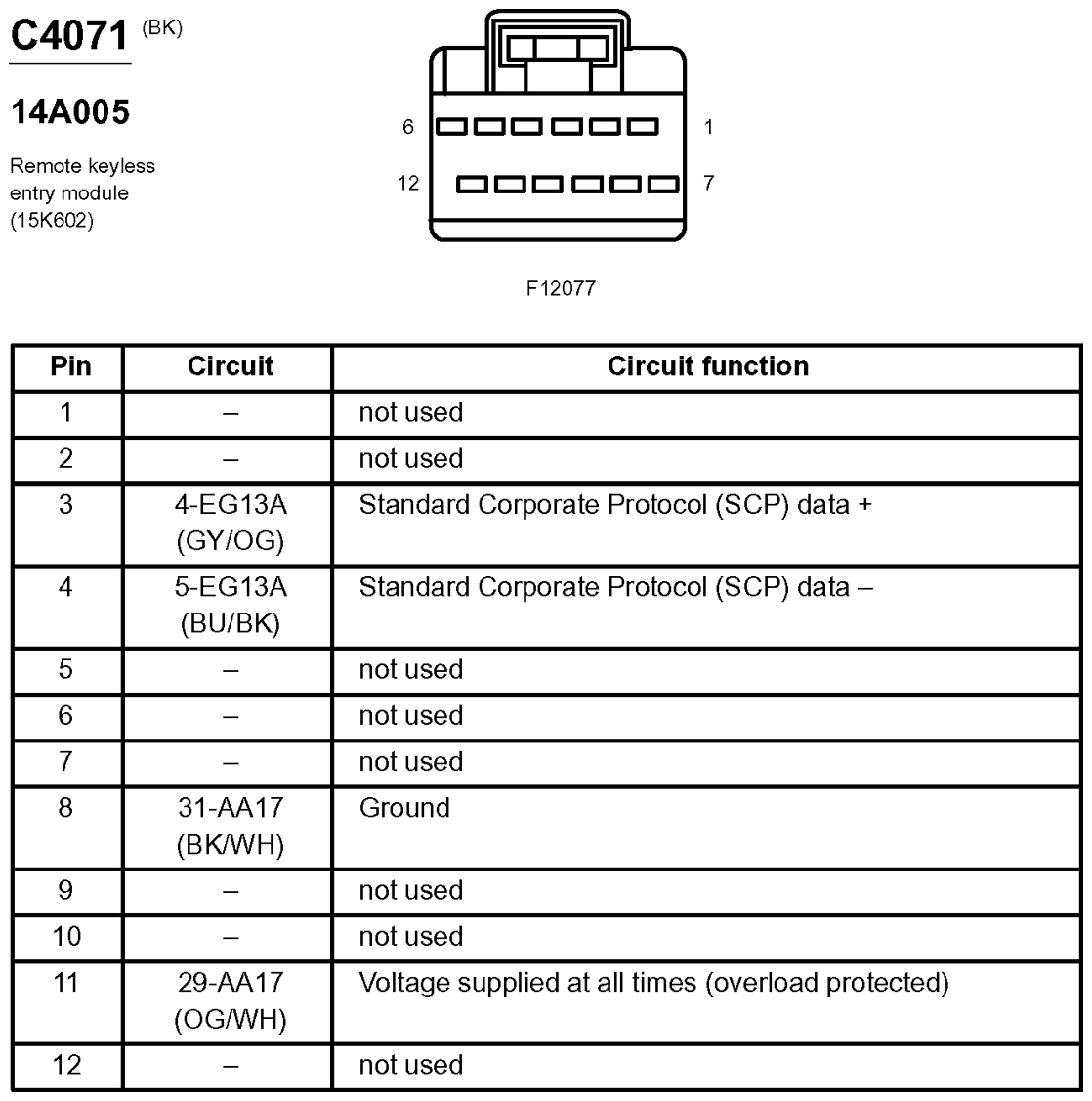

Fig 285: Remote Keyless Entry Module Connector End View (C4071)
G07833448Courtesy of FORD MOTOR CO.
