Electrical Component Locator: Grounds

GROUNDS LOCATION

Component Location

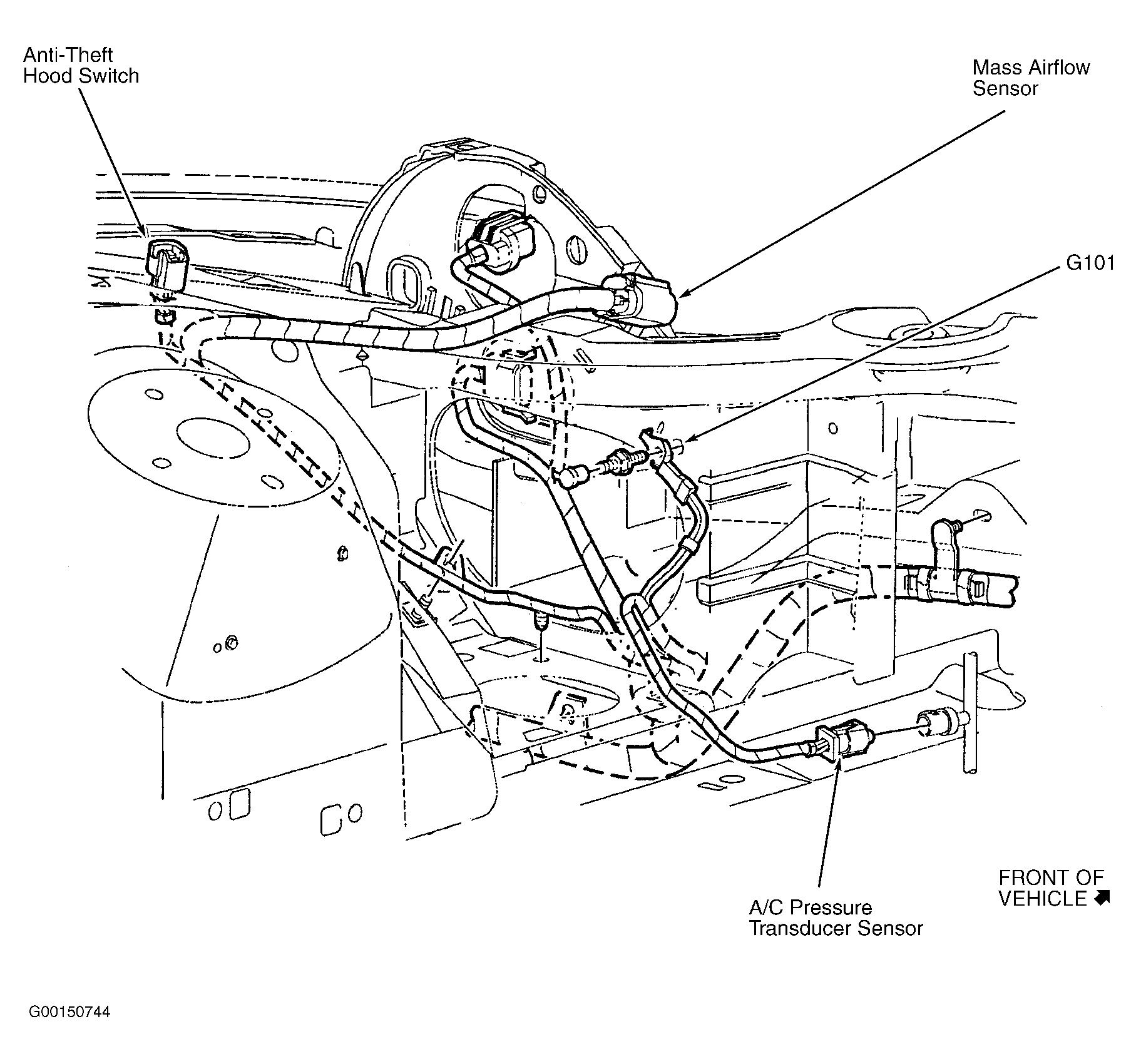

G101 Left front of engine compartment. See Figure.
G102 At right side of engine compartment.
G103 At right front fender.
G104 At right front wheelwell.
G105 At left front of engine compartment.
G200 Behind center of dash panel.
G201 Behind center of dash panel.
G202 At left "A" pillar.
G203 Below right side of dash panel.
G204 Below left side of dash panel.
G300 At right rear of vehicle floor.
G301 At left side of vehicle floor.
G302 Near bottom left side of convertible top.
G401 At right side of luggage compartment.
G402 At left rear of vehicle.
G403 At right side of luggage compartment.
