Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|

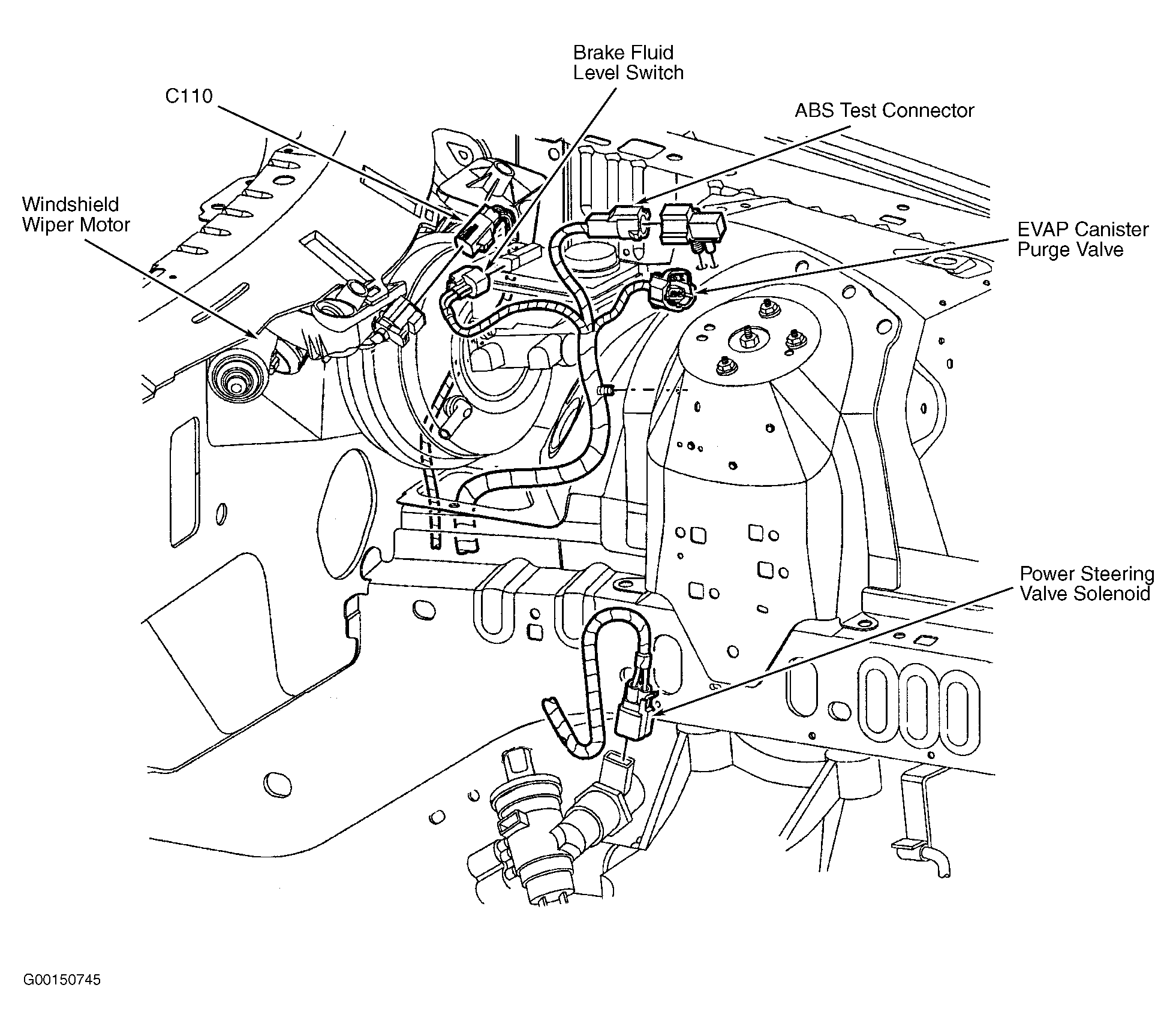

| ABS Test Connector | On left rear of engine compartment. See Figure. |

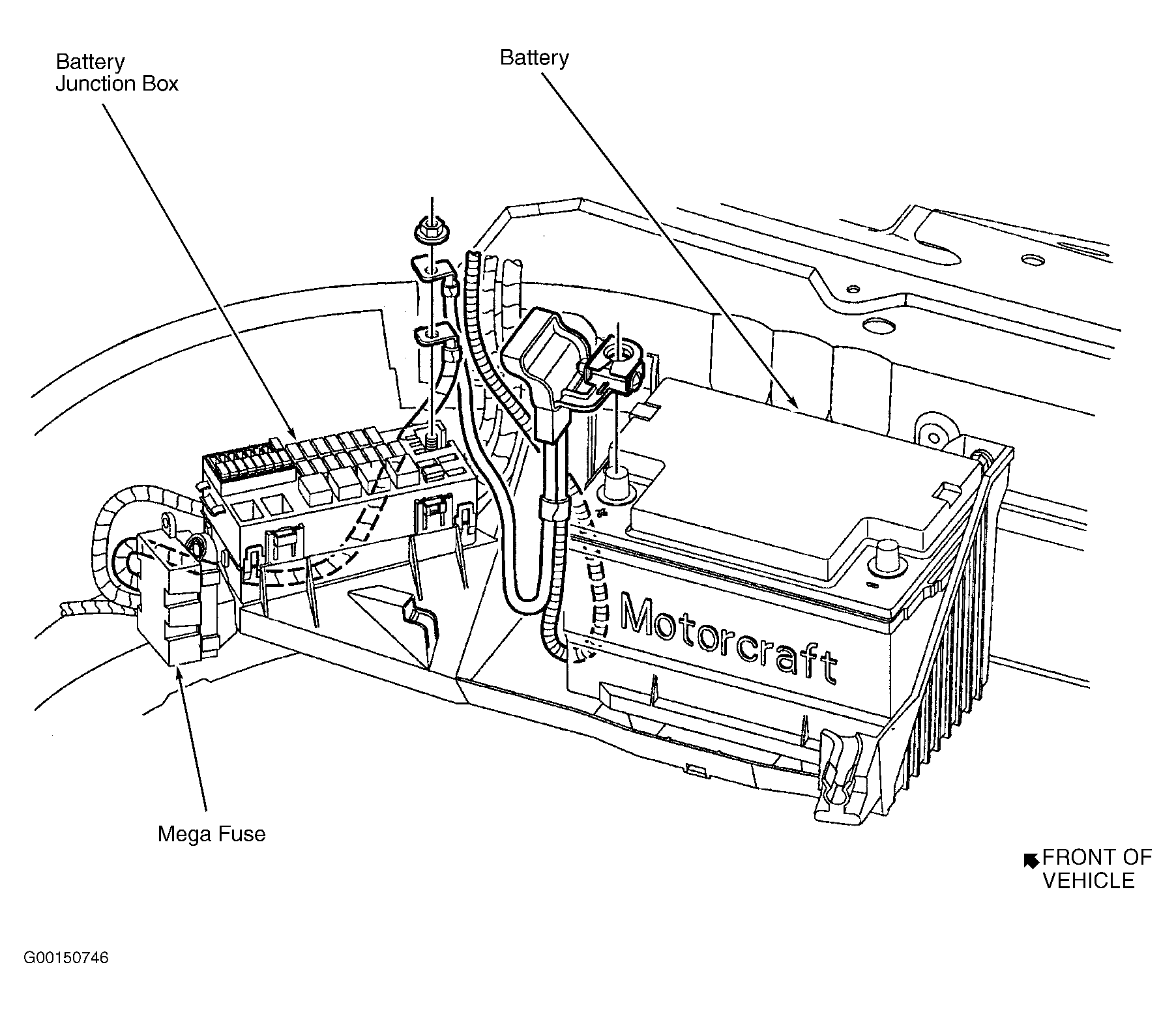

| Battery | On right side of luggage compartment. See Figure. |
| Center Image Amplifier | Behind front center of dash. |
| Data Link Connector | Under left side of dash. |
| Horn | On right front of engine compartment. |
| Ignition Transformer Capacitor No. 1 | In left rear of engine. |
| Ignition Transformer Capacitor No. 2 | In right rear of engine. |
| Radio Capacitor | Under left side of dash. |
| Safety Belt Retractor Pretensioner (Driver/Passenger) | At base of respective "B" pillar, behind trim. |
| Subwoofer Amplifier | Behind right seat, on support bracket. |
