Torque Specifications

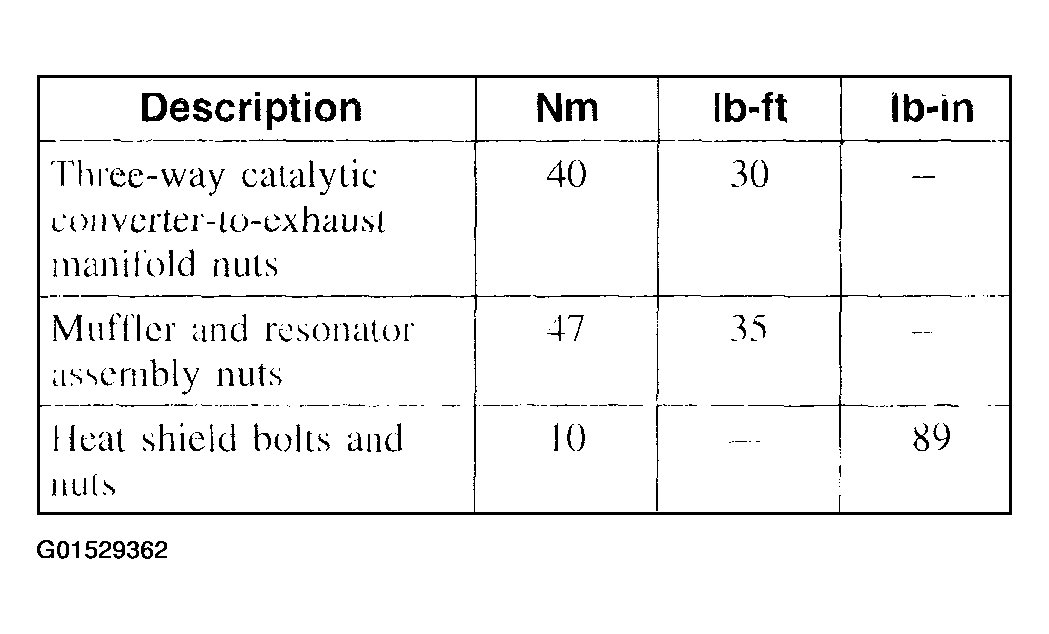

Fig 1: Exhaust System Torque Specifications (1 Of 2)
G01529362Courtesy of FORD MOTOR CO.

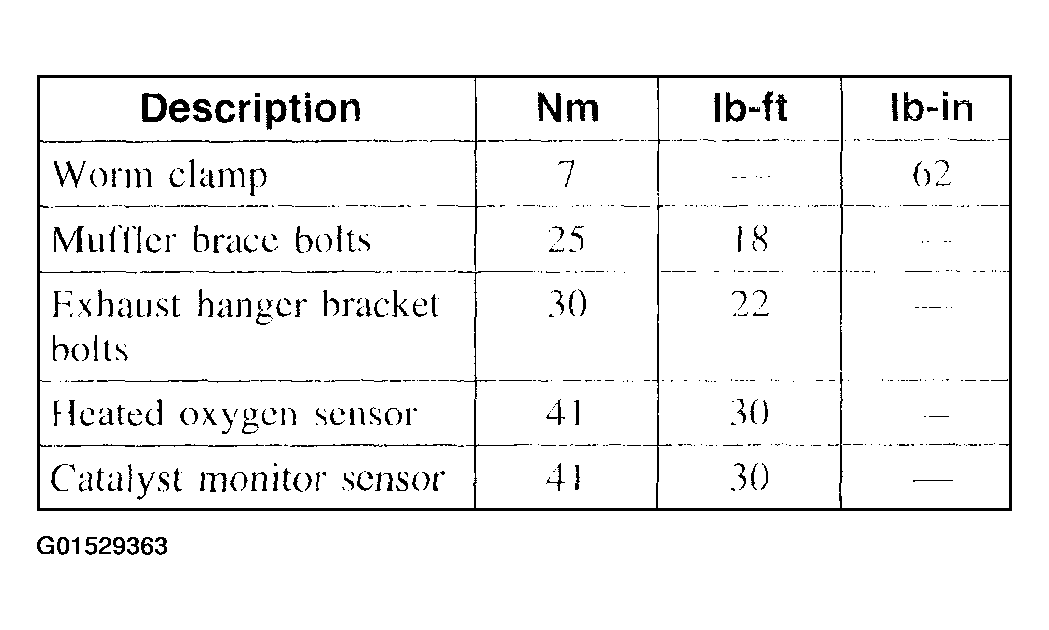

Fig 2: Exhaust System Torque Specifications (2 Of 2)
G01529363Courtesy of FORD MOTOR CO.
