Cylinder Block Distortion

Special Tool(s)

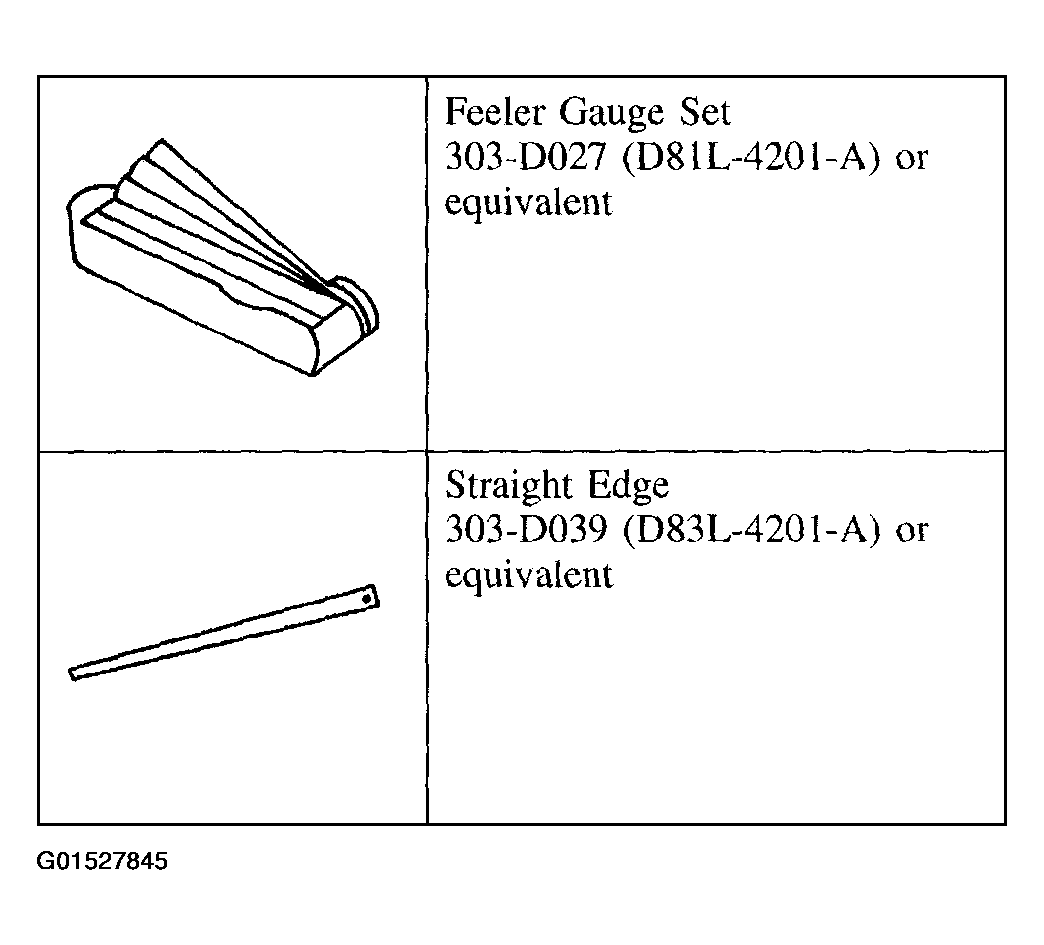

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

1. Use a straight edge and a feeler gauge to inspect the cylinder block for flatness. If the cylinder block is distorted, install a new short block assembly.

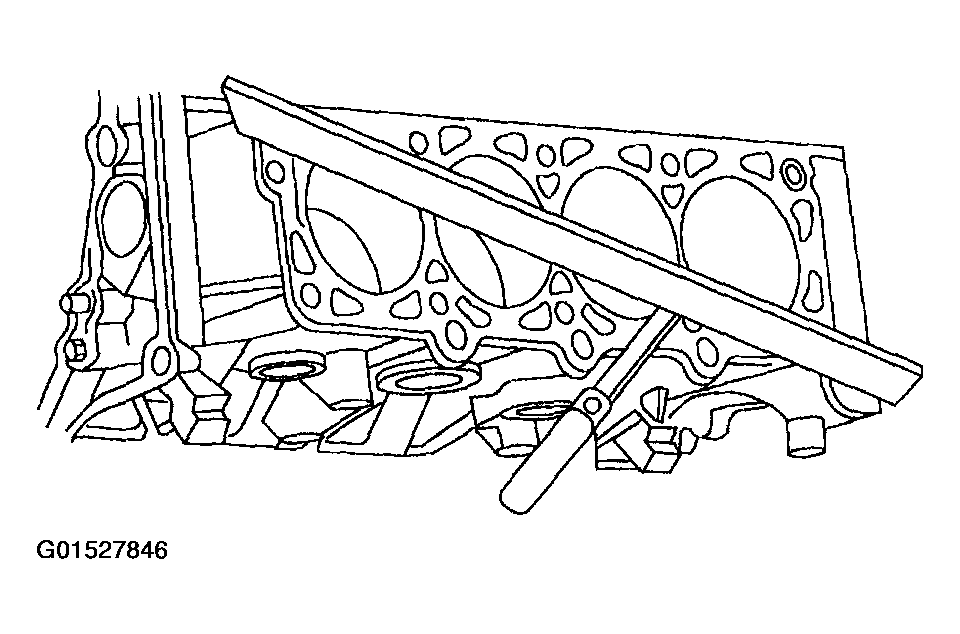

   Fig 2: Inspecting Cylinder Block

   Courtesy of FORD MOTOR CO.
