Valve Guide Inner Diameter

  1. Measure the inner diameter of the valve guides in two directions where indicated.
    • Refer to ENGINE article for the procedure .

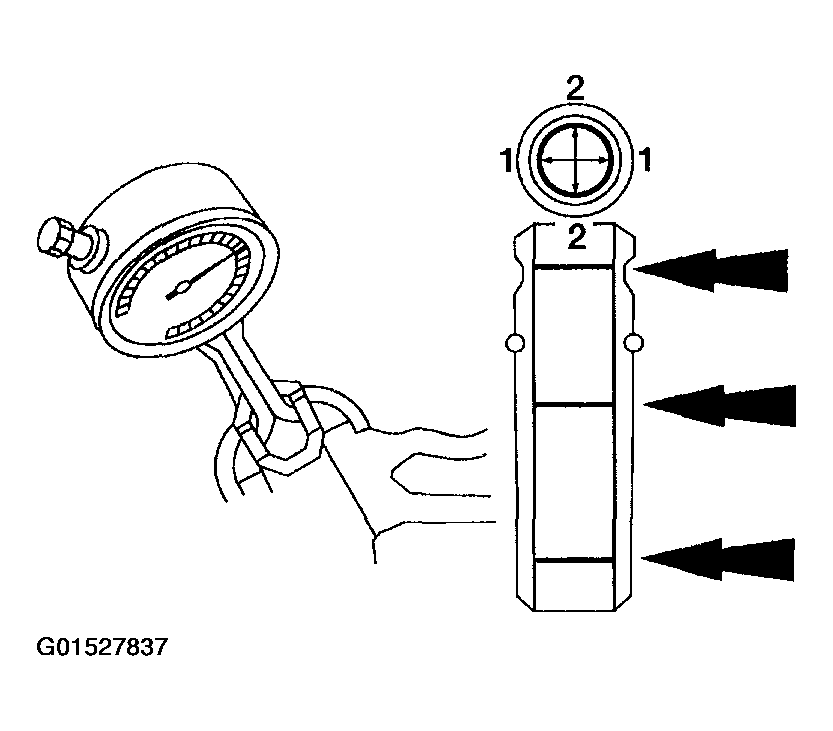

      Fig 1: Measuring Inner Diameter Of Valve Guides
      G01527837Courtesy of FORD MOTOR CO.
  2. If the valve guide is not within specifications, install a new cylinder head assembly.
