Valve Spring Free Length

  1. Measure the free length of each valve spring.
    • Refer to ENGINE article for the procedure .
    • If out of specification, install new components as necessary. Refer to ENGINE article for the procedure .

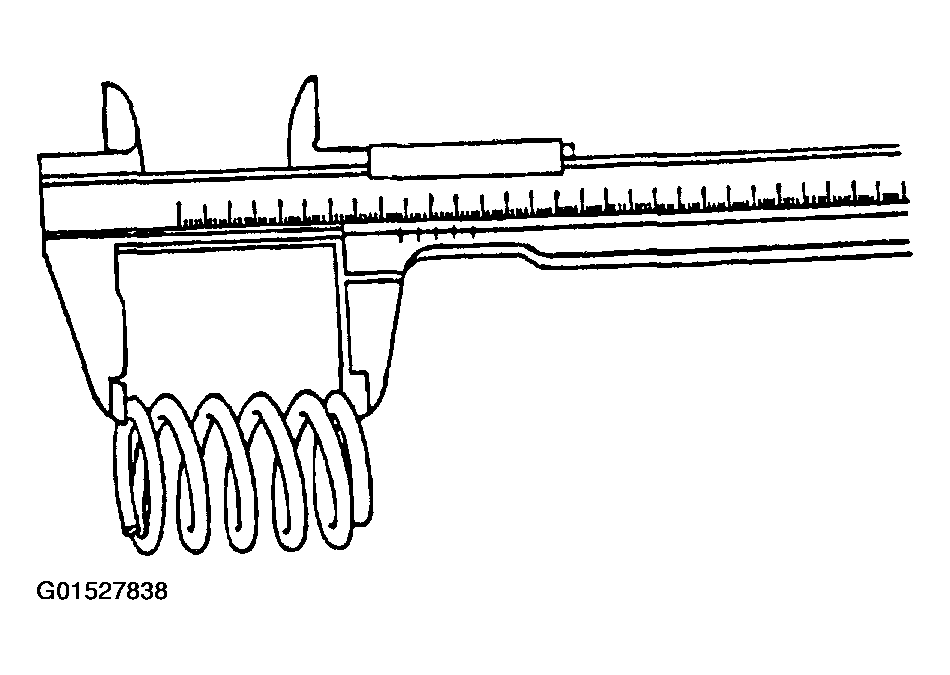

      Fig 1: Measuring Valve Spring Free Length
      G01527838Courtesy of FORD MOTOR CO.
