Inspection and Verification: Notes
- Verify the customer's concern by operating the tilt/telescope switch to duplicate the condition.

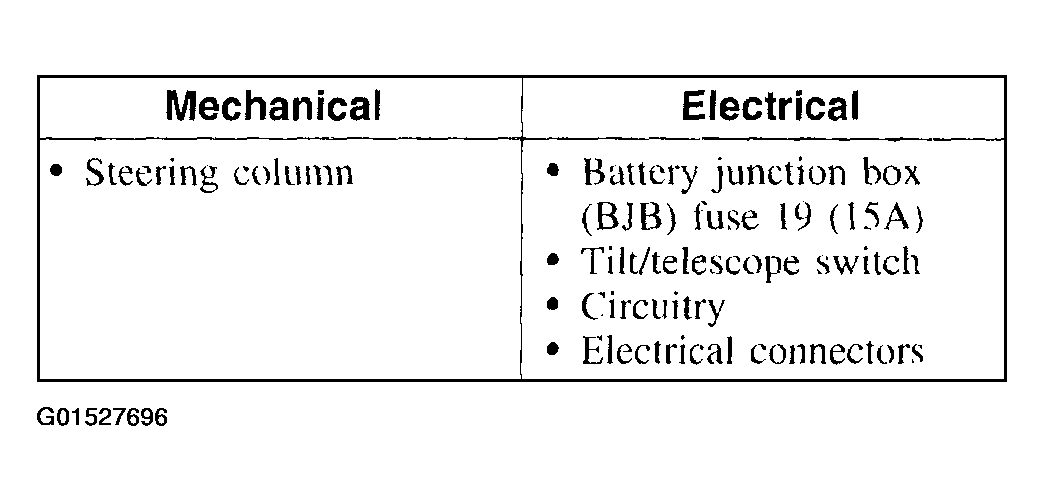

- Visually inspect for obvious signs of mechanical and electrical damage; refer to the following chart:
Courtesy of FORD MOTOR CO.
- If inspection reveals obvious concern(s) that can be readily identified, repair as required.
- If the concern remains after the inspection, connect scan tool to the data link connector (DLC) located beneath the instrument panel to carry out DATA LINK DIAGNOSTIC TEST. Refer to MODULE COMMUNICATIONS NETWORK
. If the DATA LINK DIAGNOSTIC TEST is passed for the instrument cluster module (ICM), retrieve the continuous diagnostic trouble codes (DTCs).
- If diagnostic trouble codes (DTCs) are retrieved, go to the INSTRUMENT CLUSTER MODULE (ICM) DIAGNOSTIC TROUBLE CODE (DTC) INDEX to continue diagnostics.
- If the self test is passed and no diagnostic trouble codes (DTCs) are retrieved, GO to SYMPTOM CHART to continue diagnostics.
- If the ICM cannot be accessed by the scan tool, refer to the instrument cluster diagnostics for further instructions. Refer to INFORMATION, GAUGES & WARNING DEVICES
.
