Steering Gear: Notes

Special Tool(s)

Fig 1: Identifying Special Tool

Courtesy of FORD MOTOR CO.

1. Remove the steering gear. For additional information, refer to STEERING GEAR .
2. Drain any excess power steering fluid from the steering gear and then clean the exterior of the gear using a suitable solvent.
3. Index-mark the tie-rod end to the tie-rod end jam nut and to the spindle tie-rod.
4. Disassemble the components in the order indicated in the following illustration and table.
5. To assemble, reverse the disassembly procedure.

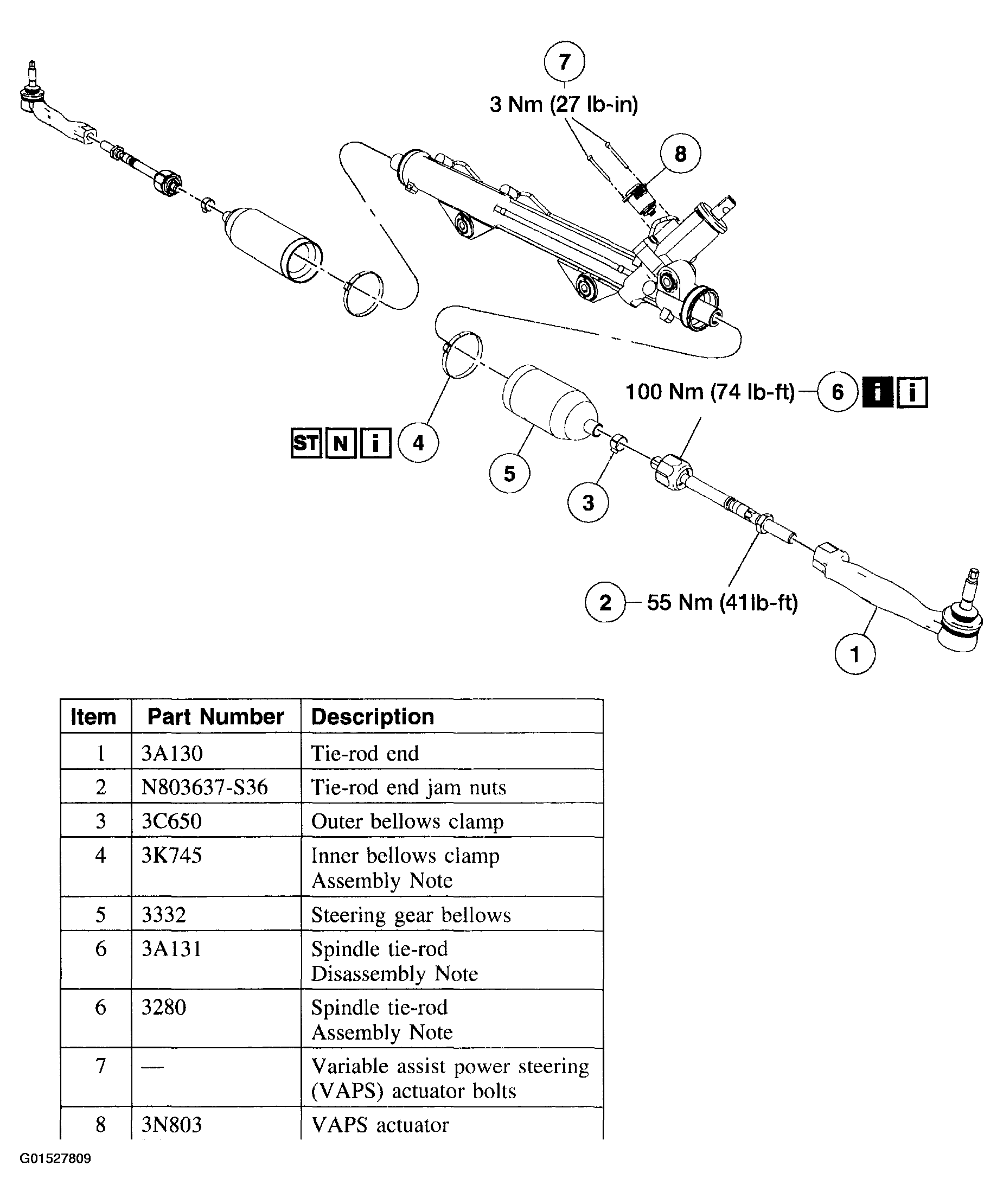

   Fig 2: Exploded View Of Steering Gear

   Courtesy of FORD MOTOR CO.
6. After installing the steering gear in the vehicle, adjust the front toe. For additional information, refer to SUSPENSION SYSTEM .
