Steering Gear: Notes

CAUTION: Do not allow the steering wheel to rotate while the intermediate shaft is disconnected or damage to the clockspring can result. If there is evidence that the shaft has rotated, the clockspring must be removed and recentered. For additional information, refer to AIR BAG RESTRAINT SYSTEMS .

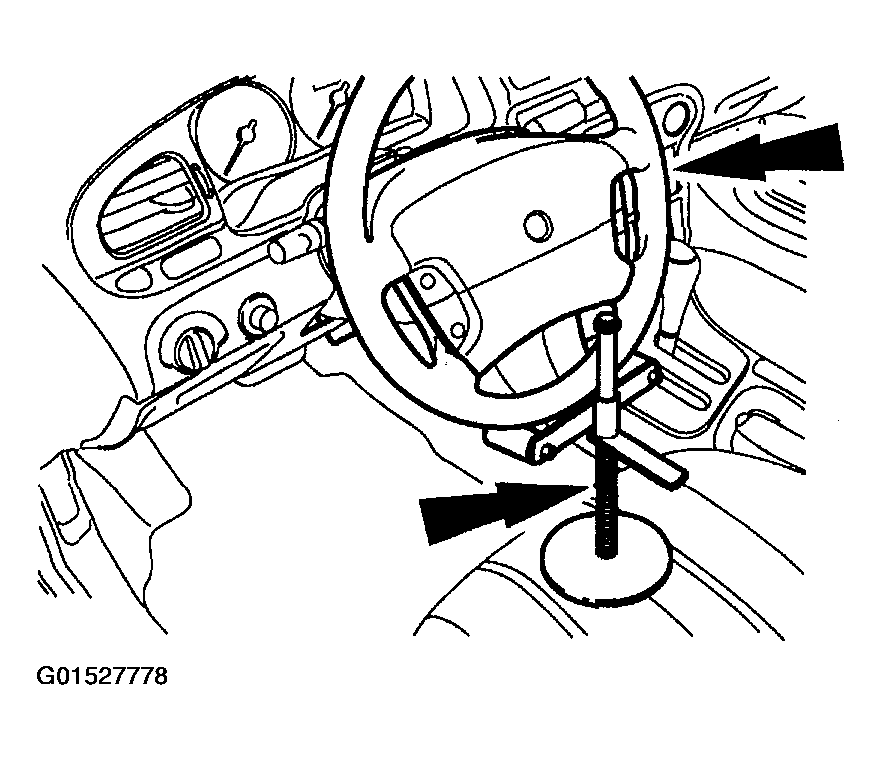

Fig 1: Holding Steering Wheel

Courtesy of FORD MOTOR CO.

Hold the steering wheel in the straight-ahead position using a suitable holding device.
With the vehicle in NEUTRAL, position on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the components in the order indicated in the following illustration and table.

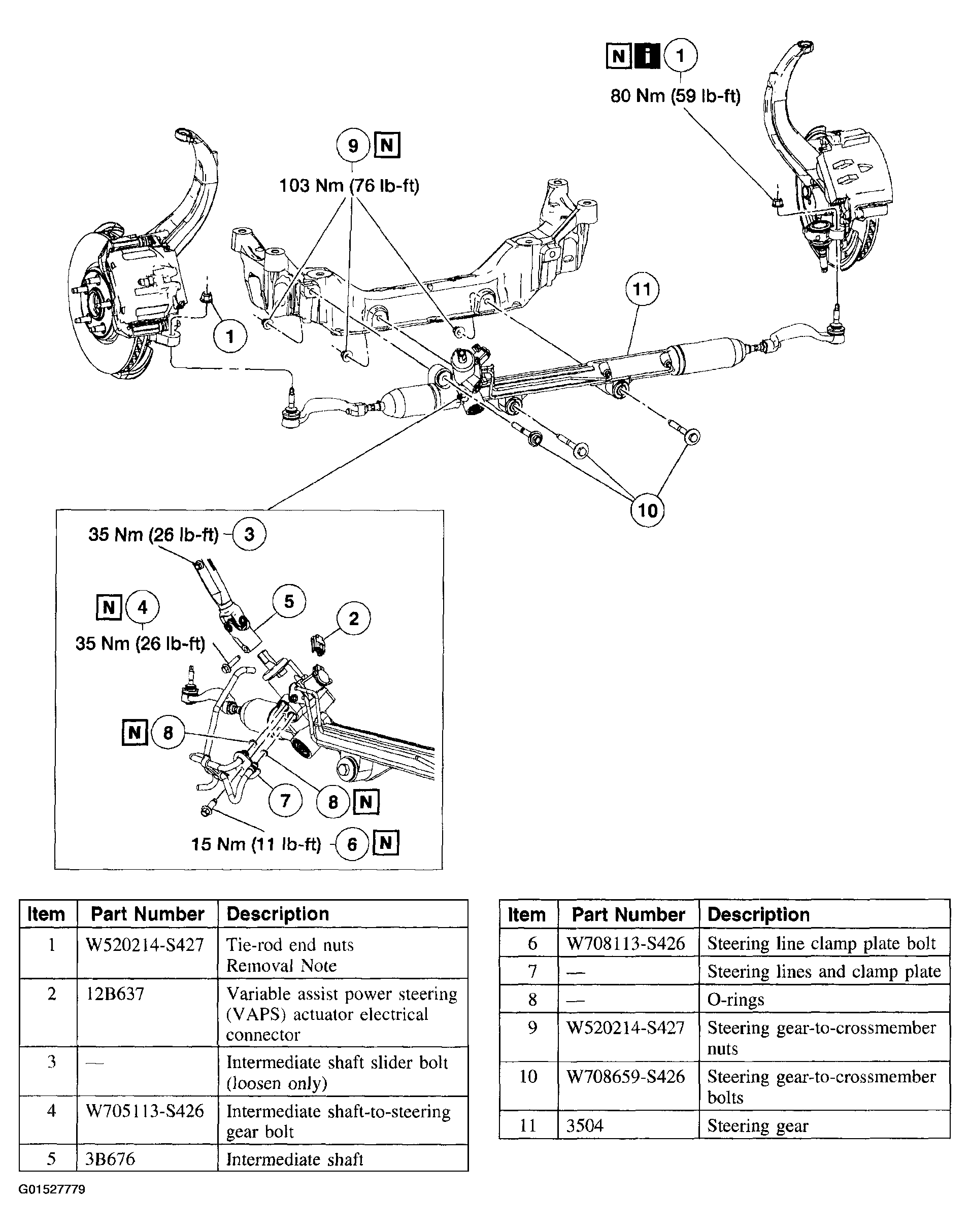

Fig 2: Exploded View Of Steering Gear
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Fill, purge and leak test the system. For additional information, refer to POWER STEERING SYSTEM PURGING and POWER STEERING SYSTEM FILLING .
Check and, if necessary, adjust the front end alignment. For additional information, refer to SUSPENSION SYSTEM .
