Shock Absorber and Spring Assembly: Notes
- Remove the shock absorber and spring assembly. For additional information, refer to SHOCK ABSORBER AND SPRING ASSEMBLY - FRONT or SHOCK ABSORBER AND SPRING ASSEMBLY - REAR .
- For reference during assembly, make an index mark on the mount, spring and shock.

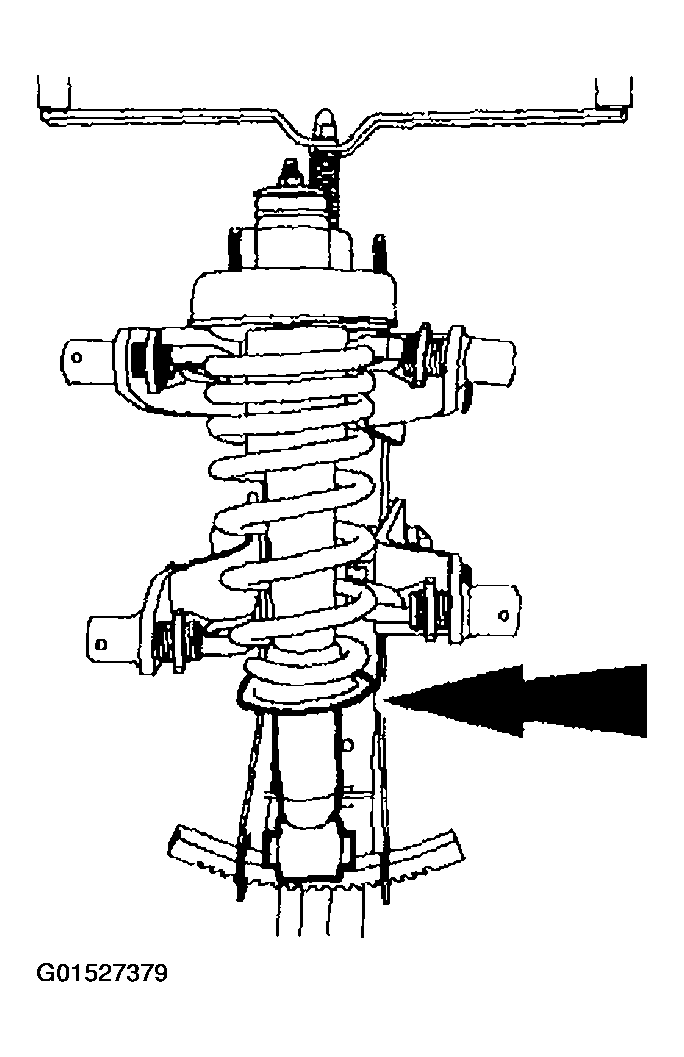

- Using a suitable spring compressor, compress the spring until the tension is released from the shock absorber.
Courtesy of FORD MOTOR CO.

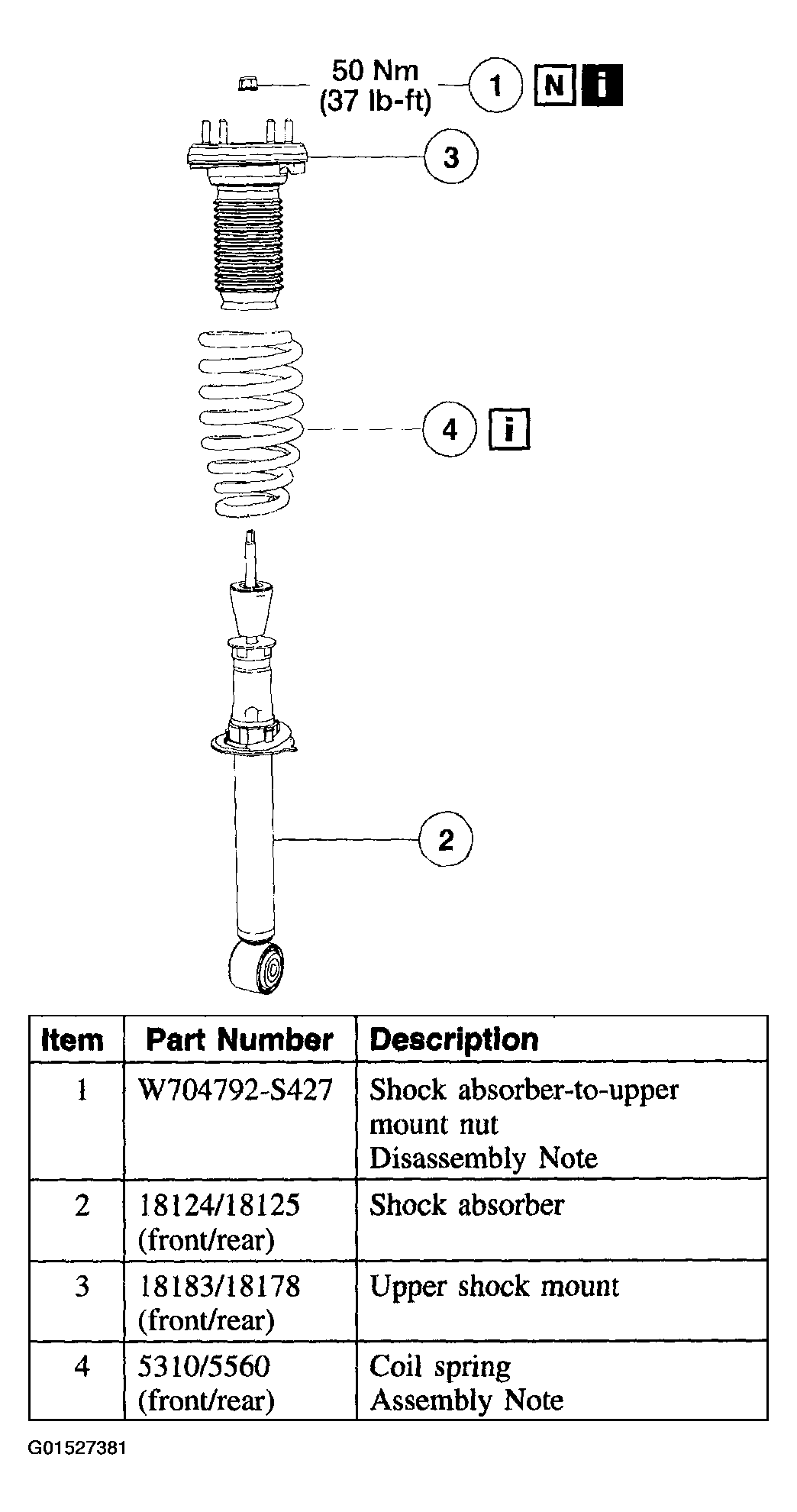

- Disassemble the components in the order indicated in the following illustration and table.
- To assemble, reverse the disassembly procedure.
Courtesy of FORD MOTOR CO.
