Jacking Points

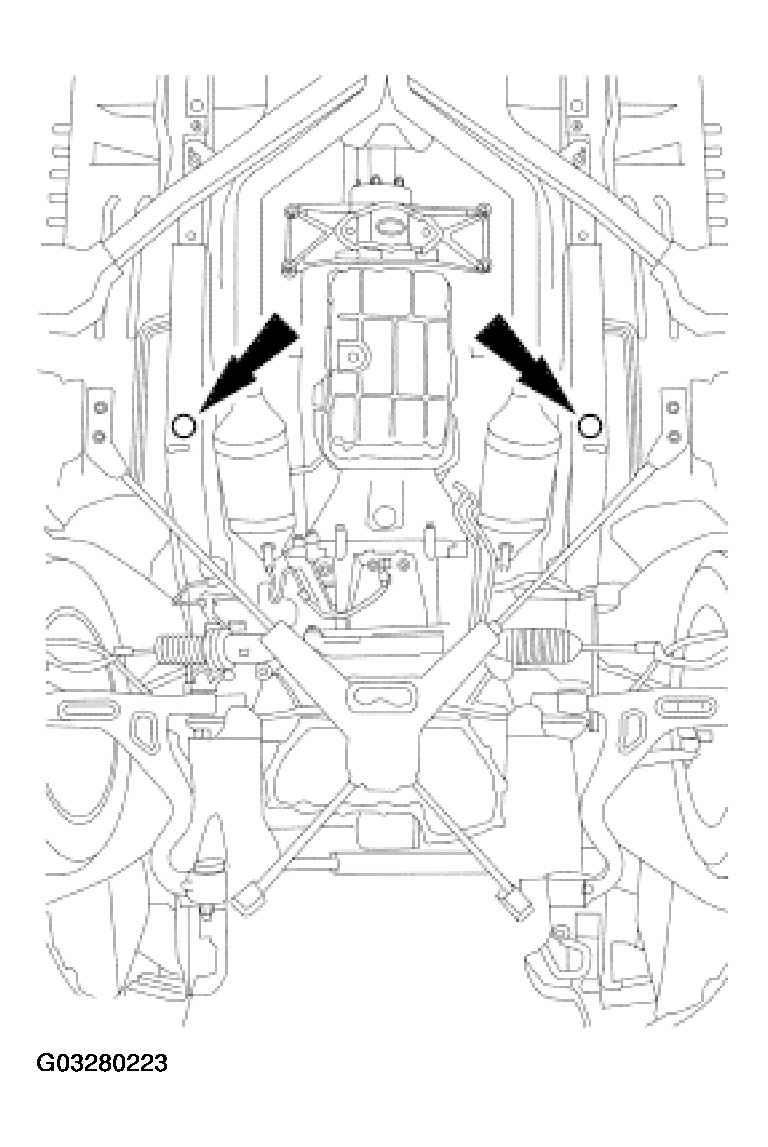

Fig 1: Identifying Front Frame Lift Points

Courtesy of FORD MOTOR CO.

To lift the front or either side of the front end, position the floor jack or the hoist under the front frame lift points.

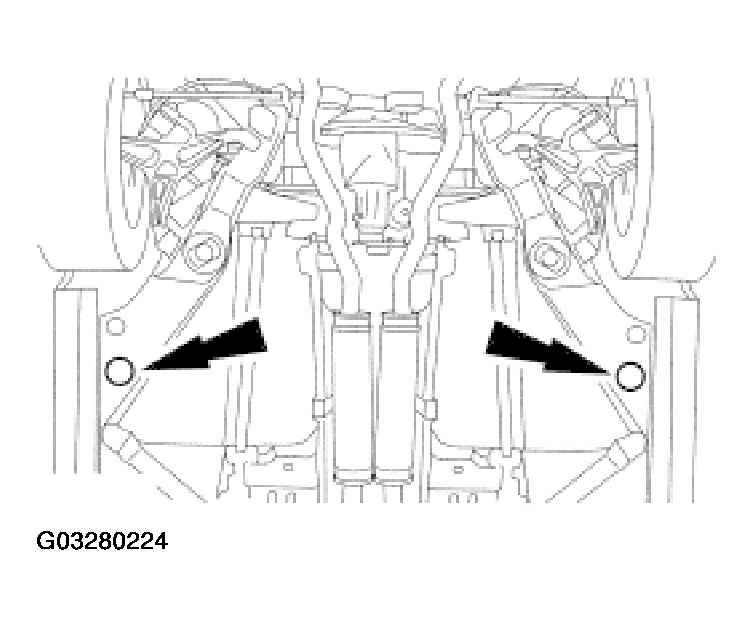

Fig 2: Identifying Rear Frame Lift Points

Courtesy of FORD MOTOR CO.

To lift the rear or either side of the rear end, position the floor jack or the hoist under the rear lift points.
