Shock Absorber and Spring Assembly - Front: Notes

NOTE: Use the hex holding feature to prevent the stud from turning while removing or installing the stabilizer bar link nut.

With the vehicle in NEUTRAL, position on a hoist. For additional information refer to JACKING & LIFTING .
Remove the components in the order indicated in the following illustration and table.

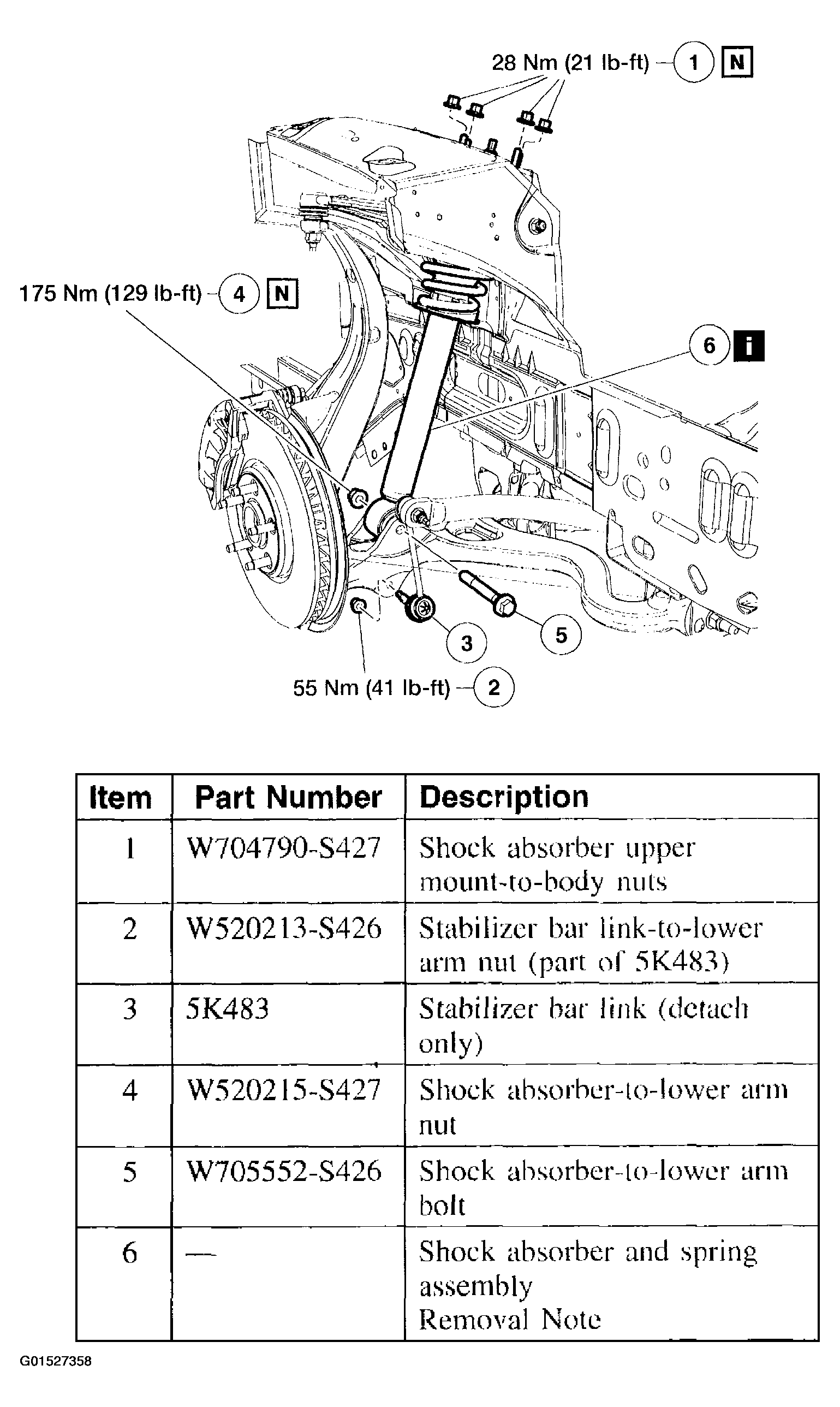

Fig 1: Front Shock Absorber And Spring Assembly Component Locator
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
