Transmission Component Index

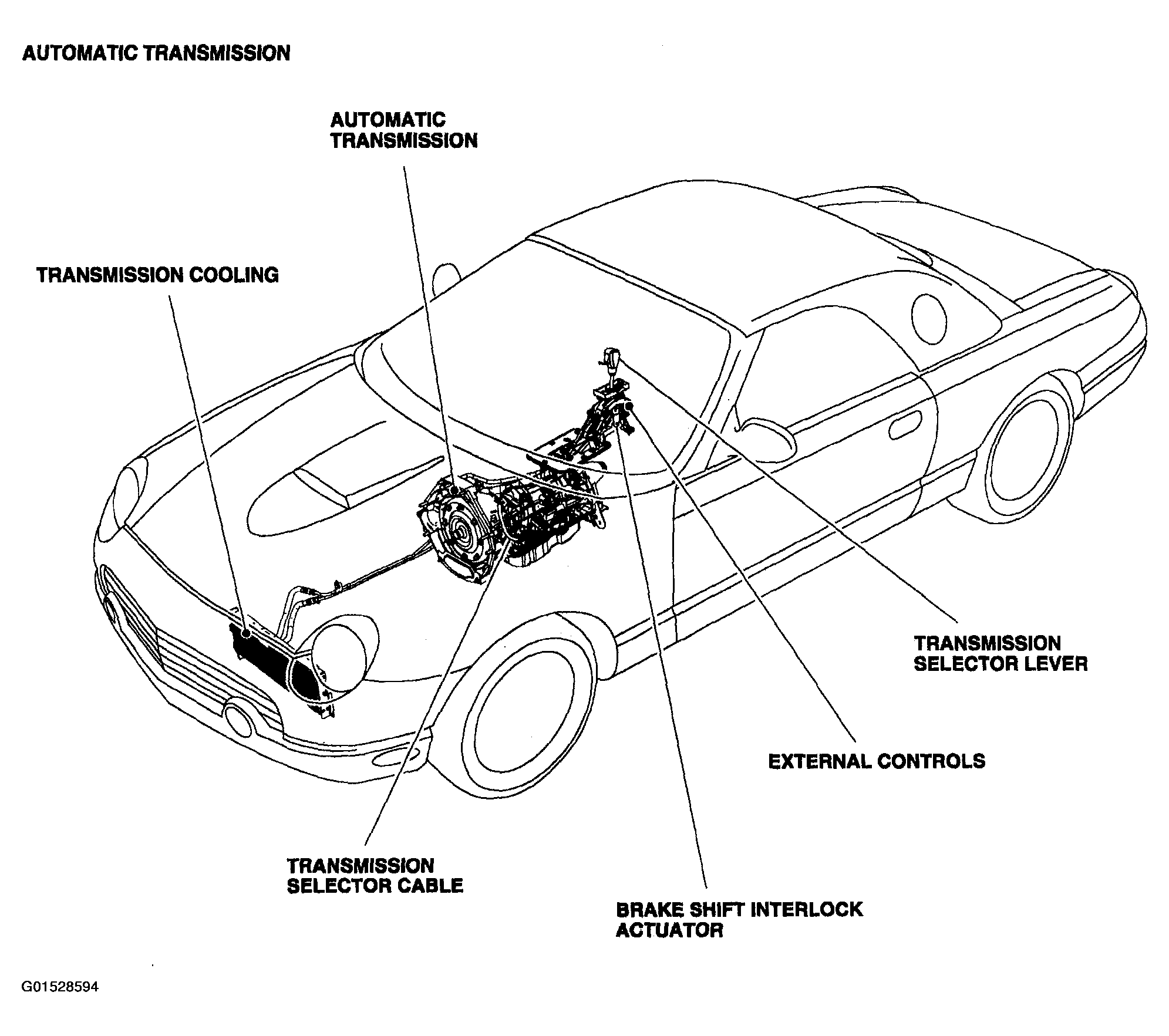

Fig 1: Locating Automatic Transmission Component (1 Of 2)
G01528594Courtesy of FORD MOTOR CO.

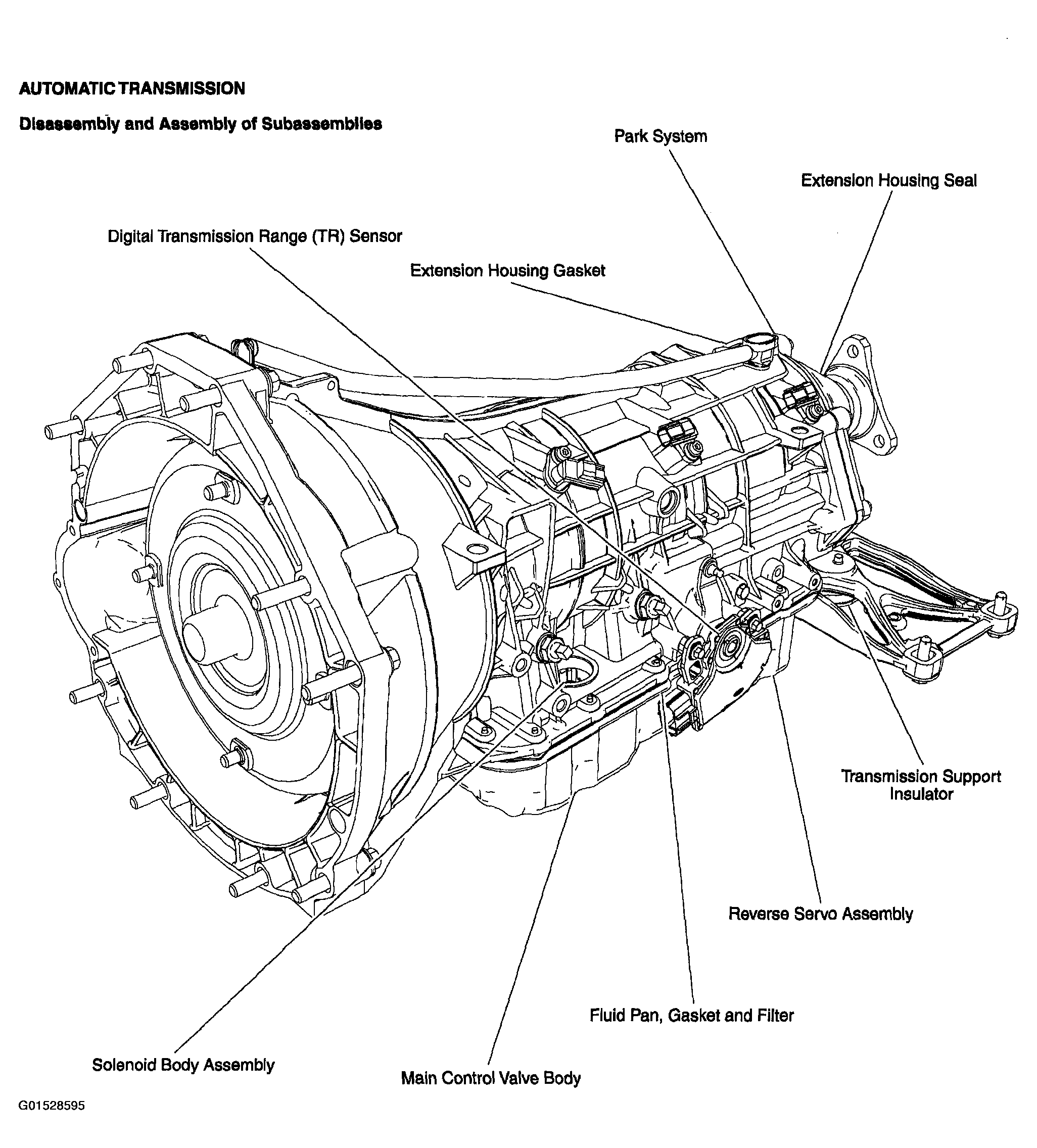

Fig 2: Locating Automatic Transmission Component (2 Of 2)
G01528595Courtesy of FORD MOTOR CO.
