Description And Operation: Geartrain: Notes

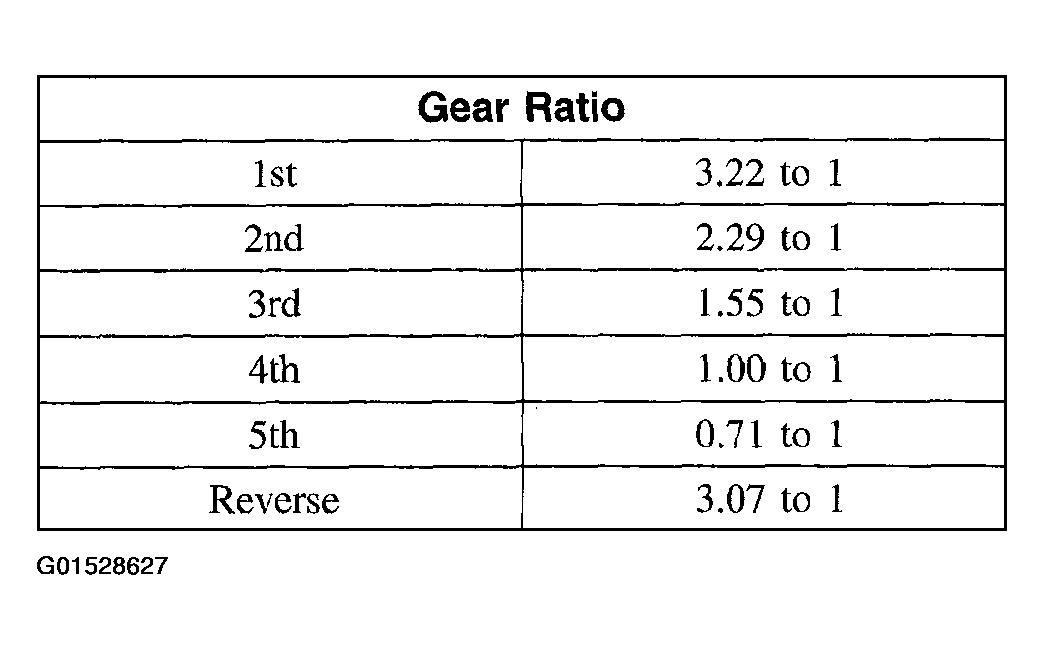

Power is transmitted from the torque converter to the planetary gearsets through the input shaft. Bands and clutches are used to hold and drive certain combinations of gearsets. This results in five forward ratios and one reverse ratio, which are transmitted to the output shaft and differential.
