Item 1: Retaining Ring Assembly Note
- Air check the assembly.

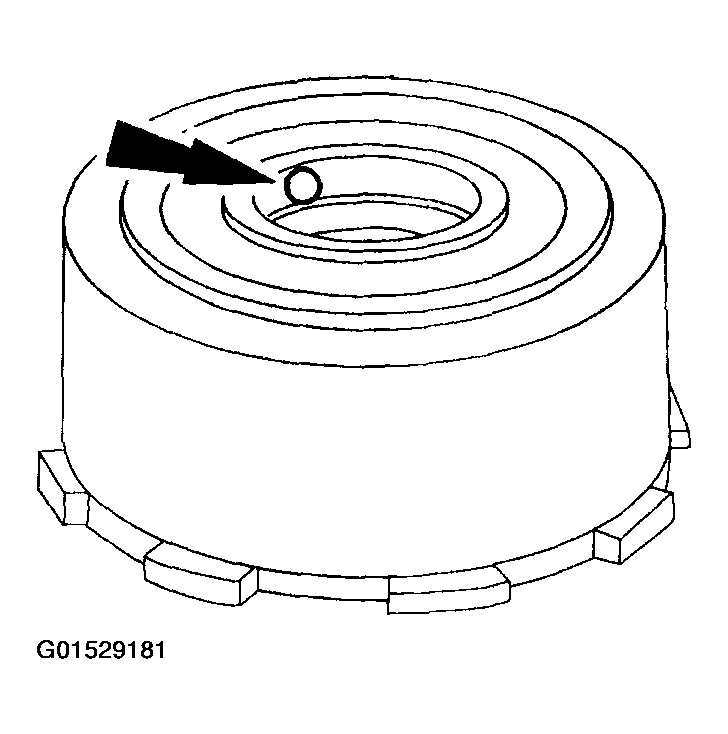

- Apply air pressure to the hole in the drum while blocking the other hole with a finger.
- Push down on direct clutch disc pack and check gap between the direct clutch retaining ring and the direct clutch pressure plate with a feeler gauge.
- If specifications do not match, use a select fit direct clutch retaining ring to match specifications and verify with a feeler gauge.
WARNING:
Air pressure must not exceed 138 kPa (20 psi). Wear safety glasses when using compressed air, and make sure drum is facing down as shown. Failure to follow these instructions may result in personal injury.
