Item 5: Retaining Ring Assembly Note

    WARNING: After removing the retaining ring, use care when releasing the pressure on the springs. Failure to follow these instructions may result in personal injury.
    CAUTION: Do not fully compress the special tool or damage to the spring retainer may occur.

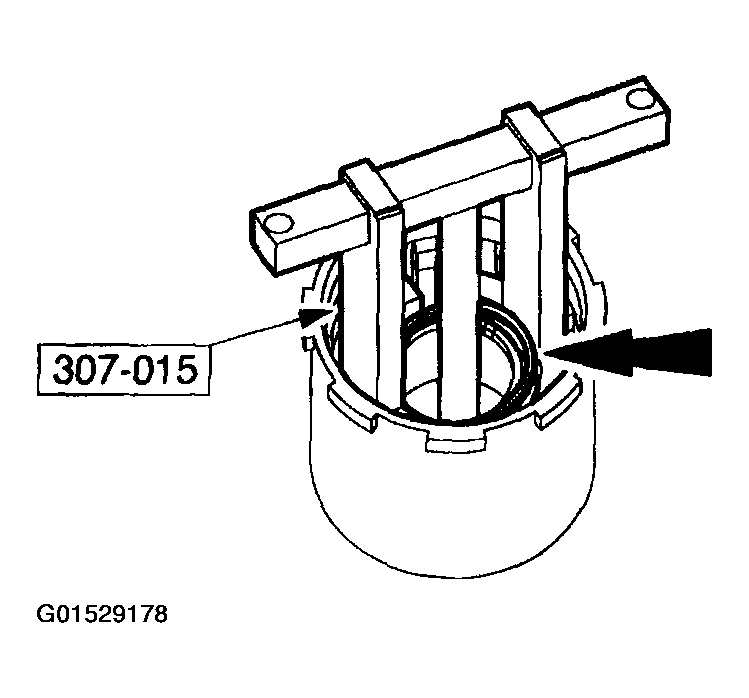

    Fig 1: Installing Direct Clutch Piston Retaining Ring
    G01529178Courtesy of FORD MOTOR CO.
  1. Using the special tool, install the direct clutch piston retaining ring.
