Fluid Pump: Assembly: Notes

  1. Assemble the components in the order indicated in the following illustration and table.

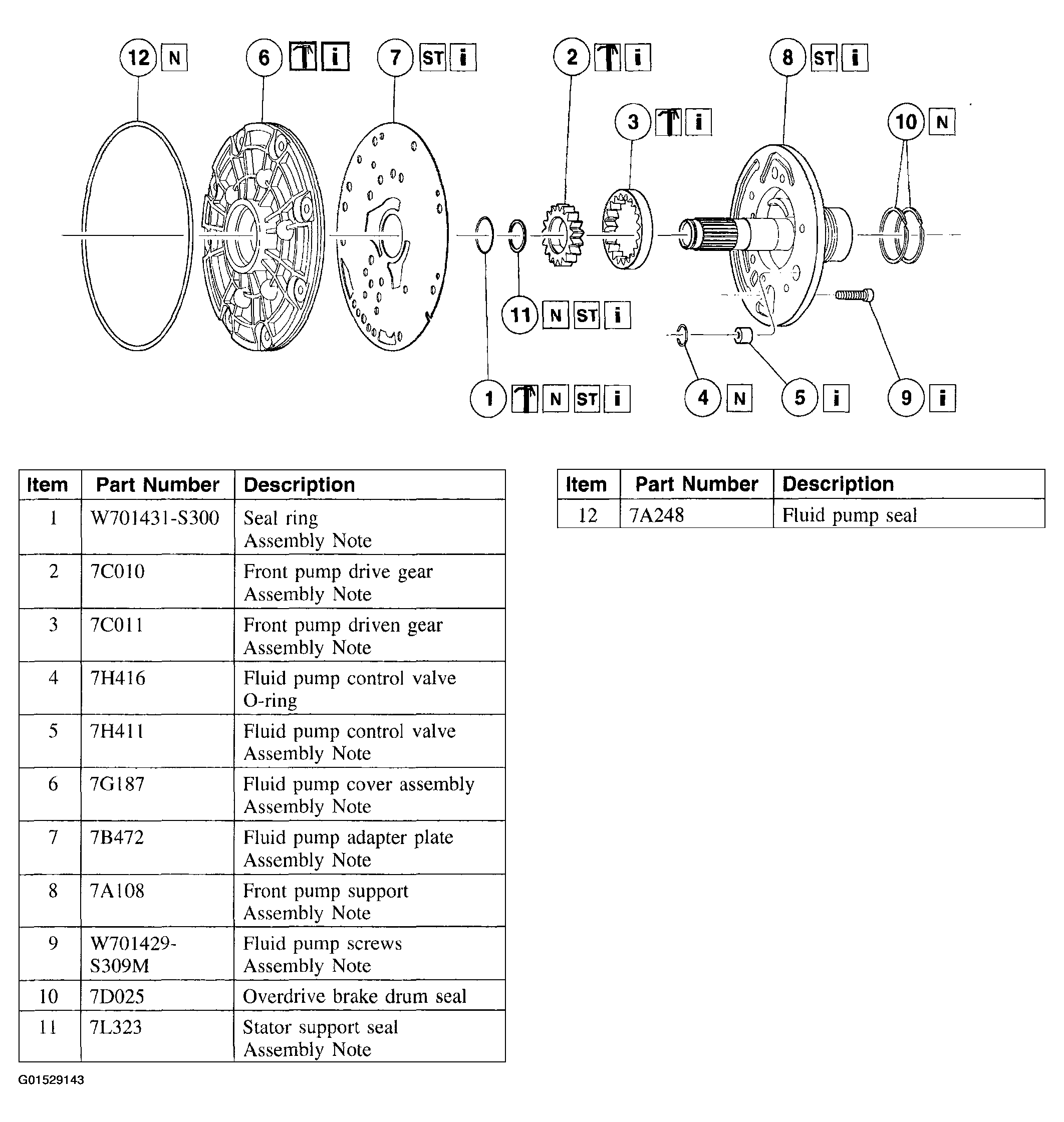

    Fig 1: Fluid Pump Assembling Sequence
    G01529143Courtesy of FORD MOTOR CO.
