Fluid Pump: Disassembly
NOTE:
A rough casting on the pump surface crescent is not a flaw.
NOTE:
The fluid pump gears are part of the pump assembly and are not repaired separately.
NOTE:
Minor burrs and scoring may be removed with crocus cloth. If damage is found, install a new assembly.
NOTE:
The No. 1 thrust washer may be stuck to the fluid pump housing. It will need to be removed. This washer will be installed during the assembly of the transmission.
NOTE:
The fluid pump gasket may be stuck to the fluid pump housing. It will need to be removed. A new gasket will be installed during the assembly of the transmission.
- Inspect the fluid pump components for the following:
- Pump body and case for burrs.
- Fluid passages for obstructions.

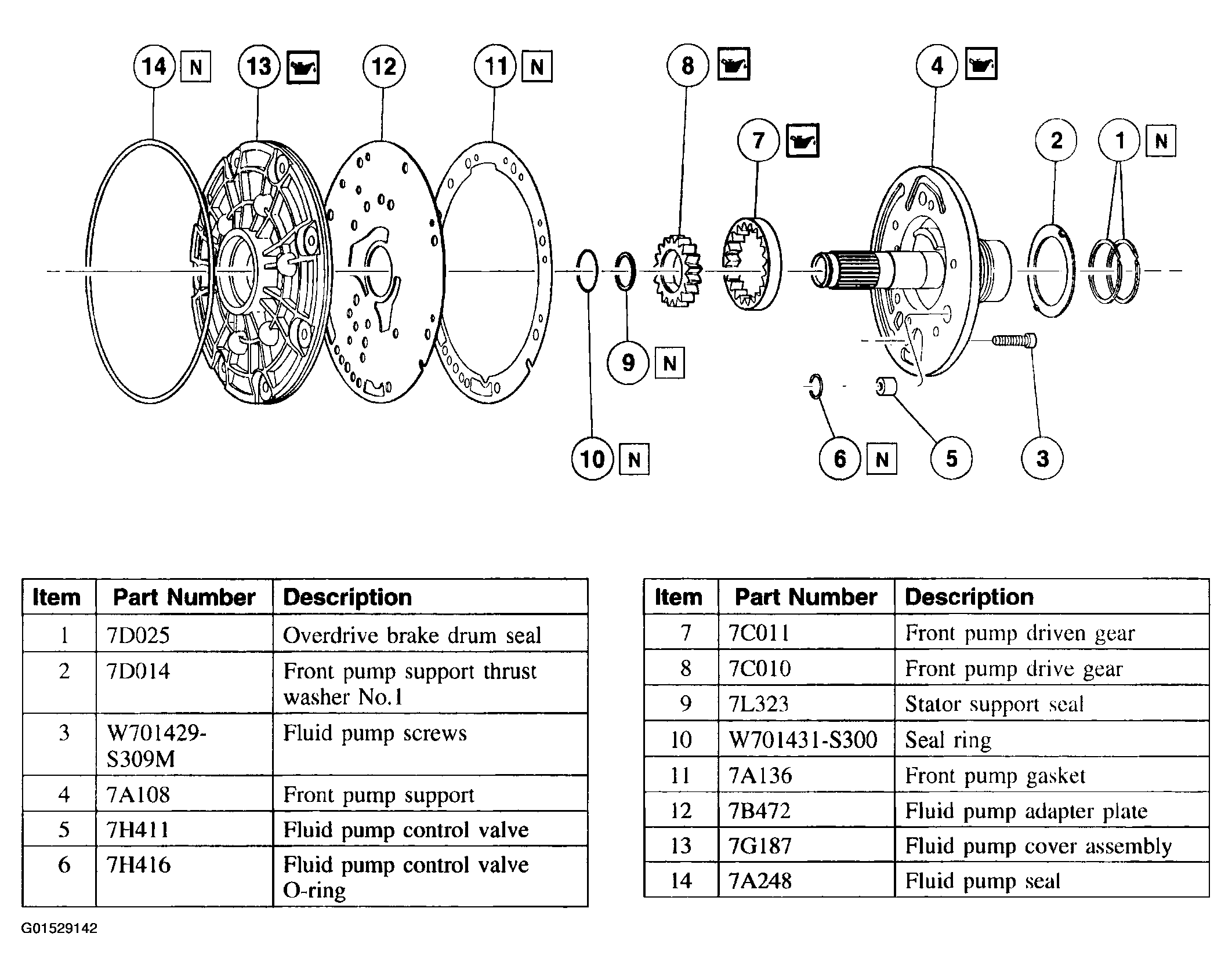

- Disassemble the components in the order indicated in the following illustration and table.
