Item 4: Reverse Servo Plate Assembly Note

    WARNING: The upper and lower servo covers are under spring tension. Use care when separating the two halves. Failure to follow these instructions may result in personal injury.
    CAUTION: The arrow on the servo plate must be aligned evenly between any two slots on the cover.

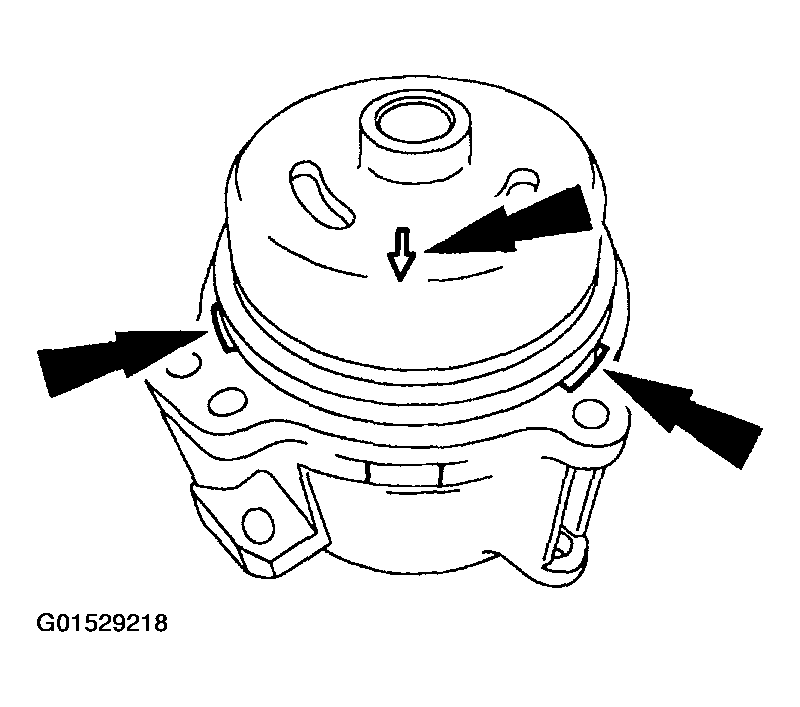

    Fig 1: Installing Reverse Servo Plate
    G01529218Courtesy of FORD MOTOR CO.
  1. Install the reverse servo plate.
