Item 4: Reverse Servo Plate Disassembly Note

    WARNING: The upper and lower servo covers are under spring tension. Use care when separating the two halves. Failure to follow these instructions may result in personal injury.
    NOTE: Tabs on servo plate mate with slots on cover every 120 degrees.
  1. Remove the reverse servo plate by turning in either direction to release.
    • Align the arrow on the servo plate with any slot on the cover.

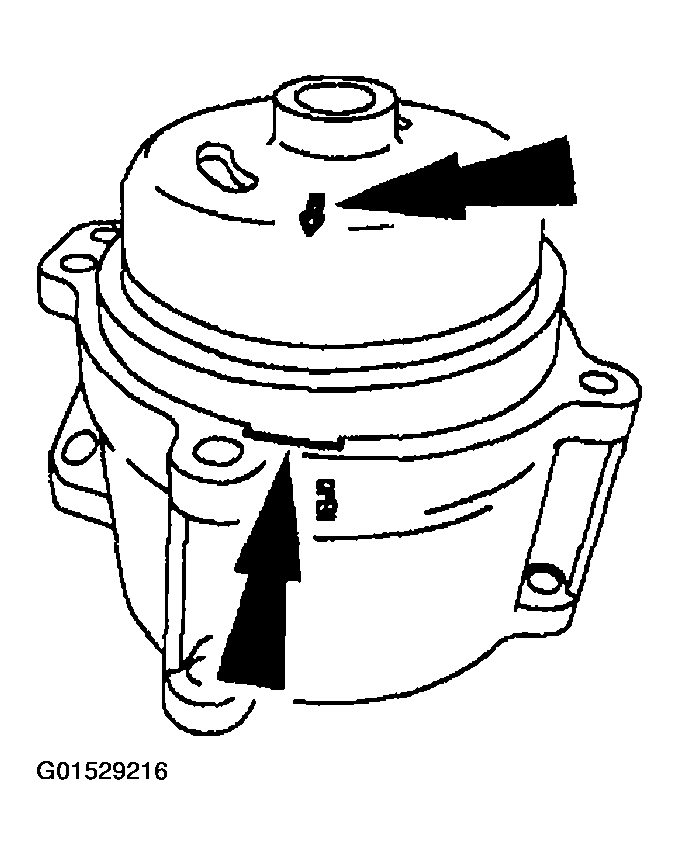

      Fig 1: Aligning Arrow On Servo Plate With Any Slot On Cover
      G01529216Courtesy of FORD MOTOR CO.
