Torque Converter End Play Check: Notes

Special Tool(s)

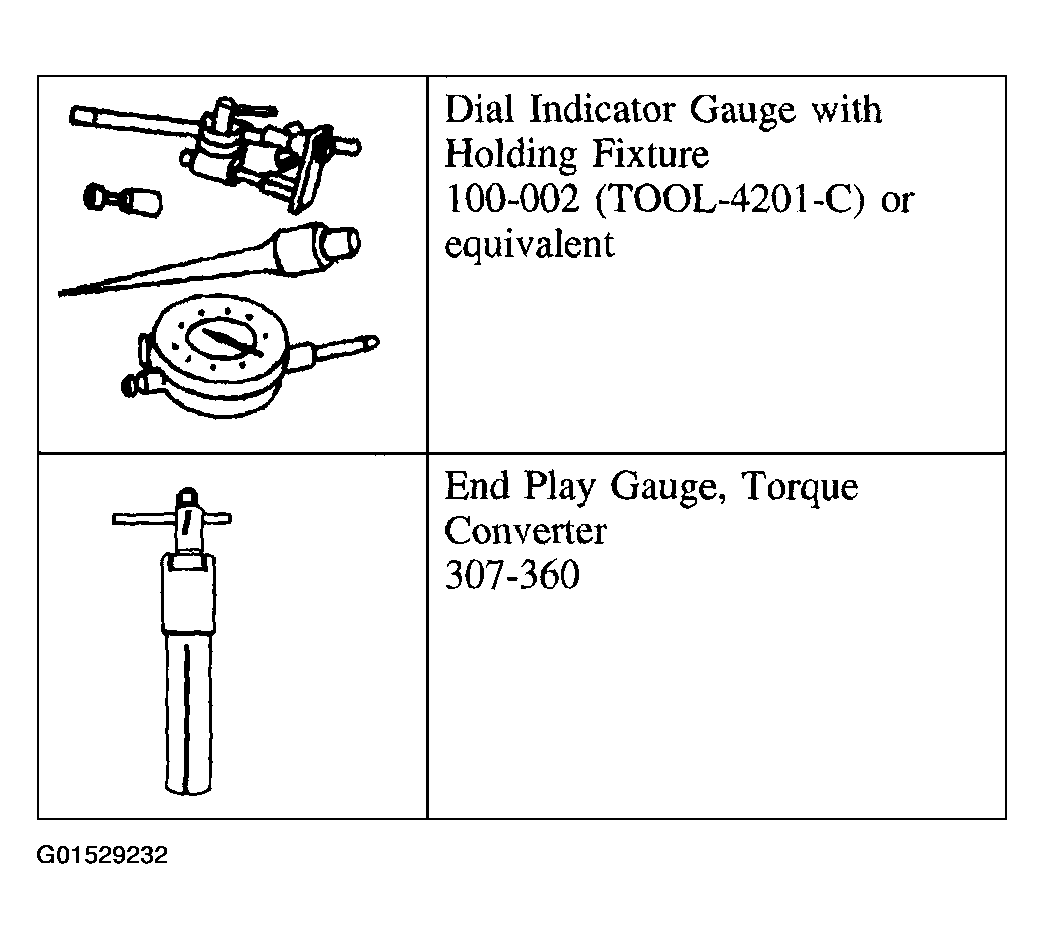

Fig 1: Identifying Special Tools

Courtesy of FORD MOTOR CO.

1. Install the special tool into the torque converter until it bottoms out.
   • Tighten the inner post until the tool is securely locked.

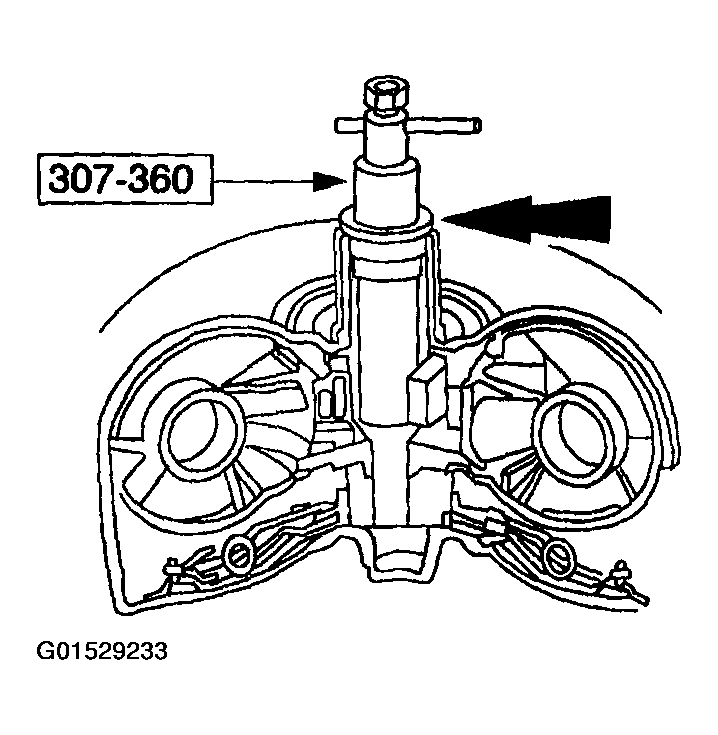

     Fig 2: Installing Special Tool (307-360) Into Torque Converter

     Courtesy of FORD MOTOR CO.
2. Install the special tool on the converter impeller housing and zero the dial.

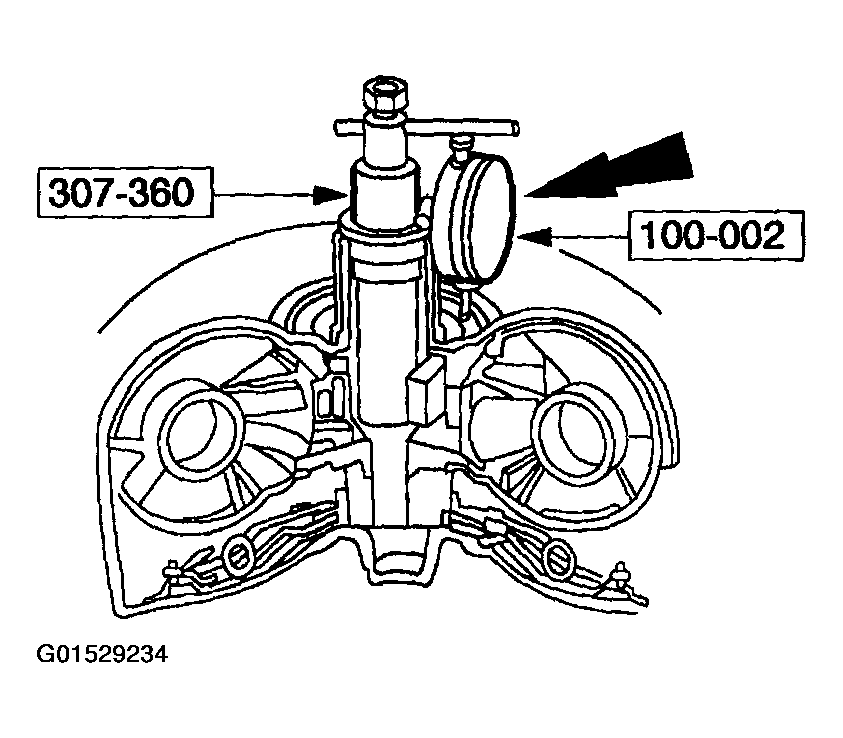

   Fig 3: Installing Special Tool (100-002) On Converter Impeller Housing

   Courtesy of FORD MOTOR CO.
3. Lift up on the special tool and note the dial indicator reading. If the reading exceeds end play limits, install a new or rebuilt torque converter.
