Torque Converter Leak Check

Special Tool(s)

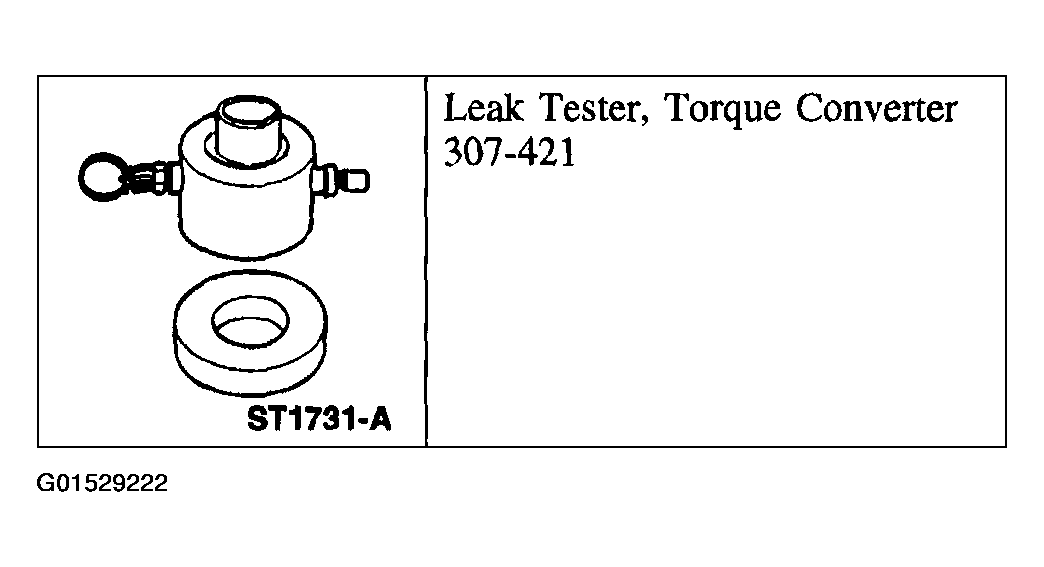

Fig 1: Identifying Special Tool

Courtesy of FORD MOTOR CO.

1. Clean the outside surface of the torque converter.
2. Install the special tools into the converter hub.

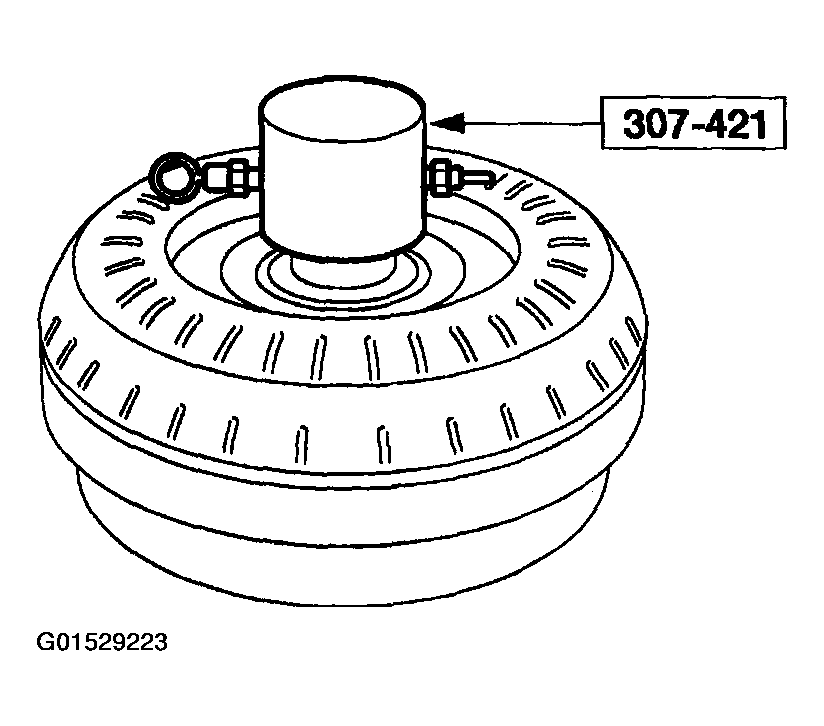

   Fig 2: Installing Special Tools (307-421) Into Converter Hub

   Courtesy of FORD MOTOR CO.
WARNING: Always follow correct safety procedures while using the press. Failure to follow these instructions may result in personal injury.

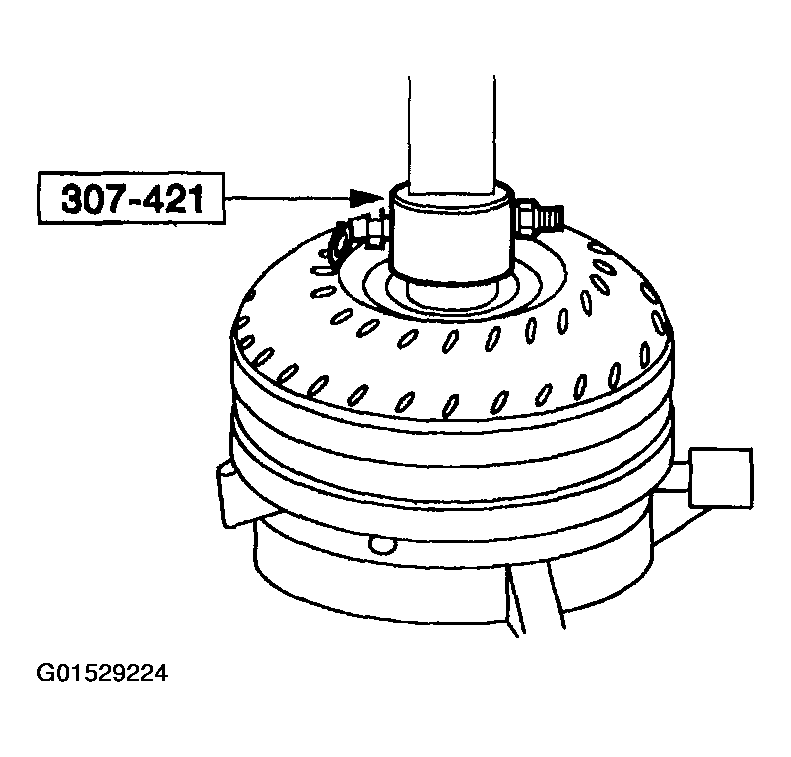

Fig 3: Installing Torque Converter Arbor Press
Courtesy of FORD MOTOR CO.
3. Install the torque converter with the special tool installed into the arbor press.

   Secure the press. Apply enough force from the press to seal the tool into the torque converter.

NOTE: Use clean, dry shop air.

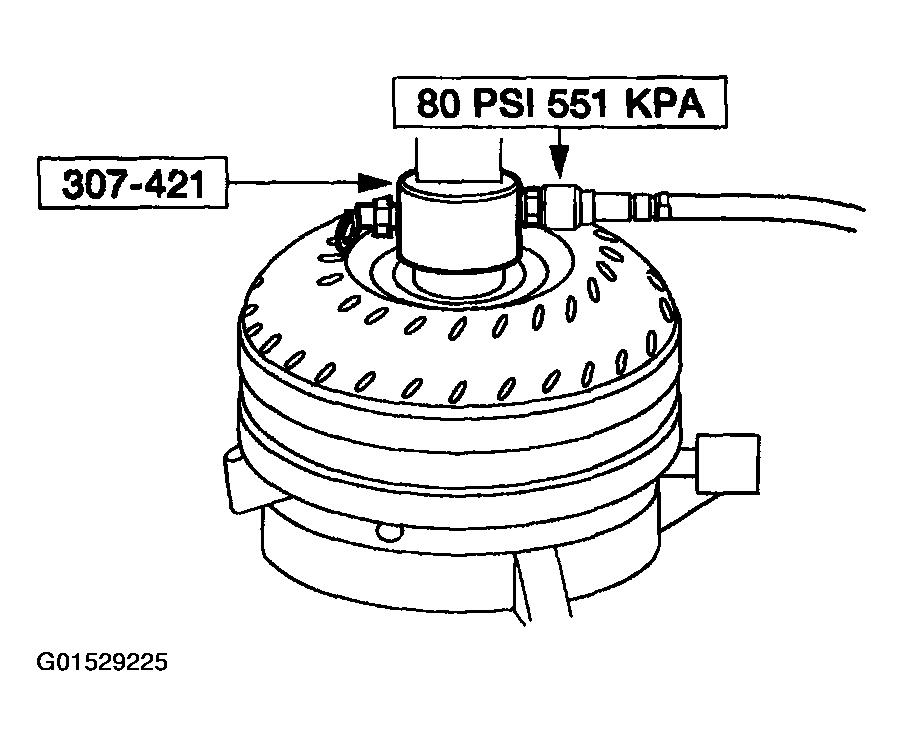

Fig 4: Applying Air Pressure To Valve On Special Tool
Courtesy of FORD MOTOR CO.
4. Apply air pressure to the valve on the special tool.
5. With air pressure applied to the valve, inspect for leaks at the converter hub, the seams, drain plug, and the studs. A soap bubble solution can be applied around those areas to aid in the diagnosis. If a leak is found around the drain plug, install a new drain plug and recheck the torque converter. If any other leaks are present, install a new or remanufactured converter.

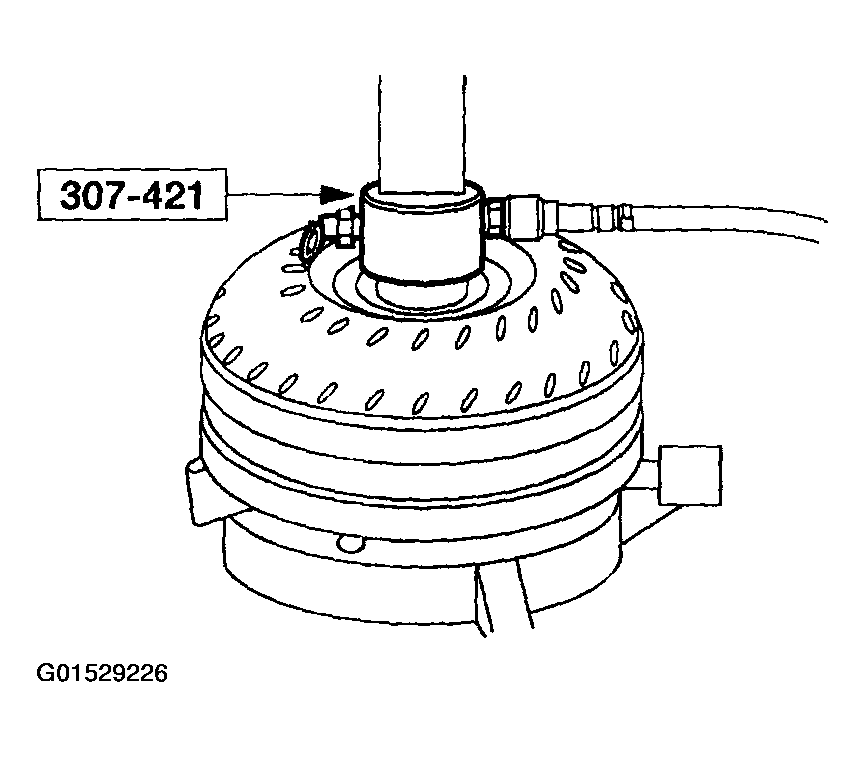

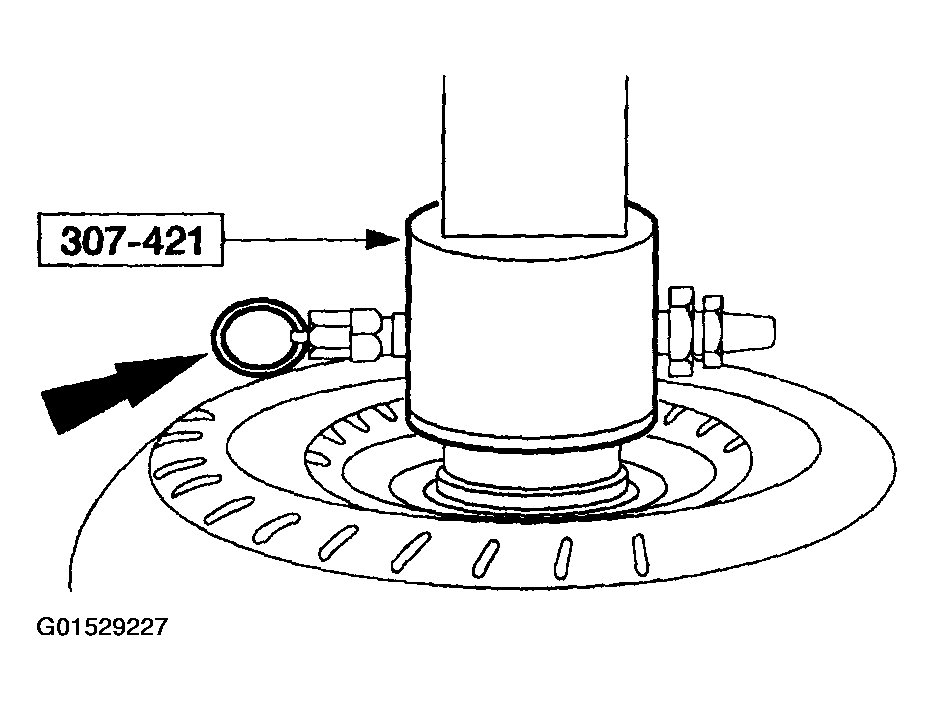

   Fig 5: Inspecting For Leaks At Converter Hub

   Courtesy of FORD MOTOR CO.
6. Remove the air hose. Release the pressure, and then slowly release the press. Remove the converter. Remove the tool.
   Fig 6: Removing Air Hose From Valve

   Courtesy of FORD MOTOR CO.
