Removal and Installation: Notes

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the RH front exhaust heat shield.

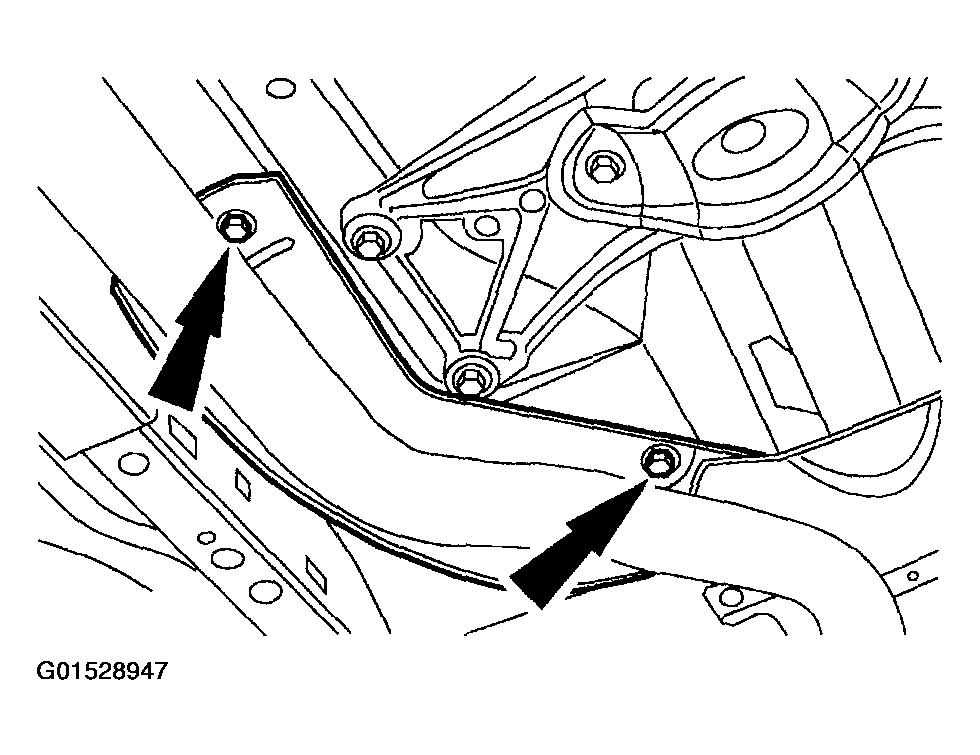

    Fig 1: Removing RH Front Exhaust Heat Shield
    G01528947Courtesy of FORD MOTOR CO.
  3. Remove the LH front exhaust heat shield.

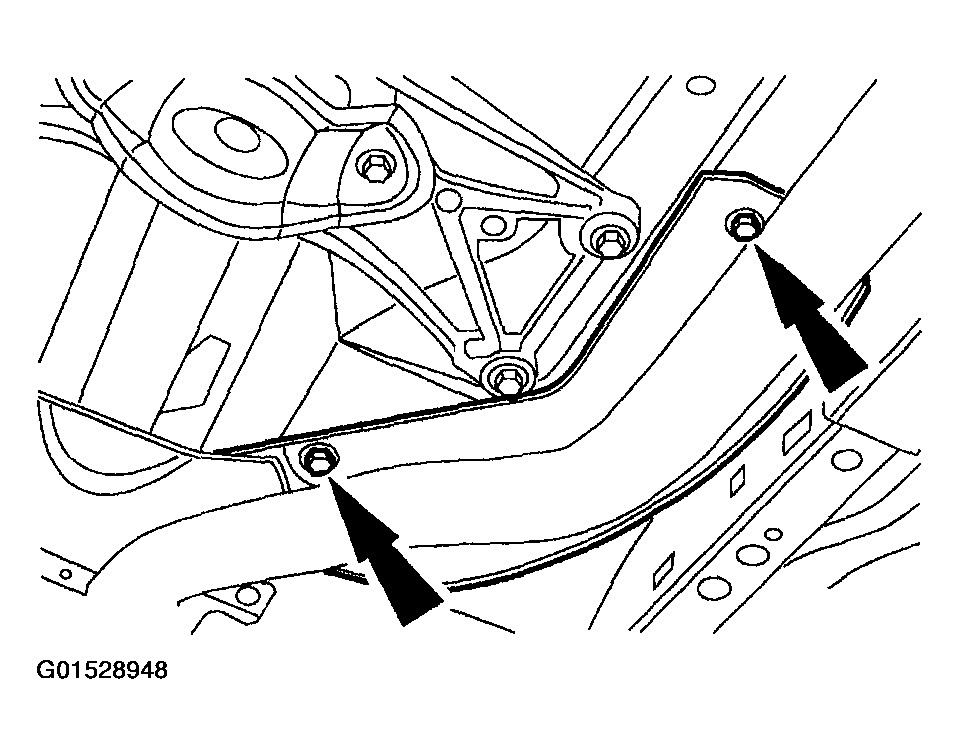

    Fig 2: Removing LH Front Exhaust Heat Shield
    G01528948Courtesy of FORD MOTOR CO.
  4. Remove the components in the order indicated in the following illustration and table.

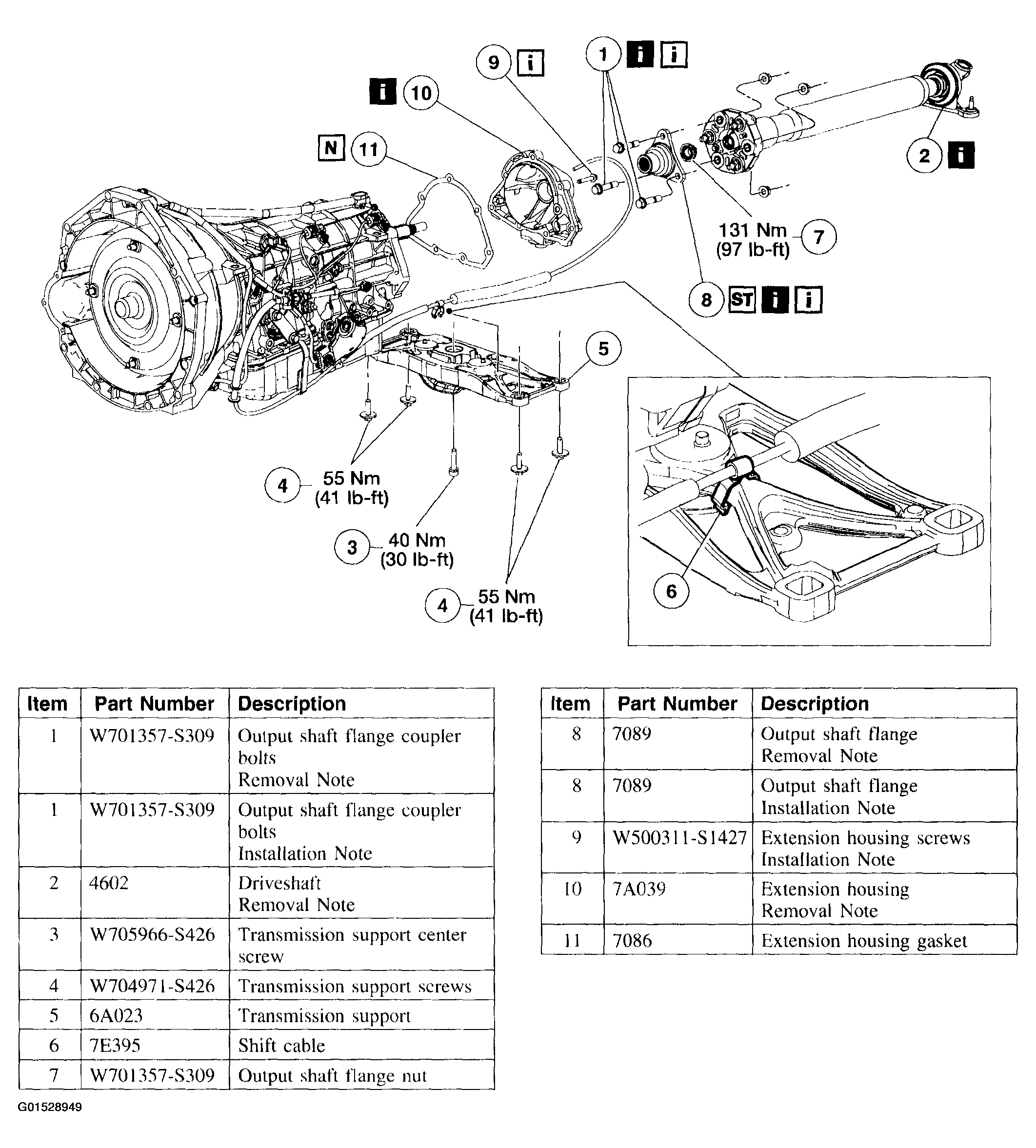

    Fig 3: Extension Housing Gasket Removal Sequence
    G01528949Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
  6. Refill the transmission with the specified fluid.
  7. Using a suitable transmission jack, support the transmission.
