Item 5: Manual Control Lever Shaft Retaining Pin Installation Note

CAUTION: Use care not to damage the fluid pan rail surface when installing the retaining pin.

NOTE: Align the manual control lever shaft alignment groove with the manual control lever shaft spring pin bore in the transmission case.

Install the manual control lever shaft spring pin.
- Tap the manual control lever shaft spring pin into the transmission case.

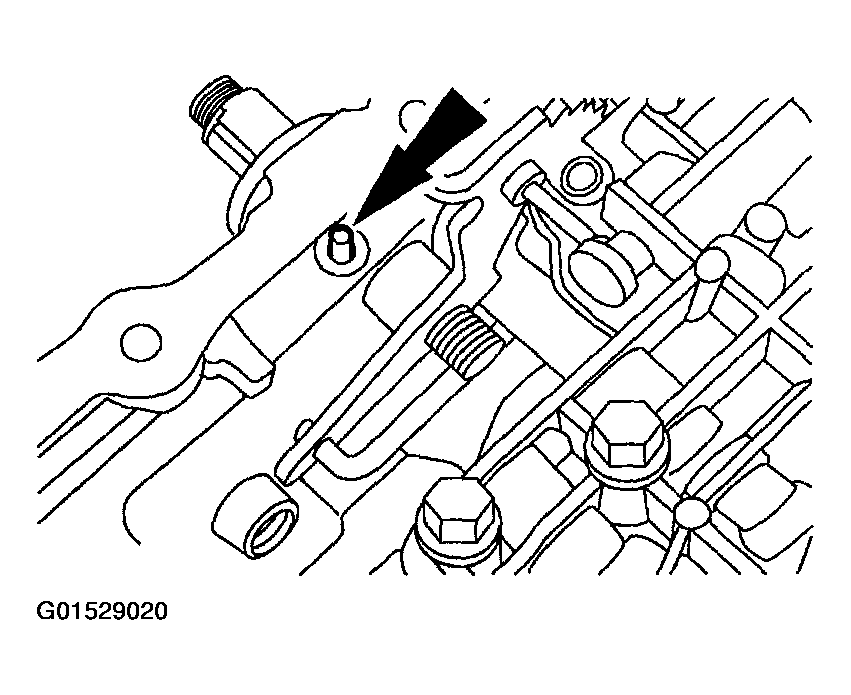

  Fig 1: Identifying Manual Control Lever Shaft Retaining Pin
  Courtesy of FORD MOTOR CO.
