Removal and Installation: Notes

NOTE: The transmission fluid pan gasket is reusable. Clean and inspect for damage. If not damaged, the gasket should be reused.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the components in the order indicated in the following illustration and table.

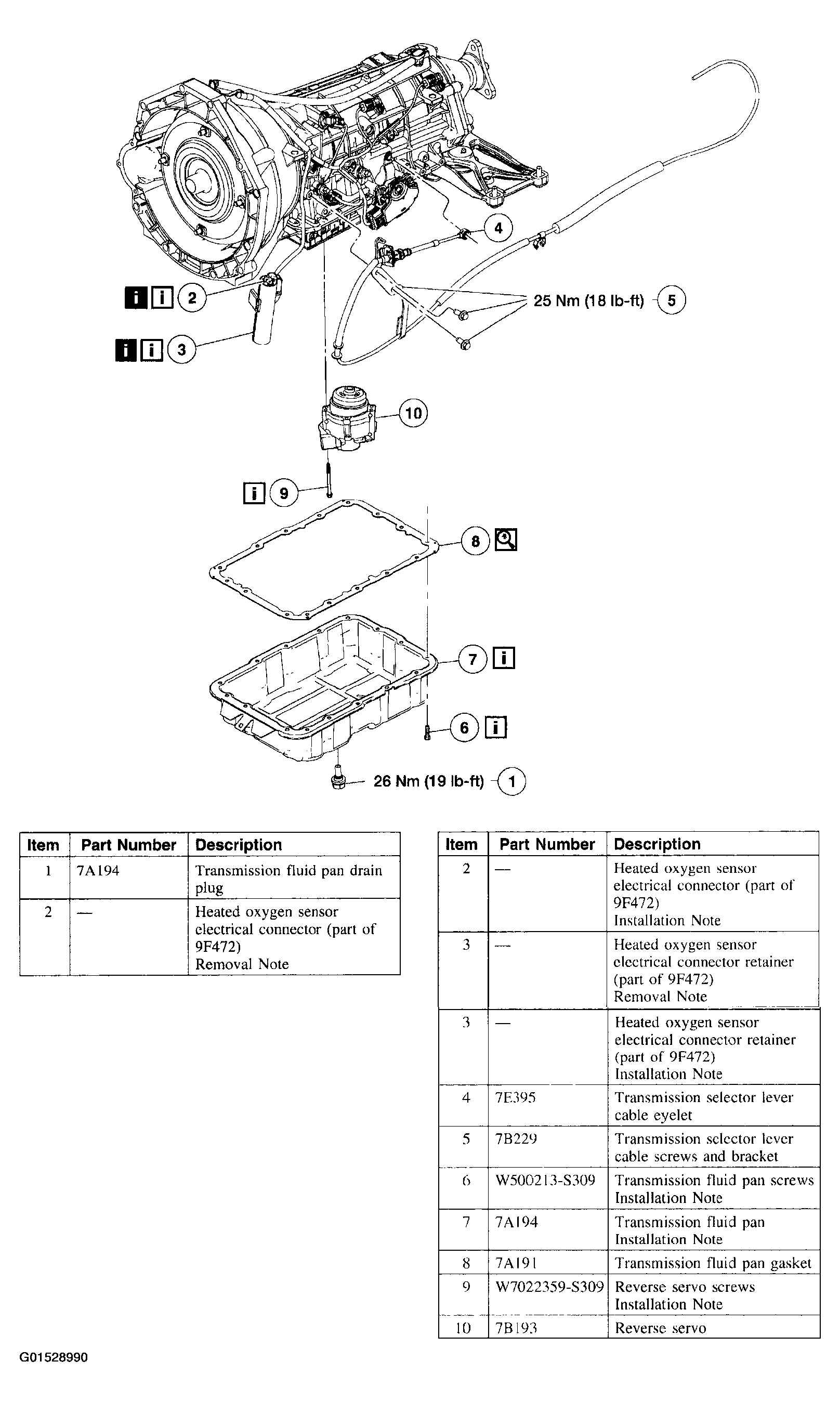

Fig 1: Reverse Servo Assembly Removal Sequence
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Partially fill the transmission. For additional information, refer to TRANSMISSION FLUID DRAIN AND REFILL - WITHOUT TORQUE CONVERTER DRAIN PLUG .
