Removal and Installation: Notes

NOTE: When the battery has been disconnected and reconnected, some abnormal drive symptoms can occur while the vehicle relearns its adaptive strategy. The customer needs to be notified that they may experience slightly different upshifts (either soft or firm) and this is a temporary condition and will eventually return to normal operating condition.

Disconnect the battery ground cable. For additional information, refer to BATTERY & CHARGING SYSTEM .
With the vehicle in PARK, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the components in the order indicated in the following illustration and table.

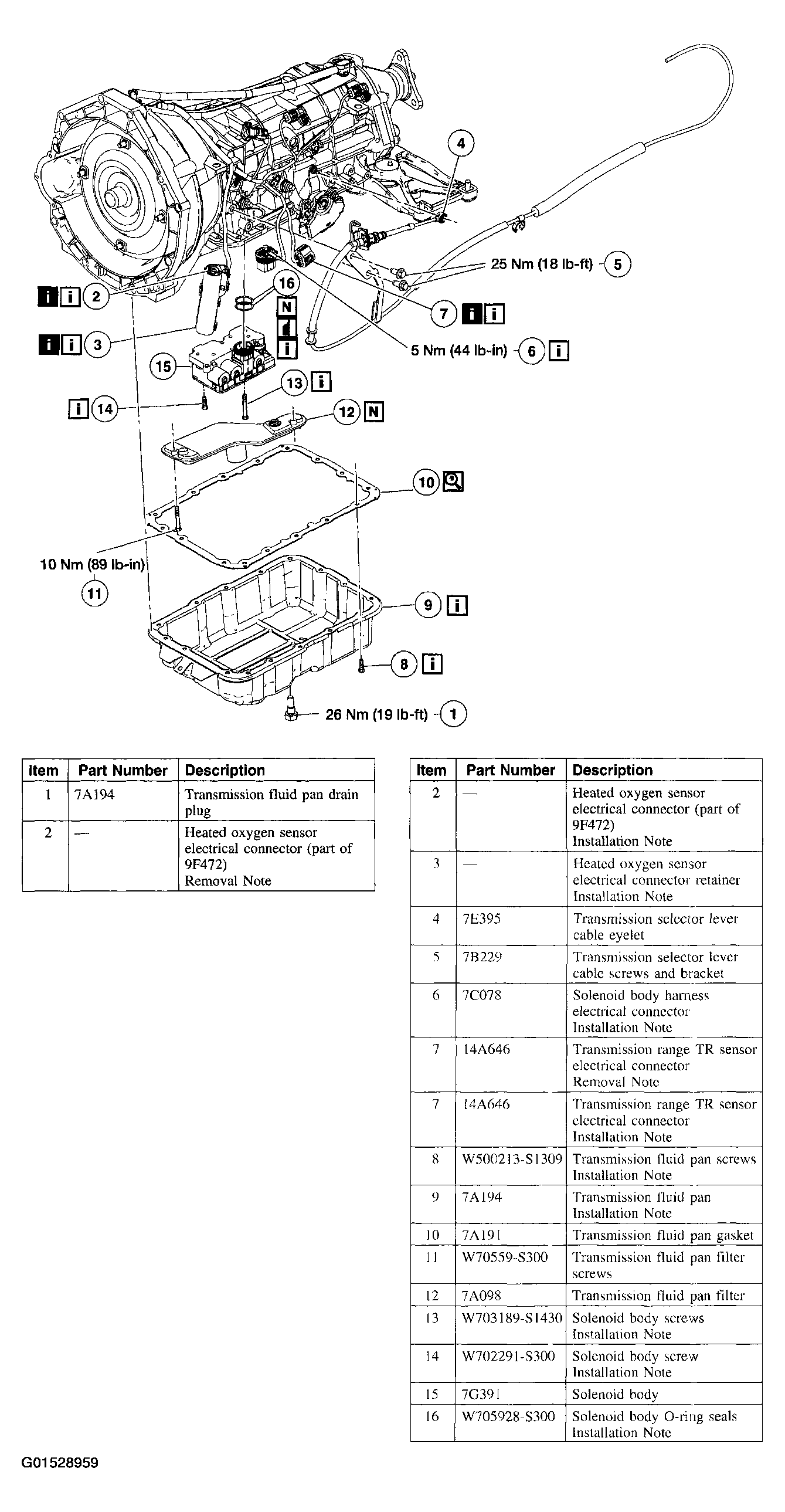

Fig 1: Solenoid Body Assembly Sequence
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Verify that the shift cable is adjusted correctly. For additional information, refer to SELECTOR LEVER CABLE ADJUSTMENT .
