Transmission Fluid Cooler: Notes

Special Tool(s)

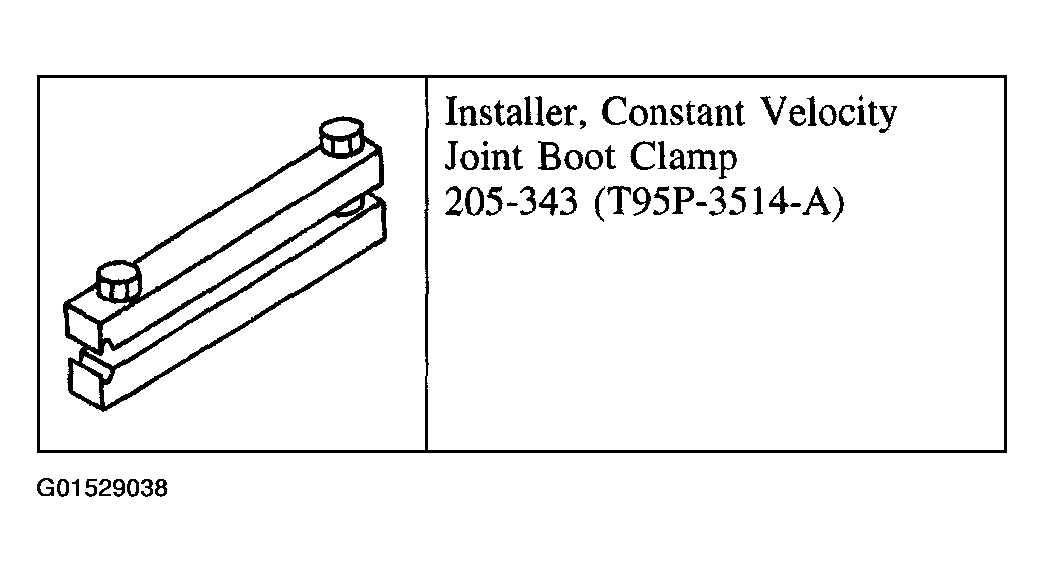

Fig 1: Identifying Special Tool

Courtesy of FORD MOTOR CO.

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
2. Remove the A/C condenser. For additional information, refer to CLIMATE CONTROL SYSTEM .
3. Remove the components in the order indicated in the following illustration and table. To remove individual components, carry out the following steps.

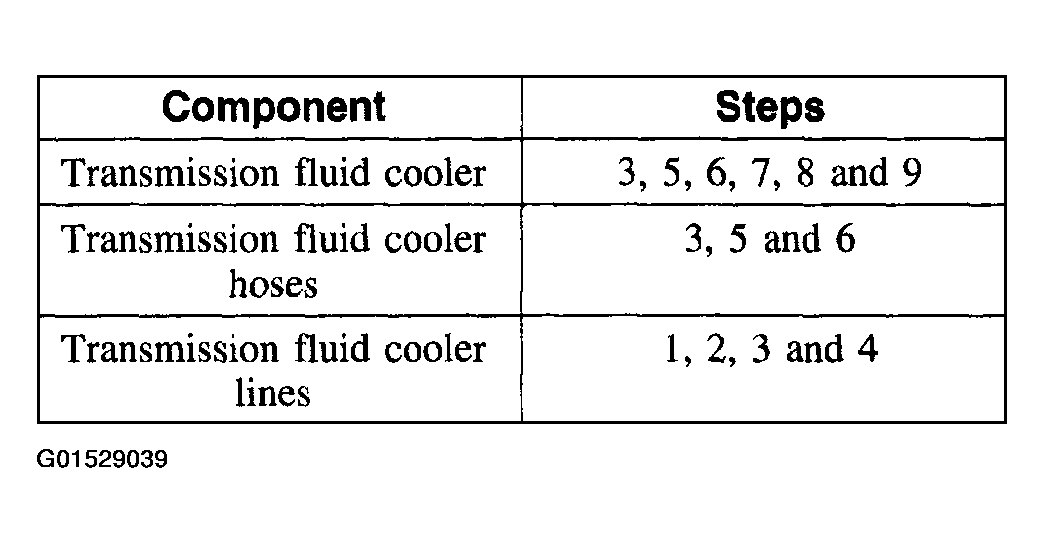

   Fig 2: Components Removal Chart

   Courtesy of FORD MOTOR CO.

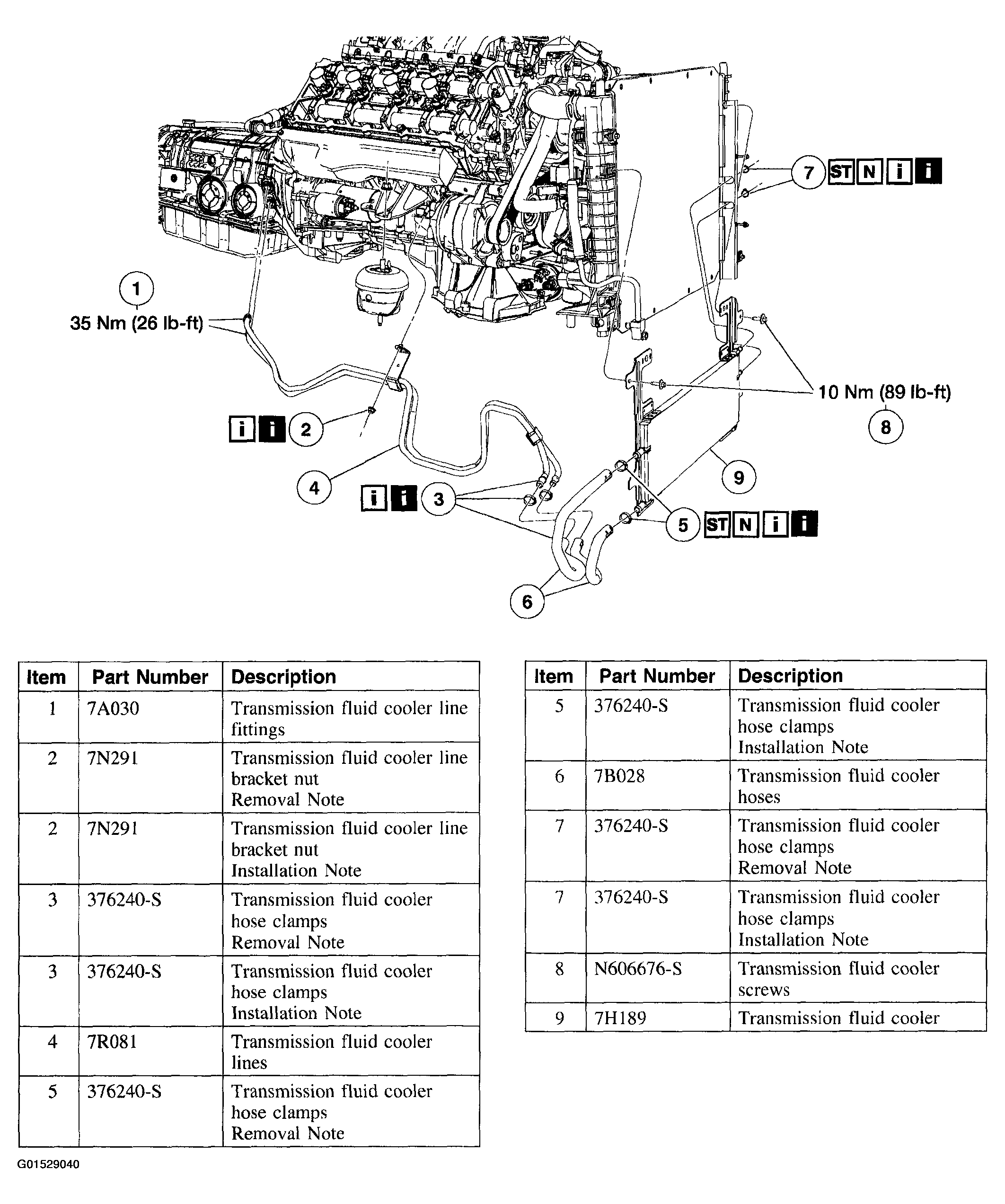

   Fig 3: Transmission Fluid Cooler Removal Sequence

   Courtesy of FORD MOTOR CO.
4. To install, reverse the removal procedure.
