Removal And Installation: Armrest

  1. Raise the armrest to the upright position.
  2. Releasing the clip, remove the armrest.

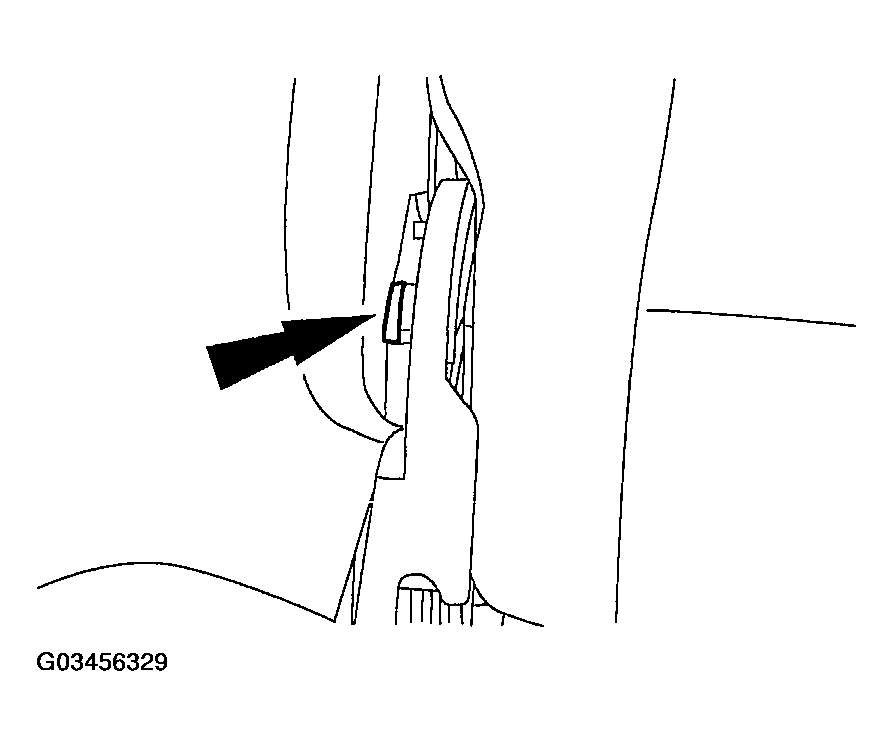

    Fig 1: Removing Armrest Clip
    G03456329Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
