Seat Control Switch: Installation

All vehicles

1. Position the seat control switch. Install the screws.

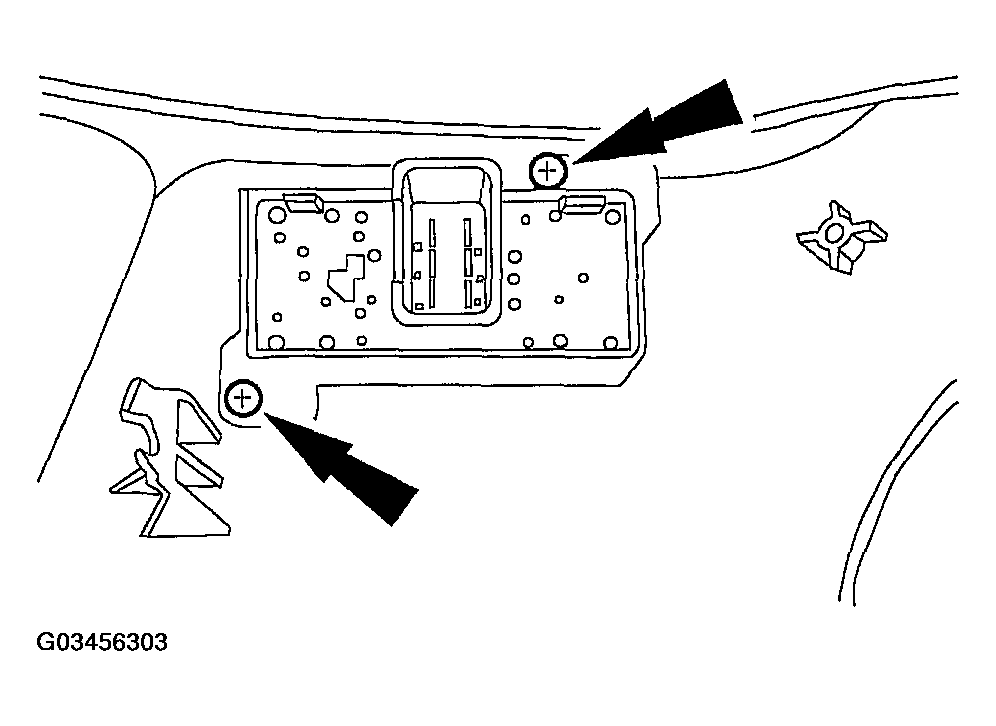

   Fig 1: Positioning Seat Control Switch

   Courtesy of FORD MOTOR CO.
2. Install the seat control switch knob.

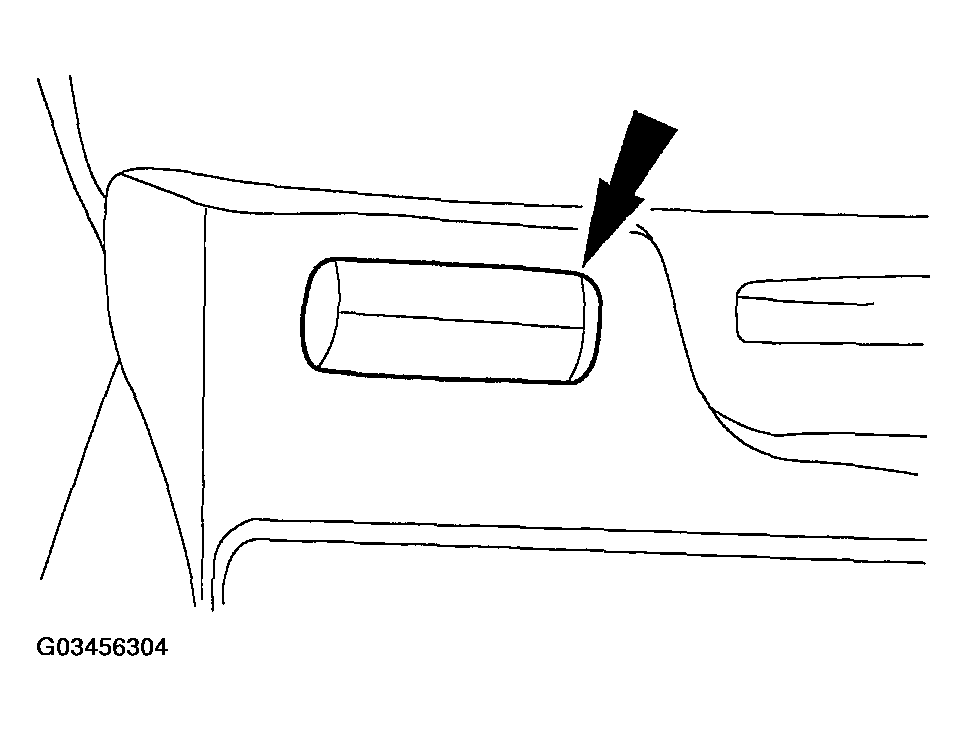

   Fig 2: Installing Seat Control Switch Knob

   Courtesy of FORD MOTOR CO.
3. Position the outboard side shield.
   1. Connect the power seat switch electrical connector.
   2. Install the outboard side shield front retainer (not shown).
      Fig 3: Installing Outboard Side Shield Front Retainer

      Courtesy of FORD MOTOR CO.
4. Engage the outboard side shield retainers.
   1. Lift the outboard side shield.
   2. While holding the side shield up, rotate the side shield, engaging the retainers.

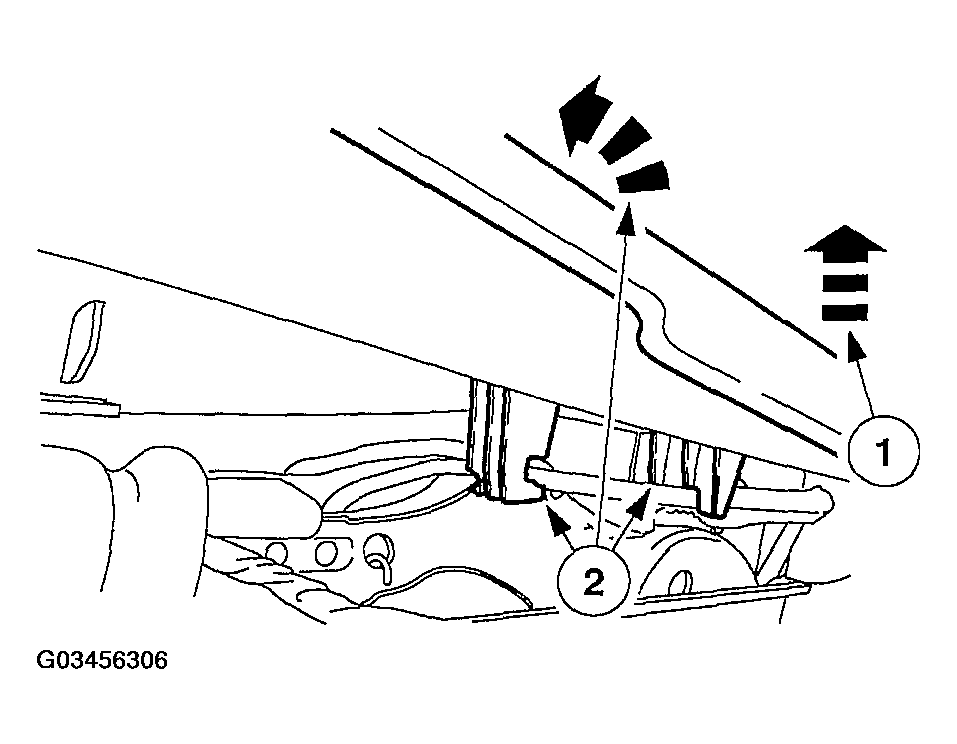

      Fig 4: Rotating Side Shield

      Courtesy of FORD MOTOR CO.
5. Lift, push in and then down, engaging the side shield retainer.

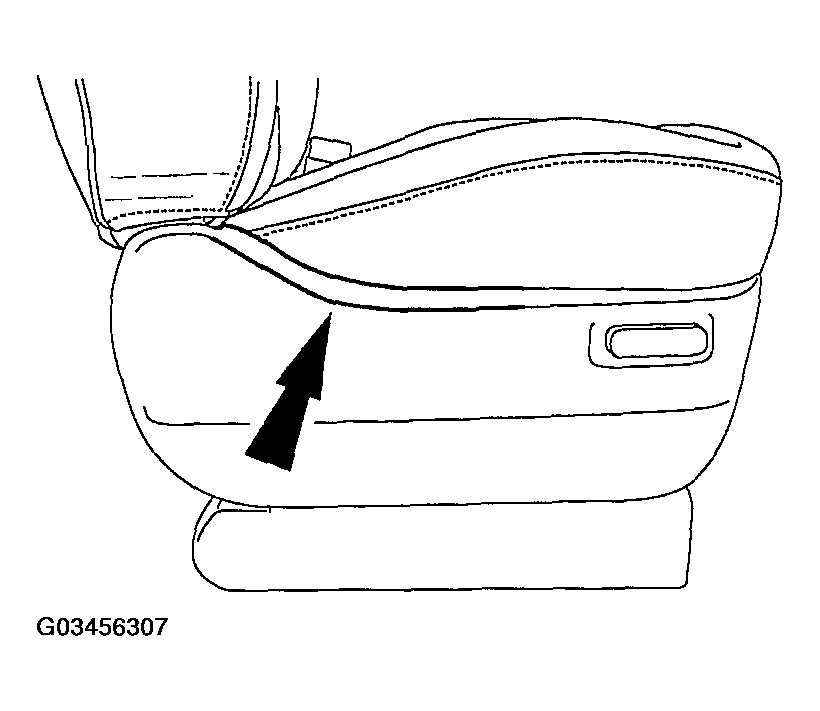

   Fig 5: Engaging Side Shield Retainer

   Courtesy of FORD MOTOR CO.
6. Install the outboard side shield screw.

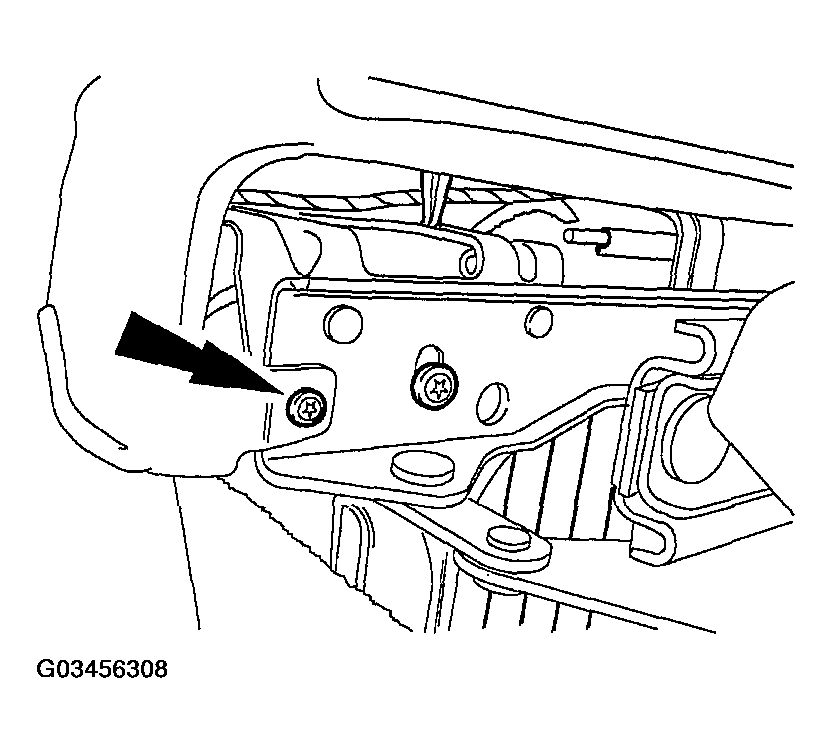

   Fig 6: Installing Outboard Side Shield Screw

   Courtesy of FORD MOTOR CO.
WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the seat removal and installation procedure.
7. Install the affected seat. For additional information, refer to DRIVER SEAT  or PASSENGER SEAT  .
   • Check the active restraint system for correct operation. For additional information, refer to SAFETY BELT SYSTEM .

   Vehicles with side air bags

8. Restore the vehicle to operating condition.
   WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the seat removal and installation procedure.
   1. Install the affected seat. For additional information, refer to DRIVER SEAT  or PASSENGER SEAT  .
   WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure.
   2. Reactivate the supplemental restraint system (SRS). For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION  .
   WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from the vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
   3. With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS). For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION  .
   4. Check the active restraint system for correct operation. For additional information, refer to SAFETY BELT SYSTEM .
