Second Row Side Window Glass: Installation

    NOTE: Clean the area of any remaining butyl.
    NOTE: Apply new butyl to the window assembly.

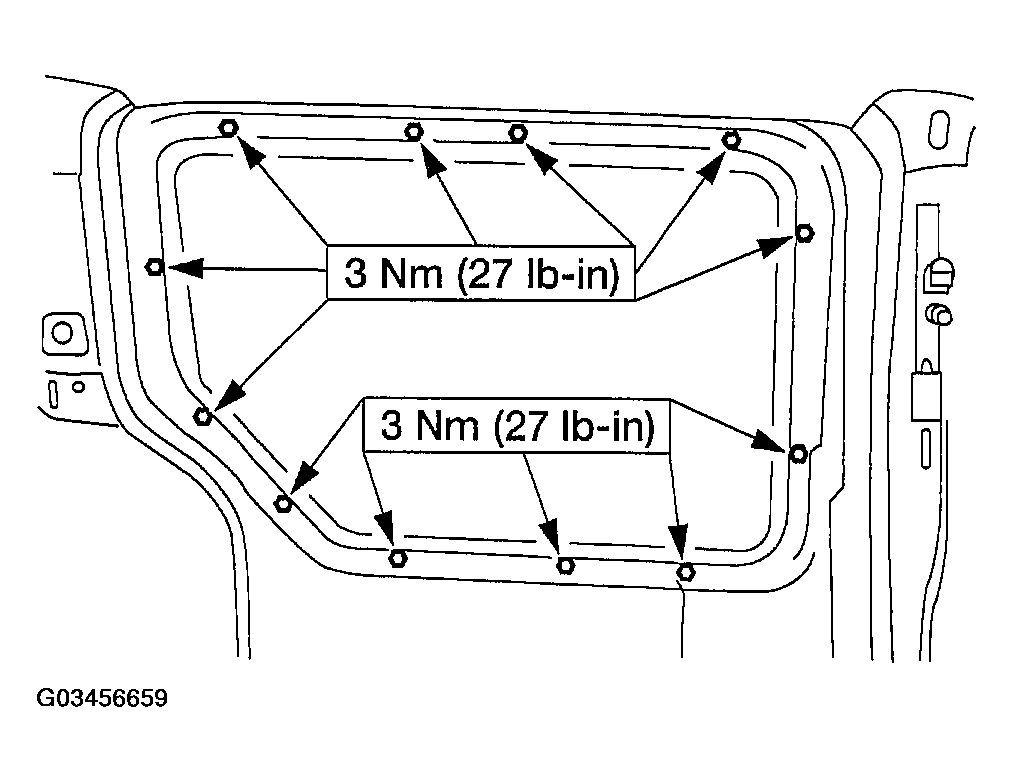

    Fig 1: Tightening Torque For Side Window Glass Nuts
    G03456659Courtesy of FORD MOTOR CO.
  1. To install, reverse the removal procedure.
