Switch - Window Regulator Control: Removal

    CAUTION: Use a shop towel or similar material between the tool and the front door trim panel or damage to the front door trim panel may occur.

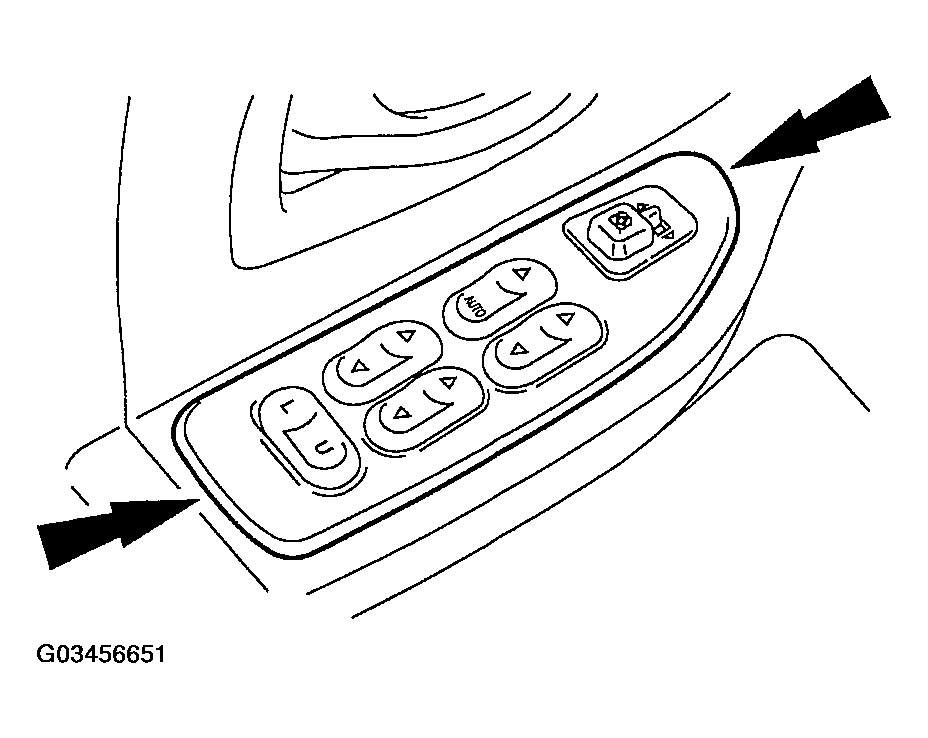

    Fig 1: Disengaging Window Regulator Control Switch
    G03456651Courtesy of FORD MOTOR CO.
  1. Disengage the window regulator control switch.
  2. Disconnect the electrical connectors.

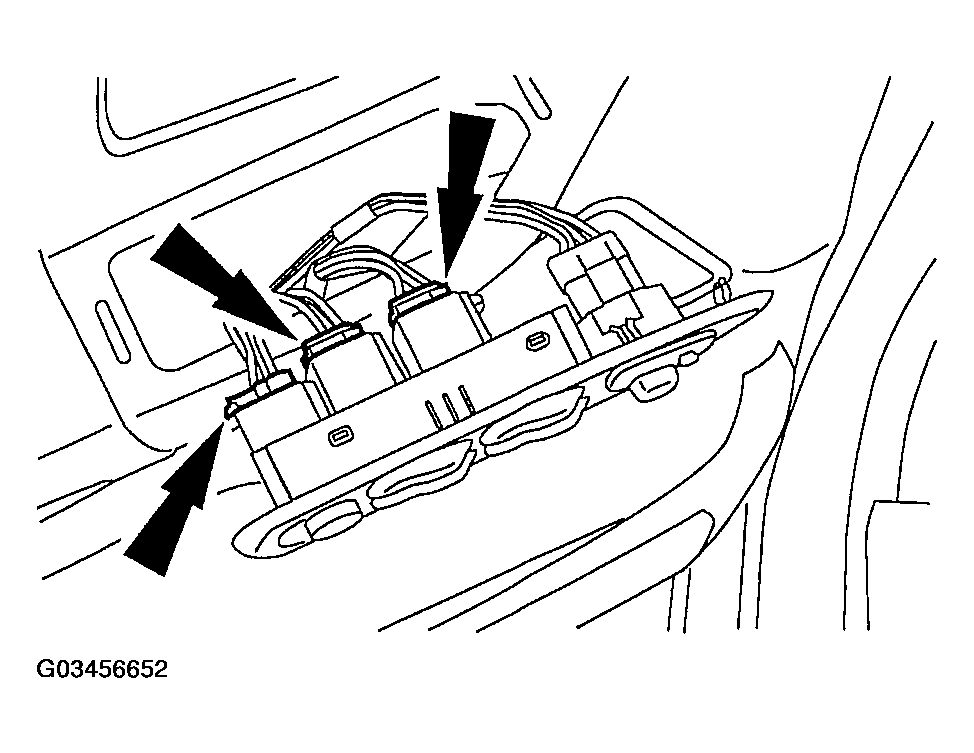

    Fig 2: Disconnecting Electrical Connectors
    G03456652Courtesy of FORD MOTOR CO.
  3. Release the clips and remove the window regulator control switch.
