Symptom Chart

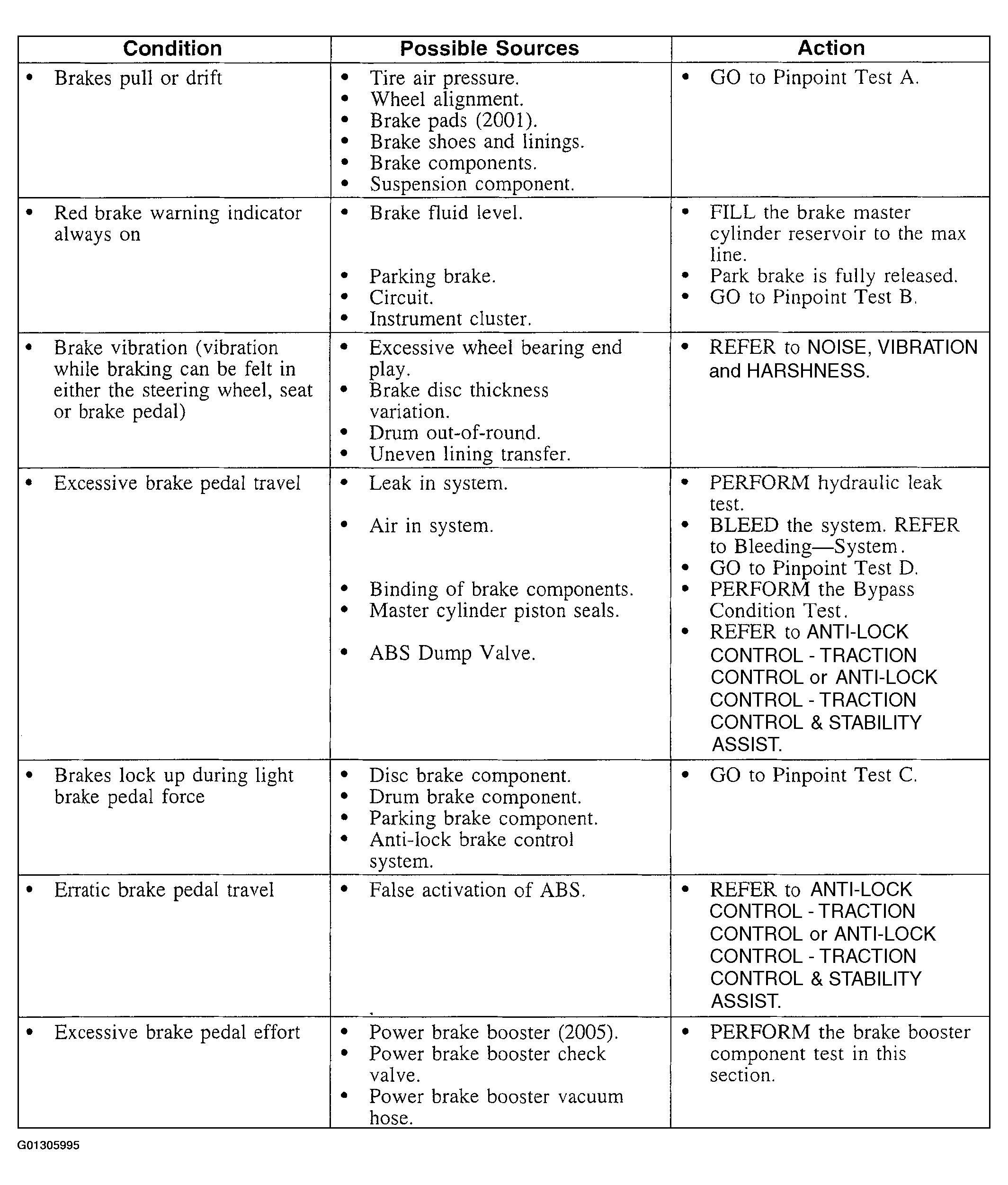

Fig 1: Problem Symptom Chart (1 Of 2)
G01305995Courtesy of FORD MOTOR CO.

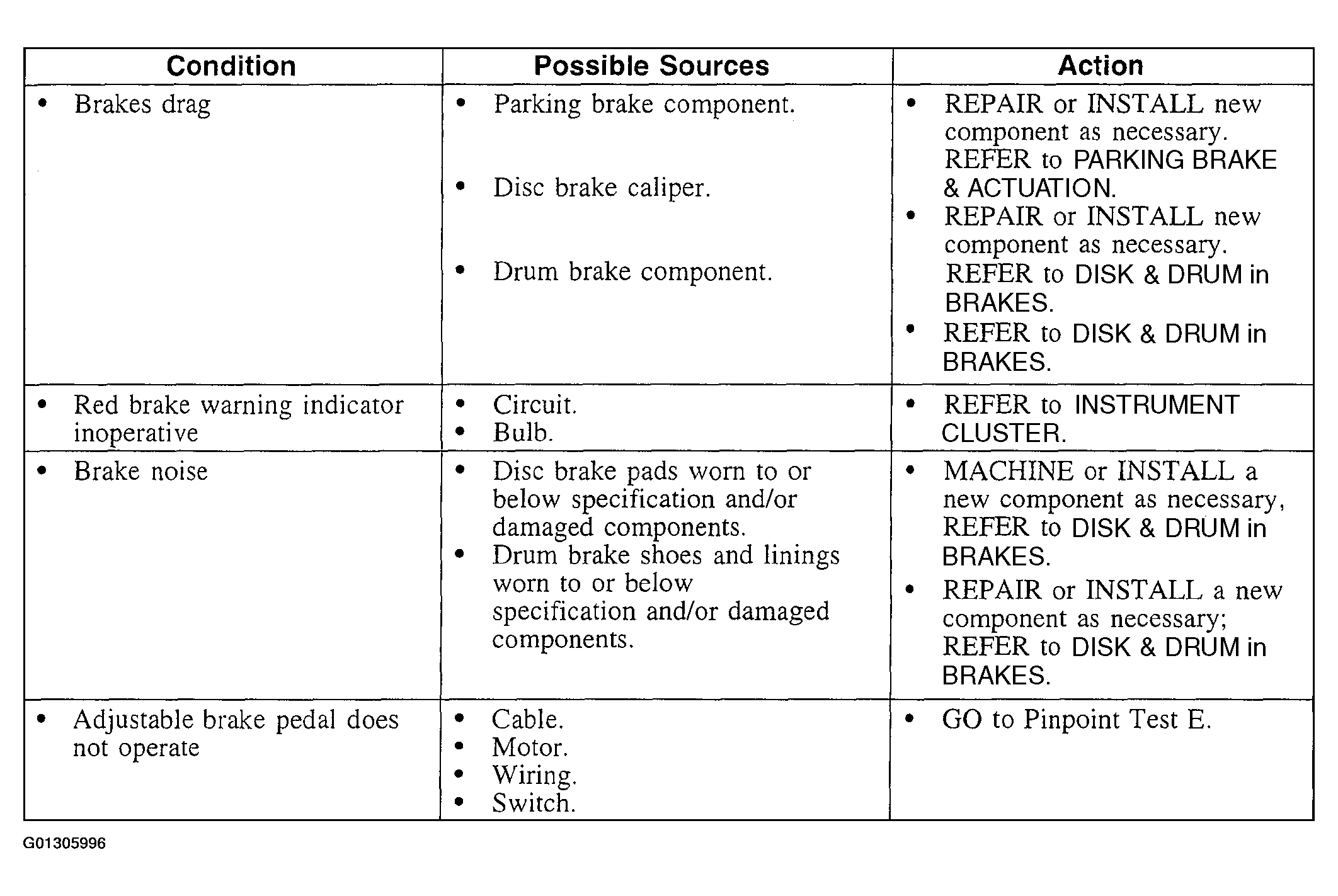

Fig 2: Problem Symptom Chart (2 Of 2)
G01305996Courtesy of FORD MOTOR CO.
