Removal and Installation

Remove the ignition switch lock cylinder.
1. Insert the ignition key and turn to the RUN position.
2. Insert a punch in the access hole of the steering column and press the release tab while pulling out the ignition switch lock cylinder.

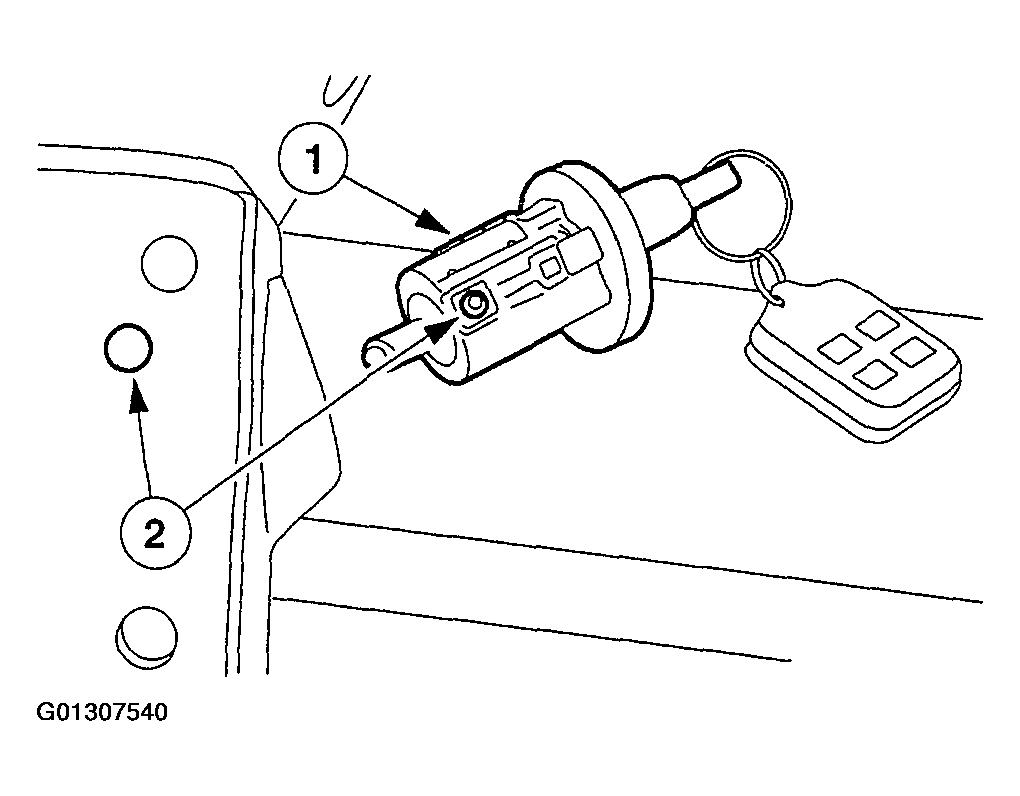

  Fig 1: Identifying Ignition Key And Access Hole Of The Steering Column
  Courtesy of FORD MOTOR CO.
Remove the key-in-ignition warning switch.
1. Pry the clip down.
2. Push the key-in-ignition warning switch off the rear of the ignition switch lock cylinder.

  Fig 2: Removing Key-In-Ignition Warning Switch
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Verify ignition switch lock cylinder operation.

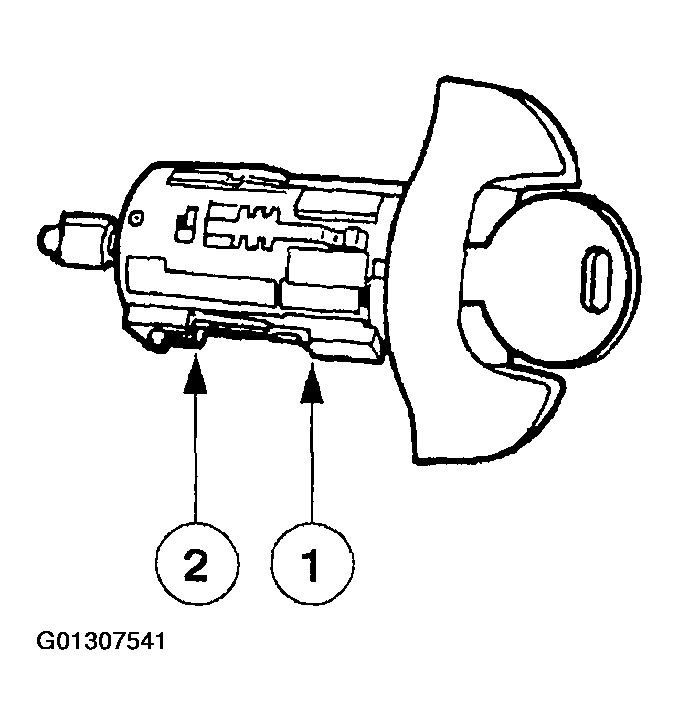

  Fig 3: Identifying Ignition Switch Lock Cylinder
  Courtesy of FORD MOTOR CO.
