Connecting Rod - Side Clearance

  1. Measure the clearance between the connecting rod and the crankshaft. Verify the measurement is within specification.
    • Refer to SPECIFICATIONS .
    • If out of specification, install new components as necessary. Refer to ENGINE article for the procedure.

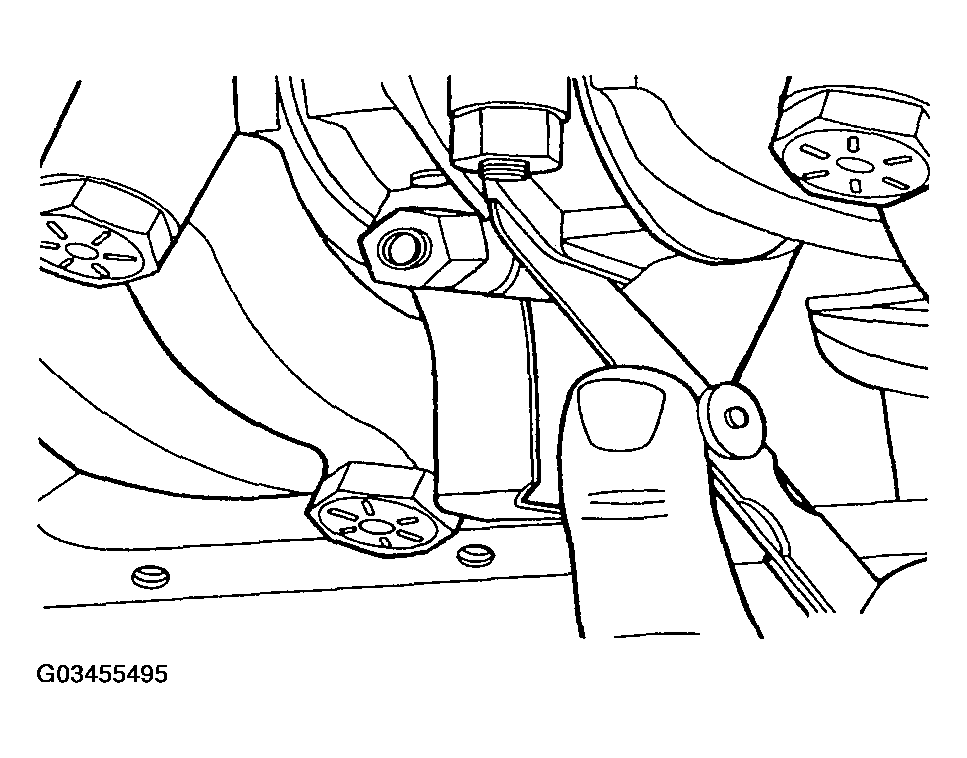

      Fig 1: Measuring Clearance Between Connecting Rod And Crankshaft
      G03455495Courtesy of FORD MOTOR CO.
