Exhaust Manifold - Inspection

Special Tool(s)

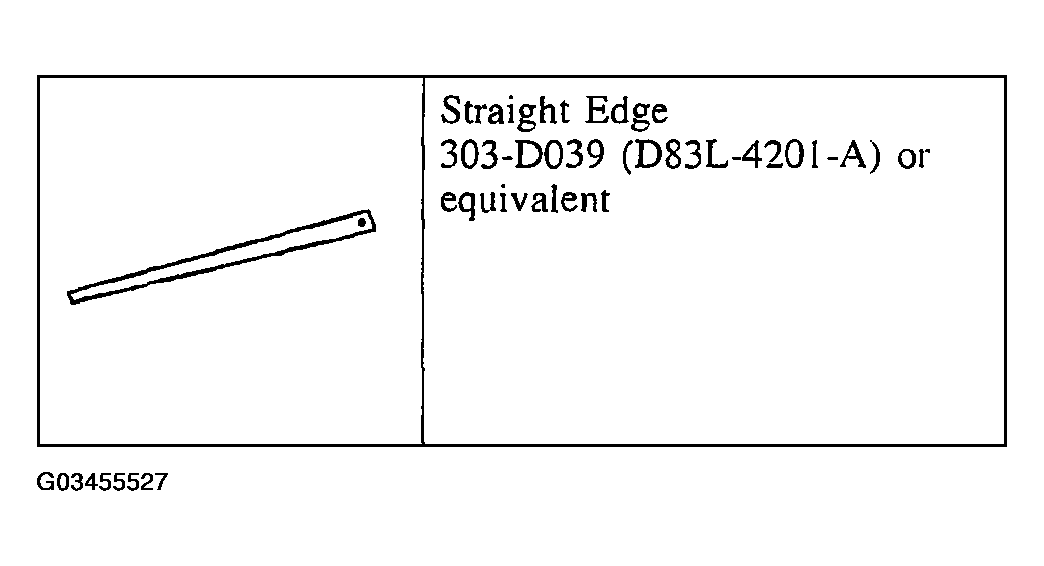

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

1. Place a straight edge across the exhaust manifold flanges and check for warping with a feeler gauge.

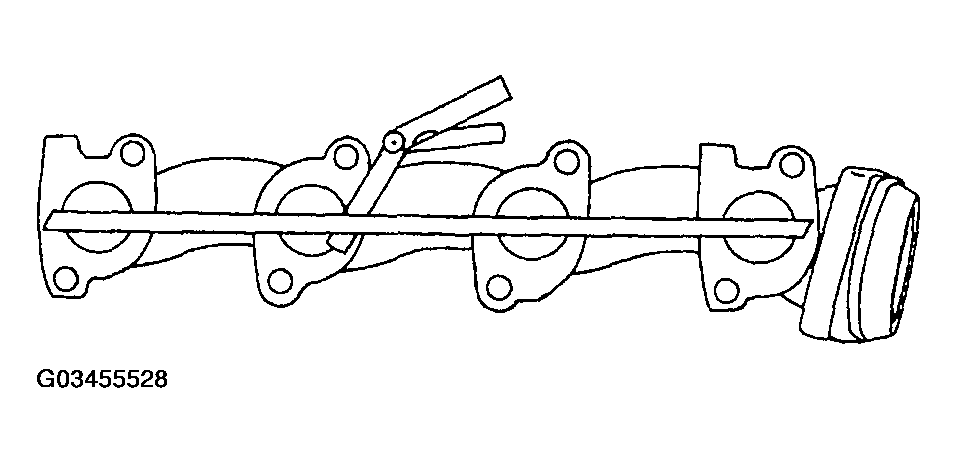

   Fig 2: Placing A Straight Edge Across Exhaust Manifold Flanges

   Courtesy of FORD MOTOR CO.
