Piston - Diameter

  1. Measure the piston diameter 90 degrees from the piston pin at the point indicated. See Fig 1.
    • If out of specification, install new components as necessary. Refer to SPECIFICATIONS . Refer to ENGINE article for the procedure.

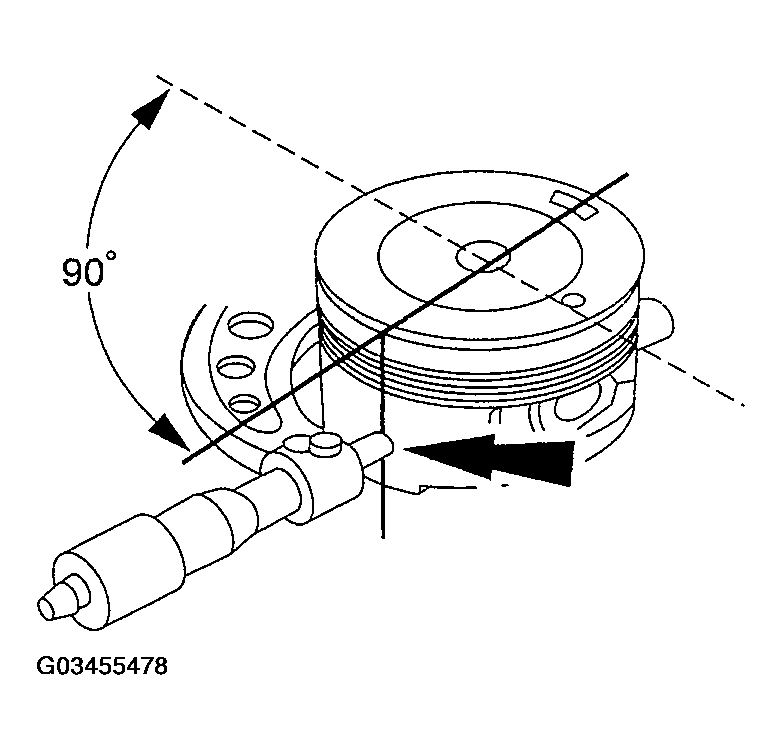

      Fig 1: Measuring Piston Diameter 90 Degrees From Piston Pin At Point
      G03455478Courtesy of FORD MOTOR CO.
