Piston - Pin Diameter

  1. Measure the piston pin diameter in two directions at the points shown. Verify the diameter is within specification.
    • Refer to SPECIFICATIONS .
    • If out of specification, install new components as necessary. Refer to ENGINE article for the procedure.

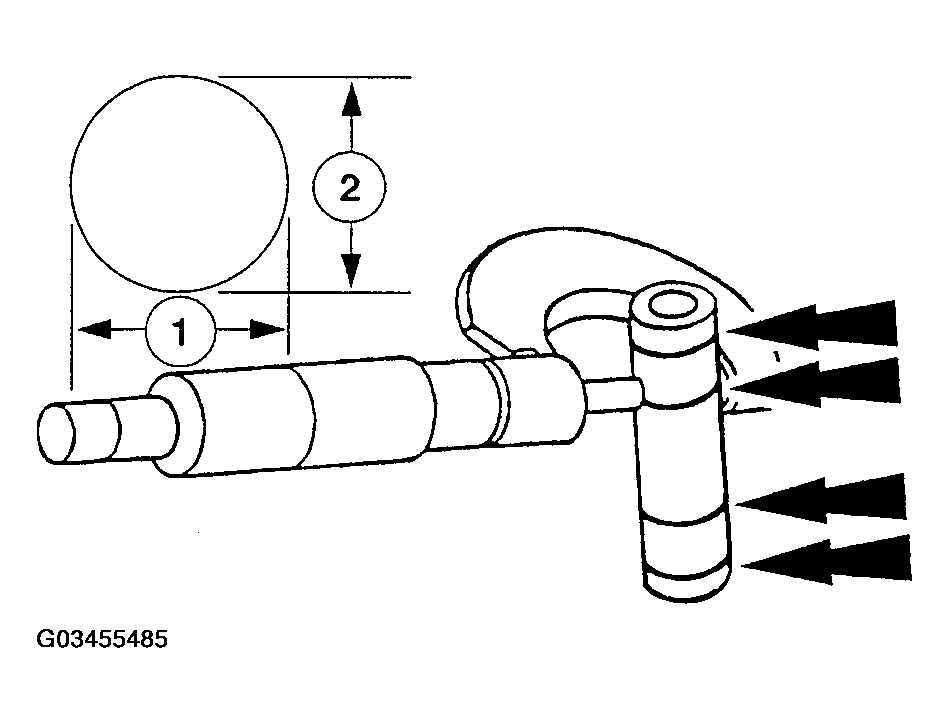

      Fig 1: Measuring Piston Pin Diameter In Two Directions At Points
      G03455485Courtesy of FORD MOTOR CO.
