Piston - Ring End Gap

CAUTION: Use care when fitting piston rings to avoid possible damage to the piston ring or the cylinder bore.

CAUTION: Piston rings should not be transferred from one piston to another.

NOTE: Cylinder bore must be within specification for taper and out-of-round.

Use a piston without rings to push a piston ring in a cylinder to the bottom of ring travel.

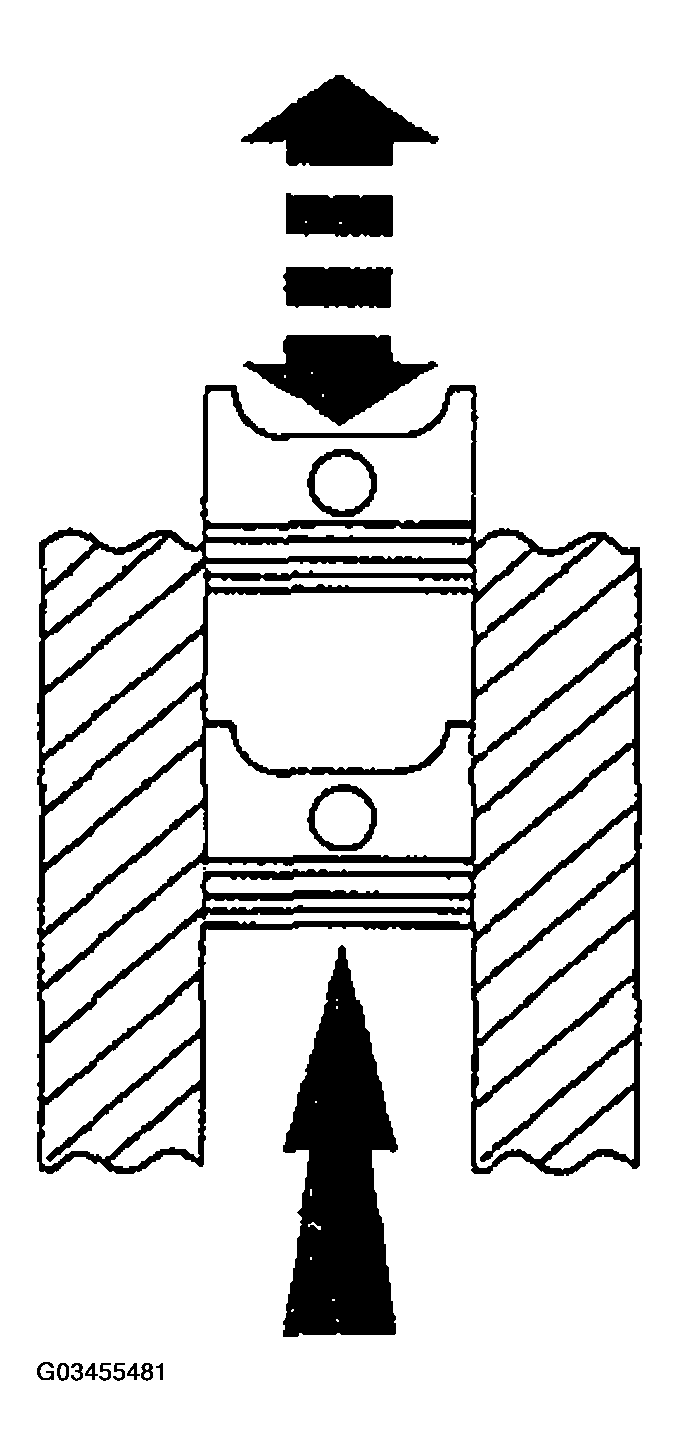

Fig 1: Pushing A Piston Ring In A Cylinder To Bottom Of Ring Travel
Courtesy of FORD MOTOR CO.
Use a feeler gauge to measure the top piston ring end gap and the second piston ring end gap.
- Refer to SPECIFICATIONS . Refer to ENGINE article for the procedure.

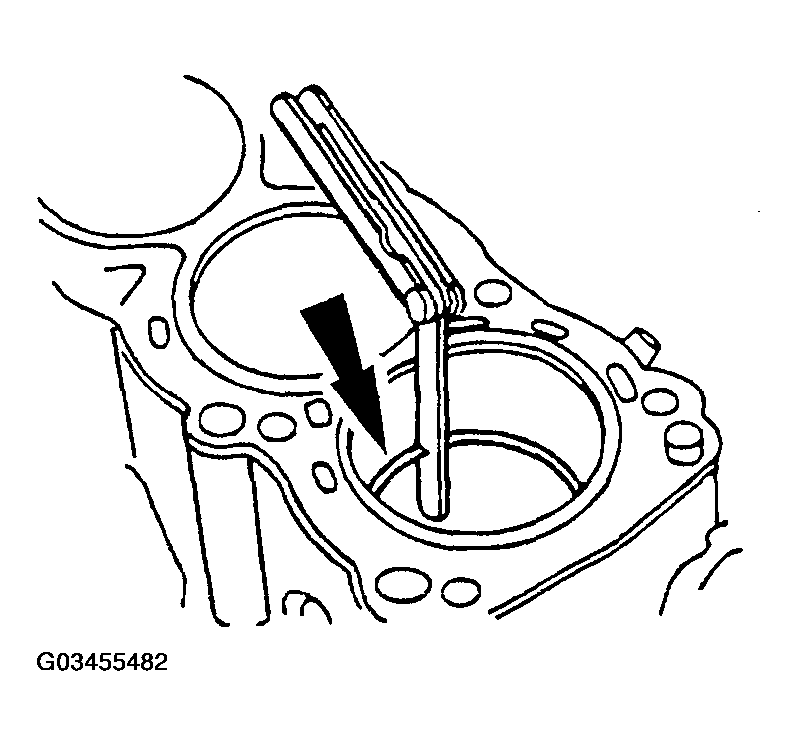

  Fig 2: Using A Feeler Gauge To Measure Top Piston Ring End Gap
  Courtesy of FORD MOTOR CO.
